ioBroker.vis-2-widgets-tibberlink
Tests:
vis-2-widgets-tibberlink adapter for ioBroker
VIS-2 widgets for visualizing Tibber dynamic electricity tariff data: current price, cheapest time window and monthly cost.
More information about Tibber and its dynamic tariffs: https://tibber.com/
Prerequisites
This widget adapter does not fetch any data from Tibber itself. It reads states that are created by the data adapter iobroker.tibberlink. Install and configure tibberlink before using these widgets:
- Install
iobroker.tibberlinkand enter your Tibber API token (from https://developer.tibber.com/settings/accesstoken). - In the tibberlink settings, enable "Historical consumption data retrieval" and set the daily dataset count to at least 31 (required for Widget 3).
- The price widgets (Widget 1 and 2) work automatically once tibberlink is running — no Calculator channels are needed.
Your Home ID is the UUID visible in the ioBroker objects tree under tibberlink.0.Homes.<UUID>, e.g. xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx.
Widgets
Widget 1 — Current Tibber Price
Displays the current electricity price in large text, a colour-coded level badge (VERY_CHEAP … VERY_EXPENSIVE), the valid-from time, and an optional cost breakdown.
| Option | Default | Description |
|---|---|---|
oid_total |
…CurrentPrice.total |
Total price in €/kWh |
oid_energy |
…CurrentPrice.energy |
Energy component in €/kWh |
oid_tax |
…CurrentPrice.tax |
Tax / surcharges in €/kWh |
oid_level |
…CurrentPrice.level |
Price level string |
oid_startsAt |
…CurrentPrice.startsAt |
ISO timestamp of current hour |
show_breakdown |
true |
Show energy and tax tiles |
currency |
ct/kWh |
Unit label shown after the price |
tib_darkmode |
true |
Dark (default) or light theme |

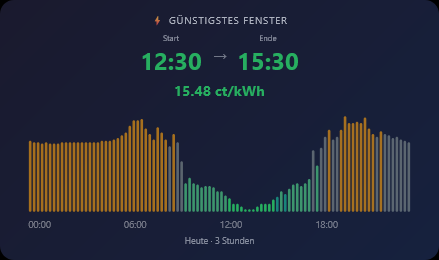

Widget 2 — Cheapest Time Window
Uses a sliding-window algorithm to find the cheapest consecutive N-hour block in today's (and optionally tomorrow's) price data. Displays start and end time, average price, and a colour-coded sparkline bar chart. Slot duration (15 min / 60 min) is auto-detected.
| Option | Default | Description |
|---|---|---|
oid_prices_today |
…PricesToday.json |
JSON array of today's price slots |
oid_prices_tomorrow |
…PricesTomorrow.json |
JSON array of tomorrow's price slots |
amount_hours |
3 |
Window size in hours |
future_only |
true |
Ignore slots that have already ended |
show_tomorrow |
true |
Include tomorrow's prices |
tib_darkmode |
true |
Dark (default) or light theme |
Widget 3 — Live Power Consumption
Shows real-time power draw in large text alongside minimum, average, and maximum values and the accumulated daily consumption and cost. Requires a Tibber Pulse device connected to your meter.
| Option | Default | Description |
|---|---|---|
oid_power |
…LiveMeasurement.power |
Current power in W |
oid_minpower |
…LiveMeasurement.minPower |
Session minimum in W |
oid_avgpower |
…LiveMeasurement.averagePower |
Session average in W |
oid_maxpower |
…LiveMeasurement.maxPower |
Session maximum in W |
oid_consumption |
…LiveMeasurement.accumulatedConsumption |
Daily consumption in kWh |
oid_cost |
…LiveMeasurement.accumulatedCost |
Daily cost in € |
tib_darkmode |
true |
Dark (default) or light theme |

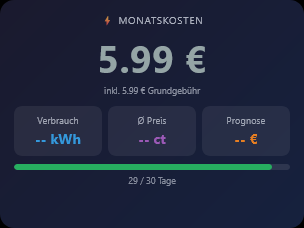

Widget 4 — Monthly Electricity Cost
Aggregates the tibberlink jsonDaily consumption data for the current calendar month. Shows total cost, total consumption, average price, an end-of-month projection, and a progress bar indicating how far through the month you are. Requires "Historical consumption data retrieval" enabled in tibberlink with a daily dataset count of at least 31.
| Option | Default | Description |
|---|---|---|
oid_jsonDaily |
…Consumption.jsonDaily |
JSON array of daily consumption records |
currency_symbol |
€ |
Currency symbol shown after amounts |
show_base_fee |
false |
Add a fixed monthly base fee to totals |
base_fee_per_month |
0 |
Base fee in € (used when show_base_fee is on) |
tib_darkmode |
true |
Dark (default) or light theme |
Changelog
0.4.11 (2026-07-02)
- (ssbingo) Sync template PRs: update Dependabot config, add auto-merge workflow, fix VS Code schema link
0.4.10 (2026-06-13)
- (ssbingo) Re-release to ensure widget group label 'Tibberlink' is served correctly
0.4.9 (2026-06-13)
- (ssbingo) Fix widget group name: removed translation prefix so vis-2 editor shows 'Tibberlink' correctly
0.4.8 (2026-06-13)
- (ssbingo) Update release-script to 5.2.1
0.4.7 (2026-05-27)
- (ssbingo) Add prettier.config.mjs; fix code style to single quotes throughout
0.4.6 (2026-05-27)
- (ssbingo) Add ESLint config and lint script; update Node.js to 24; fix Dependabot for @types/node
0.4.5 (2026-04-29)
- (ssbingo) Fix common.news to remove unpublished versions; fix Dependabot config for src-widgets
0.4.4 (2026-04-29)
- (ssbingo) Fix widget build output directory so vis-2 can load customWidgets.js from the correct path
0.4.3 (2026-04-29)
- (ssbingo) Add widget screenshots to documentation
0.4.2 (2026-04-29)
- (ssbingo) Fix widget file path so vis-2 can load customWidgets.js correctly
0.4.1 (2026-04-29)
- (ssbingo) Fix live view widget positioning; fix monthly cost widget showing previous month instead of current month
0.4.0 (2026-04-28)
- (ssbingo) Migrate all widgets to React/Module Federation (proper install/uninstall lifecycle, no more widgets.html patching)
0.3.3 (2026-04-26)
- (ssbingo) Update documentation
0.3.2 (2026-04-26)
- (ssbingo) Widget 2: replace price chart with TibberCheapestWindow (cheapest N-hour sliding window with sparkline)
0.3.1 (2026-04-25)
- (ssbingo) Widget 1: rename oid_price→oid_total, add oid_startsAt, show_breakdown and currency options
0.3.0 (2026-04-24)
- (ssbingo) New widget: monthly electricity cost with consumption, avg. price and projection
Older changelog entries are in CHANGELOG_OLD.md.
