@abt-desk/rsc v1.3.2

Realogy Shared Components

This library contains the following components and features that can be included in Realogy products:

• Header component
• Footer component
• Advanced footer component
• Speed dial component
• Side nav component
• Theming

Register an application with RSC.

Migration Guide

Migrating to version 1.1:

• To hide the hamburger menu across all view ports add hide-hamburger-btn='true' attribute to rsc-header.

Migrating to version 1:

• The package is now available in es5 and and es2015 specifications.
• The index files are now available at @abt-desk/rsc/lib/es5 and @abt-desk/rsc/lib/es2015 for es5 and es2015 respectively.
• Components are packaged separately, to use the components import the components in the script separately.

Example:

import "@abt-desk/rsc/lib/es5/header"; // for es5
import "@abt-desk/rsc/lib/es2015/header"; // for es6

Changelog

We'll keep track of each release in the CHANGELOG

Installation

npm install @abt-desk/rsc

Integrating into a project

Using webpack (option A)

Working with webpack, you can import the library into your main file.

import "@abt-desk/rsc/lib/polyfills";
import "@abt-desk/rsc/lib/es2015";
import "@abt-desk/rsc/lib/styles.css";

Using embedded script (option B)

Copy the lib folder under your public directory.

<script type="text/javascript" src="public/rsc/lib/polyfills.js"></script>
<script type="text/javascript" src="public/rsc/lib/es2015/index.js"></script>
<link rel="stylesheet" href="public/rsc/lib/styles.css" />

Usage

Include any or all of the components as a regular html tag where they'd logically reside within your HTML structure. For example, you might include the header near the top of the body:

<rsc-header></rsc-header>

Usage to display any additional content

Include the components as a regular html tag with any additional content you wanted to display as below, example: (The additional content which is passed by a consuming application may or may not be optional)

Example:

<rsc-advanced-footer>
  <span>Licensed under CC BY 4.0.<span/>
</rsc-advanced-footer>

Important: It's necessary to enclose your main content into a wrapper with an specific class and pass it to the header component as main-class, It makes the menus work correctly on mobile view ports.

React Example

import React, { Component } from "react";
import "@abt-desk/rsc/lib/polyfills";
import "@abt-desk/rsc/lib/es2015/header";
import "@abt-desk/rsc/lib/es2015/footer";
import "@abt-desk/rsc/lib/es2015";
import "@abt-desk/rsc/lib/styles.css";

import "./App.css";

class App extends Component {
  constructor(props) {
    super(props);
  }

  componentDidMount() {
    const rscClient = window.__RSC__;
    rscClient.setMenuItem({
      name: "My Profile",
      url: "www.google.com",
      icon: "far fa-user",
      target: "_blank",
    });
    rscClient.setMenuItem({
      name: "Reset Dashboard Layout",
      url: "www.github.com",
      icon: "fal fa-repeat-alt",
      target: "_blank",
    });
    rscClient.setMenuItem({
      name: "Settings",
      url: "www.google.com",
      icon: "fal fa-cog",
      target: "_blank",
    });
    rscClient.setMenuItem({
      name: "Log Out",
      url: "www.github.com",
      icon: "fal fa-sign-out-alt",
      target: "_blank",
    });
  }

  render() {
    return (
      <div className="App">
        <rsc-header
          app-key="84bbb33a-27b6-4c6d-b965-242e9a101ec3"
          brand-key="85440"
          username="Sergey"
          main-class="main"
          user-photo="http://www.iconarchive.com/download/i60042/mattahan/ultrabuuf/Comics-Spiderman-Morales.ico"
          okta-id="00uhcgfrmyEIAef7R0h7"
          service-url="https://general.url"
          apps-service-url="https://applications.url"
          avatar-service-url="https://dev-avatar.mycbdesk.com"
        ></rsc-header>
        <div className="main">
          <h1>Sample React App</h1>
          <p>
            Lorem Ipsum is simply dummy text of the printing and typesetting
            industry. Lorem Ipsum has been the industry's standard dummy text
            ever since the 1500s, when an unknown printer took a galley of type
            and scrambled it to make a type specimen book. It has survived not
            only five centuries, but also the leap into electronic typesetting,
            remaining essentially unchanged. It was popularized in the 1960s
            with the release of Letraset sheets containing Lorem Ipsum passages,
            and more recently with desktop publishing software like Aldus
            PageMaker including versions of Lorem Ipsum.
          </p>
        </div>
        <rsc-footer></rsc-footer>
      </div>
    );
  }
}

export default App;

Angular Example

Import the css on the main style file of angular

src/app/styles.scss.

@import '@abt-desk/rsc/lib/styles.css';

Import the polyfills on the polyfills file of angular

src/app/polyfills.ts.

import "@abt-desk/rsc/lib/polyfills";

Add the assets in angular json

"assets": [
  ...
  {
    "input": "./node_modules/@abt-desk/rsc/lib/assets/rsc-icons",
    "glob": "**/*",
    "output": "/assets/rsc-icons/"
  }
],

Enable custom elements on your angular module adding the CUSTOM_ELEMENTS_SCHEMA to the schemas

import { BrowserModule } from "@angular/platform-browser";
import { NgModule, CUSTOM_ELEMENTS_SCHEMA } from "@angular/core";

import { AppComponent } from "./app.component";

@NgModule({
  declarations: [AppComponent],
  imports: [BrowserModule],
  providers: [],
  bootstrap: [AppComponent],
  schemas: [CUSTOM_ELEMENTS_SCHEMA],
})
export class AppModule {}

Import the components in the main file

import { Component, OnInit, AfterViewInit, AfterViewChecked, NgZone } from '@angular/core';
import '@abt-desk/rsc/lib/es2015/header';
import '@abt-desk/rsc/lib/es2015/footer';
import '@abt-desk/rsc/lib/es2015';

function _window(): any {
  return window;
}

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.scss']
})
export class AppComponent implements OnInit, AfterViewInit, AfterViewChecked {
  constructor(private ngZone: NgZone) {

  }
  title = 'angular-integration-test';
  public mounted = false;
  public isSetMenu = false;

  ngOnInit() {
    this.ngZone.run(() => this.mounted = true);
  }

  ngAfterViewInit() {
    const rscClient =  _window().__RSC__;
    if (rscClient && !this.isSetMenu) {
      rscClient.setMenuItem({ name: 'My Profile', url: 'www.google.com', icon: 'far fa-user', target: '_blank'});
      rscClient.setMenuItem({ name: 'Reset Dashboard Layout', url: 'www.github.com', icon: 'fal fa-repeat-alt', target: '_blank'});
      rscClient.setMenuItem({ name: 'Settings', url: 'www.google.com', icon: 'fal fa-cog', target: '_blank'});
      rscClient.setMenuItem({ name: 'Log Out', url: 'www.github.com', icon: 'fal fa-sign-out-alt', target: '_blank'});
      this.isSetMenu = true;
    }
  }
}

Template

<rsc-header
  *ngIf="mounted"
  app-key="84bbb33a-27b6-4c6d-b965-242e9a101ec3"
  brand-key="85440"
  username="Sergey"
  main-class="main"
  user-photo="http://www.iconarchive.com/download/i60042/mattahan/ultrabuuf/Comics-Spiderman-Morales.ico"
  okta-id="00uhcgfrmyEIAef7R0h7"
  service-url="https://general.url"
  apps-service-url="https://applications.url"
  avatar-service-url="https://dev-avatar.mycbdesk.com"
>
</rsc-header>
<div class="main">
  <h1>Sample Angular App</h1>
  <p>
    Lorem Ipsum is simply dummy text of the printing and typesetting industry.
    Lorem Ipsum has been the industry's standard dummy text ever since the
    1500s, when an unknown printer took a galley of type and scrambled it to
    make a type specimen book. It has survived not only five centuries, but also
    the leap into electronic typesetting, remaining essentially unchanged. It
    was popularized in the 1960s with the release of Letraset sheets containing
    Lorem Ipsum passages, and more recently with desktop publishing software
    like Aldus PageMaker including versions of Lorem Ipsum.
  </p>
</div>
<rsc-footer *ngIf="mounted"></rsc-footer>

Note: Ensure to mount the header and footer once your Angular component was mounted. Notice the mounted variable, then the client library will be available.

Plain Web Page Example

<html lang="en">
  <head>
    <meta charset="utf-8" />
    <title>Sample</title>
    <base href="/" />
    <meta http-equiv="x-ua-compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1" />
    <script type="text/javascript" src="public/rsc/lib/polyfills.js"></script>
    <script src="public/rsc/lib/es2015/header.js"></script>
    <script src="public/rsc/lib/es2015/footer.js"></script>
    <script src="public/rsc/lib/es2015/index.js" async></script>
    <link rel="stylesheet" href="public/rsc/lib/styles.css" />
  </head>
  <body>
    <rsc-header
      app-key="84bbb33a-27b6-4c6d-b965-242e9a101ec3"
      brand-key="85440"
      username="Sergey"
      user-photo="http://www.iconarchive.com/download/i60042/mattahan/ultrabuuf/Comics-Spiderman-Morales.ico"
      okta-id="00uhcgfrmyEIAef7R0h7"
      service-url="https://general.url"
      apps-service-url="https://applications.url"
      avatar-service-url="https://dev-avatar.mycbdesk.com"
    >
    </rsc-header>
    <div className="main">
      <h1>Sample Plain Web Page</h1>
      <p>
        Lorem Ipsum is simply dummy text of the printing and typesetting
        industry. Lorem Ipsum has been the industry's standard dummy text ever
        since the 1500s, when an unknown printer took a galley of type and
        scrambled it to make a type specimen book. It has survived not only five
        centuries, but also the leap into electronic typesetting, remaining
        essentially unchanged. It was popularized in the 1960s with the release
        of Letraset sheets containing Lorem Ipsum passages, and more recently
        with desktop publishing software like Aldus PageMaker including versions
        of Lorem Ipsum.
      </p>
    </div>
    <rsc-footer></rsc-footer>
    <script>
      var rscClient = window.__RSC__;
      rscClient.setMenuItem({
        name: "My Profile",
        url: "www.google.com",
        icon: "far fa-user",
        target: "_blank",
      });
      rscClient.setMenuItem({
        name: "Reset Dashboard Layout",
        url: "www.github.com",
        icon: "fal fa-repeat-alt",
        target: "_blank",
      });
      rscClient.setMenuItem({
        name: "Settings",
        url: "www.google.com",
        icon: "fal fa-cog",
        target: "_blank",
      });
      rscClient.setMenuItem({
        name: "Log Out",
        url: "www.github.com",
        icon: "fal fa-sign-out-alt",
        target: "_blank",
      });
    </script>
  </body>
</html>

Client library

With the library exposed, there is additional functionality to interact with the component. Get the rscService as following:

const rscClient = window.__RSC__;

'rscServiceInit' event is emitted after rsc is ready.

Theming

A theme can be added globally by two ways

• By adding a brand key using rsc-client API setGlobalTheme (recommended method).

rscClient.setGlobalTheme("<brandKey>");

• By adding a brand key to the body element as shown below

<body data-rsc-brand-key="<brand-key>">
  ...application template
</body>

There are 3 css variables that are available that holds the primary, accent and warn colors for the current theme.

Variable names:

• --rsc-primary
• --rsc-accent
• --rsc-warn

Example:

.body {
  color: var(--rsc-primary);
}

Header

Import:

import "@abt-desk/rsc/lib/es5/header"; // for es5
import "@abt-desk/rsc/lib/es2015/header"; // for es6

Selector: <rsc-header></rsc-header>

Overview for Header

The header is composed of three main features:

• Waffle Menu
• Notifications (upcoming feature)
• Profile Menu

The Waffle Menu is a set of applications available to the user, so they may more easily access different tools in their product suite, no matter which they may currently be using. The applications can be grouped by category, with an additional set including the most recently accessed by the current user. Do not add extra margins for the waffle menu items that might broken down the title of the waffle menu items.

Notifications are product and company specific notices available within an application that are appropriate in context of the application, rather than an alternative such as email or a push notification. They include unread, read and archived states - as well as an index of all received notifications for future reference.

The Profile Menu is meant to contain all user related links and actions that aren't appropriate for other forms of navigation, such as a tree structure.

This might include the ability to log out of an application, linking to view or edit one's profile, or edit a user's application specific settings and preferences.

Header UI

Header with all content

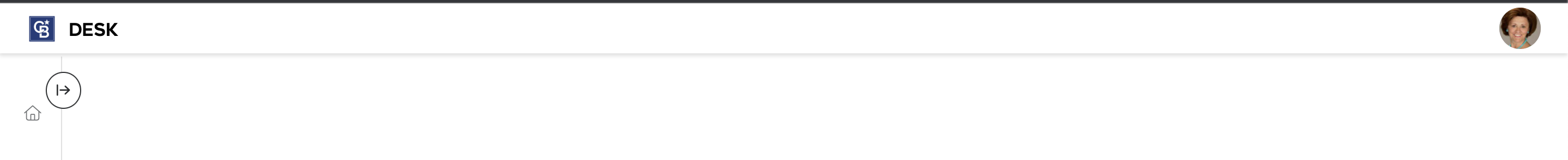

Header with minimum content

User menu

Waffle menu

Header UI for Mobile

Header with all content for mobile	Header with minimum content for mobile

Header mobile menus

User menu for mobile	Waffle menu for mobile

APIs for Header

Properties for Header

The header component receives the following properties:

Example:

  <rsc-header
    app-key="<app key>"
    brand-key="<brand key>"
    username="<user name>"
    user-photo="https://image.test"
    service-url="https://general.url"
    apps-service-url="https://applications.url"
    main-class="main"
    okta-id="<okta id>"
    avatar-service-url="https://dev-avatar.mycbdesk.com"
  />
    // Here you can add you custom component
    <my-custom-component></my-custom-component>
  </rsc-header>

To make the header sticky add the following styles

<header style="position: fixed; width: 100%; top: 0;">
  <rsc-header></rsc-header>
</header>

Methods for Header

The header component receives the following methods:

Set Okta Id

Example:

rscClient.setOktaId(<oktaId>);

Set Access Token

Example:

rscClient.setAccessToken(<token>);

Set Help Docs Url

Example:

rscClient.setHelpDocsUrl(<url>);

Set User

Example:

rscClient.setUser({
  username: "name",
  userPhoto: "https://image.test",
  oktaId: "jh123h1j3hj213j4",
});

Set Username

Example:

rscClient.setUsername(<username>);

Set User First Name

Example:

rscClient.setUserFirstName(<userFirstName>);

Show Profile In User Menu

Example:

rscClient.showProfileInUserMenu(true);

With profile in menu	Without profile in menu

Set User Photo

Example:

rscClient.setUserPhoto(<url>);

Show User Name In Topnav

Example:

rscClient.showUserNameInTopnav(true);

With user name	Without user name

Show Caret Down Icon In Topnav

Example:

rscClient.showCaretDownIconInTopnav(true);

With caret down icon	Without caret down icon

Show Beta Indicator

Example:

rscClient.showBetaIndicator(true);

With beta indicator	Without beta indicator

Show Waffle Menu

Example:

rscClient.showWaffleMenu(false);

With waffle menu	Without waffle menu

Set Home Button Callback

Example:

rsc.setHomeButtonCallback(function () {
  console.log("redirecting to home...");
});

Set Menu Item

Example:

rscClient.setMenuItem({ name: <name>, url: <url>, icon: <icon>, target: <target> });

Remove Menu Item

Example:

rsc.removeMenuItem("name of the menu item");

Set Menu

Example:

rsc.setMenu([
  { name: <name>, url: <url>, icon: <icon>, target: <target> },
  { name: <name>, url: <url>, icon: <icon>, target: <target> }
]);

Events for Header

Hamburger button toggled

Example:

const headerEl = document.getElementsByTagName("rsc-header")[0];

headerEl.addEventListener("rscHamburgerBtnToggled", () => {
  // Execute code after side navigation is closed.
});

Header Interfaces

Menu Item

User

Footer

Import:

import "@abt-desk/rsc/lib/es5/footer"; // for es5
import "@abt-desk/rsc/lib/es2015/footer"; // for es6

selector: <rsc-footer></rsc-footer>

Overview for Footer

The footer component should include standard elements, such as legal information, links to privacy policies, sitemaps, terms of use and company branding and social media links (represented as icons).

Include the components as a regular html tag with any additional content you wanted to display as below, example: (The additional content which is passed by consuming application is optional)

Footer UI

Example:

<rsc-footer *ngIf="mounted">
  <span>It is licensed under CC BY 4.0.</span>
</rsc-footer>

Note: Footer component needs the header component to be mounted

Advanced footer

Import:

import "@abt-desk/rsc/lib/es5/advanced-footer"; // for es5
import "@abt-desk/rsc/lib/es2015/advanced-footer"; // for es6

Selector: <rsc-advanced-footer></rsc-advanced-footer>

Overview for Advanced footer

The advanced footer component should include standard elements, such as legal information, links to privacy policies, sitemaps, terms of use and company branding and social media links (represented as icons) similar to the standard footer plus links to service now and user settings.

Include the components as a regular html tag with any additional content you wanted to display as below, example: (The additional content which is passed by consuming application is optional)

Advanced footer UI

Advanced footer with help desk links

Advanced footer without help desk links

Attributes of Advanced footer

The advanced footer component receives the following properties:

Example:

<rsc-advanced-footer hide-help-desk-resources="false">
  <span>It is licensed under CC BY 4.0.</span>
</rsc-advanced-footer>

Note: Advanced footer component needs the header component to be mounted

Speed Dial

Import:

import "@abt-desk/rsc/lib/es5/advanced-footer"; // for es5
import "@abt-desk/rsc/lib/es2015/advanced-footer"; // for es6

Selector: <rsc-speed-dial></rsc-speed-dial>

Overview of Speed Dial

The speed dial (alternately referred to as a floating action button, or FAB) would be used when you have a set of actions you'd like to make persistently available to users.

The speed dial is presented as a triggering floating action button, anchored to the bottom right of the screen. It will follow users when scrolling. When clicked, an overlay and its constituent child actions will appear.

Each child action should relate to a more broad concept. For example, an additive action, represented as a plus, might contain the ability to add listings, contacts or documents.

Speed dials should contain no more than 6 child actions.

Include the components as a regular html tag and add any of the attributes mentioned below to modify the component.

To replace the default icon with a custom image or content add content inside the rsc-speed-dial tag as shown below.

If side nav is being used, then place the speed dial element outside the side nav element.

<!-- Add custom content -->
<rsc-side-nav></rsc-side-nav>
<rsc-speed-dial>
  <img src="path/to/img"></img>
</rsc-speed-dial>

Options for this component can be set using the methods mentioned below

The main button color can be changed by overriding the 'fab-toggler' class as shown below:

.rsc-speed-dial .fab-toggler {
  background-color: <brand color>;
}

Speed Dial UI

Speed dial closed	Speed dial open

APIs of Speed Dial

Attributes of Speed Dial

Example:

<!-- Font awesome icon override -->
<rsc-speed-dial fab-icon="far fa-align-left"> </rsc-speed-dial>

Methods for Speed Dial

Set a single speed dial

Example:

// without callback
rscClient.setSpeedDialOption({
  name: "Leave Feedback",
  icon: "fal fa-comment-exclamation",
  weight: 2,
  url: "https://www.mycbdesk.com/feedback",
  target: "_blank",
});

// with callback
rscClient.setSpeedDialOption({
  name: "See Help Articles & FAQs",
  icon: "fal fa-question-circle",
  callback: function (option) {
    window.open("https://www.mycbdesk.com/help-center", "_blank");
  },
});

Remove an option

Example:

rscClient.removeSpeedDialOption("Leave Feedback");

Set multiple speed dial options

Example:

rscClient.setSpeedDial([
  {
    name: "Leave Feedback",
    icon: "far fa-align-left",
    weight: 2,
    url: "https://www.mycbdesk.com/feedback",
    target: "_blank",
  },
  {
    name: "See Help Articles & FAQs",
    icon: "fal fa-question-circle",
    url: "https://www.mycbdesk.com/help-center",
  },
]);

Speed Dial Interfaces

Speed Dial Option

Side Nav

Import:

import "@abt-desk/rsc/lib/es5/side-nav"; // for es5
import "@abt-desk/rsc/lib/es2015/side-nav"; // for es6

Selector: <rsc-side-nav></rsc-side-nav>

Overview for Side Nav

The SideNav may be used in applications where content is organized in a tree structure. In the case of this component, this should be limited to applications where the content hierarchy includes 2-3 levels of navigation. More focused task-oriented applications aren't appropriate, but content heavy applications such as intranets should be able to leverage the component to quickly organize content in a way consistent with other products across the organization.

Implementation:

Place the main content of the application inside the side nav element. Ideally header component will be placed above the side nav element and offset height to equal the height of the header.

Set the sidenav config based on the type of device or as required for pages as shown below.

If you'd like to allow users on desktops the convenience of collapsing and expanding the sidenav to provide more room for content, ensure that enableStaggeredNav is set to true.

If speed dial is being used, then place the speed dial element outside the side nav element.

Example:

<header></header>
<rsc-side-nav offset-height="45px">
  <main><main>
</rsc-side-nav>
<rsc-speed-dial></rsc-speed-dial>

For Angular applications add the 'mounted' flag on rsc-side-nav element.

Check 'mounted' flag implementation here

<rsc-side-nav offset-height="45px" *ngIf="mounted === true">
  <!-- main content -->
</rsc-side-nav>

To set active state on the nav item the nav items must have an URL and the whenever the route changes, the current route should be pushed to rsc by calling setCurrentUrl method. Active state will be set only when the nav item URL and the current URL matches.

Other side nav states can be controlled by calling the setSidenavState method.

Side nav UI

Staggered side nav

Side nav collapsed	Side nav expanded

Standard side nav

Side nav collapsed	Side nav expanded

APIs for Side Nav

Attributes of Side Nav

Example:

<rsc-side-nav offset-height="45px"></rsc-side-nav>

Methods for Side Nav

Update side nav state

Example:

rscClient.setSidenavState({
  state: "closed",
});

// Example config for mobile/touch devices
if (widow.innerWidth <= 992) {
  rscClient.setSidenavState({
    enableCache: false,
    enableStaggeredNav: false,
    state: "closed",
    hasBackdrop: true,
  });
}

// Example config for desktop devices
if (widow.innerWidth > 992) {
  rscClient.setSidenavState({
    enableCache: true,
    enableStaggeredNav: true,
    state: "closed",
    hasBackdrop: false,
  });
}

/** Note: these are examples,
 * the sidenav state can be set using any combination of the above mentioned properties
 * for any viewport
 **/

Add a nav item

Example:

// without callback
rscClient.setSidenavItem({
  icon: 'fal fa-book',
  label: 'Education',
  showAnchorTag: true,
  url: '/test',
  openInNewTab: boolean,
  childItems: [
    {
      label: 'level1',
      showAnchorTag: true,
      url: 'level1.com',
      openInNewTab: false,
    }
  ],
});

// with callback
rscClient.setSidenavItem(
{
  icon: 'fal fa-book',
  label: 'Education',
  url: 'https://www.mycbdesk.com/help-center',
  callback: function(option) {window.open('https://www.mycbdesk.com/help-center', '_blank')},
  childItems: [
    {
      label: 'level1',
      showAnchorTag: true,
      url: 'level1.com',
      openInNewTab: false,
    }
  ],
};

Remove a navigation item

Example:

rscClient.removeSidenavItem("Education");

Set multiple sidenav items

Example:

rscClient.setSidenav([
  {
    // First level
    icon: "fal fa-home",
    label: "Desk",
    url: "/",
    callback: () => {
      /* Do something when item is clicked/touched */
    },
    childItems: [
      {
        // Second level
        label: "level2",
        url: "/level2",
        callback: () => {
          /* Do something when item is clicked/touched */
        },
        childItems: [
          {
            // Tertiary level
            label: "level3",
            showAnchorTag: true,
            url: "level3.com",
            openInNewTab: true,
            childItems: [],
          },
        ],
      },
      {
        // Second level
        label: "level21",
        url: "/level21",
        callback: () => {
          /* Do something when item is clicked/touched */
        },
        // No tertiary level
        childItems: [],
      },
    ],
  },
  {
    // First level
    icon: "fal fa-book",
    label: "Education",
    url: "/education",
    callback: () => {
      /* Do something when item is clicked/touched */
    },
    // No second level
    childItems: [],
  },
]);

Update current url

Example:

// full route
rscClient.setCurrentUrl("mycbdesk.com");

// partial route
rscClient.setCurrentUrl("/company");

Toggle sidenav open state

Example:

rscClient.toggleSidenavOpenState();

Events for Side Nav

Sidenav closed

Example:

const sidenavEl = document.getElementsByTagName("rsc-side-nav")[0];

sidenavEl.addEventListener("rscSidenavClosed", () => {
  // Execute code after side navigation is closed.
});

Sidenav opened

Example:

const sidenavEl = document.getElementsByTagName("rsc-side-nav")[0];

sidenavEl.addEventListener("rscSidenavOpened", () => {
  // Execute code after side navigation is opened.
});

Side Nav Interfaces

Sidenav State

Sidenav Item

Constants

Brand keys

Theme palettes
