@anastasia-labs/smart-handles-agent v0.3.5

Table of Contents

• CLI Application Generator for Smart Handles
  • Sample Run of Minswap V1 Instance
  • Interface
  • How to Use
    • 1. Install this package along with smart-handles-offchain:
    • 2. Configure your package.json and tsconfig.js
    • 3. Define your Config
    • 4. Implement your executable source
    • 5. Build your application
    • 6. Run your CLI

CLI Application Generator for Smart Handles

Given a Config value, this package's main generates a CLI interface for interacting with your instance of smart-handles.

export interface Config {
  label?: string;
  quiet?: true;
  network?: Network;
  pollingInterval?: number;
  scriptCBOR: CBORHex;
  scriptTarget: "Single" | "Batch";
  routeDestination: Address;
  advancedReclaimConfig?: AdvancedReclaimConfig;
  simpleRouteConfig?: SimpleRouteConfig;
  advancedRouteConfig?: AdvancedRouteConfig;
  advancedRouteRequestMaker?: (
    requestInfo: RequestInfo
  ) => Promise<Result<AdvancedRouteRequest>>;
}

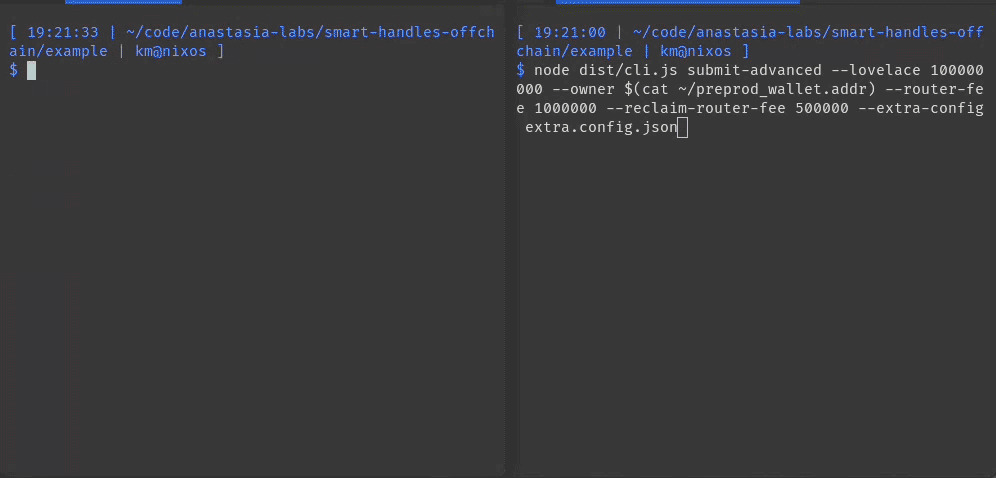

Sample Run of Minswap V1 Instance

Interface

The generated CLI application offers 3 endpoints:

• monitor for querying the instance's address and performing routes to collect their fees
• submit-simple for submitting a simple route request (i.e. attaching a datum that only carries owner's address)
• submit-advanced for submitting an advanced route request. This requires advancedRouteRequestMaker to be defined in the given Config

How to Use

1. Install this package along with smart-handles-offchain:

pnpm install                             \
  @anastasia-labs/smart-handles-offchain \
  @anastasia-labs/smart-handles-agent    \
  @commander-js/extra-typings # optional

2. Configure your package.json and tsconfig.js

Minswap V1 instance is a good reference in case you faced some issues.

3. Define your Config

• label: An optional name for your instance of Smart Handles
• quiet: Optional flag to suppress warning logs
• network: This can be one of "Mainnet", "Preprod", "Preview", or "Custom" (defaults to "Mainnet")
• pollingInterval: Length of time in milliseconds between each query of instance's address for the monitor endpoint
• scriptCBOR: Hex formatted CBOR of the fully applied Smart Handles instance
• scriptTarget: Whether the provided scriptCBOR is a spend script that can only allow single routes per transaction, or it's a staking script capable of supporting a batch of routes in one transaction
• routeDestination: The address where routes should go to, this is a parameter that should already be applied to your instance
• advancedReclaimConfig: If your instance supports advanced reclaims, you should provide its config (read more at smart-handles-offchain)
• simpleRouteConfig: This config is what Smart Handles is primarily intended for, e.g. an ADA-to-MIN via Minswap instance would expect simple datums with owners' addresses, and this config would provide the application with proper logic for producing the correct UTxO at Minswap's address (this only applies to instances that do support simple routes)
• advancedRouteConfig: Similar to other two configs, depending on your instance, you might be required to provide this config

• advancedRouteRequestMaker: The submit-advanced endpoint requires a few values to be provided:

  • --lovelace is the Lovelace count you intend to lock with your request
  • --asset is any additional assets you want locked (can be specified multiple times)
  • --owner optional address to be specified as the owner
  • --router-fee Lovelace count a router agent collects for carrying out the routing
  • --reclaim-router-fee is a sperate fee for router agents in case they invoke the advanced reclaim endpoint (instead of routing)
  • --extra-config path to a .json file carrying any additional values your instance might need

  These are all collected as a RequestInfo and passed to your advancedRouteRequestMaker:

export type RequestInfo = {
  lovelace: bigint;
  asset: Assets;
  owner?: AddressDetails;
  routerFee: bigint;
  reclaimRouterFee: bigint;
  extraConfig?: { [key: string]: any };
};

4. Implement your executable source

This is mostly boilerplate, but can be customized:

#!/usr/bin/env node

import { main, Config, RequestInfo } from "@anastasia-labs/smart-handles-agent";
import { Command } from "@commander-js/extra-typings";
import config from "./config.js";

const program: Command = main(config);

await program
  .parseAsync(process.argv)
  .catch(console.log);

5. Build your application

We recommend tsup:

tsup src/index.ts --minify --format esm

Note that src/index.ts is the path to the executable source you implemented in previous step.

6. Run your CLI

Use the -h or --help flag to learn more about each of the 3 endpoints (monitor, submit-simple, and submit-advanced).

node dist/index.js --help

# or e.g.

node dist/index.js monitor --help
