YET ANOTHER SUDOKU SOLVER

Yes! How exciting? And this is a porting of my original Java code: https://github.com/brunoccc/sudoku

Well, this is probably not the most efficient algorithm out there, but nevertheless I thought it could be interesting to share it as an open source project.

HOW DOES IT WORK

It's basically a simple recursive algorithm that:

  • Finds the empty cell with less possible alternatives
  • Writes the first possible value
  • Calls itself and sees if it solves the puzzle
  • If not, tries with the next possible value
  • If no more values, then it's an impossible task

Compared to a normal brute-force algorithm (which tries all the possible combinations until a solution has been found), this code performs better because of two reasons:

  • It tracks the possible alternatives for each cell (see below how)
  • It always selects the cell with less possible alternatives. Ideally, if the Sudoku has been designed for a human solver, this means that some cells will have a very limited number of possibilities, and the backtracking will not be used often

I think that the tracking of which values are possible is quite interesting. Essentially it keeps a bitmask for each row, column, or block. Each bit set to 1 represents a possible value.
When we write a value in a cell, we set to 0 the corresponding bit for the bitmasks of that row, that column and that block (i.e. "this value is no longer available").
When we need to know the possible values for a cell, we simply combine the bitmasks of that row, column and block using a logical AND.

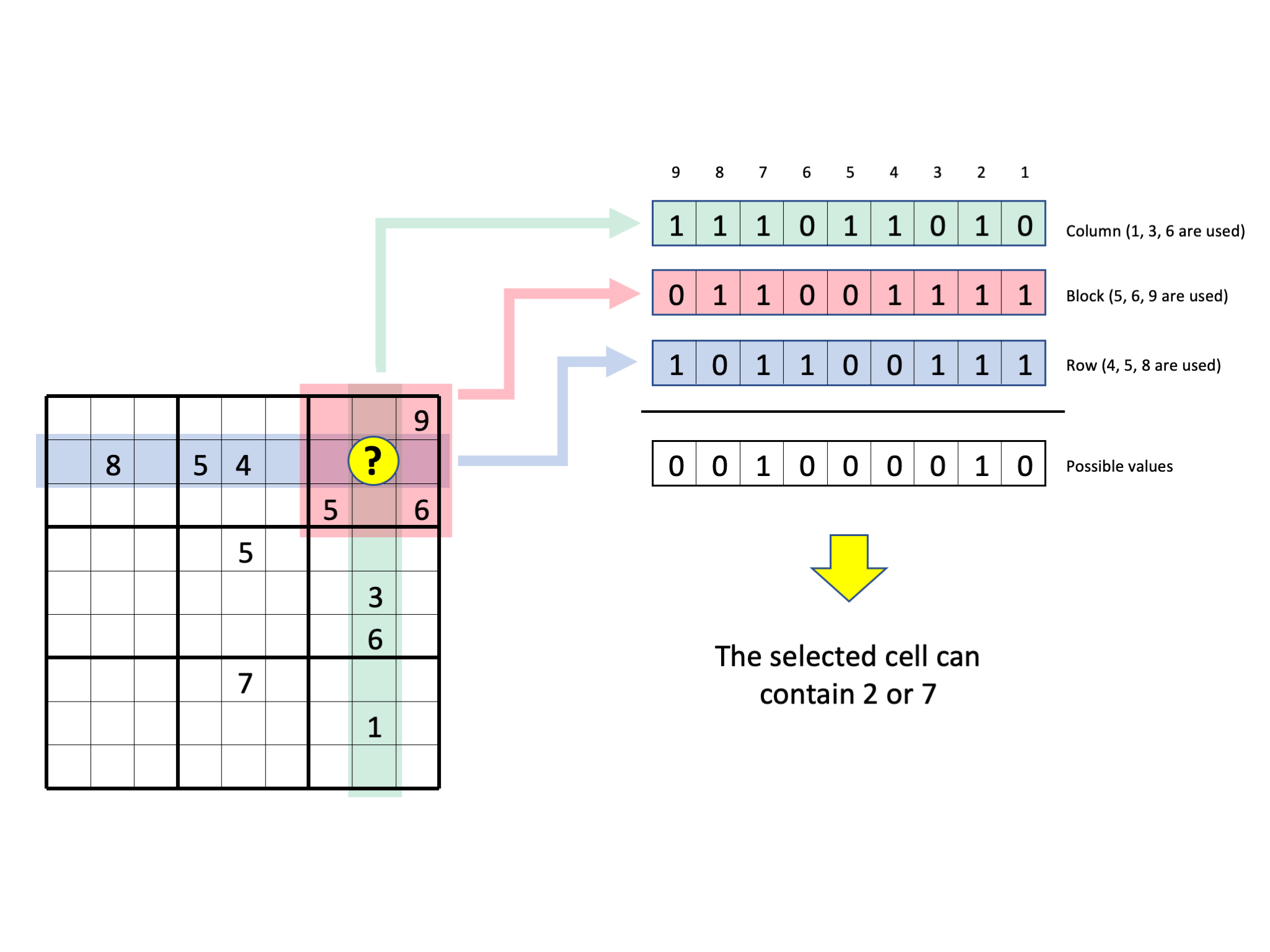

Alternative values and bitmasks

HOW TO USE IT

The easiest way is to use the NPM package. Import the project into your node_modules:

npm install --save @brunoccc/sudokujs

And simply use it:

const { Sudoku } = require('@brunoccc/sudokujs');

const grid = [
    [ 0, 0, 0,   0, 0, 0,    0, 0, 0 ],
    [ 0, 0, 0,   0, 0, 3,    0, 8, 5 ],
    [ 0, 0, 1,   0, 2, 0,    0, 0, 0 ],

    [ 0, 0, 0,   5, 0, 7,    0, 0, 0 ],
    [ 0, 0, 4,   0, 0, 0,    1, 0, 0 ],
    [ 0, 9, 0,   0, 0, 0,    0, 0, 0 ],

    [ 5, 0, 0,   0, 0, 0,    0, 7, 3 ],
    [ 0, 0, 2,   0, 1, 0,    0, 0, 0 ],
    [ 0, 0, 0,   0, 4, 0,    0, 0, 9 ],
];

const sudoku = new Sudoku(grid);

if (sudoku.solve()) {
    console.log("Solved!");
    console.log(sudoku.toString());
} else {
    console.log("Impossible!");
}
