Techradar

This project, inspired by Zalando's and Miguel Silva's techradar, enables users to generate a visualization representing the key frameworks, libraries, tools, platforms, and techniques used in organizations. It also provides information regarding the adoption level of each of these elements. What sets this project apart from other libraries is its unique feature that allows users to customize the number of rings and slices according to their specific needs

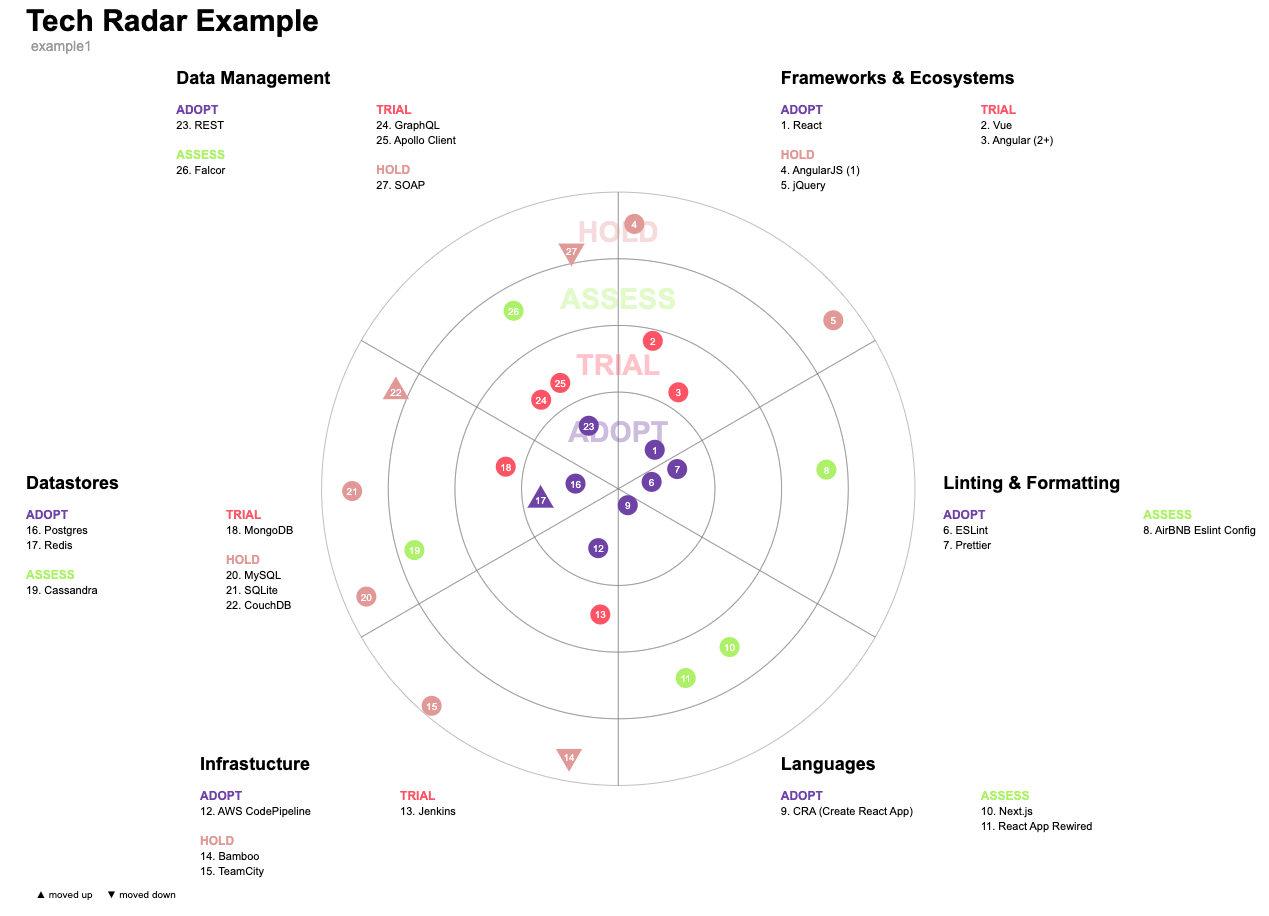

!TIP You can see example techradars created with this library here

✨ Features

visualize your technology in rings and slices
integrate in your own code by only installing and using this library
variable number of rings
variable number of slices / quadrants
use nerdfonts icons

📦 Getting started

Install package with your preferred node package manager

# pnpm
pnpm add @chrishrb/techradar

# npm
npm install @chrishrb/techradar

# yarn
yarn add @chrishrb/techradar

Integrate the techradar in your project

import Techradar, { TechradarData } from '@chrishrb/techradar'

function App() {
  const data: TechradarData = {
    id: "example1",
    rings: [
      { id: "adopt", name: "ADOPT" },
      { id: "trial", name: "TRIAL" },
      { id: "assess", name: "ASSESS" },
      { id: "hold", name: "HOLD", color: "#e09b96" },
    ],
    slices: [
      {
        name: "Frameworks & Ecosystems",
        blipsByRing: {
          adopt: [{ name: "React" }],
          trial: [{ name: "Vue" }, { name: "Angular (2+)" }],
          hold: [{ name: "AngularJS (1)" }, { name: "jQuery" }],
        },
      },
      {
        name: "Linting & Formatting",
        blipsByRing: {
          adopt: [{ name: "ESLint" }, { name: "Prettier" }],
          assess: [{ name: "AirBNB Eslint Config" }],
        },
      },
      {
        name: "Languages",
        blipsByRing: {
          adopt: [{ name: "CRA (Create React App)" }],
          assess: [{ name: "Next.js" }, { name: "React App Rewired" }],
        },
      },
    ],
  };

  return (
    <>
      <Techradar data={example} options={{ radarSize: 600 }} />
    </>
  )
}

export default App

More examples are provided under the src folder in this repository.

 Icons

You can also use icons instead of numbers for the blips. Go to nerdfonts and choose an icon. Afterwards copy the hexcode to your config and add the \u as a prefix. So in this example the hexcode of the react logo is e7ba, add the prefix \u and paste it into the blips configuration. Important: Only the 4 digit hexcodes are working:

...
  slices: [
    {
      name: "Frameworks & Ecosystems",
      blipsByRing: {
        adopt: [{ name: "React", icon: "\ue7ba" }],
      },
    },
...
