@clearblade/cb-dev-kit NPM

CB Dev Kit

Overview

CB Dev Kit provides a CLI application for simpler local development of an exported ClearBlade system by providing an src directory with multiple webpack configurations to handle TypeScript and ES6 transpilation and tools for code-based asset unit-testing.

CB Dev Kit also seamlessly integrates with ClearBlade Hot Reload for assets that automatically transpile and update portals in real time when saved.

Examples

Examples are located in this repo in the examples folder.

Applications

CB Dev Kit currently supports the transpilation of the following asset types:

Code services: js and ts
Code libraries: js and ts
Internal resources (in portals): js, ts, tsx, and jsx
Widget parsers (in portals): js, ts, tsx, and jsx

Prereqs

ClearBlade Platform System: A system created in a ClearBlade Platform, such as platform.clearblade.com.

Setup

If you haven't already, export your system to your local environment using:

cb-cli export [-exportrows] [-exportusers]

All system assets will transfer to the local development environment in their respective folders. All cb-dev-kit commands must be run from an initialized system's directory.

Usage

Installation

Install globally if you will be using a package on multiple systems (recommended), or install locally to a system directory.

npm i -g @clearblade/cb-dev-kit

npm i --save-dev @clearblade/cb-dev-kit

init

Initialize cb-dev-kit to create an src folder, update/create your package.json with the necessary scripts and packages, install all packages, and create a cb-dev-kit directory in the system directory, which contains util functions for handling flag processing and webpack configurations.

cb-dev-kit init

Includes

Src directory
- Where all "created" assets will be stored so code can be written and then transpiled in ES6, JSX, or TypeScript.
- Includes global.d.ts => TS definition file for adding types to Node's global interface for libraries used in code services and libraries.
- Includes setupTests.ts => Boilerplate for mocking out library calls made in code services and libraries.
package.json
- Includes start, build, and test scripts
- Includes all packages necessary for TypeScript, ES6, transpilation, React, and webpack compilation that will be stored in the node_modules directory
- Includes Babel transpilation configurations and Jest testing configurations (see Testing section for more details)

Asset setup

There are two ways to set up an asset in an src directory:

generate- Recommended
create

generate

(Recommended) Launches a generator to walk through setting up an asset in an src directory to be accessed by webpack for transpilation, testing, or ClearBlade Hot Reload, providing available asset names and types

Highlights

No need to look up flags and asset names/IDs
Selection of all asset types that can be created in an src folder
Selection of all specific assets for each type
Selection of file types available for the asset (js, ts, jsx, tsx)
Prompt for auto-generating adjacent unit test file for the generated file
Prompt for auto-generating a React component template for HTML widgets

cb-dev-kit generate

npm.io

create

(Alternative to generate) Sets up an asset in an src directory to be accessed by webpack for transpilation, testing, or ClearBlade Hot Reload

cb-dev-kit create <options>

Flag	Overview	Example
portal	Portal name
widgetId	Widget ID, source will include all available parsers	`cb-dev-kit create -portal=<portalname> -widgetId=<widgetId>`
internalResource	internal resource name (including extension)	`cb-dev-kit create -portal=<portalname> -internalResource=<internalResource>`
service	service name (without file extension)	`cb-dev-kit create -service=<serviceName> -type=ts`
library	library name (without file extension)	`cb-dev-kit create -library=<libraryName> -type=ts`
type	(optional) file type of new source file. Options include js, jsx, ts, and tsx. Defaults to js	`cb-dev-kit create -portal=<portalname> -widgetId=<widgetId> -type=tsx`
unitTests	(optional) set to true to include an adjacent auto-generated unit test file	`cb-dev-kit create -service=<serviceName> -type=ts -unitTests=true`

build

Builds an asset or multiple assets from an src directory into its respective system directory

cb-dev-kit build <options>

Flag	Overview	Example
portal	Portal name. Builds all portal internal resources and widgets	`cb-dev-kit build -portal=<portalname>`
widgetId	Widget ID. Builds all parsers in widget	`cb-dev-kit build -portal=<portalname> -widgetId=<widgetId>`
internalResource	Internal resource name (including extension)	`cb-dev-kit build -portal=<portalname> -internalResource=<internalResource>`
service	Service name (without file extension)	`cb-dev-kit build -service=<servicename> -type=ts`
library	Library name (without file extension)	`cb-dev-kit build -library=<libraryname> -type=ts`
all	Builds all assets in src directory	`cb-dev-kit build -all`
all-services	Builds all services in src directory	`cb-dev-kit build -all-services`
all-libraries	Builds all libraries in src directory	`cb-dev-kit build -all-libraries`
all-portals	Builds all portals in src directory	`cb-dev-kit build -all-portals`
all-widgets	Builds all widgets in a portal's directory	`cb-dev-kit build -all-widgets -portal=<portalname>`

clearblade-hot-reload

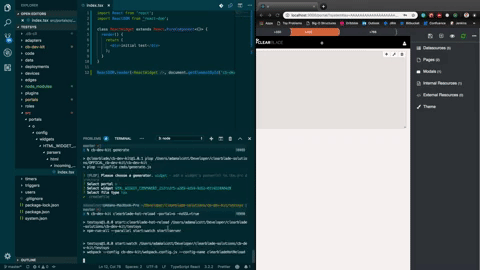

Allows any changes made to a portal inside src or directly in the system's portal directory to update the portal in real time when the file is saved

npm.io

Usage

Install globally if you will be using a package on multiple systems (recommended) or install locally to a system directory

npm i -g @clearblade/clearblade-hot-reload

npm i --save-dev @clearblade/clearblade-hot-reload

Initialize ClearBlade Hot Reload from within the portal by clicking the icon (displayed below) at the top right of the Dev console. A success notification should display, else check the console for information on any errors.

Initialize the hot reload server from the local system directory.

cb-dev-kit clearblade-hot-reload start

Flag	Overview	Example
portal	Portal name	-portal=\
messagePort	Should be set to the same -messagePort the console runs on. Defaults to 1883.	-messagePort=1884
noSSL	Disables SSL for non-TLS connections on local systems. If on a production system with TLS enabled, ignore this flag and set -messagePort to 1884	-noSSL=true
caPath	If pointing at a production system and your certificate authority is not DigiCert, you must use -caPath to provide the absolute path of your CA.	-caPath=///*/ca.pem

Running tests

Configuration

cb-dev-kit init will automatically install jest and provide the jest configuration in your system's package.json to check the src directory for test files, including babel configurations for jsx and tsx files.
cb-dev-kit init will also automatically create a setupTests.ts file in src that provides a boilerplate for mocking out global objects for libraries to be used in code services and libraries.
