@ingensystems/flow-builder v1.0.0

简介

English | 简体中文

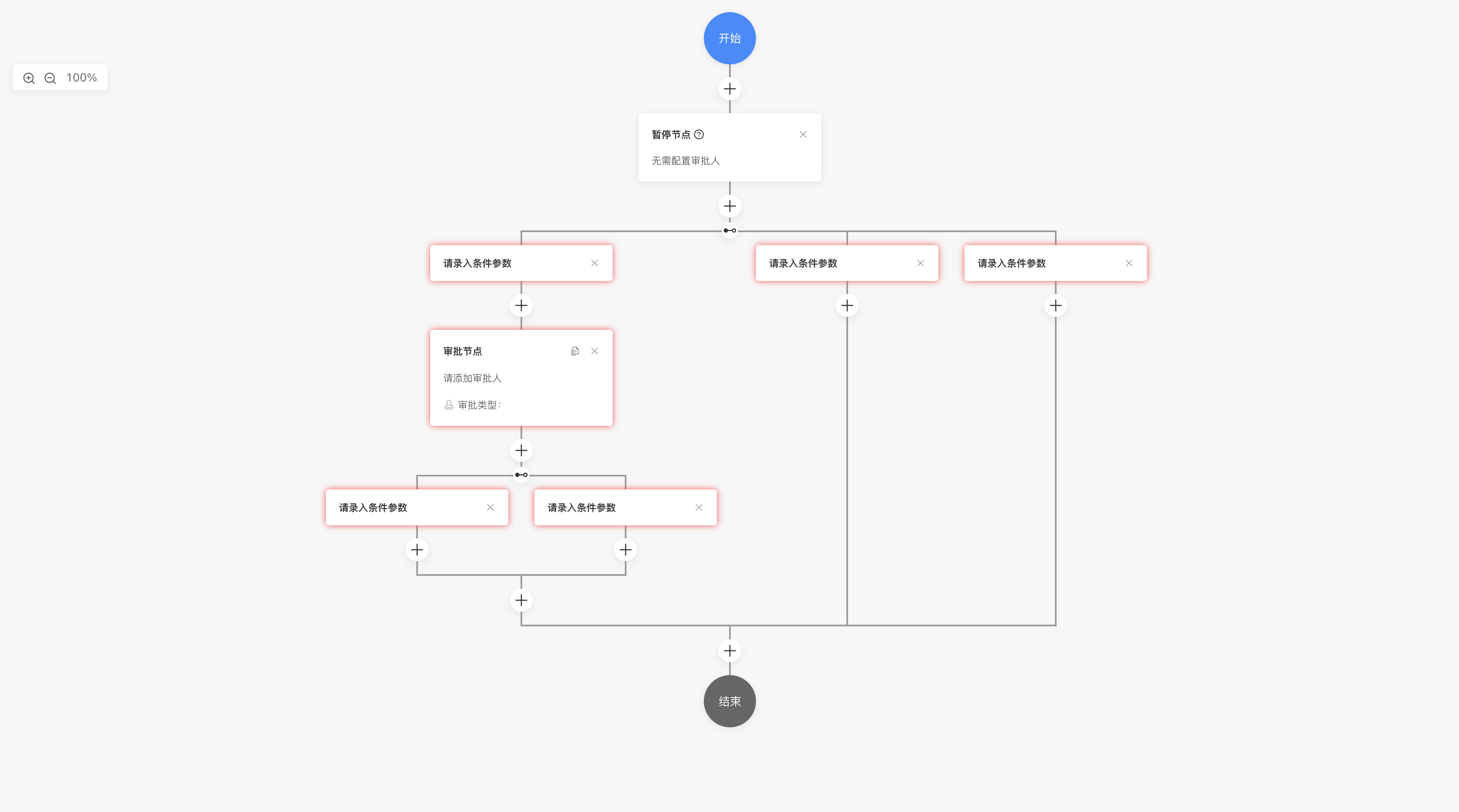

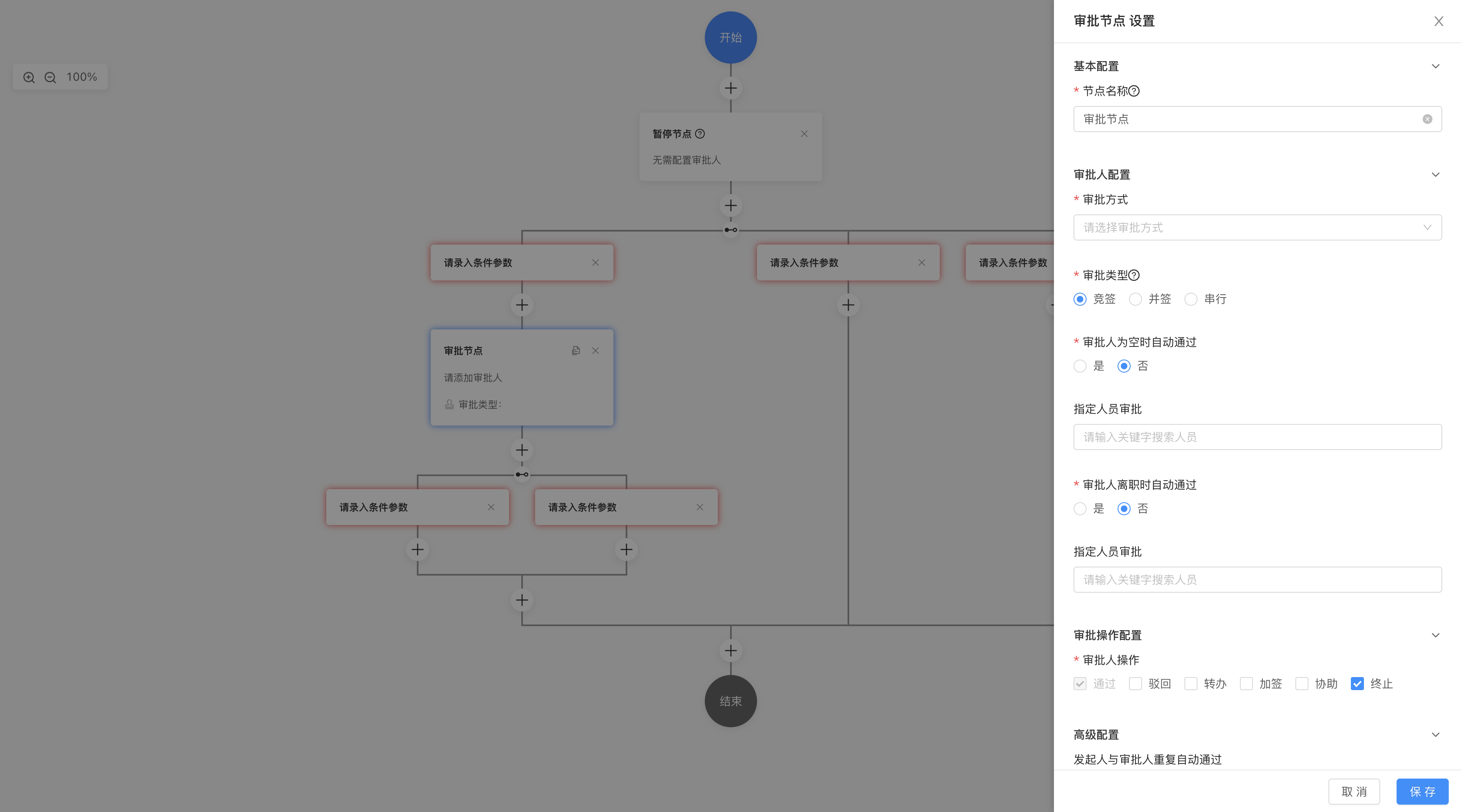

高度可定制的流式流程引擎。注册能力可以灵活定制你的节点类型以及不同类型的节点展示和节点表单等。

试一试

https://bytedance.github.io/flow-builder

Github

https://github.com/bytedance/flow-builder

安装

yarn add react-flow-builder

或

npm install react-flow-builder

Usage

// index.tsx
import React, { useState, useContext } from 'react';
import FlowBuilder, {
  NodeContext,
  INode,
  IRegisterNode,
} from 'react-flow-builder';

import './index.css';

const StartNodeDisplay: React.FC = () => {
  const node = useContext(NodeContext);
  return <div className="start-node">{node.name}</div>;
};

const EndNodeDisplay: React.FC = () => {
  const node = useContext(NodeContext);
  return <div className="end-node">{node.name}</div>;
};

const OtherNodeDisplay: React.FC = () => {
  const node = useContext(NodeContext);
  return <div className="other-node">{node.name}</div>;
};

const ConditionNodeDisplay: React.FC = () => {
  const node = useContext(NodeContext);
  return <div className="condition-node">{node.name}</div>;
};

const registerNodes: IRegisterNode[] = [
  {
    type: 'start',
    name: '开始节点',
    displayComponent: StartNodeDisplay,
    isStart: true,
  },
  {
    type: 'end',
    name: '结束节点',
    displayComponent: EndNodeDisplay,
    isEnd: true,
  },
  {
    type: 'node',
    name: '普通节点',
    displayComponent: OtherNodeDisplay,
  },
  {
    type: 'condition',
    name: '条件节点',
    displayComponent: ConditionNodeDisplay,
  },
  {
    type: 'branch',
    name: '分支节点',
    conditionNodeType: 'condition',
  },
];

const Demo = () => {
  const [nodes, setNodes] = useState<INode[]>([]);

  const handleChange = (nodes: INode[]) => {
    console.log('nodes change', nodes);
    setNodes(nodes);
  };

  return (
    <FlowBuilder
      nodes={nodes}
      onChange={handleChange}
      registerNodes={registerNodes}
    />
  );
};

export default Demo;

// index.css
.start-node, .end-node {
  height: 64px;
  width: 64px;
  border-radius: 50%;
  line-height: 64px;
  color: #fff;
  text-align: center;
}

.start-node {
  background-color: #338aff;
}

.end-node {
  background-color: #666;
}

.other-node, .condition-node {
  width: 224px;
  border-radius: 4px;
  color: #666;
  background: #fff;
  box-shadow: 0 0 8px rgba(0, 0, 0, 0.08);
}

.other-node {
  height: 118px;
  padding: 16px;
  display: flex;
  flex-direction: column;
}

.condition-node {
  height: 44px;
  padding: 12px 16px;
}

API

FlowBuilder

HistoryToolConfig

ZoomToolConfig

DragComponent

DropComponent

DrawerComponent

PopoverComponent

PopconfirmComponent

FlowBuilderInstance

Formatter

RegisterNode

RegisterRemoteNode

DisplayComponent

ConfigComponent

AddableComponent

Node

Context

V1 版本新增

在 FlowBuilder 的上下文环境中，可以使用以下 context

BuilderContext

包含 props 和 state。以下为 state

NodeContext

在调用的地方，获取到所在节点的数据。具体内容见 Node

Hooks

V1 版本新增

在 FlowBuilder 的上下文环境中，可以使用以下 hooks

useAction

useDrawer

useZoom

useHistory

useSort
