@joaosousa/react-native-progress-steps NPM

@joaosousa/react-native-progress-steps

A lightweight and simple React Native component that tracks your progress by steps.

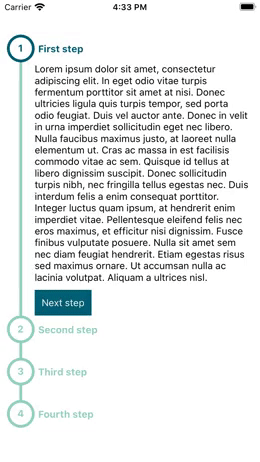

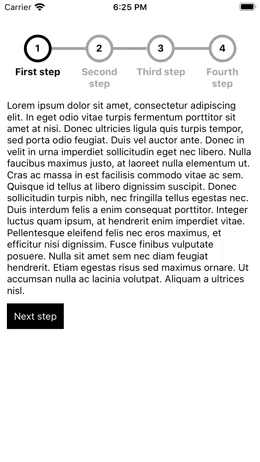

example 1 example horizontal

Installation

Using yarn:

yarn add @joaosousa/react-native-progress-steps

Using npm:

npm install @joaosousa/react-native-progress-steps

Usage

You can use it as is, using default components:

import ProgressSteps, { Title, Content } from '@joaosousa/react-native-progress-steps';

const [step, setStep] = useState(0);

<ProgressSteps
  currentStep={step}
  steps={[
    {
      id: /* Your id */,
      title: <Title>{/* Your title */}</Title>,
      content: <Content>{/* Your content */}</Content>,
    },
    {
      id: /* Your id */,
      title: <Title>{/* Your title */}</Title>,
      content: <Content>{/* Your content */}</Content>,
    },
  ]}
/>;

If you want to customize, you can use the property colors following the structure on the example below:

import ProgressSteps, { Title, Content } from '@joaosousa/react-native-progress-steps';

const [step, setStep] = useState(0);

<ProgressSteps
  currentStep={step}
  steps={[
    {
      id: /* Your id */,
      title: <Title>{/* Your title */}</Title>,
      content: <Content>{/* Your content */}</Content>,
    },
    {
      id: /* Your id */,
      title: <Title>{/* Your title */}</Title>,
      content: <Content>{/* Your content */}</Content>,
    },
  ]}
  colors={{
    title: {
      text: {
        normal: '#94d2bd',
        active: '#005f73',
        completed: '#005f73',
      },
    },
    marker: {
      text: {
        normal: '#94d2bd',
        active: '#005f73',
        completed: '#f4f3ee',
      },
      line: {
        normal: '#94d2bd',
        active: '#005f73',
        completed: '#005f73',
      },
    },
  }}
/>

Or, alternatively, with your own custom components:

import ProgressSteps from '@joaosousa/react-native-progress-steps';
import YourMarker from './YourMarker';
import YourTitle from './YourTitle';
import YourContent from './YourContent';

const [step, setStep] = useState(0);

<ProgressSteps
  marker={<YourMarker />}
  currentStep={step}
  steps={[
    {
      id: /*Your id*/,
      title: <YourTitle>{/*Your title*/}</YourTitle>,
      content: <YourContent>{/* Your content */}</YourContent>,
    },
    {
      id: /*Your id*/,
      title: <YourTitle>{/*Your title*/}</YourTitle>,
      content: <YourContent>{/* Your content */}</YourContent>,
    },
  ]}
/>;

To help you make visual changes, the property stepState will be automatically injected in your custom components with the following data:

{
  stepIndex: number;
  isActive: boolean;
  isCompleted: boolean;
  isFirst: boolean;
  isFirstInteraction: boolean;
  isLast: boolean;
}

Here is an example of stepState usage in a custom component:

import { Text } from 'react-native';

const CustomTitle = ({ children, stepState: { isCompleted } }) => {
  if (isCompleted) {
    return <Text>Well done! This step was completed.</Text>;
  }

  return <Text>{children}</Text>;
};

export default CustomTitle;

Properties

ProgressSteps

Name	Description	Default	Type	Optional
currentStep	The index of the currently active step	none	Number	No
steps	List of steps	none	Array	No
orientation	Support for vertical or horizontal orientation	'vertical'	String	Yes
marker	Custom step identifier	Marker	ReactElement	Yes
colors	Property that let you add customization	none	Object	Yes

Steps array model

[
  {
    id?: string | number,
    title: ReactElement,
    content?: ReactElement,
  },
  ...
]

Colors customization model

{
  title?: {
    text: {
      normal: string,
      active: string,
      completed: string
    }
  },
  marker?: {
    text: {
      normal: string,
      active: string,
      completed: string
    },
    line: {
      normal: string,
      active: string,
      completed: string
    }
  }
}
