Constrainautor

A library for constraining triangulations from Delaunator.

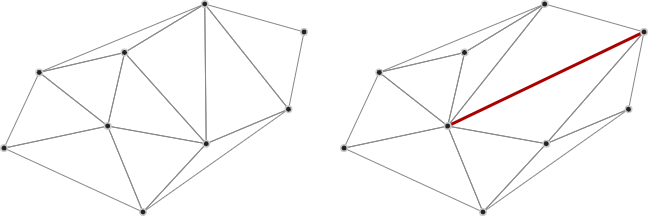

Constrained triangulation

Example

Constrainautor takes a Delaunay triangulation (from Delaunator), and turns it into a constrained (but not necessarily conforming) triangulation. You specify two points in the triangulation, and Constrainautor ensures there is an edge between those points.

// A diamond
const points = [[150, 50], [50, 200], [150, 350], [250, 200]],
	// Creates a horizontal edge in the middle
	del = Delaunator.from(points),
	con = new Constrainautor(del);

// .. but we want a vertical edge, from [150, 50] to [150, 350]:
con.constrainOne(0, 2);
// del now has the constrained triangulation, in the same format that
// Delaunator outputs

Constrained diamond

Install

Install from NPM:

npm install @kninnug/constrainautor

Use in Node.js:

const Constrainautor = require('@kninnug/constrainautor');

or as an ECMAScript/ES6 module:

import Constrainautor from '@kninnug/constrainautor';

or in the browser:

<script src="node_modules/@kninnug/constrainautor/lib/Constrainautor.js"></script>

or minified:

<script src="node_modules/@kninnug/constrainautor/lib/Constrainautor.min.js"></script>

The Constrainautor library does not depend on Delaunator itself, but the input is expected to be in the format that Delaunator outputs. The ES module variant (lib/Constrainautor.mjs) depends on robust-predicates, but the CommonJS and minified versions (lib/Constrainautor.cjs and lib/Constrainautor.min.js) come with this dependency compiled in, and can be used standalone. The (source) TypeScript version is in Constrainautor.ts.

Usage

Besides being in the format that Delaunator outputs, the library has these other requirements on the input data:

Points are not duplicated, i.e. no two points have the same x and y coordinates.
No two constrained edges intersect with eachother.
Constrained edges do not intersect with any point in the triangulation (beside their end-points).
The outer edges of the triangulation form a convex hull.
The triangulation has no holes.

The last two requirements are already guaranteed by Delaunator, but are important to keep in mind if you modify the triangulation before passing it to Constrainautor. If one or more of these requirements are not met, the library may throw an error during constrainment, or produce bogus results.

To triangulate a set of points, and constrain certain edges:

Define the points to be triangulated: points = [[x1, y1], [x2, y2], ...].
Define the edges to be constrained: edges = [[0, 1], [3, 4], ...]. These are indices into the points array.
Generate a triangulation (using Delaunator): del = Delaunator.from(points).
Make a constrainer: con = new Constrainautor(del). Note that del will be modified by the Constrainautor methods.
Constrain the triangulation: for(const [p1, p2] of edges){ con.constrainOne(p1, p2); }.

Alternatively, you can call con.constrainAll(edges), which will constrain all the edges in the supplied array. Or, (since version 4.0.0), call new Constrainautor(del, edges) with the Delaunator output and the edges array to create the Constrainautor and constrain the edges in one go.

You can then use the triangulation in del as described in the Delaunator guide.

If you change the point coordinates and their triangulation (via Delaunator#update), you need to re-constrain the edges by creating a new Constrainautor and going through steps 3 - 5 again.

API reference

More details can be found in the comments of Constrainautor.ts.

con = new Constrainautor(del, edges)

Construct a new Constrainautor from the given triangulation. The del object should be returned from Delaunator, and is modified in-place by the Constrainautor methods. If edges is provided, it will constrain those with constrainAll.

con.constrainOne(p1, p2)

Constrain an edge in the triangulation. The arguments p1 and p2 must be indices into the points array originally supplied to the Delaunator. It returns the id of the half-edge that points from p1 to p2, or the negative id of the half-edge that points from p2 to p1. Note: this half-edge id is only valid up to the next call to constrainOne, after which the constrained edge will still be there, but may have a different id.

con.delaunify(deep = false)

Check non-constrained edges if they satisfy the Delaunay condition (for every two triangles sharing an edge, neither lies completely within the circumcircle of the other), and flip the edge if they don't. If deep is true, it will check & correct until all flipped edges satisfy the condition, otherwise it will do only one pass and some edges may still not be Delaunay. NB 1: since version 4.0.0 it is no longer necessary (or useful) to call this method after constraining edges, since constrainOne will also do it. NB 2: since version 4.0.0 this method returns this instead of this.del.

con.constrainAll(edges)

A shortcut to constraining an array of edges by constrainOne. The argument edges must be an array of arrays of indices into the points array originally supplied to Delaunator, i.e: [[p1, p2], [p3, p4], ...]. Returns this. NB: since version 4.0.0 this method returns the Constrainautor instance, instead of the Delaunator object.

con.isConstrained(edg)

Whether the half-edge with the given id is a constraint edge. Returns true if edg was earlier returned by a call to constrainOne. Note: this doesn't try to detect if the edge must be a constraint, merely that it has been marked as such by the Constrainautor instance.

con.findEdge(p1, p2)

Find the id of the half-edge going from p1 to p2. If there is only an edge from p2 to p1 (i.e. it is on the hull), it will return the negated id. If there is no edge between p1 and p2, the return value is Infinity.

con.del

The Delaunator object passed to the constructor and modified by constraining.

Details

At construction time, the Constrainautor library allocates one Uint32Array, and two BitSet arrays, in addition to the arrays already present in the Delaunator output:

vertMap: a mapping of each point (vertex) in the triangulation to the (id of the) left-most edge that points to that vertex. This is used to find the edges connected to any given point.
flips: keeps track of the edges that were flipped. It is used to determine which edges may need to be flipped again to restore the Delaunay condition.
consd: keeps track of the edges that are constrained. It is used to ensure those edges are not flipped during re-Delaunifying.

(These should be considered private, and may disappear in a later version.)

During the constraining process, or the re-Delaunayfying, the library does no dynamic allocations. Rather, it sets flips to 1 at the index of each edge that was flipped, and iterates over this set afterwards to check the Delaunay condition and flip the flipped edges again if needed.

The library uses robust geometric predicates from robust-predicates and robust-segment-intersect, and should not break on smallish inputs. This can be changed by extending the class and overriding the intersectSegments, inCircle, and isCollinear methods. See the comments in Constrainautor.ts on how they should behave.

Changes

4.0.0

Add edges parameter to constructor for one-shot constructing & constraining.
Change return value of delaunify and constrainAll to return the Constrainautor instance (the Delaunator output is still modified in place, and available at con.del).
Fix issue #4 by restoring the Delaunay condition immediately at the end of constrainOne. Due to this, calling delaunify manually is no longer necessary.
Add findEdge method.
Remove full parameter from delaunify: since calling it is no longer a necessity, when it is called, it will always check all edges.
Use 2 BitSets (see BitSet.ts) for keeping track of the flips and constraints, instead of 1 flips array.

3.0.0

Convert to TypeScript.
Move built files to lib/.
Add full parameter to delaunify.
Fix Delaunay condition-check in validators.

2.1.2

Fix disappearing constraints.

2.1.1

Fix delaunify not restoring the Delaunay condition for all changed triangle pairs.
Move test files to separate repository (to share with other libraries).

2.1.0

Add isConstrained convenience method.

2.0.0

Fix issue #2 by using robust-predicates.
Remove intersectSegments, inCircle, and segPointDistSq from the API documentation.

1.0.1

Add documentation for internal intersect methods, which can be overridden to fix robustness issues.
Mitigate issue #2 by throwing when constraining segment leaves the hull.
Add test files from Interesting Polygon Archive.
