@microsoft/connected-workbooks v3.1.1-beta.1

Connected Workbooks

A pure JS library, Microsoft backed, that provides xlsx workbook generation capabilities, allowing for: 1. Fundemental "Export to Excel" capabilities for tabular data (landing in a table in Excel). 2. Advanced capabilities of "Export a Power Query connected workbook": - Can refresh your data on open and/or on demand. - Allows for initial data population. - Supports more advanced scenarios where you provide branded/custom workbooks, and load your data into PivotTables or PivotCharts.

Connected Workbooks allows you to avoid "data dumps" in CSV form, providing a richer experience with Tables and/or connected Queries for when your business application supports it.

Learn about Power Query here

Where is this library used? here are some examples:

How do I use it? here are some examples:

1. Export a table directly from an Html page:

import workbookManager from '@microsoft/connected-workbooks';

const blob = await workbookManager.generateTableWorkbookFromHtml(document.querySelector('table') as HTMLTableElement);
workbookManager.downloadWorkbook(blob, "MyTable.xlsx");

2. Export a table from raw data:

import workbookManager from '@microsoft/connected-workbooks';

const grid = {
  config: { promoteHeaders:true, adjustColumnNames:true }
  data: [
      ["Product", "Price", "InStock", "Category", "Date"],
      ["Widget A", 19.99, true, "Electronics", "10/26/2024"],
      ["Gizmo B", 9.99, true, "Accessories", "10/26/2024"],
      ["Bubala", 14.99, false, "Accessories", "10/22/2023"],
      ["Thingamajig C", 50, false, "Tools", "5/12/2023"],
      ["Doohickey D", 50.01, true, "Home", "8/12/2023"]
  ]
};
const blob = await workbookManager.generateTableWorkbookFromGrid(grid);
workbookManager.downloadWorkbook(blob, "MyTable.xlsx");

3. Control Document Properties:

const blob = await workbookManager.generateTableWorkbookFromHtml(
  document.querySelector('table') as HTMLTableElement, {
    docProps: {
      createdBy: 'John Doe',
      lastModifiedBy: 'Jane Doe',
      description: 'This is a sample table'
    }
  }
);

workbookManager.downloadWorkbook(blob, "MyTable.xlsx");

4. Export a Power Query connected workbook:

import workbookManager from '@microsoft/connected-workbooks';

const blob = await workbookManager.generateSingleQueryWorkbook({
  queryMashup: 'let \
                    Source = {1..10} \
                in \
                    Source',
  refreshOnOpen: true
});

workbookManager.downloadWorkbook(blob, "MyConnectedWorkbook.xlsx");

(after refreshing on open)

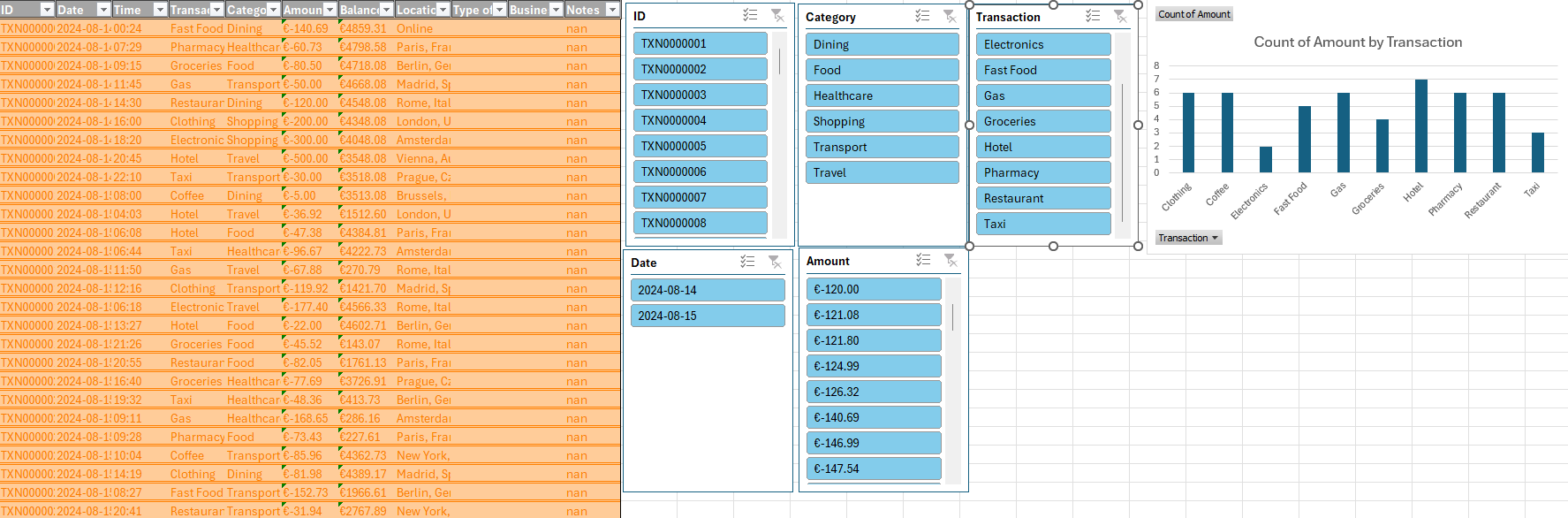

Advanced Usage - bring your own template:

You can use the library with your own workbook as a template!

const blob = await workbookManager.generateSingleQueryWorkbook(
  { queryMashup: query, refreshOnOpen: true },
  undefined /* optional Grid */,
  templateFile);
workbookManager.downloadWorkbook(blob, "MyBrandedWorkbook.xlsx");

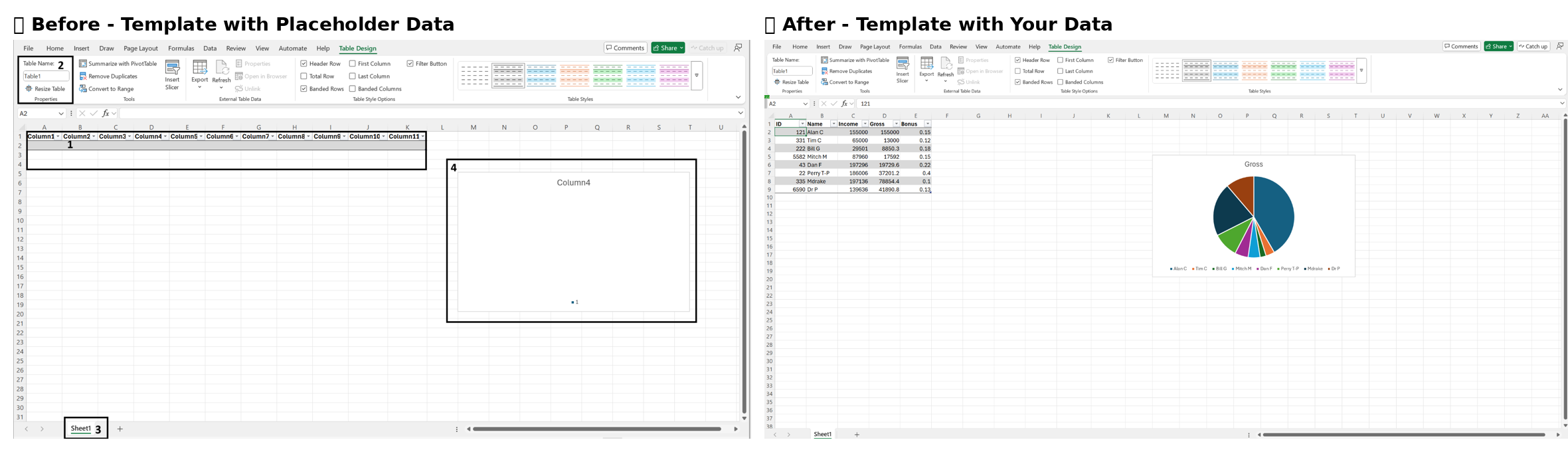

Template requirements:

Have a single query named Query1 loaded to a Query Table, Pivot Table, or a Pivot Chart.

⭐ Recommendation - have your product template baked and tested in your own product code, instead of your user providing it.

⭐ For user templates - a common way to get the template workbook with React via user interaction:

const [templateFile, setTemplateFile] = useState<File | null>(null);
...
<input type="file" id="file" accept=".xlsx" style={{ display: "none" }} onChange={(e) => {
  if (e?.target?.files?.item(0) == null) return;
  setTemplateFile(e!.target!.files!.item(0));
}}/>

API

The library exposes a workbookManager, which generates a workbook via several APIs:

1. Generate a Power Query connected workbook

 async function `generateSingleQueryWorkbook`: `Promise<Blob>`

2. Generate a table workbook from a Html page

async function `generateTableWorkbookFromHtml`: `Promise<Blob>`

3. Generate a table workbook with raw data

async function `generateTableWorkbookFromGrid`: `Promise<Blob>`

Types

QueryInfo

Grid

GridConfig

FileConfigs

DocProps
