morph-sidebar

Sidebar that morphs for current mobile OS.

morph-sidebar component changes its appearance based on the whether the platform or device is IOS or Android.

Getting Started

For the information about how to clone the desired repository, running the local server and testing, please refer to Polymorph elements getting started docs at the end of this repository.

Demo

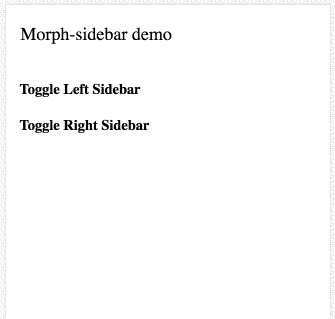

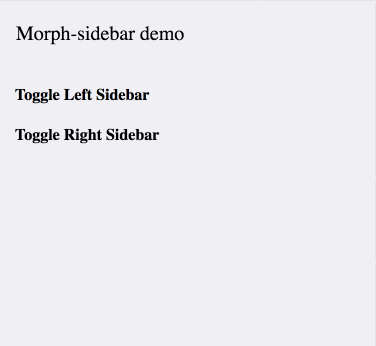

Here is a quick demo of <morph-sidebar>

Styling

-For Android platform;

Custom property	Description	Default
`--app-drawer-width`	Width of the app drawer	260px
`--morph-sidebar-scrim-background-android`	Background color for scrim	rgba(0, 0, 0, 0.2)
`--app-drawer-scrim-background`	App-drawer scrim color	var(--morph-sidebar-scrim-background-android)

-For IOS platform;

Custom property	Description	Default
`--app-drawer-width`	Width of the app drawer	260px
`--morph-sidebar-scrim-background-ios`	Background color for scrim	rgba(0, 0, 0, 0)
`--app-drawer-scrim-background`	App-drawer scrim color	var(--morph-sidebar-scrim-background-ios)

Attributes

Custom Attribute	Type	Description	Default
`align`	String	Assigns where to display side bar. `left` or `right`	`left`
`opened`	Boolean	Indicates if the side bar is close or open	`false`
`transition-duration-ios`	String	Transition of side bar opening in ios	`400`
`transition-duration-android`	String	Transition of side bar opening in android	`300`
`transition-duration-web`	String	Transition of side bar opening in web	`200`

How to use our `<morph-sidebar>` component

We can wrap the whole content with app-drawer-layout component to make it work with other <app-layout> elements like <app-header>. We can then use the drawer-toggle attribute and place them on any children of the <app-drawer-layout> and when click it toggles our sidebar open and close.

<body>

  <app-drawer-layout fullbleed force-narrow>

    <morph-sidebar slot="drawer" align="left" swipe-open>
      <p>Left morph-sidebar</p>
      <p>Simulated with cover animation and shadow for android. And no shadow if iOS.</p>
    </morph-sidebar>

    <app-header-layout>
      <app-header slot="header">
        <app-toolbar>
          <div main-tittle>morph-sidebar</div>
        </app-toolbar>
      </app-header>
    </app-header-layout>

    <div>
      <h4 drawer-toggle>Toggle Left Sidebar</h4>
    </div>

  </app-drawer-layout>

  <script>

    toggleDrawer = function(name) {
      var drawer = document.getElementById(name + 'Sidebar');
      drawer.toggle();
    };

  </script>

</body>

We may use two (2) <morph-sidebar> panels at the same time, one left and one right panel. align defaults to left when not specified.

<body>

  <morph-sidebar id="leftSidebar" align="left" swipe-open>
    <p>Left morph-sidebar</p>
    <p>Simulated with cover animation and shadow for android. And no shadow if iOS.</p>
  </morph-sidebar>

  <morph-sidebar id="rightSidebar" align="right" swipe-open>
    <p>Right morph-sidebar</p>
    <p>Simulated with cover animation and shadow for android. And no shadow if iOS.</p>
  </morph-sidebar>

  <div>
    <h4 onclick="toggleDrawer('left')">Toggle Left Sidebar</h4>
  </div>

  <div>
    <h4 onclick="toggleDrawer('right')">Toggle Right Sidebar</h4>
  </div>

  <script>

    toggleDrawer = function(name) {
      var drawer = document.getElementById(name + 'Sidebar');
      drawer.toggle();
    };

  </script>

</body>

We can also use two (2) <morph-sidebar> panels with app-drawer-layout by doing a nested app-drawer-layout setup. We can use only the drawer-toggle attribute on the outer app-drawer-layout children. We need to use other ways to open/close the inner <morph-sidebar> (which is our right sidebar panel in this example), like using javascript for our example below.

 <body>

  <app-drawer-layout fullbleed force-narrow>

    <morph-sidebar slot="drawer" align="left" swipe-open>
      <p>Left morph-sidebar</p>
      <p>Simulated with cover animation and shadow for android. And no shadow if iOS.</p>
    </morph-sidebar>

    <div>
      <h4 drawer-toggle>Toggle Left Sidebar</h4>
    </div>

    <app-drawer-layout force-narrow>

      <morph-sidebar id="rightSidebar" slot="drawer" align="right" swipe-open transition-duration-ios="500">
        <p>Right morph-sidebar</p>
        <p>Simulated with cover animation and shadow for android. And no shadow if iOS.</p>
        <p>This sidebar animation duration is change to 500</p>
      </morph-sidebar>

      <div>
        <h4 onclick="toggleDrawer('right')">Toggle Right Sidebar</h2>
      </div>

    </app-drawer-layout>

  </app-drawer-layout>

  <script>

    toggleDrawer = function(name) {
      var drawer = document.getElementById(name + 'Sidebar');
      drawer.toggle();
    };

  </script>

</body>

ToDo: Implement the reveal animation using this new morph-sidebar

<morph-sidebar> has two animation when opening and closing. The default animation of the sidebar is cover. It covers the morph-view element when it opens.

The other animation is called reveal where morph-view moves out and reveals the <morph-sidebar> under it. <morph-view> moves out of the way to accommodate the width of our sidebar. To use reveal we add reveal attribute to <morph-view> component.

function closeRightSidebarWithReveal() {
  let view = document.getElementById('mainView');
  view.removeAttribute('reveal');
}

document.addEventListener('DOMContentLoaded', function(event) {
  document.getElementById('sidebarRight').addEventListener('open-changed', closeRightSidebarWithReveal);
});

Further help

For more information on how to install and run test please go here - Polymorph elements getting started
