Pixel

🚨 Pixel is a work in progress and experimental. Only use it when you're feeling dangerous. 🚨

Pixel is a visual regression tool for MediaWiki developers/QA engineers that helps you replace manual testing with automated tests that catch web ui regressions before users see them. It currently integrates BackstopJS, MediaWiki-Docker, and Docker under the hood.

Check out the hourly reports Pixel has generated at https://pixel.wmcloud.org which compare the latest release branch against master, and read T302246 for the motivation behind the tool.

Quick Start

Install Pixel from npm using Node 15 or later.

npm i -g @nicholasray/pixel

Install Docker and Docker Compose and make sure Docker is running. Pixel runs in multiple Docker containers to eliminate inconsistent rendering issues across environments and to make it easier to replicate any issue locally.

Usage

Your workflow will usually involve the following ordered steps:

1) Take reference (baseline) screenshots with `master` or release branch code

If you want to checkout the latest code in master or main from MediaWiki core and all of its installed extensions and skins and then take reference screenshots that your test screenshots (step 2) will be compared against, then:

pixel reference

Or if you want the reference to be the latest release branch:

pixel reference -b latest-release

Or if you want the reference to be a certain release branch:

pixel reference -b origin/wmf/1.39.0-wmf.12

The desktop tests run by default. If you want to run the mobile visual regression test suite pass the --group mobile flag.

2) Take test screenshots with changed code

If you want to pull a change or multiple changes down from gerrit, take screenshots with these changes on top of master and then compare these screenshots against the reference screenshots, then

pixel test -c Iff231a976c473217b0fa4da1aa9a8d1c2a1a19f2

Note that although change id Iff231a976c473217b0fa4da1aa9a8d1c2a1a19f2 has a Depends-On dependency, it is the only change that needs to be passed. Pixel will figure out and pull down the rest of the dependencies provided that it has the relevant repositories (set in repositories.json).

Similar to the reference command, the desktop tests run by default. If you want to run the mobile visual regression test suite pass the --group mobile flag.

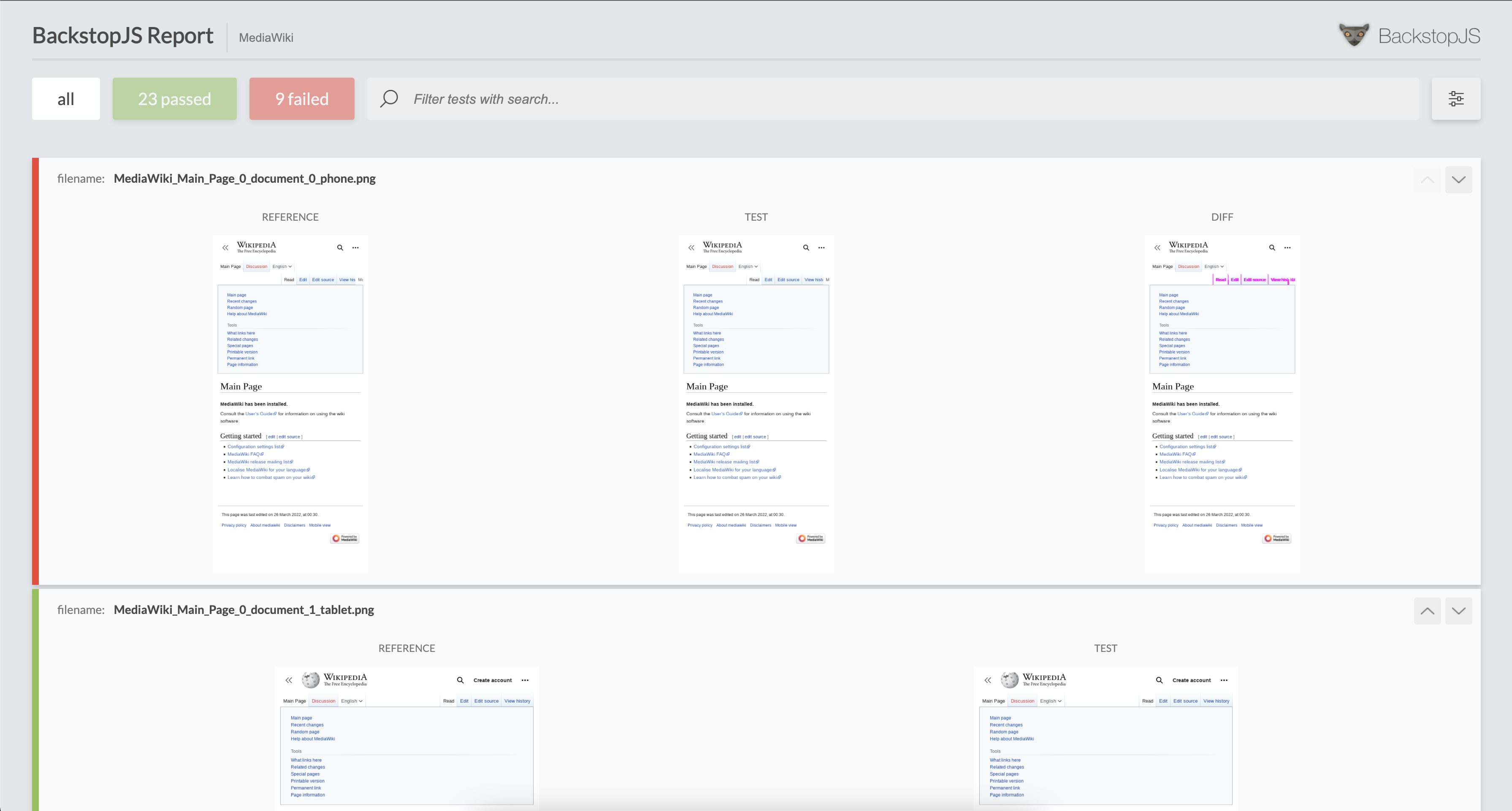

An HTML report of your test results with screenshots will be opened automatically in a browser on a Mac after the test completes. If you're not on a Mac, you can manually open the report at http://localhost:4000. Additionally, if you want to save the report to a file path, you can do so with the --output flag:

pixel test -c <change-id> --output <path-to-report>

Pixel also runs a server at http://localhost:3000 (default) which can be used to interact with/debug the same MediaWiki server that the tests use.

Stopping the services

If you want to stop all of Pixel's containers, run:

pixel stop

Development

Changing or adding tests

Tests are located in config files at the root directory e.g. configDesktop.js and currently follow BackstopJS conventions. For more info on how to change or add tests, please refer to the BackstopJS README.

Scenarios for mobile site are defined in configMobile.js.
