ObserveRTC Integration for Selective Forwarding Units (SFU)

@observertc/sfu-observer-js is an SFU side library to monitor your SFU and integrate with observertc components.

Table of Contents:

Qucik Start

npm i @observertc/sfu-observer-js

Collect stats from mediasoup

If you use mediasoup:3.x.y you can use the built-in integration.

import { SfuObserver, MediasoupCollector } from "@observertc/sfu-observer-js";
// see full config in Configuration section
const config = {
    collectingPeriodInMs: 5000,
};
const observer = SfuObserver.create(config);
const collector = MediasoupCollector.create();
observer.addStatsCollector(collector);

// ... somewhere in your code
const transport = router.createWebRtcTransport(options);
collector.watchWebRtcTransport(transport);

Collect stats from other SFUs

You can write a stats collector by using AuxCollector.

import { SfuObserver, AuxCollector } from "@observertc/sfu-observer-js";
// see full config in Configuration section
const config = {
    collectingPeriodInMs: 5000,
};
const observer = SfuObserver.create(config);
const collector = AuxCollector.create();
observer.addStatsCollector(collector);

collector.addTransportStatsSupplier("transportId", async () => {
    const stats: SfuTransport = {

    };
    return stats;
});
collector.removeTransportStatsSupplier("transportId");

// similarly:
collector.addInboundRtpPadStatsSupplier("padId", ...);
collector.removeInboundRtpPadStatsSupplier("padId");

collector.addOutboundRtpPadStatsSupplier("padId", ...);
collector.removeOutboundRtpPadStatsSupplier("padId");

collector.addSctpStreamStatsSupplier("channelId", ...);
collector.removeSctpStreamSupplier("channelId");

Sample and Send

Sampling means the sfu-observer creates a so-called SfuSample. SfuSample is a compound object contains a snapshot from the polled stats. SfuSample is created by a Sampler component. A created SfuSample is added to Samples object. Samples can be sent to the server by a Sender component.

The above shown examples can be extended to sample and send by adding the following configurations:

import { ClientObserver } from "@observertc/client-observer-js";
// see full config in Configuration section
const config = {
    collectingPeriodInMs: 5000,
    samplingPeriodInMs: 10000,
    sendingPeriodInMs: 10000,
    sender: {
        websocket: {
            urls: ["ws://localhost:7080/samples/myServiceId/myMediaUnitId"]
        }
    }
};
const observer = SfuObserver.create(config);
//... the rest of your code

Use collected stats

const storage = observer.stats;
for (const sfuTransportEntry of storage.transports()) {
    // use SfuTransportEntry
}

for (const sfuInboundRtpPadEntry of storage.inboundRtpPads()) {
    // use SfuInboundRtpPadEntry
}

for (const sfuOutboundRtpPadEntry of storage.outboundRtpPads()) {
    // use SfuInboundRtpPadEntry
}

for (const sctpChannelEntry of storage.sctpChannels()) {
    // use SctpChannelEntry
}

for (const mediaStreamEntry of storage.mediaStreams()) {
    // use MediaStreamEntry
}

for (const mediaStreamEntry of storage.audioStreams()) {
    // use MediaStreamEntry
}

for (const mediaStreamEntry of storage.videoStreams()) {
    // use MediaStreamEntry
}

for (const mediaSinkEntry of storage.mediaSinks()) {
    // use MediaSinkEntry
}

for (const mediaSinkEntry of storage.audioSinks()) {
    // use MediaSinkEntry
}

for (const mediaSinkEntry of storage.videoSinks()) {
    // use MediaSinkEntry
}

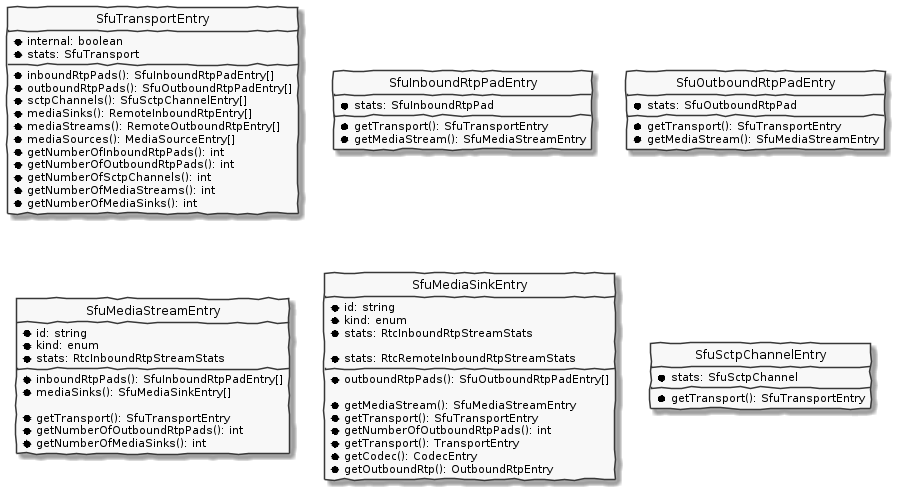

With observer.stats you accessing so called Entries. The interface for the entries visualized in the picture below:

Entry Navigations

The collected stats from any integration is stored and updated in the observer object. The list of collected types are the following:

SfuTransport: A Transport level measurements provide data exchange for many inbound, outbound rtp pads, and sctp channels.
SfuInboundRtpPad: Inbound Rtp Pad provided measurements. This is related to a client side provided OutboundAudioTrack, or OutboundVideoTrack measurements.
SfuOutboundRtpPad: Outbound Rtp Pad (each pad relates to one ssrc) provided measurements. This is related to a client side provided InboundAudioTrack, or InboundVideoTrack measurements.
SfuSctpChannel: SCTP channel provided measurements

Additionally the observer groups the collected stats into the following entities:

MediaStream: a group of InboundRtpPad belongs to the same streamed media traffic. For example a simulcast media typically creates several SSRCs to stream the same media in different spatial or temporal aspective. Thos RTP sessions belong to the same media stream.
MediaSink A group of OutboundRtpPad sinks out media stream traffic to (typically) a client endpoint or to another SFU.

Examples

Number of RTP Sessions

const storage = observer.stats;
// The total number of RTP session going through the SFU
const totalNumberOfRtpSessions = storage.getNumberOfInboundRtpPads() + storage.getNumberOfOutboundRtpPads();

// The average number of rtp session in one transport (peer connection) between the SFU and its peers.
const avgNumberOfRtpSessionsPerTransport = totalNumberOfRtpSessions / storage.getNumberOfTransports();
const rtpPadsNum = [];
for (const sfuTransportEntry of stats.transports()) {
    const nrOfRtpSessions = sfuTransportEntry.getNumberOfOutboundRtpPads() + sfuTransportEntry.getNumberOfOutboundRtpPads();
    rtpPadsNum.push(nrOfRtpSessions);
}
// define the getMedian like: https://www.w3resource.com/javascript-exercises/fundamental/javascript-fundamental-exercise-88.php
const medianNumberOfRtpSessionsPerTransports = getMedian(rtpPadsNum);

Media streams and sinks

Media streams and sinks, as mentioned above are group of in-, and outbound rtp pads respectively. For example in simulcast usually 2-3 or even more RTP sessions are used belonging to one media stream. Media streams are composed by inbound RTP Pads. When a Media Stream is forwarded to a peer, a Media Sink is created compound outbound RTP sessions, consequently outbound RTP pads.

The following example is created for mediasoup integration, but any other integration respectively provided streamId for inboundRtpPads, and sinkId for outbound RTP pads behave similarly.

const storage = observer.stats;

const nrOfProducers = storage.getNumberOfMediaStreams();
const nrOfAudioProducers = storage.getNumberOfAudioStreams();
const nrOfVideoProducers = storage.getNumberOfVideoStreams();

const nrOfConsumers = storage.getNumberOfMediaSinks();
const nrOfAudioConsumers = storage.getNumberOfAudioSinks();
const nrOfVideoConsumers = storage.getNumberOfVideoSinks();

const avgNrOfProducersPerTransport = storage.getNumberOfMediaStreams() / storage.getNumberOfTransports();

Receiver and sender bitrates

const storage = observer.stats;

const traces = new Map();
let lastCheck = Date.now();
observer.events.onStatsCollected(() => {
    let totalReceivedBytes = 0;
    for (const sfuInboundRtpPadEntry of storage.inboundRtpPads()) {
        const { bytesReceived } = sfuInboundRtpPadEntry.stats;
        const prevBytesReceived = traces.get(sfuInboundRtpPadEntry.id) || 0;
        totalReceivedBytes += bytesReceived - prevBytesReceived;
    }

    let totalSentBytes = 0;
    for (const sfuOutboundRtpPadEntry of storage.outboundRtpPads()) {
        const { bytesSent } = sfuOutboundRtpPadEntry.stats;
        const prevBytesSent = traces.get(sfuOutboundRtpPadEntry.id) || 0;
        totalSentBytes += bytesSent - prevBytesSent;
    }

    const now = Date.now();
    const elapsedTimeInS = (now - lastCheck) / 1000;
    const receivingBitrate = (totalReceivedBytes * 8) / elapsedTimeInS;
    const sendingBitrate = (totalSentBytes * 8) / elapsedTimeInS;
    console.log("Received bytes since last check: ", totalReceivedBytes);
    console.log("Receiving bitrate: ", receivingBitrate);
    console.log("Sent bytes since last check: ", totalSentBytes);
    console.log("Sending bitrate: ", sendingBitrate);
    lastCheck = now;
});

Configurations

const config = {
    /**
     * By setting it, the observer calls the added statsCollectors periodically
     * and pulls the stats.
     *
     * DEFAULT: undefined
     */
    collectingPeriodInMs: 5000,
    /**
     * By setting it, the observer make samples periodically.
     *
     * DEFAULT: undefined
     */
    samplingPeriodInMs: 10000,

    /**
     * By setting it stats items and entries are deleted if they are not updated.
     *
     * DEFAULT: undefined
     */
    statsExpirationTimeInMs: 60000,

    /**
     * Sampling Component Related configurations
     *
     */
    sampler: {
            /**
         * The identifier of the SFU.
         *
         * DEFAULT: a generated unique value
         */
        sfuId: "sfuId",

        /**
         * Indicate if the sampler only sample stats updated since the last sampling.
         *
         * DEFAULT: true
         */
        incrementalSampling: true,
    },
    sender: {
        /**
         * Configure the codec used to transport samples or receieve
         * feedback from the server.
         *
         * Possible values: json, protobuf
         *
         * DEFAULT: json
         *
         */
        format: "json",
        /**
         * Websocket configuration to transport the samples
         */
        websocket: {
            /**
             * The target url the websocket is opened for
             */
            url: "ws://localhost:7080/samples/myServiceId/myMediaUnitId",
            /**
             * The maximum number of try to connect to the server
             *
             * DEFAULT: 3
             */
            maxRetry: 1,
            /**
             * An optional field for additional socket option from ws package
             */
            socketOptions: {

            },
        },
        /**
         * Configuration to setup a REST api transport method for the samples.
         */
        rest: {
            /**
             * The target url the websocket is opened for
             */
            url: string;
            /**
             * The maximum number of try to connect to the server
             *
             * DEFAULT: 3
             */
            maxRetry: 1,
        },
    }
};
