1.0.0 • Published 5 years ago
@orez/vue-org-tree v1.0.0
vue-org-tree
A simple organization tree chart based on Vue2.x
Usage
NPM
# use npm
npm i @orez/vue2-org-tree
# use yarn
yarn add @orez/vue2-org-treeImport Plugins
import Vue from 'vue'
import OrgTree from '@orez/vue-org-tree'
import '@orez/vue-org-tree/style.css'
Vue.use(OrgTree)
// ...API
props
| prop | descripton | type | default |
|---|---|---|---|
| data | Object | {label: '', expand: false, children: []} | |
| props | configure props | Object | {label: 'label', children: 'children', expand: 'expand'} |
| labelWidth | node label width | String | Number | auto |
| collapsable | children node is collapsable | Boolean | true |
| renderContent | how to render node label | Function | - |
| labelClassName | node label class | Function | String | - |
| selectedKey | The key of the selected node | String | - |
| selectedClassName | The className of the selected node | Function | String | - |
events
| event name | descripton | type |
|---|---|---|
| click | Click event | Function |
| mouseover | onMouseOver event | Function |
| mouseout | onMouseOut event | Function |
Call events
on-expand
well be called when the collapse-btn clicked
- params
eEvent - params
dataCurrent node data
on-node-click
well be called when the node-label clicked
- params
eEvent - params
dataCurrent node data
on-node-mouseover
It is called when the mouse hovers over the label.
- params
eEvent - params
dataCurrent node data
on-node-mouseout
It is called when the mouse leaves the label.
- params
eEvent - params
dataCurrent node data
Example

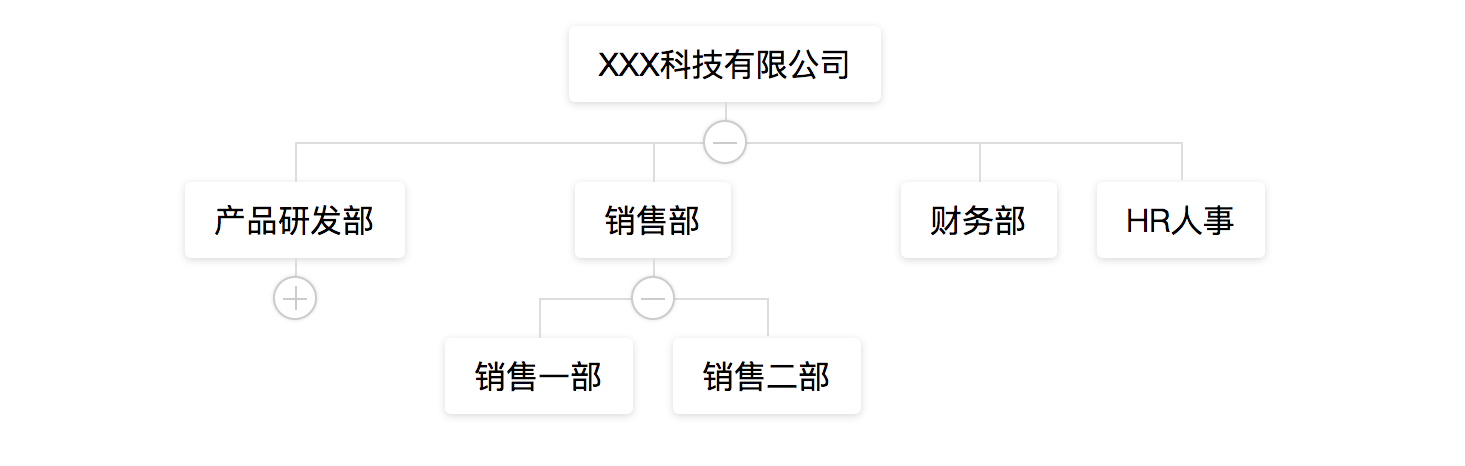

default

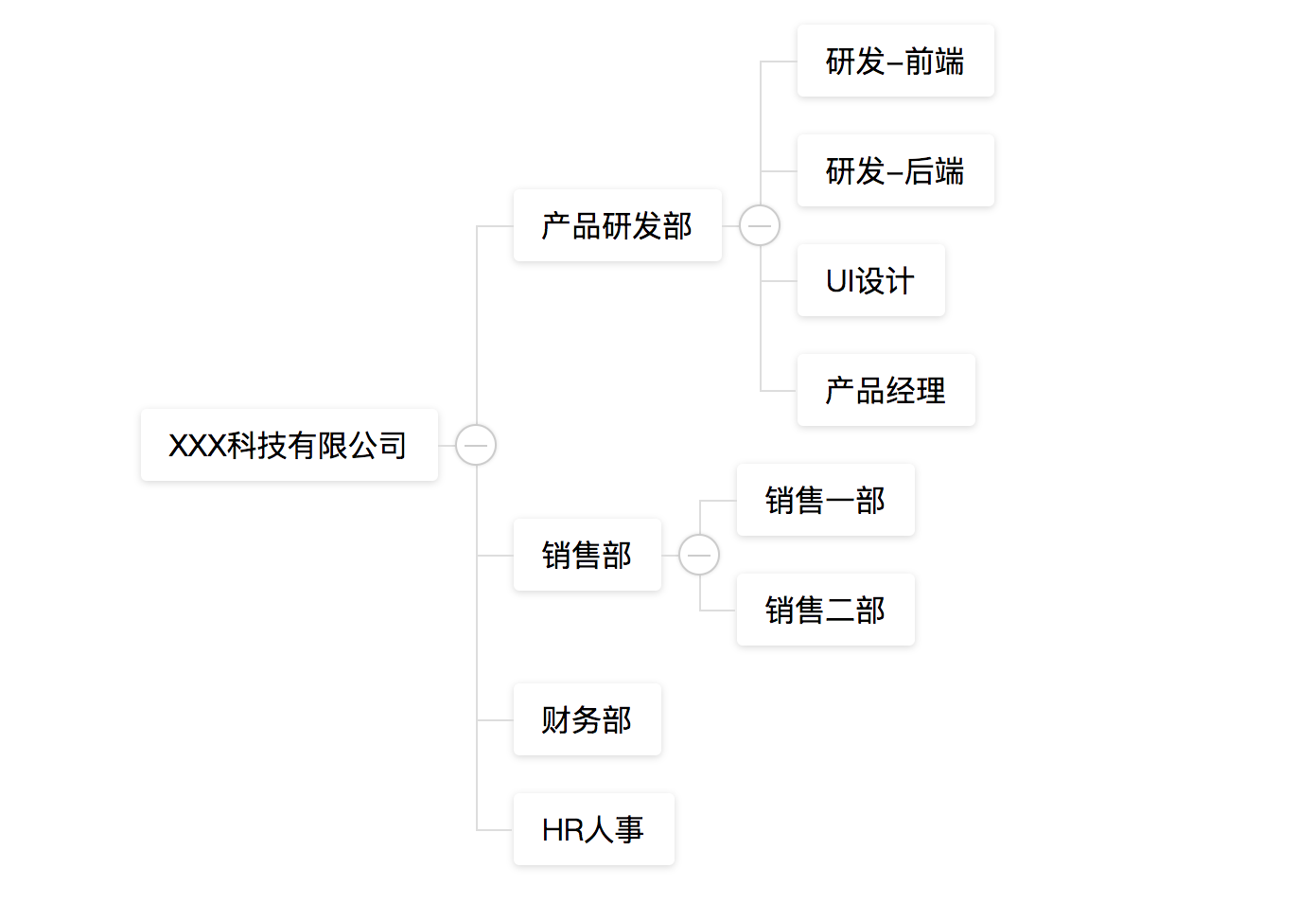

horizontal
Browser support
use table layout!
IE9+、Chrome、Firefox、Opera
License
