MarkupWidgets docs 📖

The MarkupWidgets module is a packet of React components (widgets) that provides more tags for building web pages that the programmer can use as default but also customize the base component.

Go to widgets

Features

🎨 Fully customizable
🕹️ Interactive widgets
💼 Prop | wrap based content
😍 Nice designs
🏷️ Styles, IDs, etc...

Example page:

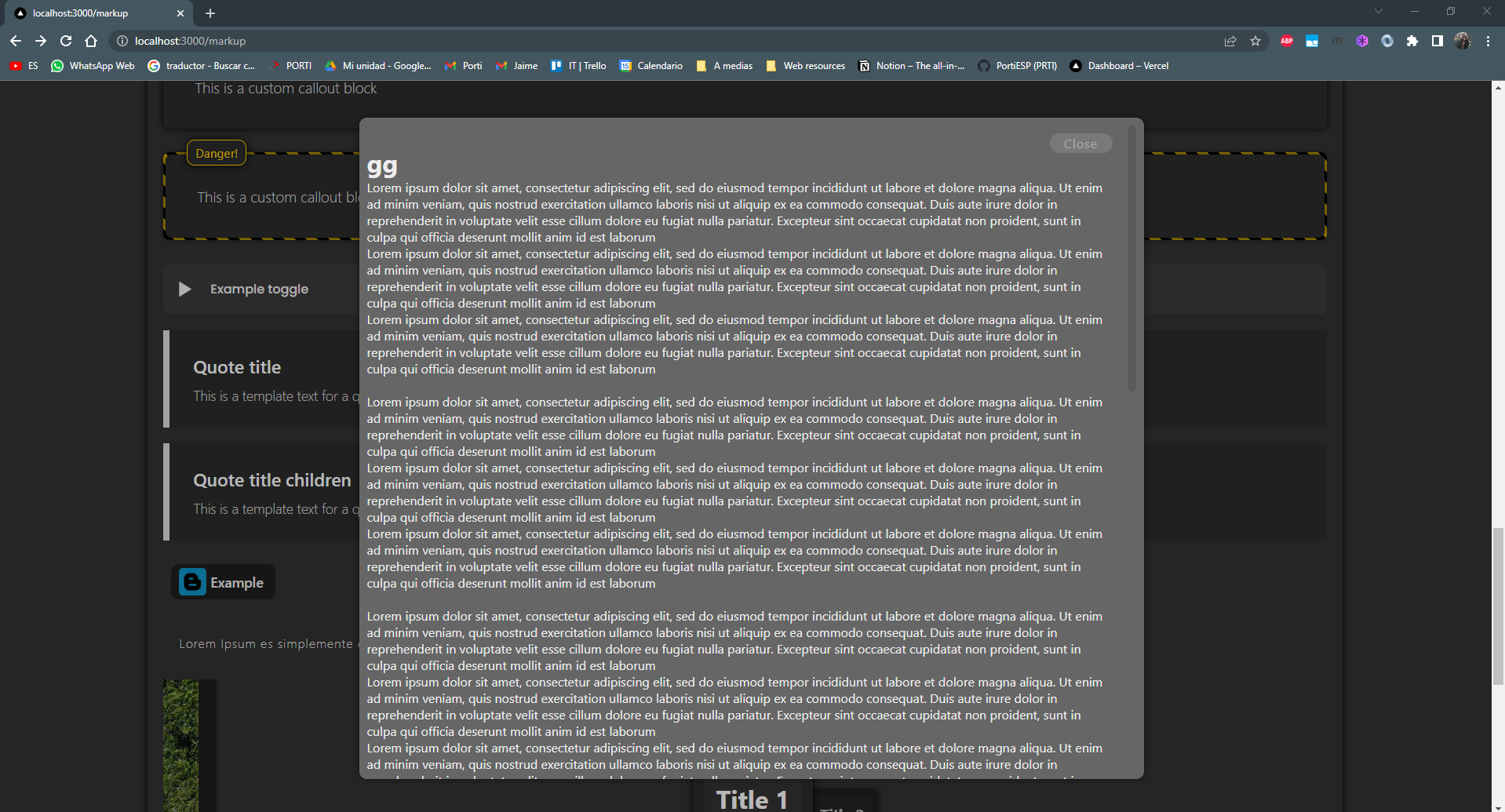

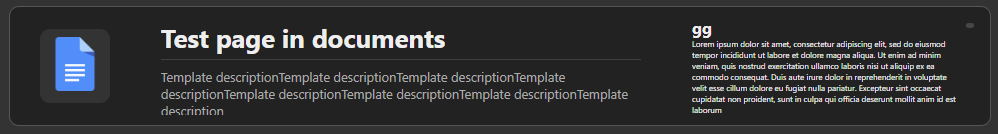

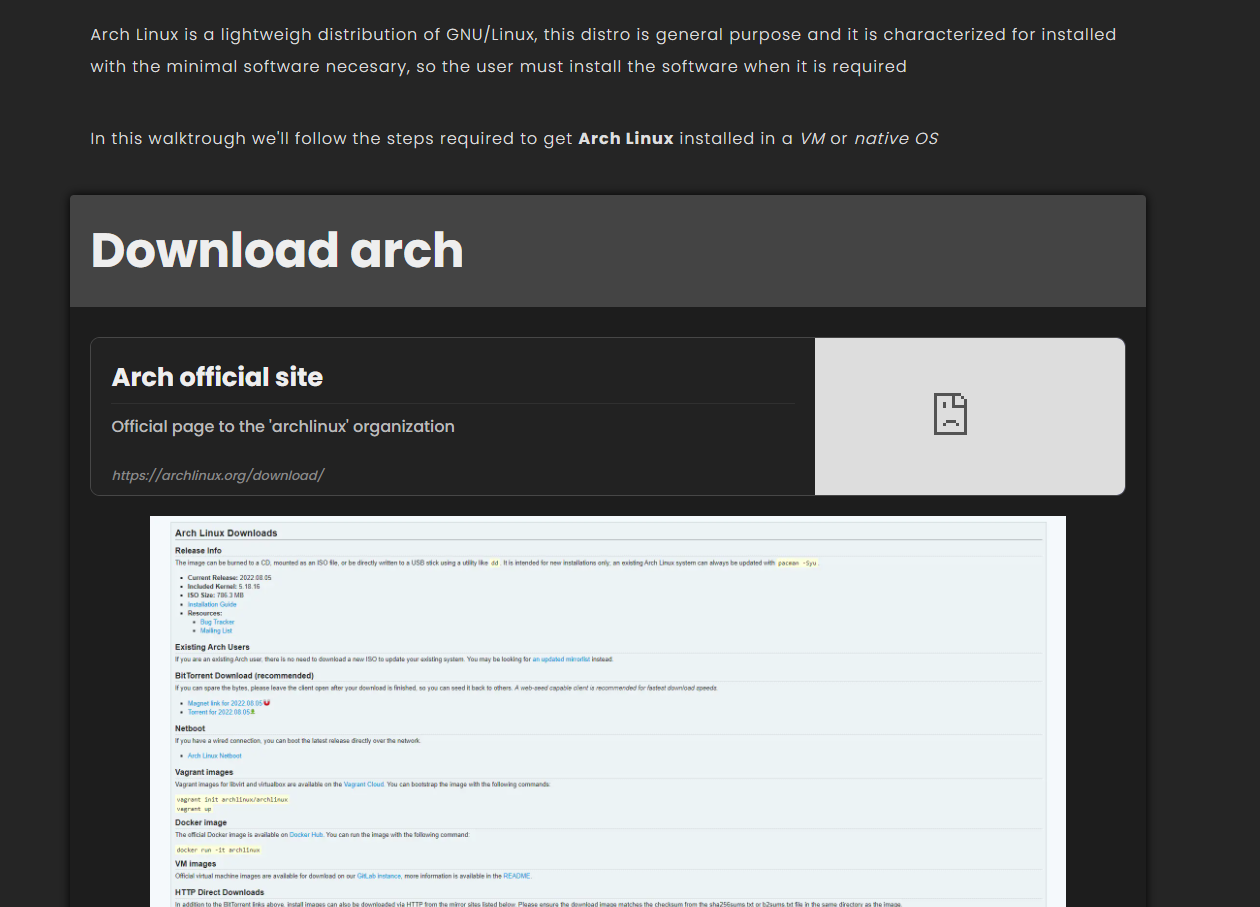

Screenshoot page 1 Screenshoot page 2 Screenshoot page 3

Code of the screenshoots above...

<>
    <Tags.Title>
        Title
    </Tags.Title>
    <Tags.Paragraph>
        Lorem Ipsum es simplemente el texto de relleno de las imprentas y archivos de texto. Lorem Ipsum ha sido el texto de relleno estándar de las industrias desde el año 1500, cuando un impresor (N. del T. persona que se dedica a la imprenta) desconocido usó una galería de textos y los mezcló de tal manera que logró hacer un libro de textos especimen. No sólo sobrevivió 500 años, sino que tambien ingresó como texto de relleno en documentos electrónicos, quedando esencialmente igual al original. Fue popularizado en los 60s con la creación de las hojas Letraset, las cuales contenian pasajes de Lorem Ipsum, y más recientemente con software de autoedición, como por ejemplo Aldus PageMaker, el cual incluye versiones de Lorem Ipsum.
    </Tags.Paragraph>
    <Tags.Title2>
        Subtitle
    </Tags.Title2>

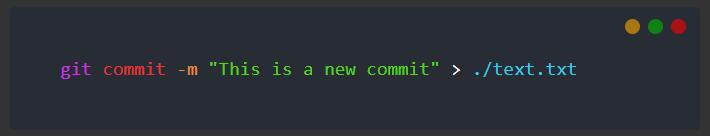

    <Tags.Code>
                                                                // Escaping collons
        <Cmd>git</Cmd> <Opt>commit</Opt> <Flag>-m</Flag> <Str>{'"This is a new commit"'}</Str> &gt; <Path>./text.txt</Path>
    </Tags.Code>
    <Tags.Title3>
        Subtitle
    </Tags.Title3>
    <Tags.Img img={testImg} alt="Alt text"/>

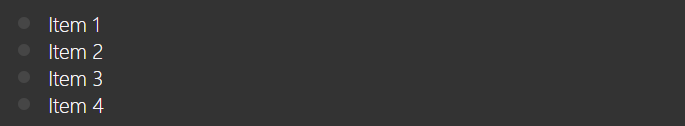

    <Tags.UList items={["Item 1", "Item 2", "Item 3", "Item 4"]} />

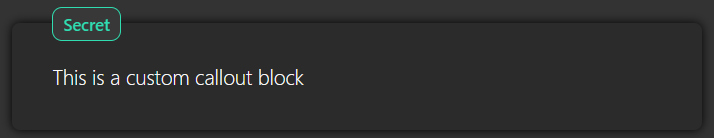

    <Tags.Callout label="custom" labelData={{text: "Secret", color: "#25AA88", style: ["font-weight: 500;", "filter: brightness(130%);"]}}>
        This is a custom callout block
    </Tags.Callout>

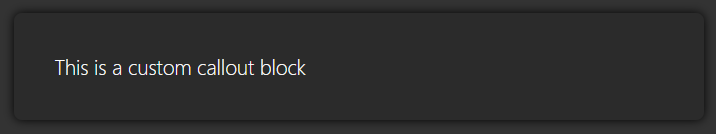

    <Tags.Callout  >
        This is a custom callout block
    </Tags.Callout>
    <Tags.Quote title="Quote title" text="This is a template text for a quote element as a text prop" />
    <Tags.Quote title="Quote title children">This is a template text for a quote element as a children</Tags.Quote>
    <Tags.Paragraph>
        Lorem Ipsum es simplemente el texto <Tags.Link href="google.com">Link text</Tags.Link> de relleno de las imprentas y archivos.
    </Tags.Paragraph>
</>

How to use the widgets?

Download the module 📥

Navigate to the path of the folder where you want to install the module and clone from the github

git clone https://github.com/PortiESP/MarkupWidgets.git

Import the module 🧩

Import the module from the file where you want to have access to the components, the module is structured in a way that the components can be imported in 3 diferent ways

Import directly from the component file
Import each component from the ./Tags.js
Import the default object of the file ./Tags.js

// Import component directly
import Paragraph from "./MarkupWidgets/tags/Paragraph"
// Import each component separately
import {Title, Paragraph, Code, Callout} from "./MarkupWidgets/Tags"
// Import all components as an object
import Tags from "./MarkupWidgets/Tags"

Use the widgets 🖨️

Using the widgets in the return of a React component

import Tags from "./MarkupWidgets/Tags"
import {Code, Callout}

export default function MyComponent(){

    return (
        <>
            // Using the component from the default imported object
            <Tags.Paragraph>Example title</Tags.Paragraph>
            // Using the component from the specific export
            <Code>sudo chmod +x myScript.sh</Code>
        </>
    )
}

Wrapper & prop based widgets 💼

Most of the widget in the module are compatible with both, wrapper and prop based tags

Wrapper based tag

<Title>
    This is the title content
</Title>

Prop based tag

<Title text="This is the title content" />

If both options are used, the wrapper content will be priorized over the prop value

But other widget like the Img, UList, etc..., this ones only support props to handle their content

Styling the widgets

All the widgets support the style prop to handle the component style, anyways there are a few widgets that offer a bit more advanced features to style the diferent parts of the component

<Title style={myStyles}></Title>

FAQs

How do is escape characters inside a component:

// The inner collons are parsed as part of a JS string and the interpolated in the JSX code
<> This is an {'"example"'} string </>

How do I add a new line in my paragraph, code, callout, etc...:

// The code is parsed as normal text but the <br/> will be parsed as HTML
<Code>
const myArray = {
    elem1,  <br/>
    elem2,  <br/>
    elem3   <br/>
}
</Code>

Widgets list

Title

There are 4 types of titles/headings: h1, h2, h3, h4 as Title1, Title2, ...

Props
background - Add a background for the title
text - Text content
style - Styles object
id - Add an ID attribute

<Tags.Title>
    Text template title
</Tags.Title>


<Tags.Title text="Text template title h1" />
<Tags.Title2 text="Text template title h2" background="#303030" />
<Tags.Title3 text="Text template title h3" />

Title example screenshoot

Go to widgets

Paragraph

Clasic paragraph to write text, also we can write special characters by adding them inside a JS string

Props
text - Text content
style - Styles object
id - Add an ID attribute

<Tags.Paragraph>
    Lorem Ipsum es simplemente el texto de relleno de las imprentas y
    archivos de texto. Lorem {'"Ipsum"'} ha sido el texto de relleno estándar de
    las industrias desde el año 1500.
</Tags.Paragraph>


<Tags.Paragraph text="Text template title" />

Paragraph example screenshoot

Go to widgets

Link

The link widget is the same as the <a> tag but with its own styles

Props
href - Target location of the link
title - Add a title attribute to the tag
target - Add target attribute to the tag
dynamic - Flag for dynamic URLs on the same host
text - Text content
style - Styles object
id - Add an ID attribute

Lorem Ipsum <Tags.Link href="www.example.com">Link text</Tags.Link> de relleno.

Link example screenshoot

Go to widgets


Display an image, this component can be used in 3 diferent ways based on the props

Passing an image object imported from a path
Passing the image path, the image will fit the parent container
Passing the image path and the height and width props

The image aspect-ratio will respected no matter the option used
Props
img - Image object/path
alt - Alt text
title - Add a title attribute
ratio - Aspect ratio of the image (default 16/9)
hideCaption - Hides the caption text shown when clicking the image
style - Styles object
id - Add an ID attribute

import testImg from "./exampleImage.jpg"


<Tags.Img img={testImg} alt="Alt text"/>
<Tags.Img img="./images/image.jpg" alt="Alt text"/>
<Tags.Img img="./images/image.jpg" width="100px" height="50px" alt="Alt text"/>

<Tags.Img img={testImg} alt="Alt text" title="Title" caption="Caption"/>
<Tags.Img img={testImg} alt="Alt text" onClick={myCallback}/>

Img example screenshoot

Go to widgets

Code

The code widget provides a snippet of some piece of code, if you hover into the block an icon will appear at the bottom-right corner that you can click to copy the code to the clipboard, a copy message will appear when the button is clicked

There are also 3 decorative buttons at the top-right corder, this buttons are just decorative and dont have any action

Props
inline - Flag for code string
color - Color for the inline code
caption - Add a caption text for the code snippet
output - Add an nested div to print some kind of command output
text - Text content
style - Styles object
id - Add an ID attribute

// Example from the first image
<Tags.Code>
    git commit -m "This is a new commit" ./text.txt
</Tags.Code>

// Example for second image
// This is how we parse special characters, new lines and tabs
<Tags.Code>{`
export default (<br/>
    {"<>"}                            <br/>
        {"  "}<Flag>comment</Flag>    <br/>
    {"</>"}                           <br/>
)
`}</Tags.Code>


// Example with text prop
<Tags.Code text="Text template title" />

There is also an alternative prop to use this component for writtring inline code

// Example from the second image
This is some content <Tags.Code inline>npm install react</Tags.Code> blablaba
This is some content <Tags.Code inline color="#ab124F">npm install react</Tags.Code> blablaba

To add a new line in your code just type as the HTML tag
Both options allow custom styles with the style prop

Code example screenshoot Code2 example screenshoot Inline code example screenshoot

Go to widgets

UList

This widget take an array as a prop to generate the list

Props
items - Array of the item strings
itemStyle - Style of the idividual items
style - Styles object
id - Add an ID attribute

<Tags.UList items={myItemList} />

UList example screenshoot

Go to widgets

Callout

This widget creates a text block to spotlight some text, it also can take a label prop to show a small text at the top of the block (as show in the screenshoots)

This widget can take 3 styles:

No label, only the text
Predefined labels, The label value can the following values (warning, info, tip, danger) with predefined styles
Custom label, The label with custon text & color, but also custom styles

Props
label - Text shown at the top in an outter block
labelData - Text, color, style (Data taken here only when label='custom')
text - Text content
style - Styles object
id - Add an ID attribute

<Tags.Callout label="warning">
    This is a custom callout block
</Tags.Callout>


// Basic callout
<Tags.Callout text="This is a custom callout block"/>
// Callout with label
<Tags.Callout label="warning" text="This is a custom callout block"/>
// Callout with custom label with default styles
<Tags.Callout label="custom" text="Callout text" labelData={ text: "data", color="#ffffff" } />
// Callout with custom label with custom styles
<Tags.Callout label="custom" text="Callout text" labelData={ text: "Secret", color="#10A5FE", style: [ "background-color: red", "border-radius: 20px"] } />

Callout example screenshoot

Go to widgets

Quote

Props
title Add a title attribute
text - Text content
style - Styles object
id - Add an ID attribute

Quote block, colors can be personalized with the style props

<Tags.Quote title="Quote title">
    This is a template text for a quote element as a text prop
</Tags.Qoute>


<Tags.Quote title="Quote title" text="This is a template text for a quote element as a text prop" />

Quote example screenshoot

Go to widgets

Colors

We can apply color styles to some piece of text by using the components of the ./tags/Colors.js, this file contains the color components to apply colors to the wrapped text

This file is not exported by the ./Tags.js file and it needs to be imported manualy

There are 3 types of color here based on their component name:

Colors: Colors by name (Yellow, Blue, Red, etc...)(not all colors included)
Color of context: Colors that represent the meaning of the text, (Str, Cmd, Opt, Flag)
Custom color: Personalized color (Color)

Import module

// Import necesary colors
import {Blue, Red, Orange, Color, Flag} from "./MarkupWidgets/Tags/Colors"
// Import default component: `Color`
import MyColor from "./MarkupWidgets/Tags/Colors"

If you want to rename the components you can use the import as

import {
    Red as R,
    Blue as B,
    Green as G,
    Color as C,
    Flag as F
} from "./MarkupWidgets/Tags/Colors"

// Example
This is an <R>example</R> text to <F>try</F> the colors

// Nested
<Paragraph>
    This is an <R>example</R> text to <F>try</F> the colors
</Paragraph>

Remember that we have imported the component colors as its initial letter

If we use the Color component we can pass only the CSS color name or the prop color with the value

Lets colour the <C aquamarine>example</C> text
Lets colour the <C color="aquamarine">example</C> text
Lets colour the <C color="rgb(127, 255, 212)">example</C> text

Example of the colors usage in a code widget

Code example screenshoot

Syntax of the screenshoot

Code syntax screenshoot

Go to widgets

Hr

Creates a simple horizontal line to divide content, it can also take parameter small to create a shorter line

Props
small - Make shorter line
style - Styles object
id - Add an ID attribute

<Hr />
<Hr small />

Hr screenshoot Hr small screenshoot

Go to widgets

Italic & Bold styles

To apply italic or bold styles to some text you can add it as you will do in HTML:

<Paragraph>
    This is an <i>italic</i> word
</Paragraph>

Go to widgets

Button

Adds custommizable button, with optional icon and easy-access styling props for the most common attributes, for more specific ones use the style prop

Text content can be passed as a wrapped child or by the text prop, if text is not passed as a wrapped child the prop text must be passed

Props
All of the props are optional
text - Text content of the button
icon - This props receives an image as an object from an import statement
id - Add an ID attribute to the widget
callback - Callback function triggered when the button is clicked
href - URL to navigate when the button is clicked
Button
borderRadius - Round the corners (px)
background - Background style of the button
Icon
iconScale - Multiplier of the icon size (%): Ex: 120%
iconInvert - Invert the colors of the icon (0-100)
iconBackground - Background of the icon
Text
fontSize - Size of the text (px)
color - Color of the text
Object styles
style - Global styles of the widget, (styles not recommended here)
styleButton - Style of the inner div, (button styles are recommentded here)
styleIcon - Style of the icon image div
styleText - Style of the text div
styleHover - Style of the button when hover (css syntax)
styleActive - Style of the button when active (css syntax)

Example button screenshoot

// Import icon from path
import icon from "./myIcon.png"

<Tags.Button // Some example props
    text="Example"
    icon={icon}
    callback={myCallback}
    borderRadius="10px"
    iconScale="140%"
    iconInvert="100"
    styleActive="background: red;"
    styleButton={{padding: "30px"}}
/>

Go to widgets

Toggle

This widget can expand to show more content

Props
title - The title is shown always, wont be hided
background - Background of the container
backgroundHover - Background of the header when hover
arrowColor - Color of the toggle arrow
arrowSize - size of the toggle arrow (use units)
color - Color of the title text
fontSize - Font size of the title (use units)
style - Styles wrapper object
id - Add an ID attribute

<Tags.Toggle title="Example toggle">

    <Tags.Callout label="info" >
        This is a custom callout block
    </Tags.Callout>
    <Tags.Paragraph>
    Lorem Ipsum es simplemente el texto <Tags.Link href="google.com" title="ggg">Link text</Tags.Link> de relleno de las imprentas y archivos.
    </Tags.Paragraph>
    <Tags.Quote title="Quote title children">This is a template text for a quote element as a children</Tags.Quote>

</Tags.Toggle>

Toggle screenshoot

Go to widgets

Carousel

The content carousel will display an infinite number of contents as cards, 3 cards are displayed at the same time while the rest is hided, the content can rotate in any direction infinitely, to navigate through the rest of the content cards you can use the arrows, the bubbles or clicking on the side cards

Props
cards - Array where each index holds the content of one card
callback - This function will be called when the usesr clicks the central card
default - Index of the card that will be show in the center
spacing - This value detemine the distance between the side cards and the center (use units)
duration - Duration of the spinning animation
style - Styles object
id - Add an ID attribute

<Tags.Carousel
    callback={ i => console.log(i)}
    spacing="80%"
    cards={[
        <Tags.Title key="" text="Title 1"/>,
        <Tags.Title key="" text="Title 2"/>,
        <Tags.Title key="" text="Title 3"/>,
        <Tags.Title key="" text="Title 4"/>,
        <Tags.Title key="" text="Title 5"/>,
        <Tags.Title key="" text="Title 6"/>,
        <Tags.Title key="" text="Title 7"/>
    ]}
/>

Carousel screenshoot

Go to widgets

Block

This widget is really simple, it just wraps content in a box to diferenciate from the code around

Props
background - Background of the block
bulletColor - Item bullet color
style - Styles object
id - Add an ID attribute

 <Tags.Block>
    <Tags.UList items={["Item 1", "Item 2", "Item 3", "Item 4"]}/>
    <Tags.Img img="/example1.jpg" height="300px" width="500px" alt="Alt text" caption="Enviorement"/>
</Tags.Block>

Block screenshoot

Go to widgets

Url

This widget takes and url and a few information to create a card to make the URL stand out, this widgets will show a title, description, url and a screenshoot of the URL

Props
src - URL we want to embed
img - Image we want to show
title - Title for the URL card
description - Description of the URL content
style - Styles object
id - Add an ID attribute

<Tags.Url src="https://porti.dev/" title="My personal site" description="An online portfolio and blog where I show my skills"/>

URL screenshoot

Go to widgets

Page

This widget can hold content and display it as a popup on click event

Props
title - Title for the page card
description - Description of the page content
style - Styles object
id - Add an ID attribute
small - Smmaller version of the widget without preview

<Tags.Page title="Test page" description="Template description" small>
                <h1>gg</h1>
                <p>Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam</p>
                <p>Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam</p>
</Tags.Page>

Page screenshoot Page small screenshoot Page opened

Go to widgets

Section

This widget is just a section with styles and a preformated title

Props
title - Add an h2 at the beggining of the section
sticky - Make titles stick to the top of the viewport
style - Styles object
id - Add an ID attribute

<Tags.Section id="secction--example">
                <h1>gg</h1>
                <p>Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam</p>
                <p>Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam</p>
</Tags.Section>

Section screenshoot
