@slidy/element NPM

@slidy/element

Simple, configurable & reusable carousel CustomElement based on @slidy/core.

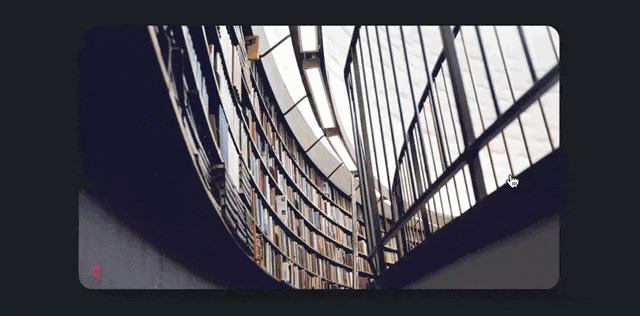

Try the DEMO

Getting started
Usage
Options
Events
Methods
Styling

Getting started

The package is available via NPM:

npm i -D @slidy/element

or from CDN:

<script src="https://unpkg.com/@slidy/element"></script>

Playground is available in svelte REPL.

Usage

CustomElement <slidy-element> is available via import as MJS/CJS module or via global Window.Slidy object props as IIFE.

MJS/CJS module import

<head>
   <script type="module">
        import 'https://unpkg.com/@slidy/core/dist/index.mjs'; // MJS module
        // OR
        import 'https://unpkg.com/@slidy/core/dist/index.cjs'; // CJS module
    </script>
</head>

<slidy-element id="slidy" index="5">
    <img src="..." width="..." height="..."/>
    ...
</slidy-element>

IIFE as `Window` Object

window.Slidy object contain Slidy Class like element props, @slidy/animation, @slidy/easing & @slidy/media functions.

window.Slidy = {
    animation, // animation functions
    easing, // easing functions
    element, // Slidy Class
    media // global media store
}

<head>
    <script src="https://unpkg.com/@slidy/element/dist/index.js"></script>
</head>

<slidy-element id="slidy" index="5" snap="center">
    <img src="..." width="..." height="..."/>
    ...
</slidy-element>

<script>
    const animation = Slidy.animation.flip
    const easing = Slidy.easing.cubic
    const media = Slidy.media
    const node = document.querySelector('#slidy')

    node.setAttribute('easing', easing.toString())
    // options set after attributes on init <slidy-element> & merged/rewrite
    node.options = {animation: animation.toString()}
</script>

As third party module in any frameworks

<!-- Svelte -->

<script>
    import '@slidy/element';
</script>

<slidy-element id="slidy" index="5" snap="center">
    <img src="..." width="..." height="..."/>
    ...
</slidy-element>

Options

All options are optional & can be passed through element attributes or like options keys. Options set after attributes on init <slidy-element> & merged/rewrite.

animation & easing functions also can be passed through attributes with: key: function.tostring() transformation.

If you need reversed flow use css rules on target node, like: flex-flow: row-reverse / column-reverse, direction: rtl or html attribute dir="rtl".

If you need keyboard navigation just set tabindex=0 on <slidy-element>.

⚠️ Don't positioning childs absolute, because @slidy use coordinates from childNodes. For deck flow use options.snap: 'deck'.

Key	Default	Type	Description
`index`	`0`	`number`	Start index
`clamp`	`0`	`number`	Clamping sliding by index: `clamp - index + clamp`
`indent`	`1`	`number`	Sliding indent: part of gap padding both start/end edges of slide `gap * indent`
`sensity`	`5`	`number`	Sliding sensity: how many pixels to drag in the RAF `~16ms` to start move, `0` when sliding
`gravity`	`1.2`	`number`	Sliding gravity: `0(space) ~ 1(eath) ~ 2(underground)`
`duration`	`375`	`number`	Sliding duration in ms
`animation`	`undefuned`	`function`	Animation function: `AnimationFunc = (args: AnimationArgs) => Styles` - predefined in @slidy/animation.
`easing`	`undefined`	`function`	Easing function: `t value from 1 to 0` - predefined in @slidy/easing.
`snap`	`undefined`	`string`	Snapping side: `'start', 'center', 'end', 'deck', undefined`. Default clamp sliding by edges.
`axis`	`undefined`	`string`	Control coordinate axis: `'x', 'y'`.
`loop`	`false`	`boolean`	Infinite loop mode

Internal calculated - readonly

Key	Type	Description
`position`	`number`	Current position
`direction`	`number`	Children move direction
`vertical`	`number`	Children axis flow: `0` or any `Number` as `true`
`reverse`	`number`	Children reverse flow: `-1` or `1`
`scrollable`	`number`	Children full size with gaps > target node size

Usage

<head>
    <script src="https://unpkg.com/@slidy/element/dist/index.js"></script>
</head>

<slidy-element id="slidy" index="5" snap="center">
    <img src="..." width="..." height="..."/>
    ...
</slidy-element>

<script>
    let animation = Slidy.animation.flip
        easing = Slidy.easing.cubic
        media = Slidy.media
        node = document.querySelector('#slidy')

    node.setAttribute('easing', easing.toString())
    // options set after attributes on init <slidy-element> & merged/rewrite
    node.options = {animation: animation.toString()}
</script>

Events

Slidy instance reinit on every change childNodes.length in on:mutate event.

Name	Detail	Description
`mount`	`{options}`	Fires when `node.children.length` & node.children isConnected
`resize`	`{ROE,options}`	Fires on resize target node `ROE: ResizeObserverEntry[]`
`mutate`	`{ML,options}`	Fires on mutation `childNodes` in target node `ML: MutationRecord[]`
`move`	`{index,position}`	Fires on any sliding
`index`	`{index}`	Fires on each index change: `index === changed.index`
`keys`	`{e.key}`	Fires if target node focusing and any key pressed. Predefined keys: `['ArrowLeft', 'ArrowRight', 'ArrowUp', 'ArrowDown']` is `defaultPrevented` & navigate `to(index + options.clamp)`. Focus not in core & can do programaticaly or with `tabindex` attribute on target node.
`update`	`{updated.options}`	Fires on each options update
`destroy`	`{node}`	Fires when async `destroy()` resolved or before target node unmounted from the DOM

Usage

<head>
    <script src="https://unpkg.com/@slidy/element/dist/index.js"></script>
</head>

<slidy-element id="slidy" index="5" snap="center" onmove="onMove">
    <img src="..." width="..." height="..."/>
    ...
</slidy-element>

<script>
    const node = document.querySelector('#slidy');

    node.addEventListener('mount', (e) => console.log(e))

    node.onupdate = (e) => console.log(e.detail) // ???

    function onMove(e) {
        const { index, position } = e.detail
        console.log(index, position)
    }
</script>

Methods

Name	Arguments	Description
`to()`	`(index)`	Scroll to `index`
`init()`	`(node)`	Init slidy() instance
`update()`	`({option:value})`	Update any property in options
`destroy()`	`()`	Remove event listners, observers & defaulted props on `slidy()` instance

Usage

<head>
    <script src="https://unpkg.com/@slidy/core/dist/index.js"></script>
</head>

<slidy-element id="slidy" index="5" snap="center" onmove="onMove">
    <img src="..." width="..." height="..."/>
    ...
</slidy-element>

<nav>
    <button id="prev">←</button>
    <button id="next">→</button>
</nav>

<script>;
    const slidy = document.querySelector('#slidy');
    const prev = document.querySelector('#prev');
    const next = document.querySelector('#next');

    slidy.update({ snap: 'center' })

    prev.onclick = () => slidy.to(index - 1)
    next.onclick = () => slidy.to(index + 1)
</script>

Styling

<slidy-element> nested @slidy/core styles outline: 0; overflow: hidden; user-select: none; -webkit-user-select:none; & have base simple incapsulated styles. Also you can style it & his childs as native HTMLElements or you can pass CSSvariables props via style attribute or in css scope. For <img> children required pass width/height attributes.

Incapsulated styles

:host {
    display: flex;
    flex-flow: var(--flow);
    gap: var(--gap, 1rem);
    width: 100%;
    height: var(--height, 20rem);
}

::slotted(*) {
    flex: 0 0 var(--width, auto);
    width: var(--width, auto);
    height: 100%;
}

CSS variables

Name	Default	Description
`--flow`	`row`	Flex flow
`--width`	`auto`	Each children width
`--height`	`20rem`	`<slidy-element>` height
`--gap`	`1rem`	Gap between childs

Usage

<head>
    <script src="https://unpkg.com/@slidy/core/dist/index.js"></script>

    <style>
        #slidy {
            --flow: row;
            border: 1px solid red;
        }
    </style>
</head>

<slidy-element
    id="slidy"
    index="5"
    snap="center"
    style="--width: 100px; --height: 100px; --gap: 1rem;"
    >
    <img src="..." width="..." height="..."/>
    ...
</slidy-element>

MIT © Valexr
