@vuensight/cli v0.1.5

vuensight 👀

Visualize Vue.js component relationships and communication channels, i.e. props, events and slots. This tool operates on the command line and is made for developers. The aim of vuensight is to provide visual insight into the components of a Vue.js project and to support developers before and during refactoring, e.g. by visually analyzing which prop is used in which parent component or by highlighting unused components or channels.

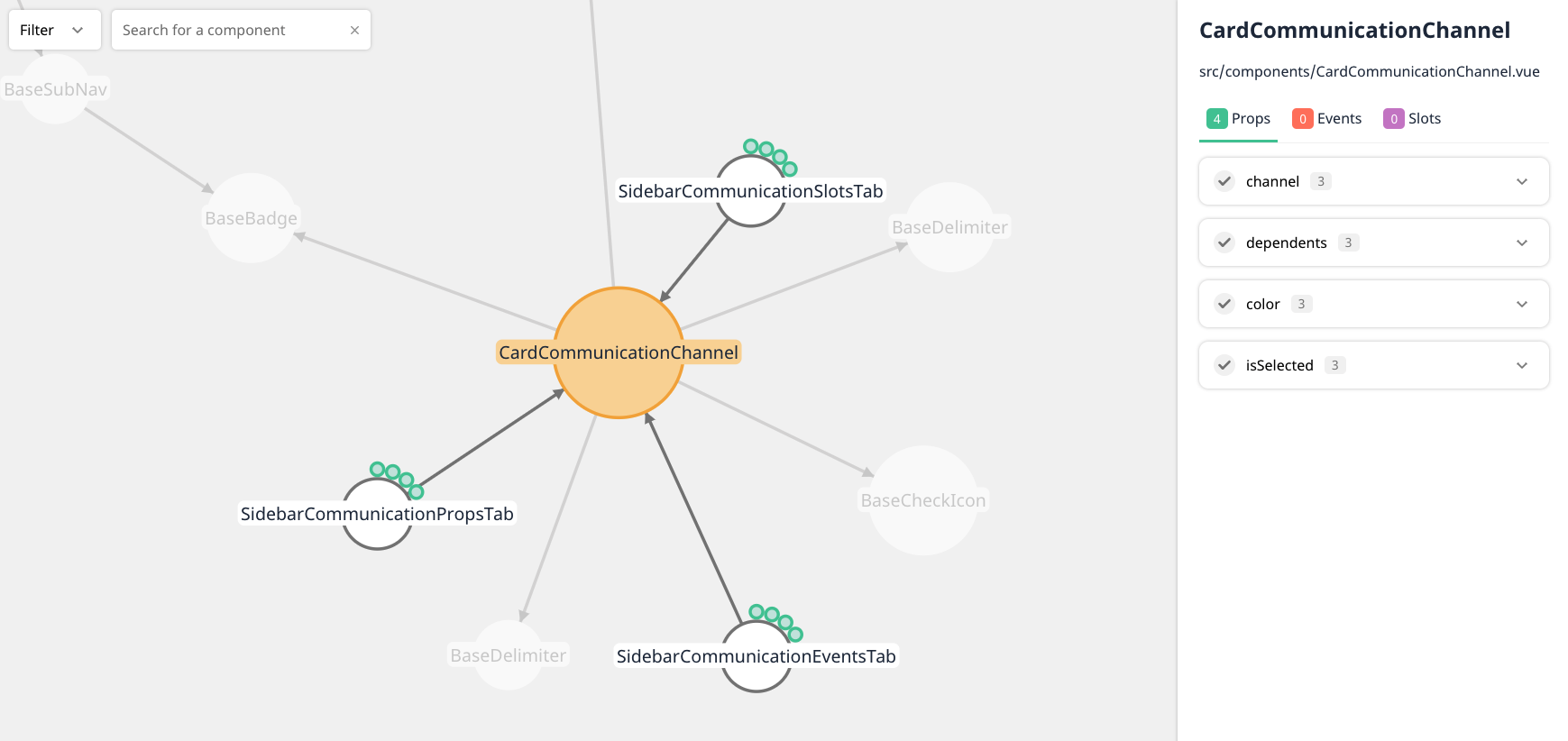

An example visualization of vuensight itself:

This tool is built on top of the two awesome packages:

• dependency-cruiser for building the dependency tree
• vue-docgen-api for parsing the Vue files

Getting started 🚀

Install

First, install the cli package either locally in the project you want to visualize:

npm i -D @vuensight/cli

Or globally on your machine if you plan to visualize multiple projects:

npm i -g @vuensight/cli

Run

Then run the tool in your project folder:

vuensight

Options

• --dir or -d (optional): Specify the directory that should be parsed relative from your current working directory, default is src
• --port or -p (optional): Start the application in a different port, default is 4444
• --webpack-config or -wpc (optional): Specify the path to your webpack-config (from your current working directory). This is particularly important if you use aliases.
• --ts-config or -tsc (optional): Specify the path to your TypeScript config file (from your current working directory).

An example usage:

vuensight --dir resources/js --port 9999 --webpack-config ./webpack-config.json --ts-config ./tsconfig.json

Licencse

MIT
