@wont/use-antd-resizable-header v1.0.3

@wont/use-antd-resizable-header

extend from https://github.com/hemengke1997/use-antd-resizable-header, cause no one approval pull request and publish, details #81 feat: custom dragRender

antd 表格头拖拽 Hook，兼容 Table ProTable

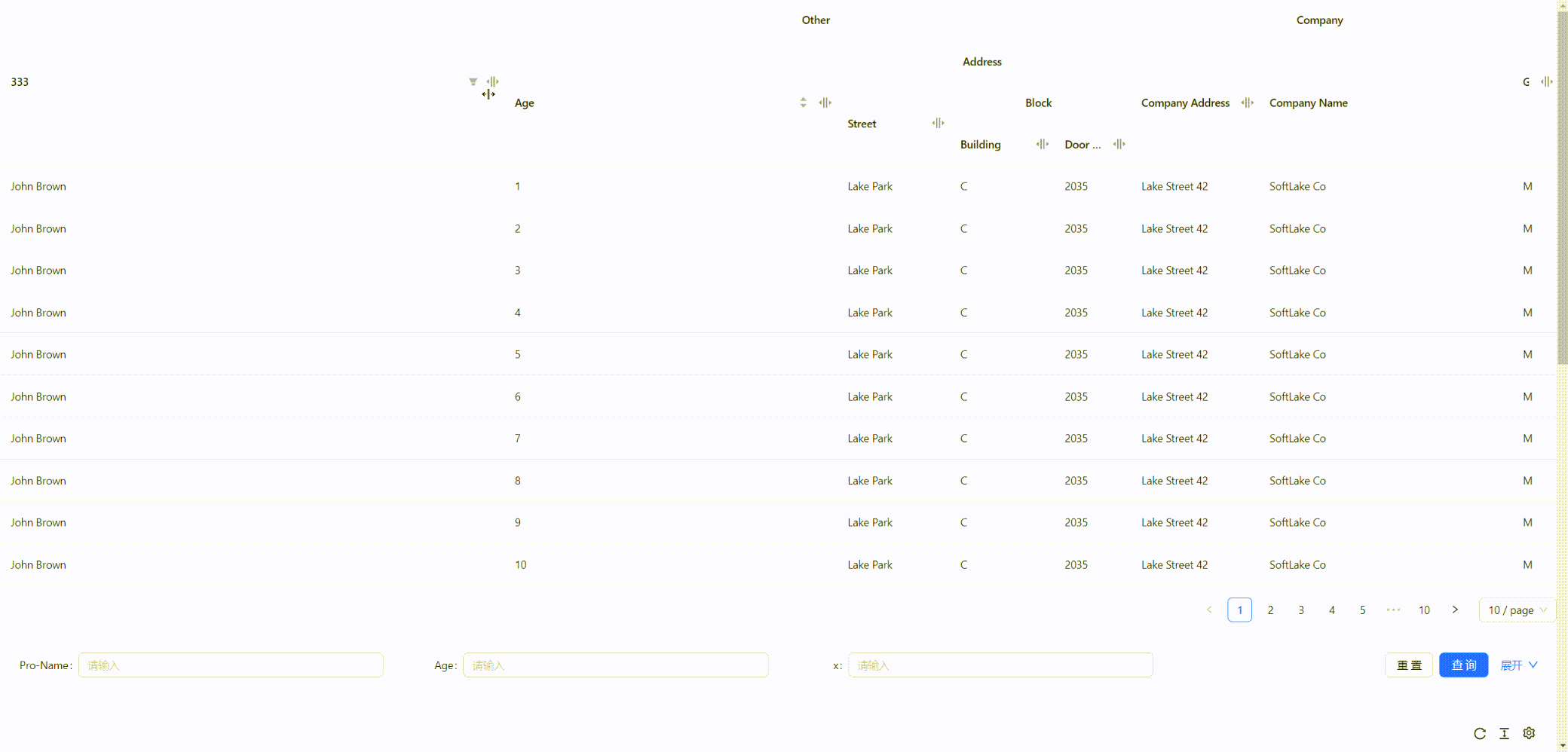

预览

在线地址

Demo 基于antd-v4

安装

npm i @wont/use-antd-resizable-header

or

yarn add @wont/use-antd-resizable-header

or

pnpm add @wont/use-antd-resizable-header

API

Properties

Return

注意事项

• 默认拖动颜色为#000，可通过global或设置 css 变量--arh-color设置颜色
• 至少一列不能拖动（width 不设置即可），请保持至少一列的自适应
• 若 column 未传入dataIndex，请传入一个唯一的key，否则按照将按照 column 的序号 index 计算唯一 key
• 若 column 有副作用，请把依赖项传入 useMemo deps 中

封装ProTable和Table

v4和v5一致，仓库中playground基于v5

在线地址 基于antd-v4

import {
  type ParamsType,
  type ProColumns,
  ProTable,
  type ProTableProps,
} from "@ant-design/pro-components";
import { useAntdResizableHeader } from "@wont/use-antd-resizable-header";
import { Table } from "antd";
import { ElementType } from "react";

type ColumnsState = Parameters<
  typeof useAntdResizableHeader
>["0"]["columnsState"];
export type AntdResizableTableColumns<DataType> = ProColumns<DataType> & {
  resizable?: boolean;
};

export type AntdResizableTableProps<
  DataType extends Record<string, any>,
  Params extends ParamsType = ParamsType,
  ValueType = "text",
> = Omit<ProTableProps<DataType, Params, ValueType>, "columns"> & {
  columns: AntdResizableTableColumns<DataType>[];
  tableType?: "ProTable" | "Table";
  persistenceKey?: string;
  columnsState?: ColumnsState;
};

export type AntdResizableTableComponent = <
  DataType extends Record<string, any>,
  Params extends ParamsType = ParamsType,
  ValueType = "text",
>(
  props: AntdResizableTableProps<DataType, Params, ValueType>
) => JSX.Element;

const tableMap = {
  ProTable,
  Table,
};

const AntdResizableTable: AntdResizableTableComponent = (props) => {
  const {
    tableType = "ProTable",
    columns,
    columnsState,
    ...tableProps
  } = props;

  const Component = tableMap[tableType] as ElementType<
    (typeof tableMap)[typeof tableType]
  >;
  const { components, resizableColumns, tableWidth } = useAntdResizableHeader({
    columns,
    columnsState,
    minConstraints: 80,
  });
  return (
    <Component
      {...tableProps}
      components={components}
      columns={resizableColumns}
      scroll={{ x: tableWidth }}
    />
  );
};

export default AntdResizableTable;

ProTable

import ProTable from "@ant-design/pro-table";
import { useAntdResizableHeader } from "@wont/use-antd-resizable-header";
import { Button, Table, Tooltip } from "antd";

function App() {
  const columns: ColumnsType<object> = [];
  const { components, resizableColumns, tableWidth, resetColumns } =
    useAntdResizableHeader({
      columns: useMemo(() => columns, []),
      // 保存拖拽宽度至本地localStorage
      columnsState: {
        persistenceKey: "localKey",
        persistenceType: "localStorage",
      },
      tooltipRender: (props) => <Tooltip {...props} />,
    });

  const proColumns: ProColumns[] = [];
  const {
    components: proComponents,
    resizableColumns: proResizableColumns,
    tableWidth: proTableWidth,
    resetColumns: proResetColumns,
  } = useAntdResizableHeader({
    columns: useMemo(() => proColumns, []),
    tooltipRender: (props) => <Tooltip {...props} />,
  });

  return (
    <>
      <Table
        columns={resizableColumns}
        components={components}
        dataSource={data}
        scroll={{ x: tableWidth }}
      />
      <ProTable
        columns={proResizableColumns}
        components={proComponents}
        dataSource={data}
        scroll={{ x: proTableWidth }}
      />
      <Button onClick={() => resetColumns()}>重置宽度</Button>
    </>
  );
}

Table

import { useAntdResizableHeader } from "@wont/use-antd-resizable-header";
import { Space, Table, Tag } from "antd";
import React, { useReducer } from "react";

const data = [
  {
    key: "1",
    name: "John Brown",
    age: 32,
    address: "New York No. 1 Lake Park",
    tags: ["nice", "developer"],
  },
];

const Example: React.FC = () => {
  const [, forceRender] = useReducer((s) => s + 1, 0);
  const [deps, setDeps] = useState(0);

  const columns = [
    {
      title: "Name",
      dataIndex: "name",
      key: "name",
      width: 300,
      ellipsis: true,
      render: (text) => (
        <a onClick={() => setDeps((t) => t + 1)}>
          {text}
          {deps}
        </a>
      ),
    },
    {
      title: "Age",
      dataIndex: "age",
      key: "age",
      ellipsis: true,
      width: 200,
    },
    {
      title: "Tags",
      key: "tags",
      dataIndex: "tags",
      width: 200,
      ellipsis: true,
      render: (tags) => (
        <>
          {tags.map((tag) => {
            let color = tag.length > 5 ? "geekblue" : "green";
            if (tag === "loser") {
              color = "volcano";
            }
            return (
              <Tag color={color} key={tag}>
                {tag.toUpperCase()}
              </Tag>
            );
          })}
        </>
      ),
    },
    {
      title: "render",
      key: "action",
      render: (text, record) => (
        <Space size="middle">
          <a>Invite {record.name}</a>
          <a
            onClick={() => {
              forceRender();
              alert("render");
            }}
          >
            render
          </a>
        </Space>
      ),
    },
  ];

  const { components, resizableColumns, tableWidth } = useAntdResizableHeader({
    columns: useMemo(() => columns, [deps]),
    minConstraints: 50,
  });

  return (
    <Table
      columns={resizableColumns}
      components={components}
      dataSource={data}
      scroll={{ x: tableWidth }}
    />
  );
};

为什么需要 React.useMemo ?

如果不使用 useMemo

组件 render => columns 引用变化 => use-antd-resiable-header render => 组件 render => columns 引用变化···

不使用 useMemo

可以采用其他阻止 render 的方案，如: columns 是 prop 或 组件外常量

Table 特殊处理

filter 按钮溢出隐藏了

解决方案

.ant-table-filter-trigger {
  margin-inline: 0;
}

ProTable 特殊处理

fixed

ProTable 默认会给 fixed 列添加宽度，所以可能会造成 至少一列宽度为0 的条件无法满足。

解决方案

1. 手动给 fixed 列添加宽度，然后不设置其余某一个非 fixed 列宽度
2. 不设置 fixed 列宽度（默认 200），然后其余某一列也不设置宽度

本地开发

# 开发调试工具库
pnpm i

pnpm run dev

# 预览调试 playground
cd playground

pnpm i

pnpm run dev

MIT

LICENSE
