Model

The model is the internal representation of a decision table. Rather than using a simple array of arrays, the model organizes all sections, rows, and test cases by unique IDs. This approach may be more complex to follow in the code, but it greatly simplifies operations such as adding new sections or test cases, reordering elements, and manipulating the model dynamically.

Layout Equivalence Class Table

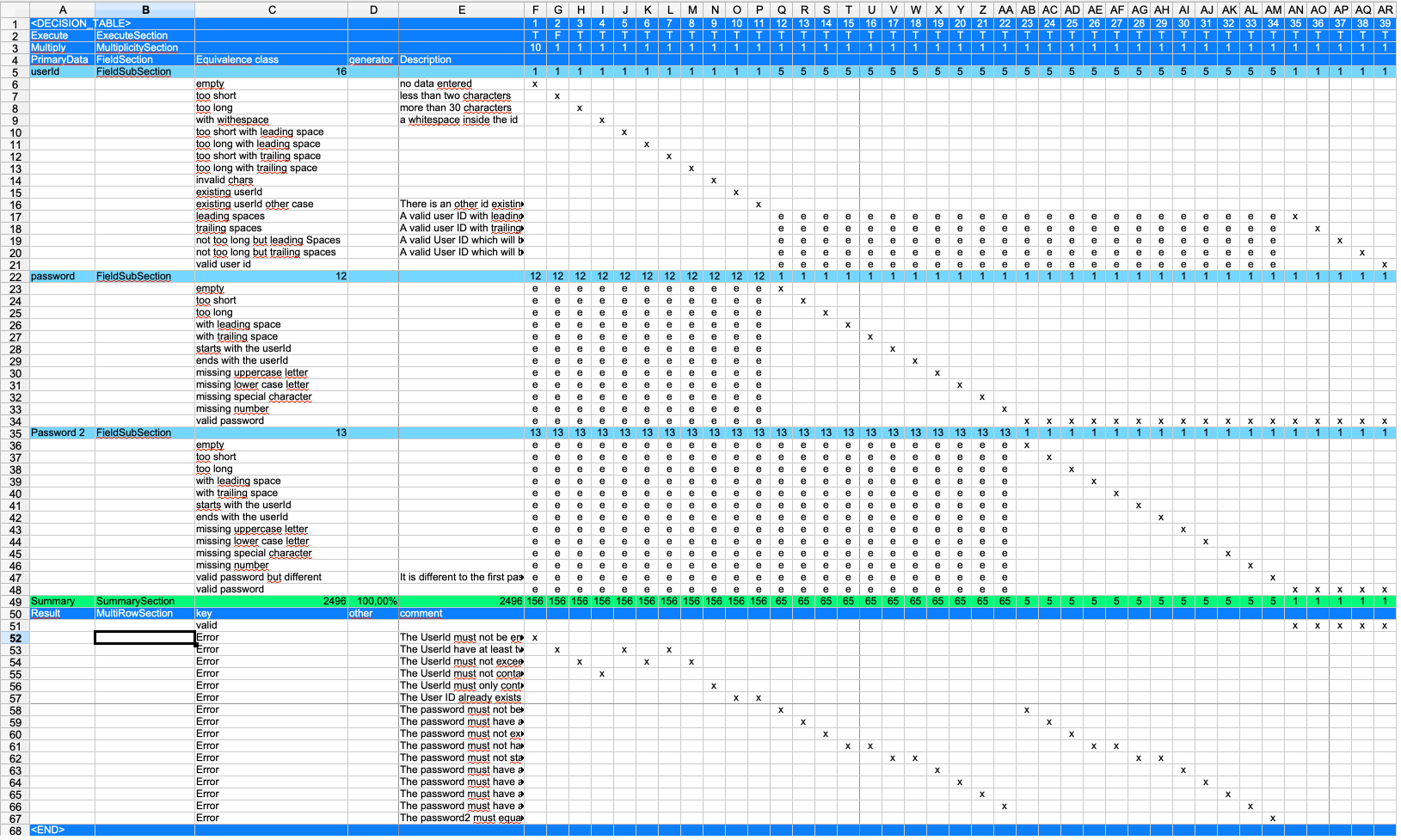

The example above shows an equivalence class table where the column order is crucial. The first five columns are fixed, and test cases begin from the sixth column onward. The parser determines the end of test cases by reading the first row and stopping at the first empty cell. Therefore, inserting an empty column within the test case area will cause the parser to stop processing further columns.

The table is divided into several sections:

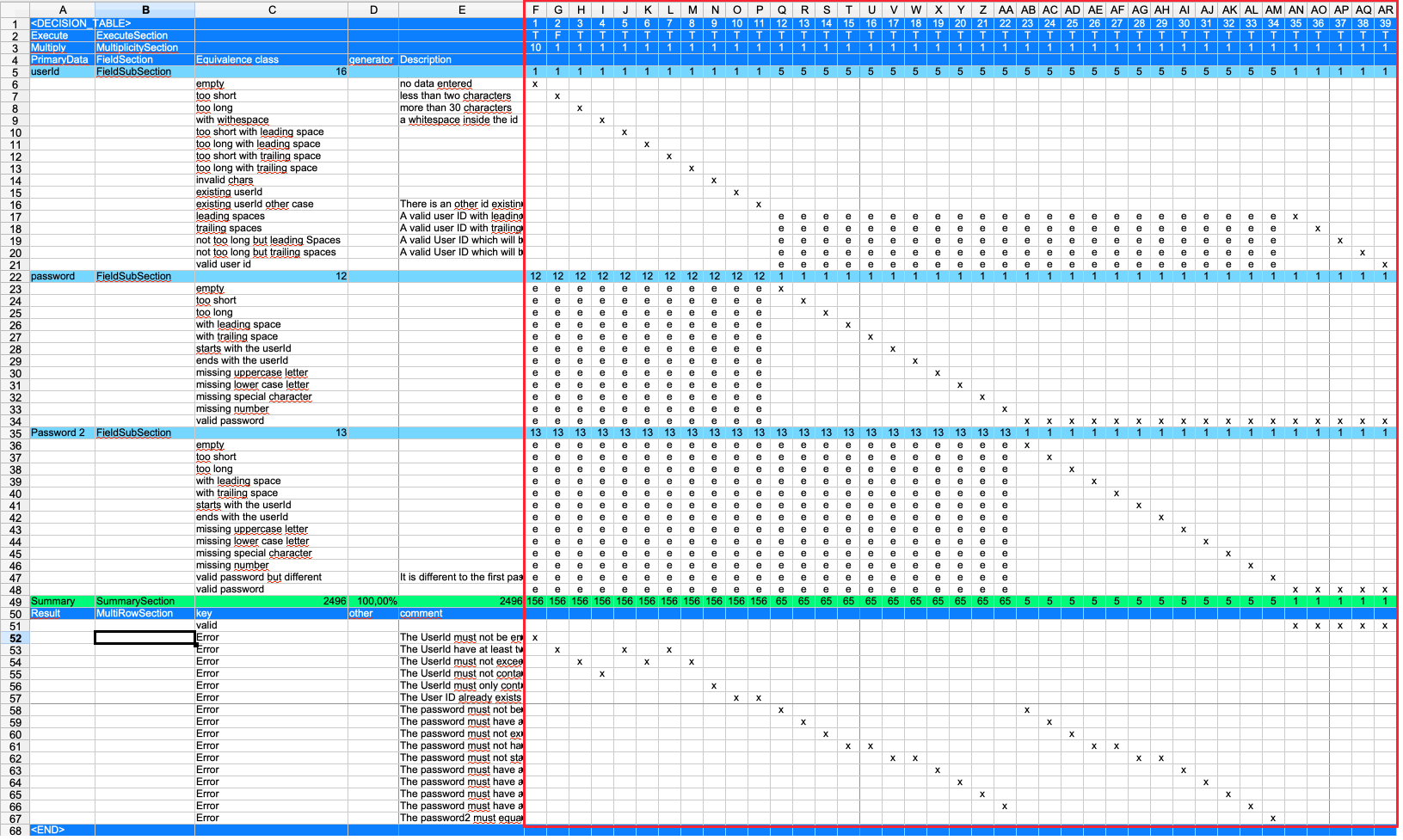

On the right side of the table, each column represents one test case. The column header displays the test case name (in this example, simple numbers are used, where column "F" represents the first test case named "1"). The left side of the table defines the fields and expected results.

The left side is further divided into different sections that determine how test case data is structured and processed.

A subsection in this case is one field and all the equivalence classes for this field. An equivalence class defines the different kinds of field values with an equivalent behaviour.

For example: Let’s say we have a field with a maximum length of 10 characters. Then all values entered with more than 10 chars will lead to an equivalent behaviour of the application. So it is not necessary to test with 11, 12, 13, …​ characters. The equivalence class is 'more than 10 chars'.

One fieldSection may have many fieldSubSections. The FieldSection groups fields together. Having one or multiple fieldSections has no impact on the table itself. All the fieldSubSections have to be combined.

The multiple row sections can be used to describe the expected results or error messages. It is up to the user how many of these sections are in the table. It can also contain actions on the UI or other information needed.

Sections of an Equivalence Class Table

This section outlines the various sections that can appear in an equivalence class table and their roles.

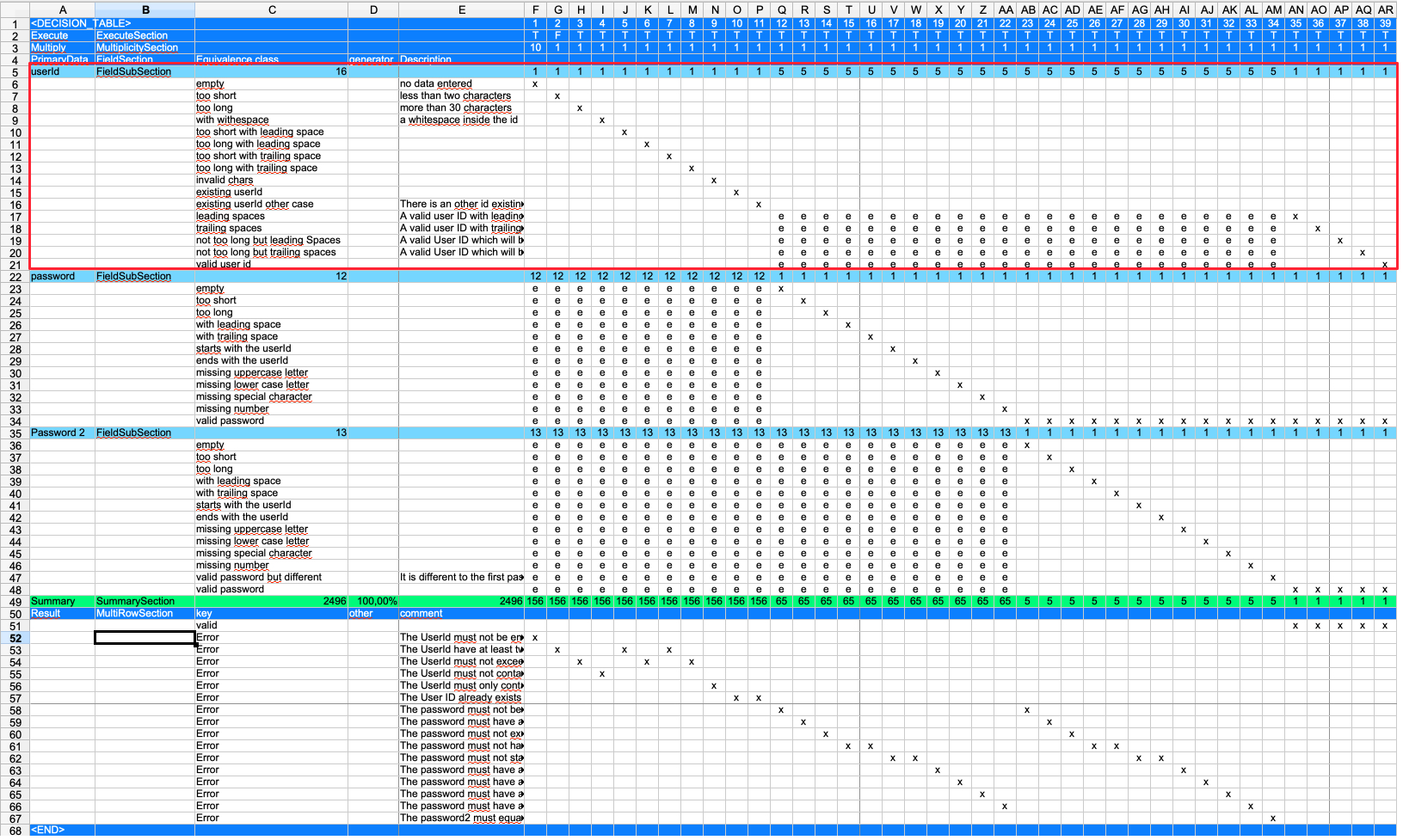

FieldSection

The FieldSection is the primary data section of an equivalence class table. It groups one or more FieldSubSections that contain the relevant test data. Each FieldSection defines the variety of data required for the test, which in turn influences the number of test cases generated.

FieldSubSection

A FieldSubSection contains all the equivalence classes for a single field. An equivalence class defines a range or set of input values that are expected to produce equivalent behavior. For example, for a field with a maximum length of 10 characters, all inputs longer than 10 characters might be considered equivalent. Multiple FieldSubSections can exist within a FieldSection, and their values are combined during test case generation.

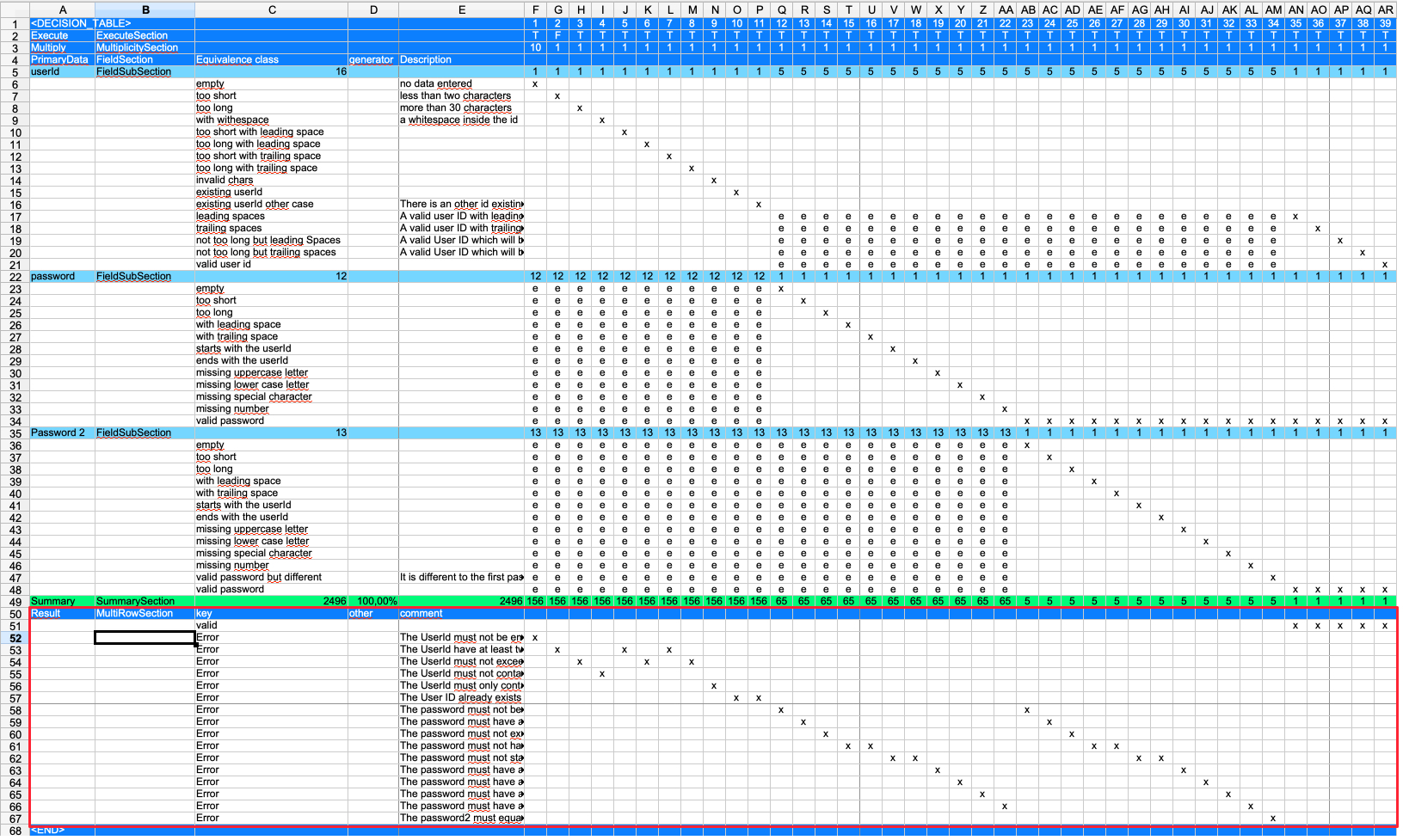

MultiRowSection

MultiRowSections are used to describe additional attributes such as expected results, error messages, or UI actions. They consist of one header row and one or more data rows. Although these sections are not directly manipulated by the test data generator (unlike field sections), their data is accessible to the generators for use in the test cases.

TagSection

The TagSection enables users to assign labels or tags to test cases. These tags can later be used for filtering or categorizing test cases. When test cases involve references, the tags from all linked test cases are aggregated for filtering purposes.

FilterSection

The FilterSection defines criteria to filter test cases. It is applied only to master test cases—if a test case is referenced, the filter in that referenced test case is not executed. The FilterSection specifies filter processors and corresponding expressions to determine whether a test case meets certain criteria.

GeneratorSwitchSection

The GeneratorSwitchSection allows the user to selectively disable specific generators at the test case level. By defining switches, one can control which generators are active during test case creation, allowing for finer control over the generated data.

Single Row Sections

Single row sections are sections that consist of only one row (typically the header row) and do not support additional data rows. These sections control certain test case properties.

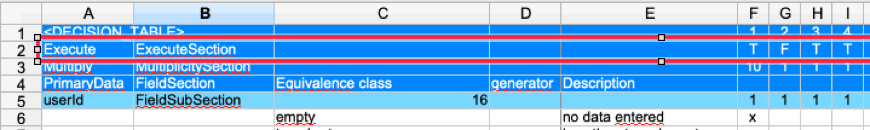

ExecuteSection

The ExecuteSection indicates whether a test case should be executed. For example, if the value in the ExecuteSection is set to false (e.g., column "G" shows "F" for test case "2"), that test case will not be executed.

NeverExecuteSection

The NeverExecuteSection works in the opposite manner to the ExecuteSection. If a test case is marked in the NeverExecuteSection as true, it is created even if it is referenced by another test case. Conversely, if a test case is referenced and its NeverExecuteSection value is false, the referencing test case may be skipped. Essentially, this section controls the creation of test cases based on references in a way opposite to the ExecuteSection.

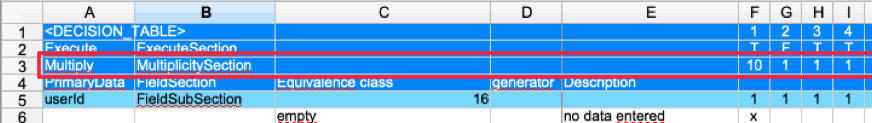

MultiplicitySection

The MultiplicitySection specifies how many instances of a test case should be created from a single test case definition. For example, if the value in the MultiplicitySection is set to "10" for test case "1" (shown in column "F"), then 10 instances of that test case will be generated.

SummarySection

The SummarySection aggregates and displays calculated results for the table. Although it is not used by the generator for creating test cases, it provides valuable feedback to the user by showing totals, percentages, and other summary metrics.

Additional Model Considerations

• Internal Representation: The model uses unique IDs to store test cases, sections, and rows. This design choice facilitates dynamic manipulation (adding, deleting, or reordering elements) but requires careful management of these identifiers in the code.

• Validation: Each section and test case includes validation methods to ensure consistency. Common validation checks include ensuring that mandatory fields are not empty, that field names are unique within a section, and that the overall table structure meets required constraints.

• Flexibility: The model is designed to support a wide variety of decision tables. Users can define multiple FieldSections, include additional MultiRowSections for extra data, and control test case creation with ExecuteSection, NeverExecuteSection, and MultiplicitySection.

This documentation reflects the current state of the model based on the source code and includes updates to section names and functionality as implemented in the latest version of the software.
