A-Frame Hologram Shader

Description of Effect

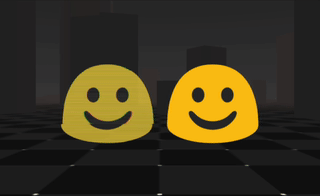

This shader corrupts an image or video texture to make it look like a hologram. There are three main effects applied:

The texture can be made transparent and desaturated.
Scan lines (dark horizontal lines) are drawn on the image. These scanlines slowly drift down the hologram.
Glitch effect: The texture is broken up vertically into equal-height "glitch bars". Each glitch bar is randomly shifted horizontally to create a jittering effect. After the horizontal shift, each of the RGBA components of the glitch bar are further randomly shifted to create a "glitch" effect. The boundaries between glitch bars slowly drift down the hologram.

Installation

You can use aframe-hologram-shader in your project in two ways. First, you can simply include the following script tag after the script that loads a-frame:

<script src="https://unpkg.com/aframe-hologram-shader"></script>

This will automatically register the hologram shader.

Alternatively, you can install the package using npm by executing

npm install aframe-hologram-shader

and then in your project you will need to either include or require the aframe-hologram-shader package.

Example Usage

Once aframe-hologram-shader is installed, you can apply the shader to an image or video in your a-frame scene by setting the material's shader attribute to be hologram. The other parameters of the shader (described below) are also set on the material component. For example:

<html>
  <head>
    <title>Hologram</title>
    <script src="https://aframe.io/releases/1.2.0/aframe.min.js"></script>
    <script src="https://unpkg.com/aframe-hologram-shader"></script>
  </head>
  <body>
    <a-scene background="color: #ECECEC">
      <a-assets>
        <img id="demo" src="[path to your image]" crossorigin="anonymous" />
      </a-assets>
      <a-image
        src="#demo"
        position="0 1.6 -1"
        material="shader: hologram;
                         numGlitchBars: 20"
      >
      </a-image>
    </a-scene>
  </body>
</html>

Configurable Parameters

The following parameters can be used to customize the effect. You can play with their values in the interactive demo.

Parameter	Type	Description
src	map	Texture to display on the hologram. Can be an image or video.
numScanLines	int	The number of scan lines to draw on the texture.
scanLineDrift	float	The speed that the scanlines move down the texture. Should be a number in `[0,1]` which is the fraction of the hologram each scanline moves per second
saturation	float	The saturation of each fragment in the HSV color space is scaled by this value. A value of `0` makes the hologram grayscale, while a value of `1` leaves the saturation unmodified.
alpha	float	The alpha value of each fragment is multiplied by this parameter. Values of `0` and `1` result in completely transparent and opaque holograms, respectively.
numGlitchBars	int	The number of glitch bars to use in the effect.
glitchOffset	float	Maximum horizontal offset for each glitch bar. Should be a number in `[0,1]`, which is the maximum fraction of the holgoram width that each glitch bar can move.
glitchBarDrift	float	Similar to the scan line drift, except it causes the boundaries of the glitch bars to move.
rgbSeparation	float	Similar to glitchOffset, except this is the maximum shift for each of the RGBA components.
glitchRate	float	How many times per second to update the glitch effect.

This component was developed in partnership with Planet Voodoo® (Voodoo LLC) as part of their 'WebXR Wizardry' initiative.
