A-Frame Liquid Portal Shader

Description of Effect

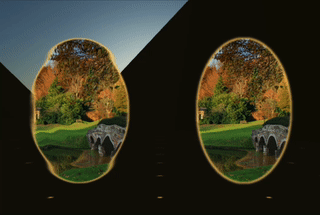

This shader adds a ripple effect to an image or video that makes for an effective portal design.

Installation

You can use aframe-liquid-portal-shader in your project in two ways. First, you can simply include the following script tag after the script that loads a-frame:

<script src="https://unpkg.com/aframe-liquid-portal-shader"></script>

This will automatically register the shader.

Alternatively, you can install the package using npm by executing

npm install aframe-liquid-portal-shader

and then in your project you will need to either include or require the aframe-liquid-portal-shader package.

Example Usage

Once aframe-liquid-portal-shader is installed, you can apply the shader to an image or video in your a-frame scene by setting the material's shader attribute to be liquid-portal. The other parameters of the shader (described below) are also set on the material component. For example:

<html>
  <head>
    <title>Liquid Portal</title>
    <script src="https://aframe.io/releases/1.2.0/aframe.min.js"></script>
    <script src="https://unpkg.com/aframe-liquid-portal-shader"></script>
  </head>
  <body>
    <a-scene background="color: #ECECEC">
      <a-assets>
        <img id="demo" src="[path to your image]" crossorigin="anonymous" />
      </a-assets>
      <a-image src="#demo" position="0 1.6 -1" material="shader: liquid-portal">
      </a-image>
    </a-scene>
  </body>
</html>

Configurable Parameters

The following parameters can be used to customize the effect. You can play with their values in the interactive demo.

Parameter	Type	Description
`src`	`map`	Texture to display. Can be an image or video.
`rippleCenter`	`vec2`	Center of ripple effect (specified in UV coordinates). Default = `{x: 0.5, y: 0.5}`.
`numRipples`	`float`	The number of ripples along a line of length `0.5` in UV space. When `rippleCenter = {x: 0.5, y: 0.5}` this is the total number of ripples between the center and left or right edge of the image.
`maxRippleOffset`	`float`	The maximum displacement caused by the ripples in UV space.
`rippleSpeed`	`float`	The distance moved by each ripple in UV space per second.
`twistRadius`	`float`	The twist effect only affects a circle of radius `twistRadius` in UV-space centered around `rippleCenter`
`maxTwist`	`float`	The number of times the texture should be rotated completely in the twist effect.
`strength`	`float`	A value in `[0,1]` that multiplies `maxRippleOffset`, `twistRadius`, and `maxTwist` to make it easy to smoothly activate and deactivate the effect.

Mouse Interaction Component

The liquid-portal-mouse component moves the rippleCenter of the effect to follow the mouse and animates the strength attribute so that the effect fades when there is no mouse movement. You can try the mouse interaction component by checking the "mouse" box in the interactive demo.

The liquid-portal-mouse component has two configurable proeprties:

Parameter	Type	Description
`moveFrac`	`float`	The fraction of the way to the mouse that the rippleCenter moves on each frame.
`decayTime`	`float`	The number of seconds it takes for the effect to completely disappear after the mouse has stopped moving.

This component was developed in partnership with Planet Voodoo® (Voodoo LLC) as part of their 'WebXR Wizardry' initiative.
