angular-canvas v0.3.0

AngularCanvas

🎨 Angular canvas renderer with support DefaultDomRenderer.

Features:

• Custom canvas elements
• Support redraw in one canvas context
• Support listeners inputs and outputs
• Easily migrate your code on canvas to component approach
• EmulatedEncapsulation by default in canvas component
• Canvas elements support onInit and onDestroy methods
• Support animation canvas elements

Demo

Getting start

npm i angular-canvas

Create canvas element:

import { CanvasElement, NgCanvasElement, NgCanvas } from 'angular-canvas';

@CanvasElement({
  selector: 'graph-line'
})
export class GraphLineElement implements NgCanvasElement {
    // parent element
    public parent: NgCanvas;

    // canvas element redraw until all NgCanvasElement needDraw as true
    public needDraw: boolean;

    setNgProperty(name: string, value: any): void {
      this[name] = value;

      // redraw all element in one canvas context after set ng property
      this.parent.drawAll();
    }

    draw(context: CanvasRenderingContext2D, time: number): void {
      context.strokeStyle = 'red';
      ...
    }
}

Register this element in module

import { CanvasDomModule } from 'angular-canvas';
...

@NgModule({
...
imports: [
    CanvasDomModule.forRoot(
    [
      GraphLineElement,
      ...
    ]
  ),

And declare component use canvas render @CanvasComponent

component.ts

@CanvasComponent
@Component({
  selector: 'app-graph-canvas-example',
  templateUrl: './graph-canvas-example.component.html',
  styleUrls: ['./graph-canvas-example.component.scss'],
})

component.html

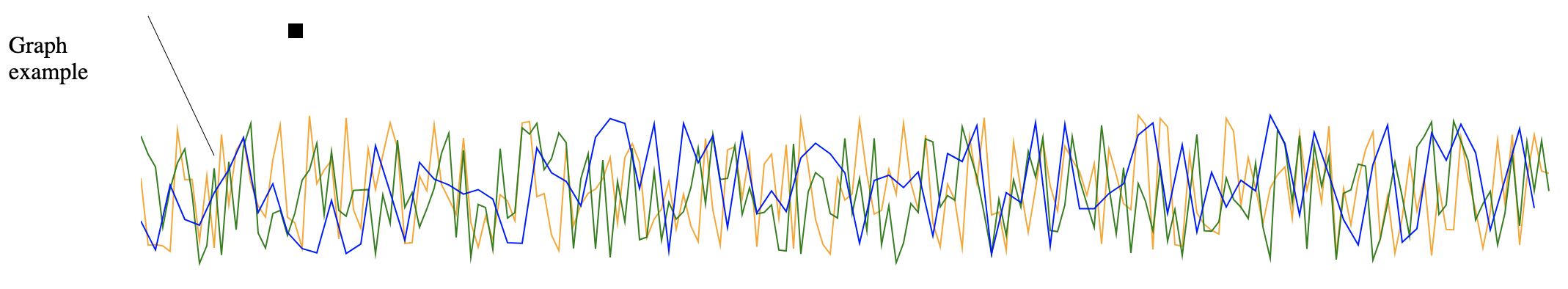

<p>Graph example</p>

<canvas class="first">
  <rect [x]="mouseX" [y]="20" w="20" h="20"></rect>
  <line [x1]="10" [x2]="100" [y1]="10" [y2]="200"></line>
</canvas>
<canvas>
  <graph-line
    [data]="data"
    [step]="step"
    [deltaX]="deltaX"
    strokeStyle="orange"
  ></graph-line>
  <graph-line
    [data]="data2"
    [step]="step"
    [deltaX]="deltaX"
    strokeStyle="green"
  ></graph-line>
  <graph-line [data]="data3" [deltaX]="deltaX" strokeStyle="blue"></graph-line>
</canvas>

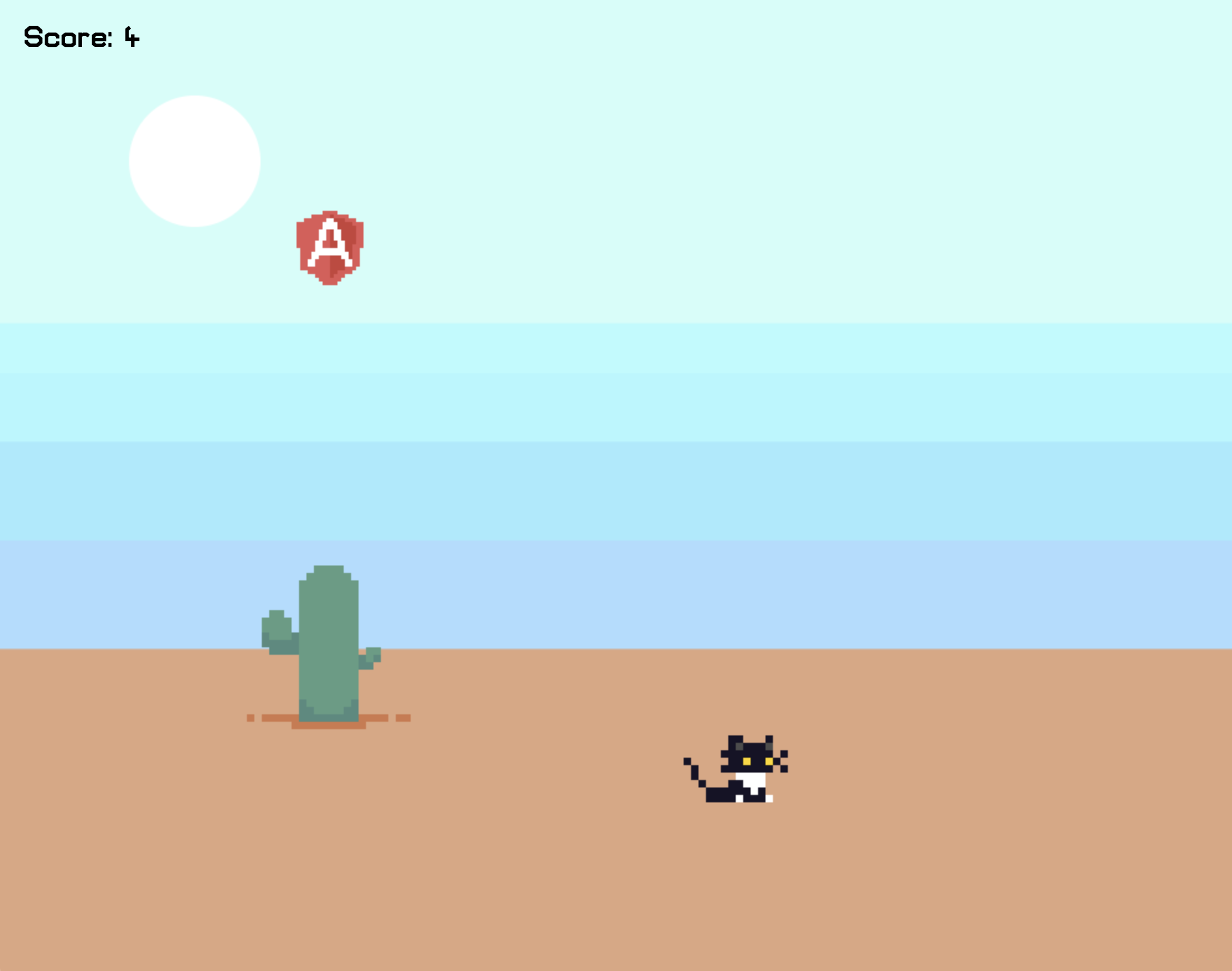

Game example:

API

NgCanvas - main component with selector canvas

  public element: HTMLCanvasElement;
  public drawAll(): void; // redraw all register elements in one canvas context

NgCanvasElement - canvas element interface for register in module

  style?: CSSStyleDeclaration;
  classList?: DOMTokenList;
  needDraw?: boolean; // canvas element redraw until all NgCanvasElement needDraw as true
  parent: NgCanvas; // canvas parent element

  onInit?(context: CanvasRenderingContext2D): void;

  onDestroy?(context: CanvasRenderingContext2D): void;


  /**
  * Method for draw element, *time* - requestAnimationTime
  */
  draw(context: CanvasRenderingContext2D, time?: number): void;

  // standart renderer methods

  appendChild?(newChild: any): void;

  addClass?(name): void;

  insertBefore?(newChild: any, refChild: any): void;

  setNgAttribute?(name: string, value: string, namespace?: string | null): void;

  setAttribute?(name: string, value: string, namespace?: string | null): void;

  setNgProperty?(name: string, value: any): void;

  setStyle?(style: string, value: any, flags?: RendererStyleFlags2): void;

  setValue?(value: any): void;

  removeAttribute?(name: string, namespace?: string | null): void;

  removeChild?(oldChild: any): void;

  removeClass?(name: string): void;

  removeStyle?(style: string, flags?: RendererStyleFlags2): void;

  setAttributeNS?(namespaceUri: string, name: string, value: string): void;

  removeAttributeNS?(namespaceUri: string, name: string): void;

CanvasComponent - Decorator, need for use canvas renderer

CanvasElement - Decorator, for register canvas elements in storage metadata support only one parameter: selector

CanvasDomModule.forRoot([]) register elements in AppModule
