angular-no-vnc v0.0.7
Angular noVNC
Port of Joel Martin's noVNC project for angularjs.

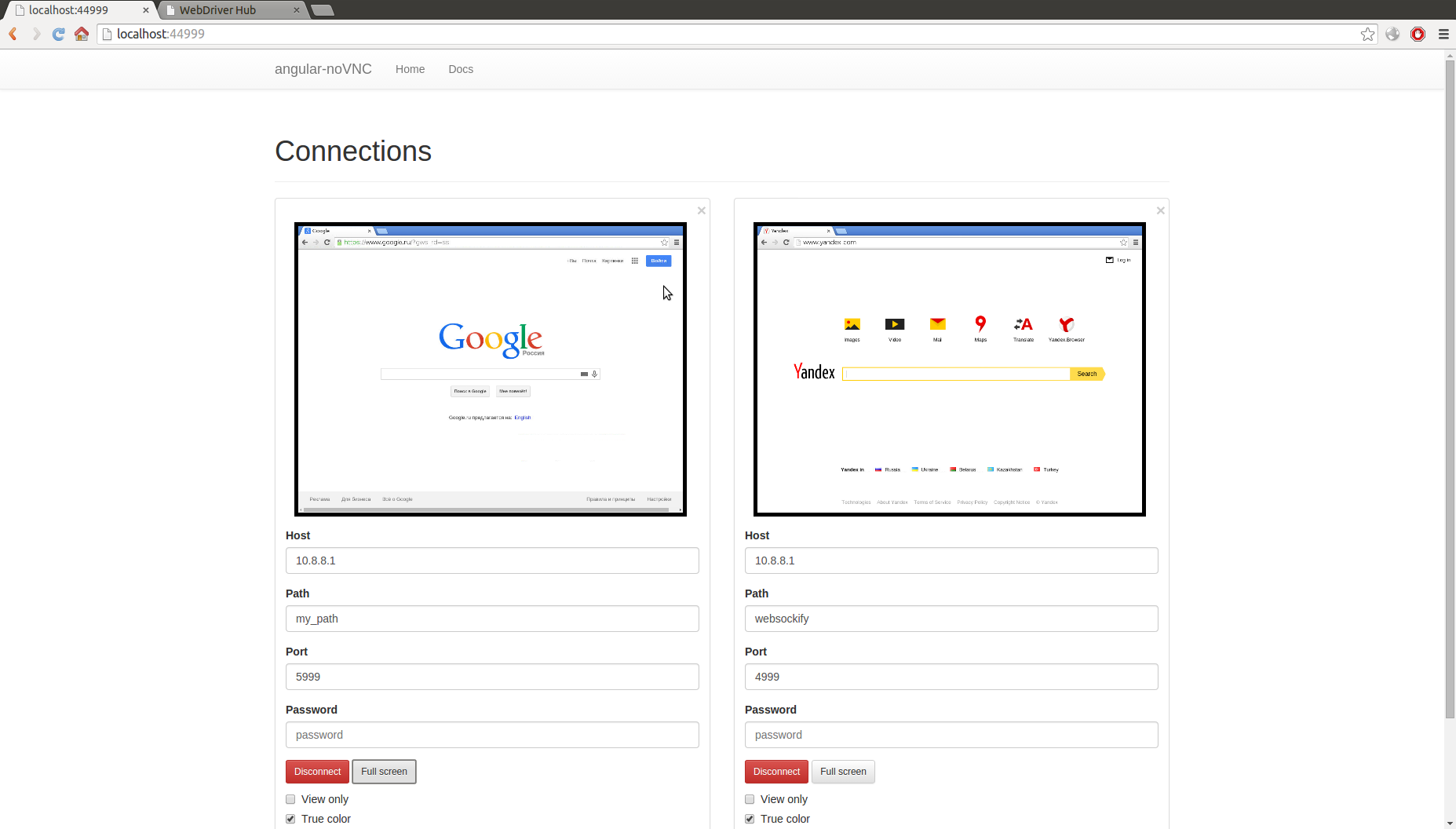

Sample app

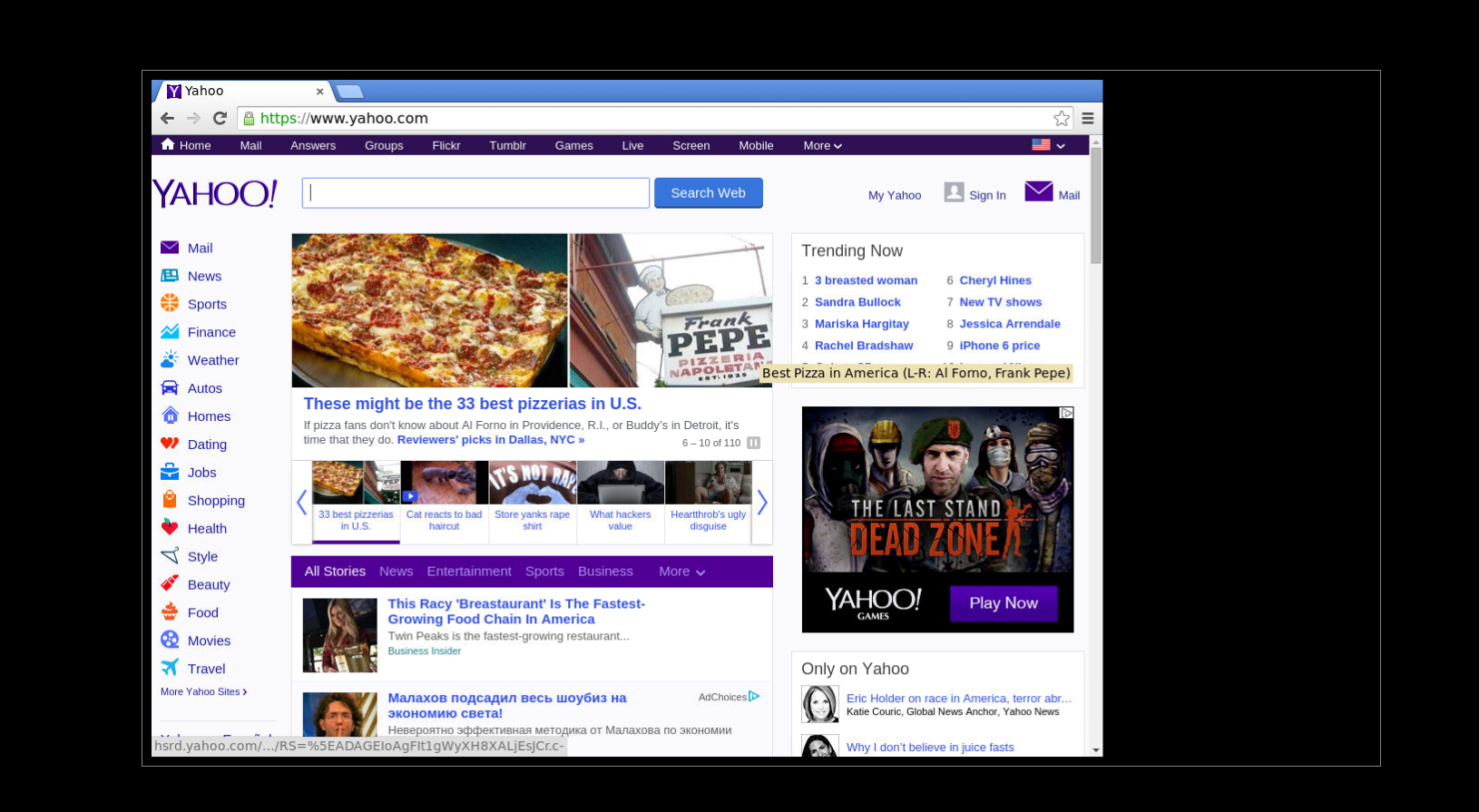

Fullscreen mode
Install
$ bower install angular-no-vnc
Overview
- Multiple connections\displays over one page.
- Config over directive attributes.
- Full screen mode support.
- Easily scale, fit to width\height.
Usage
Start vnc & ws proxy (server-side)
This module is a port of noVNC project that means you should use websockify proxy to convert over websockets. For me it is:
$ sudo apt-get install -y x11vnc
$ x11vnc -display :0 -N -forever &To run the websockify install angular-noVNC globally via npm:
$ npm install -g angular-no-vnc #add websockify command
$ websockify --web=.. 44999 localhost:5900--web=.. will allow you to use sample app in ../index.html for fast check by http://localhost:44999
Note that websockify listens on /websockify path by default. If you want to use another ws path please run websockify --path your_path 44999 localhost:5900
Additional info of usage websockify is here. Others server-side features you might found here.
Use in your application (client-side)
After running websockify, or other ws:// proxy server:
Add library to your html file and noVNC to your module dependency.
var app = angular.module('myApp', ['noVNC']);Add directive
<vnc host="localhost" port="44999" is-connected="true"></vnc>Reload page =)
Configuration
| Attribute | Description | Scope type | Default value |
|---|---|---|---|
| host | IP/name of host to connect. | @ | window.location.hostname |
| port | Port of websockify port. | @ | window.location.port or 80\http, 443\https |
| password | Connection password. | @ | '' |
| path | Connection path | @ | '' |
| true-color | True color representation. | = | true |
| view-only | Disable keyboard and mouse events. | = | false |
| is-connected | Connection switcher. | = | false |
| style | Style of canvas\display element. | = | {} |
| states | States of system actions. format: {status: '', msg: ''},. | = | [] |
| display.scale | Scale of display from 0.1 to 1. | = | 1 |
| display.width | Display width. | = | null |
| display.height | Display height. | = | null |
| display.fitTo | Fit display to width/height/scale. | = | null |
| display.fullScreen | Full screen mode switcher. | = | null |
Problems
Yes, they are should be in. This port is goes with code changes of big one (noVNC), that's why you need to use it carefully.
Nearby changes
- Add loadable flash ws:// support.
- Add mobile mode support.
- Add clipboard transfer.
- Write tests.
- Add encription support.
- Refactoring and many code improvements.
All improvements need free time. Your stars and issues increase my interest to work with project =)
Contribution
- Fork
$ git clone git@github.com:rootStar-lock/angular-noVNC.git. - Navigate and install npm and bower dependencies.
$ cd angular-noVNC && npm install. - Project driven by gulp build system. Run
gulp --tasksto see whats we have. - Live sample app in index.html
- Use
gulp lintandgulp platoto check code complexity and common mistakes.
Forks and pulls will be accepted with love)
