ankh-uml v1.1.6
ankh-uml
Ankhorage is the entrypoint of multiple tools that help plan, implement, test & document IT projects.
Quickstart
npx ankh-uml
Features

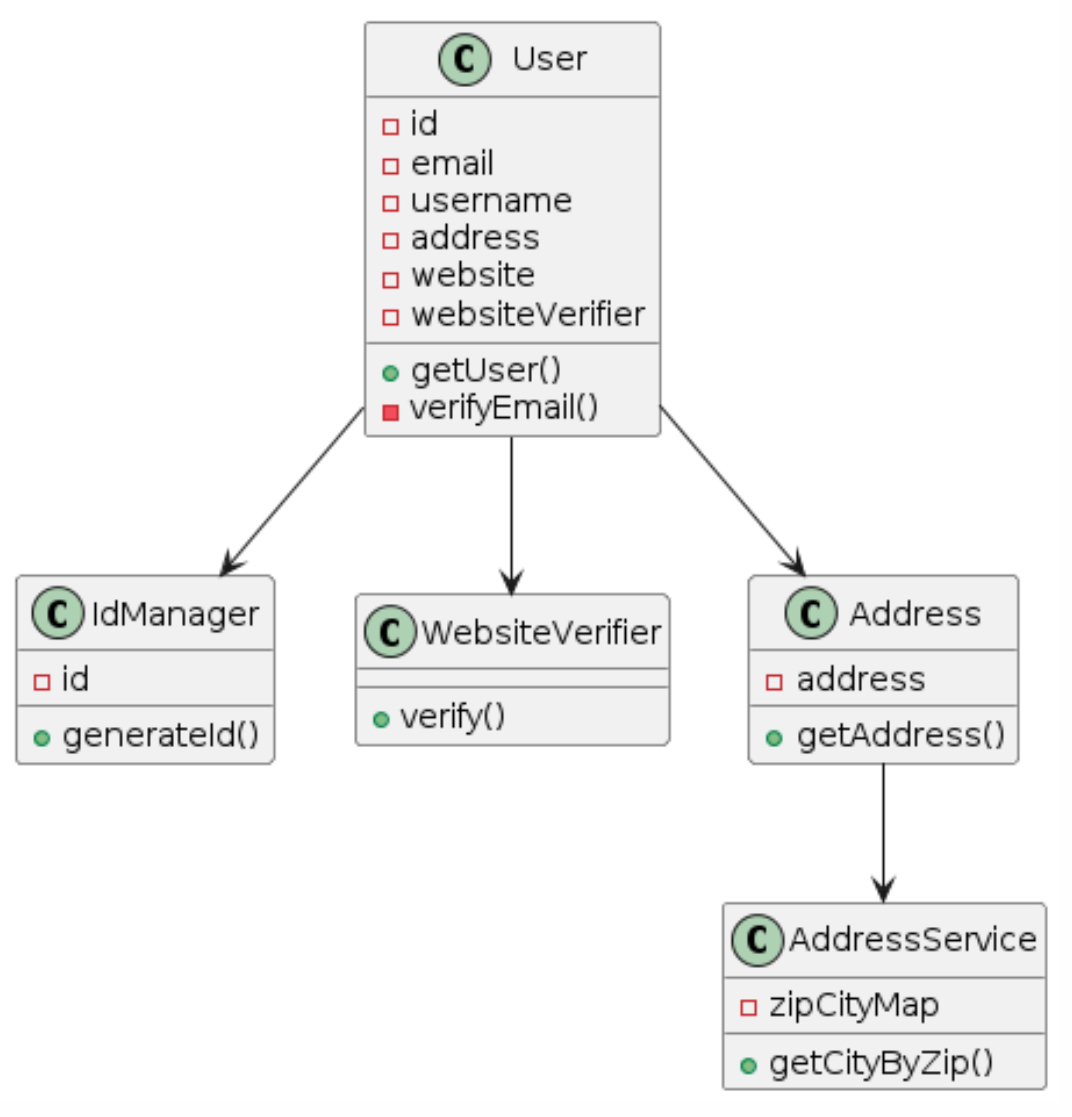

Generate UML diagrams for your TypeScript classes.
This allows inspection of parts of your whole architecture. Furthermore you can enable/disable features like:
- Start from a root file (entrypoint)
- Show/hide interfaces
- Show/hide types
- Show/hide return values
- Show/hide parameters
- Show/hide dependencies
- Set the depth of the diagram
- Choose between multiple renderers
- Mermaid
- PlantUML
Contributing
At the moment the tools are written for Node.js & TypeScript.
However other languages, platforms & tools are welcome.
Attach your tool
If you have a tool that you want to attach to Ankhorage, you can do so by providing a NPX entrypoint.
Enhance this repository
If you want to enhance this repository, you can do so by providing a PR.
Conventions
Convention | Details |
---|---|
eslint | eslint-google-config |
prettier | artiphishle/prettierrc |
Conventions
Entrypoint:
- Naming:
ankh-<toolname>
. - Callable via:
npx ankh-<toolname>
. - Styling of stdout style as in
npx ankhorage
.
Changelog
2024/02/23
- Repo renaming and move to meta repository
2024/02/20
- Created a standalone package for ankh-tools-uml
- Add
examples/
directory with a UML example
2024/02/19
Added UML Generator
- Basic support of UML generation for a single TS Class
- Generating UML using PlantUML (Mermaid planned).
