apollo-oas v1.0.11

OAS to Apollo Connector Generator

NOTE: THIS TOOL IS BEING REFACTORED -- PLEASE DO NOT USE BEFORE CONTACTING ME.

Introduction

The OAS to Apollo Connector Generator is a tool designed to create an Apollo GraphQL Connector from an OpenAPI Specification (OAS) file. It supports OAS versions 3.x and above, accepting input files in both YAML and JSON formats.

Note: This project is experimental. Not all OAS specification options are currently supported, and you may encounter bugs or unimplemented features. Contributions, bug reports, and feedback are highly appreciated. If you have specific OAS files you'd like to add to our test suite, please share them.

Prerequisites

• Node.js version 18 or higher. Typescript version 5.1.6.

Installation

1. Clone the Repository:

   git clone https://github.com/fernando-apollo/oas-to-connector.git
   cd oas-helpers-to-connector

2. Install Dependencies:

   npm install

3. Build the Project:

   npm run build

   And run the CLI with:

   node ./cli/index.js -h
   Usage: index [options] <source>

   Arguments:
     source                source spec (yaml or json)

   Options:
     -V, --version                output the version number
     -i --skip-validation         Skip validation step (default: false)
     -n --skip-selection          Generate all [filtered] paths without prompting for a selection (default: false)
     -l --list-paths              Only list the paths that can be generated (default: false)
     -g --grep <regex>            Filter the list of paths with the passed expression (default: "*")
     -p --page-size <num>         Number of rows to display in selection mode (default: "10")
     -s --load-selections <file>  Load a JSON file with field selections (other options are ignored)
     -h, --help                   display help for command

Usage

To generate an Apollo Connector from your OAS file, run:

node ./cli/index.js <path-to-your-oas-helpers-file>

Replace <path-to-your-oas-file> with the relative or absolute path to your OAS YAML or JSON file.

Example with Petstore

Note: the petstore spec can be downloaded from (https://petstore3.swagger.io)

node ./cli/index.js ./tests/petstore.yaml

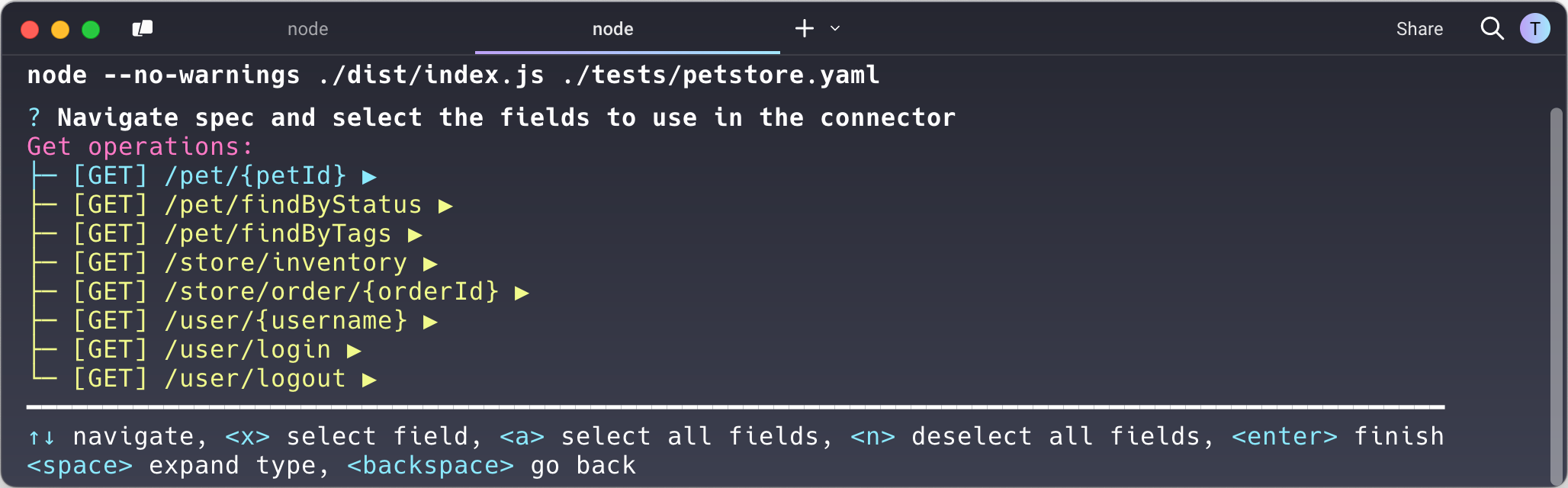

The output should be similar to the following:

Selecting fields

Navigate using the arrow keys and select the fields you want to include in the generated connector schema using the 'x' key. Other options are:

• a to select all fields in the current type, or
• n key to deselect all fields.

Once you've made your selection, press the Enter key to generate the Apollo Connector.

Here's an example of the output when selecting all the fields from [GET] /pet/{petId:

extend schema
  @link(url: "https://specs.apollo.dev/federation/v2.10", import: ["@key"])
  @link(
    url: "https://specs.apollo.dev/connect/v0.1"
    import: ["@connect", "@source"]
  )
  @source(name: "api", http: { baseURL: "https://petstore3.swagger.io/v3" })

scalar JSON

type Pet {
  category: Category
  id: Int
  name: String
  photoUrls: [String]
  "pet status in the store"
  status: String
  tags: [Tag]
}

type Category {
  id: Int
  name: String
}

type Tag {
  id: Int
  name: String
}

type Query {
  """
  Find pet by ID (/pet/{petId})
  """
  petByPetId(petId: Int!): Pet
    @connect(
      source: "api"
      http: { GET: "/pet/{$args.petId}" }
      selection: """
      category {
       id
       name
      }
      id
      name
      photoUrls
      status
      tags {
       id
       name
      }
      """
    )
}

Options

• -i, --skip-validation: Skip the validation step (default: false).
• -n, --skip-selection: Generate all filtered paths without prompting for selection (default: false).
• -l, --list-paths: Only list the paths that can be generated (default: false).

For a complete list of options, run:

node ./cli/index.js -h

Filtering paths

The tool allows filtering the list of paths using a regular expression. This is useful when you have large specs and only want to generate (or list) a subset. As shown above, you can list all the paths using the -l flag:

node ./cli/index.js ./tests/petstore.yaml --list-paths

get:/pet/{petId}
get:/pet/findByStatus
get:/pet/findByTags
get:/store/inventory
get:/store/order/{orderId}
get:/user/{username}
get:/user/login
get:/user/logout

If you'd like to filter the paths using a regular expression, you can use the -g flag. For example, to only list the operations ending with an argument, you can use the following command:

node ./cli/index.js ./tests/petstore.yaml  --list-paths  --grep "{\\w+}$"

get:/pet/{petId}
get:/store/order/{orderId}

or, for instance, filtering by a specific path:

node ./cli/index.js ./tests/petstore.yaml  --list-paths  --grep "/pet/"

get:/pet/{petId}
get:/pet/findByTags

Skipping validation

By default, the tool will validate the OAS specification before generating the Apollo Connector. However, sometimes specifications are not fully compliant with the OAS standard, or you may want to skip this step for other reasons. To do so, simply add the -i (or --skip-validation) flag to the command.

Page size

When selecting paths, the tool will display a list of paths with a default page size of 10. You can change this value using the -p (or --page-size) flag. For example, to display 40 rows per page, you can use the following command:

node ./cli/index.js ./tests/petstore.yaml  --page-size 40

Generating a connector from an existing selection set

When a connector is generated, the tool also outputs the list of selected fields as paths. This list can then be used to generate a connector from a file without the need to select the fields again.

To do so, save the output to a file in JSON format and run the tool with the -s (or --load-selections) flag and the path to the file.

Example

File: tests/sample-petstore-selection.json:

[
  "get:/pet/{petId}>res:r>ref:#/c/s/Pet>obj:#/c/s/Pet>prop:scalar:id",
  "get:/pet/{petId}>res:r>ref:#/c/s/Pet>obj:#/c/s/Pet>prop:scalar:name",
  "get:/pet/{petId}>res:r>ref:#/c/s/Pet>obj:#/c/s/Pet>prop:array:#photoUrls",
  "get:/pet/{petId}>res:r>ref:#/c/s/Pet>obj:#/c/s/Pet>prop:scalar:status"
]

Running the following command:

  node ./cli/index.js -s tests/sample-petstore-selection.json tests/petstore.yaml

will output the following:

--------------- Apollo Connector schema -----------------
extend schema
  @link(url: "https://specs.apollo.dev/federation/v2.10", import: ["@key"])
  @link(
    url: "https://specs.apollo.dev/connect/v0.1"
    import: ["@connect", "@source"]
  )
  @source(name: "api", http: { baseURL: "https://petstore3.swagger.io/v3" })


scalar JSON

type Pet {
  id: Int
  name: String
  photoUrls: [String]
  "pet status in the store"
  status: String
}

type Query {
  """
  Find pet by ID (/pet/{petId})
  """
  petByPetId(petId: Int!): Pet
    @connect(
      source: "api"
      http: { GET: "/pet/{$args.petId}"
 }
      selection: """
      id
      name
      photoUrls
      status
      """
    )
}

Generating all paths

Whilst this option is not recommended for large specifications, you can generate all paths without prompting for a specific selection. To do so, you can use the -n (or --skip-selection) flag. This may result in a very large Apollo Connector schema, might take a long time to process and not be particularly useful, so use with caution.

Buildling the library

The tool can be built as a library to use in other projects. To do this, simply run

npm run lib

Which will build everything under the ./dist folder:

ls dist/
index.d.ts       index.esm.js     index.esm.js.map index.js         index.js.map
