arcgis-map-event v1.0.7

arcgis-map-event

arcgis 地图事件工具包，提供更方便的事件处理接口。 Arcgis Map event Kit, which provides a more convenient event handling interface.

中文文档

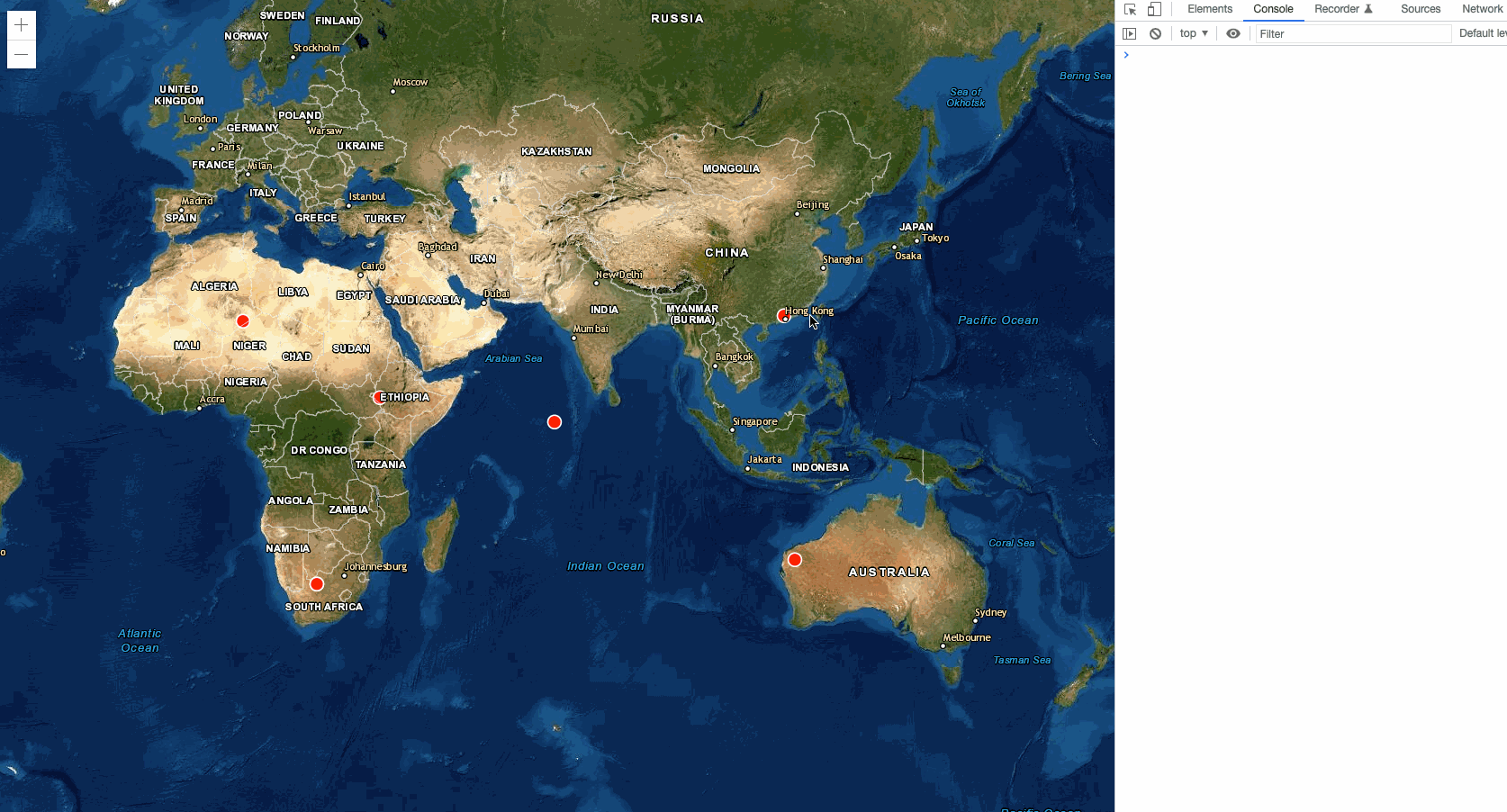

Run Simple Demo

$ git clone https://github.com/SuperYesifang/arcgis-map-event.git
$ cd arcgis-map-event
$ npm install
$ npm run dev

Usage

new MapEvent(options)

1. Use CDN

<script src="https://raw.githubusercontent.com/SuperYesifang/arcgis-map-event/master/dist/arcgis-map-event.cdn.js"></script>

2. Use ESM

import MapEvent from "arcgis-map-event";

let mapEvent = new MapEvent();

Options

Properties

Instance Properties

view

instance.view:ArcgisView

using ArcgisView instance of MapEvent instance.

let mapView = new MapView(options); // Arcgis MapView
let mapEvent = new MapEvent({
    view: mapView
});

console.log(mapEvent.view === mapView); // true

cursor

instance.cursor:string

normal mouse cursor style. default value: instance.view.cursor || "default".

hoverCursor

instance.hoverCursor:string

global mosue hover style when hovering graphic. default value: "pointer".

hoverList

instance.hoverList:Map

A list of graphic(s) hover data. This is a JavaScript's Map instance.

let mapEvent = new MapEvent(options);

mapEvent.hover(graphic, hoverSymbol, opts);
let hoverList = mapEvent.hoverList.get(graphic);
console.log(hoverList[0].oSymbol === graphic.symbol); // true
console.log(hoverList[0].symbol === hoverSymbol); // true
console.log(hoverList[0].options === opts); // true
console.log(hoverList[0].hover); // this graphic current hover status. (boolean)

onHoverList

instance.onHoverList:Map

A list of graphic(s) hover event listeners. This is a JavaScript Map instance.

let mapEvent = new MapEvent(options);

mapEvent.onHover(graphic, listener1);
mapEvent.on("hover", graphic, listener2);
let listeners = mapEvent.onHoverList.get(graphic);
console.log(listeners[0] === listener1); // true
console.log(listeners[1] === listener2); // true

onClickList

instance.onClickList:Map

A list of graphic(s) click event listeners. This is a JavaScript Map instance.

let mapEvent = new MapEvent(options);

mapEvent.onClick(graphic, listener1);
mapEvent.on("click", graphic, listener2);
let listeners = mapEvent.onClickList.get(graphic);
console.log(listeners[0] === listener1); // true
console.log(listeners[1] === listener2); // true

Methods

Instance Methods

on()

instance.on(event, graphic | graphic[], listener:(context)=>{}):remove | remove[] Instance's method. Register a event listener to graphic(s).

• event: supports events.
• graphic: arcgis's Graphic Instance(s).
• listener: a callback funciton when event happen.(event listener).
• return: execution return results.
  • remove: current event listener's remove methods(s).

let mapEvent = new MapEvent(options);
let remove = mapEvent.on("click", graphic, funciton (context) {
	// ...do something
});
remove(); // remove graphic's event listener.
let removes = mapEvent.on("click", [graphic1, graphic2], funciton(context) {
	// ...do something
});
removes[0](); // remove graphic1's event listener.
removes[1](); // remove graphic2's event listener.

off()

instance.off(event, graphic | graphic[], listener | true) Instance's method. Remove event listener from graphic(s).

• event: supports events
• graphic: arcgis's Graphic Instance(s).
• listener: a event listener need to be deleted (must be registered on the graphic) + true: will remove all event listener from graphic(s).

let mapEvent = new MapEvent(options);
mapEvent.on("click", [graphic1, graphic2], listener_m);
mapEvent.on("click", graphic1, listener_1);

mapEvent.off("click", graphic2, listener_m); // remove graphic2's listener_m event listener
mapEvent.off("click", graphic1, true); // remove graphic1's all event listeners

reset()

instance.reset(list | list[]) Instance's method. Reset all hover data list or event(s) listener list. Equivalent to remove all graphics's all hover data or all event listener.

• list: hover data list or event(s) listener list. default value: [ "hover", "onHover", "onClick" ]

list prossible values:

• "hover": match instance.hoverList
• "onHover": match instance.onHoverList
• "onClick": match instance.onClickList

let mapEvent = new MapEvent(options);
mapEvent("click", [graphic1, graphic2], listener);
mapEvent("click", graphic3, listener3);
mapEvent("hover", graphic, listener);
mapEvent.reset("click"); // reset all graphic's click event listener

hover()

instance.hover(graphic | graphic[], symbol, options) Instance's method. Setting graphic(s) on mouse hover's symbol style.

• graphic: arcigs's Graphic Instance(s).
• symbol: graphics(s)'s symbol style when mouse hovering it(s). (support autocast)
• options: more options + hoverCursor: cursor style when mouse hovering graphic(s). (this options will cover constructor global hoverCursor)

let mapEvent = new MapEvent(options);
mapEvent.hover(graphic, {
	type: "simple-marker",
	style: "circle",
	color: "red",
	size: "10px"
}, { hoverCursor: "not-allowed" });

onHover()

instance.onHover(graphic | graphic[], listener):remove Instance's method. Add a "hover" event listener to graphic(s).

• graphic: arcgis Graphic Instance(s).
• listener: a callback funciton when "hover" event happen.(event listener)
• return: execution return results. + remove: event listener remove funciton(s).

let mapEvent = new MapEvent(options);

let remove = mapEvent.onHover(graphic, listener_x); // equals mapEvent.on("hover", graphic, listener_x)
remove(); // remove graphic's 'hover' event listener listener_x.
let removes = mapEvent.onHover([graphic1, graphic2], listener_m);
removes[0](); // remove graphic1's 'hover' event listener listener_m.
removes[1](); // remove graphic2's 'hover' event listener listener_m.

onClick()

instance.onClick(graphic | graphic[], listener):remove Instance's method. Add a "click" event listener to graphic(s).

• graphic: arcgis Graphic Instance(s).
• listener: a callback funciton when "click" event happen.(event listener)
• return: execution return results. + remove: event listener remove funciton(s).

let mapEvent = new MapEvent(options);

let remove = mapEvent.onClick(graphic, listener_x); // equals mapEvent.on("click", graphic, listener_x)
remove(); // remove graphic's 'click' event listener listener_x.
let removes = mapEvent.onClick([graphic1, graphic2], listener_m);
removes[0](); // remove graphic1's 'click' event listener listener_m.
removes[1](); // remove graphic2's 'click' event listener listener_m.

events

supports events list.

type events = "hover" | "click";

listener

listener:Listener

MapEvent event listener. (It's actually an callback function)

interface Remove {
    ():boolean | boolean[];
}
type events = "hover" | "click";
type context = {
    type:evets; // event type
    $event:ArcgisEventHandle; // view original event object.
    graphc:Graphic; // graphic of triggering this event.
    point:Point; // point of the mouse location. (This is a Arcgis Point instance)
    remove:Remove; // remove this listener's function.
}
interface Listner {
    (context:context):void;
}
let listener:Listener = function (context) {
    // ...do something
}

Other Issues

• Q：Feature Graphis cannot trigger events？
• A：You can add a unique objectId attribute to graph attributes.Setting unique objectId is used to help find graphics.

  new Graphic({
      geometry,
      attributes: {
          objectId: "unique id"
      }
  });

Relevant：

• ArcgisEventHandle
• Graphic
• Point
