Chessmite

Chessmite is a puzzle game (based on Puzzle Pirates' blacksmithing puzzle) packaged as a React component. It is a tile-based puzzle which involves chess-like mechanics.

Installation
Usage
How to Play
License

Installation

npm install chessmite

Usage

import React from 'react'
import Chessmite from 'chessmite'

const App = () => {
  return (
    <div>
      <Chessmite />
    </div>
  )
}

Props

displayScore - boolean

Displays the score (and a 'Game Over' message):

<Chessmite displayScore={true} />

tileOne - string

tileTwo - string

tileThree - string

tileComplete - string

Overrides default colour of specified tile layer:

<Chessmite tileOne='#CCCCFF' />

customLayer1 - object (array)

customLayer2 - object (array)

customLayer3 - object (array)

Sets board layer to a custom arrangment:

const myLayer = [
  [1, 1, 1, 1, 1, 1],
  [2, 2, 2, 2, 2, 2],
  [3, 3, 3, 3, 3, 3],
  [4, 4, 4, 4, 4, 4],
  ['N','B','R','Q', 'W'],
  [1, 1, 1, 1, 1, 1]
];

return (
  <Chessmite customLayer1={myLayer} />
)

A layer must be a 6x6 array. Valid number tiles include numbers 1-4. Valid chess tiles include 'N', 'B', 'R', & 'Q' (knight, bishop, rook, and queen, respectively). Lastly, the wildcard tile: 'W'.

Note: The game produces a wildcard tile whenever a layer is completed, regardless of customization.

updateScore - object (function)

Pass your own score handler:

<Chessmite updateScore={myScoreHandler}/>

Note: This is largely intended to allow a custom display of the score. Any complex changes to the scoring system would likely require tinkering with the source code.

updateGameOver - object (function)

Pass your own 'game over' handler:

<Chessmite updateGameOver={myGameOverHandler} />

persistMode - boolean

Saves puzzle progress:

<Chessmite persistMode={true} />

States will not reset upon closing or refreshing page (even if the cache is cleared). This is intended to be used in conjuction with resetState. Otherwise, clearing local storage is required.

resetState - boolean (state)

setResetState - object (setter)

Resets puzzle:

const [reset, setReset] = useState(false)
const handleReset = () => {
  setReset(true)      // triggers reset
}

return (
  <div>
    <Chessmite persistMode={true} resetState={reset} setResetState={setReset} />
    <button onClick={handleReset}>Reset Game</button>
  </div>
)

Note: For the component to correctly reset the puzzle, both the state and it's corresponding setter are required. In other words using resetState alone is not enough.

shuffleOnReset - boolean

Generates new random board on reset:

<Chessmite persistMode={true} resetState={reset} setResetState={setReset} shuffleOnReset={true} />

How to Play

Objective

The objective of the puzzle is to clear the board by clicking each square three times. When a square is clicked three times, it is considered "complete" and may no longer be used. The puzzle is over when all squares have been completed or when no move is available.

Gameplay

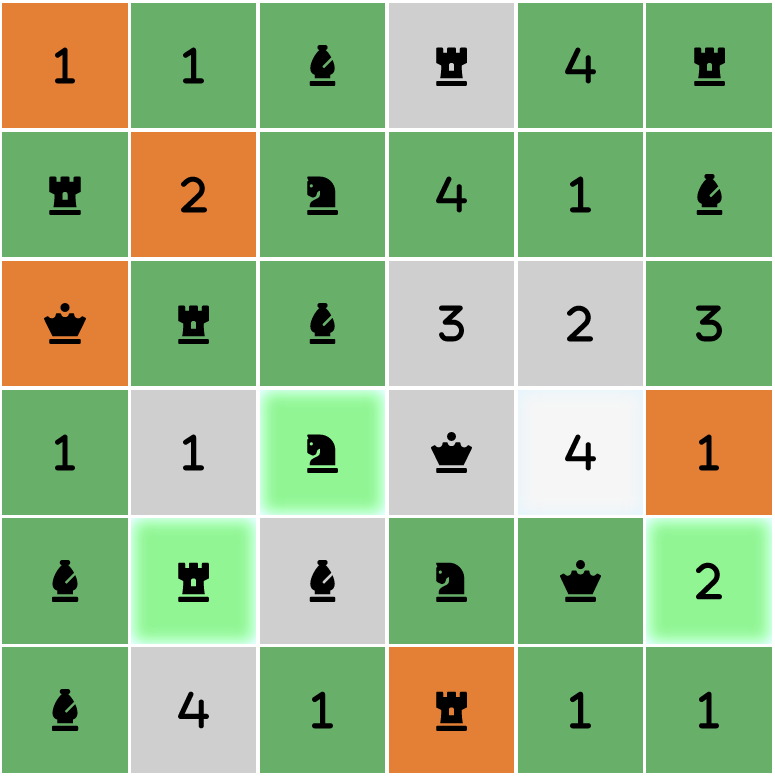

Starting with a board of 36 grey squares, each square may be clicked a total of three times over the course of the game:

On the first click, the square turns from grey to green.
On the second, from green to orange.
On the third, the square is 'complete' and there is nothing to click.

The initial move may be made by clicking on any square. Afterward, the only squares that may be clicked are determined by the symbol on the square last clicked. Each time a square is clicked, it is replaced by a new square with a random symbol.

Pieces

There are two sets of pieces: numeric (1, 2, 3, 4) and chess pieces (Knight, Bishop, Rook, and Queen). They indicate what squares may be clicked next. If a destination square is already 'completed' or is beyond the puzzle's border, then a move to that particular destination cannot be made. Destination squares, if available, are highlighted.

• Numeric Pieces

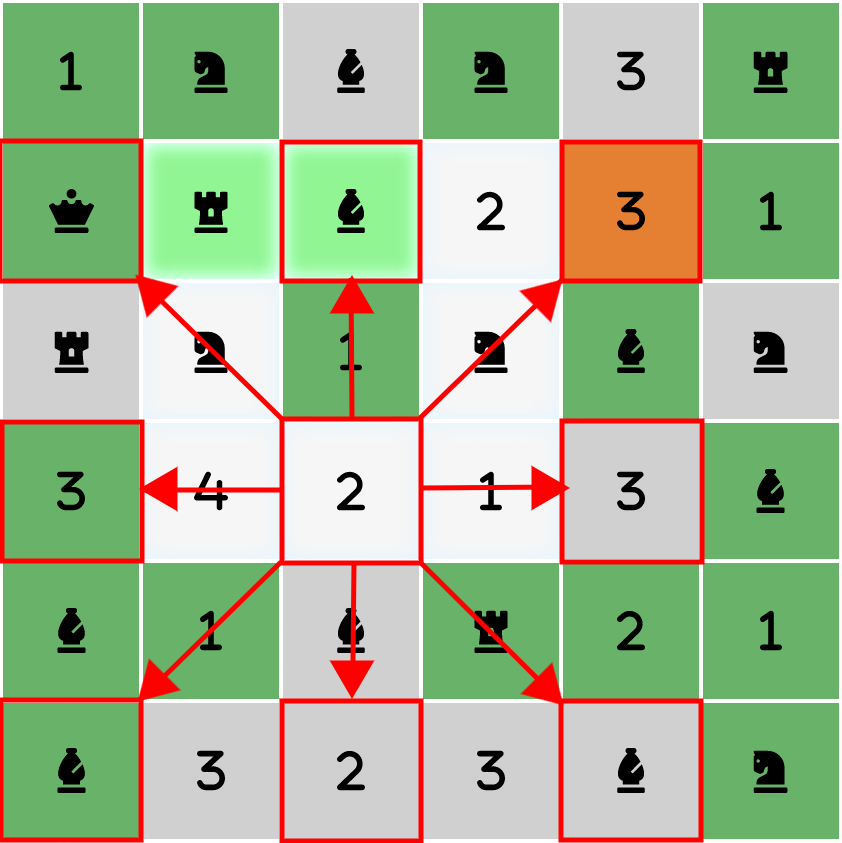

A number on a square signifies the distance between the original square and the destination square. Clicking on a 2, for instance, allows the player to click any available square that is exactly 2 squares away horizontally, vertically, or diagonally; the next click may not occur on a square in between.

• Chess Pieces

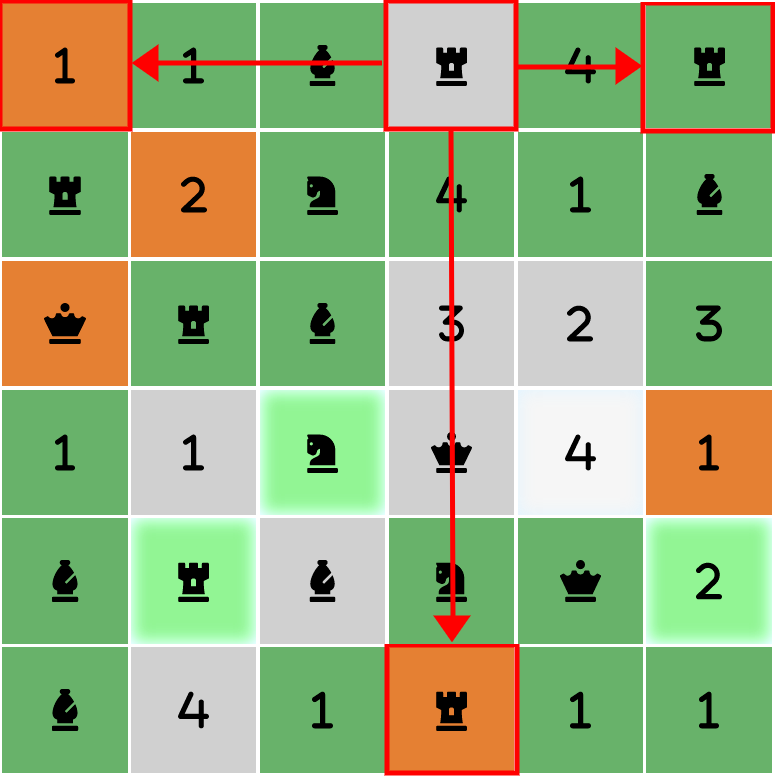

The chess pieces have the same movements as they do in chess: The Bishop moves diagonally; the Rook moves vertically or horizontally; the Knight moves in an "L" shape (2 x 1 squares or 1 x 2 squares); and the Queen moves diagonally, vertically, or horizontally. The difference here as opposed to chess is that, with the exception of the Knight, the pieces always move to the border and cannot stop on any one of the squares in between. The next click also may not fall on the same square as the previous click. For example, after clicking a rook on the right edge of the board it is not permissible to click the same square again.

• Wild Card

The fleur-de-lis (⚜) is a wild card tile which allows any square not yet completed, except the same square itself, to be clicked. The wild card appears when all squares of a color have been flipped. The last square of a particular color to be flipped will contain the fleur-de-lis.
