1.0.10 • Published 3 years ago

custom-calendar-gantt v1.0.10

Weekly downloads
-
License
ISC
Repository
github
Last release
3 years ago

Maintained by Srinith Reddy Gujula, Github handle: srinithreddyg

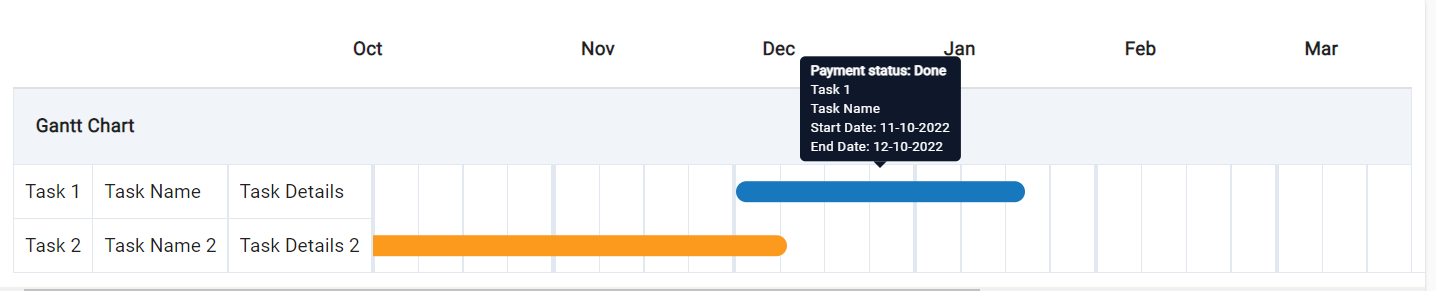

Simple gantt chart package with customizable fields and tooltip.

How to use:/n create an array of tasks which contain data in the following format, one can also pass a react fragment as tooltip.

const tasks: Task[] = [
      {
        startDate: '2022-11-10',
        endDate: '2022-12-10',
        color: '#1878BD',
        tableColumns: [ "Task 1", "Task Name", "Task Details"],
        tooltip:
          <React.Fragment>
            <b>{'Payment status: Done'}</b>
            <div>{'Task 1'}</div>
            <div>{'Task Name'}</div>
            <div>{`Start Date: ${dayjs('2022-11-10').format('MM-DD-YYYY')}`}</div>
            <div>{`End Date: ${dayjs('2022-12-10').format('MM-DD-YYYY')}`}</div>
          </React.Fragment>

      },
      {
        startDate: '2022-09-01',
        endDate: '2022-11-15',
        color: '#FB9A1D',
        tableColumns: [ "Task 2", "Task Name 2", "Task Details 2"],
        tooltip:
          <>
            <b>{'Payment status: Pending'}</b>
            <div>{'Task 2'}</div>
            <div>{'Task Name 2'}</div>
            <div>{`Start Date: ${dayjs('2022-09-01').format('MM-DD-YYYY')}`}</div>
            <div>{`End Date: ${dayjs('2022-11-15').format('MM-DD-YYYY')}`}</div>
          </>
      }
    ]

Component takes following fields as props:

  • tasks: Tasks[] // table columns contains the columns that one wants to display to the left of calendar view
  • cellsPerMonth: number // number of cells per month
  • numOfMonthsDisplayed: number //number of months displayed
<GanttChart tasks={tasks} cellsPerMonth={4} numOfMonthsDisplayed={6} tableHeader={'Gantt Chart'}/>
