dental-plaque-chart v0.2.1

🦷 Dental Plaque Chart

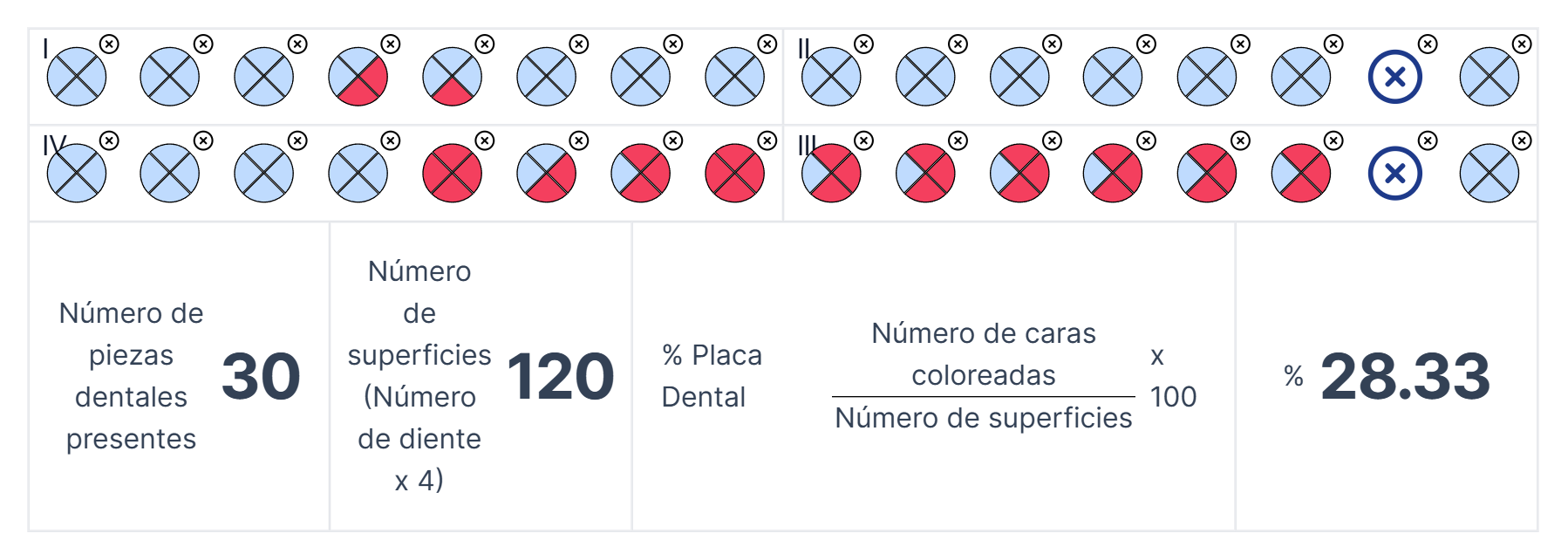

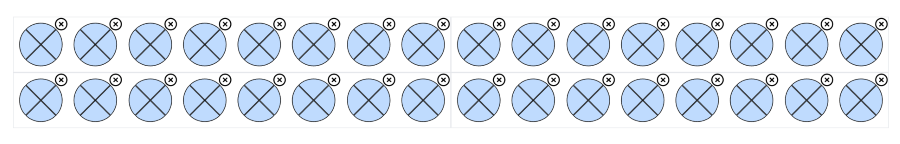

This is a component library for rendering 4-sides dental plaque charts.

You can use this library to create a dental chart for your dental software. Use the model to save the chart state to the database.

Use the hook to access information about the model. Build a custom UI around the chart using this information.

Installation

npm install dental-plaque-chart

Usage

import {useDentalPlaqueChart, DentalPlaqueChart} from "dental-plaque-chart"

const MyChart = () => {
    // Get a chart model
    const chart = useDentalPlaqueChart()

    // Define a size for the container
    return (
        <div style={{width: '800px'}}>
            <DentalPlaqueChart chart={chart}/>
        </div>
    )
}

Disable chart

<DentalPlaqueChart chart={chart} disabled/>

Get model

const chart = useDentalPlaqueChart()
const model = chart.getModel()
// Save model to database
// ...

Set model

const model = // Load model from database...
const chart = useDentalPlaqueChart({model})

Get present dental pieces

const count = chart.getPresentDentalPieces() // 0 to 32

Get marked surfaces

const count = chart.getMarkedSurfaces() // 0 to 128

Get plaque percentage

const count = chart.getPlaqueRatio() // 0.0 to 1.0
const percentage = count * 100 // 0% to 100%
