0.2.0 • Published 3 years ago
ell-radial-text v0.2.0
<ell-radial-text>
A simple webcomponent that wraps text around a circle.
Examples

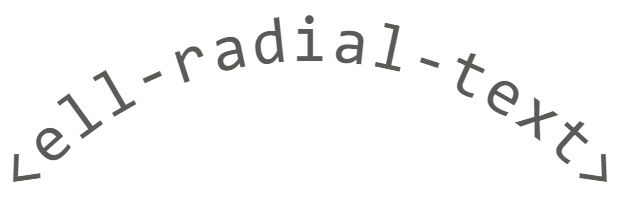

The image above can be set up like so:
<script type="module">
// will require resolving
import 'ell-radial-text';
</script>
<ell-radial-text
text="<ell-radial-text>"
radius="172"
step="6"
center-direction="UP">
</ell-radial-text>API
Props
| Property | Attribute | Type | Default | Description |
|---|---|---|---|---|
text | text | string | '' | The text to be wrapped. |
radius | radius | number | 0 | The radius of the circle in pixels. |
step | step | number | 0 | The radial step between characters in degrees (NOTE: This is overriden by autoStep). |
start | start | number | 0 | The start position of the text in degrees where 0 is the point at cooridnate (0, radius) and positive is clockwise (NOTE: This is overriden by centerDirection). |
autoStep | auto-step | boolean | false | Will wrap the text all the way around the circle by automatically calculating step (NOTE: overrides step value). |
centerDirection | center-direction | CenterDirection* | 'AUTO' | Will center your text around the given direction (NOTE: overrides start value). |
* CenterDirection is equal to type
'UP' | 'DOWN' | 'LEFT' | 'RIGHT' | 'AUTO' and is exported by the main file.
Styling
| Custom Property | Default | Description |
|---|---|---|
--ell-font-family | ui-monospace, monospace | The font-family of the text |
It is HIGHLY recommended to use a monospace font-face.
This component renders the text inside the Shadow DOM, but common properties
cascade though Shadow DOM regardless such as font and color. Though,
font-family is explicitly defined on this component and can be overridden with
a css selector that is specific to this component or via a custom property e.g.
ell-radial-text, .radialText, #radialText /* etc */ {
font-family: 'Apercu Mono', Monaco, monospace;
}
/* for global or imprecise styling you can use CSS Custom Properties */
body {
--ell-font-family: 'Apercu Mono', Monaco, monospace;
}
