erdiff v0.9.4

ERDiff

generate Entity Relationship Diagram with differences

DESCRIPTION

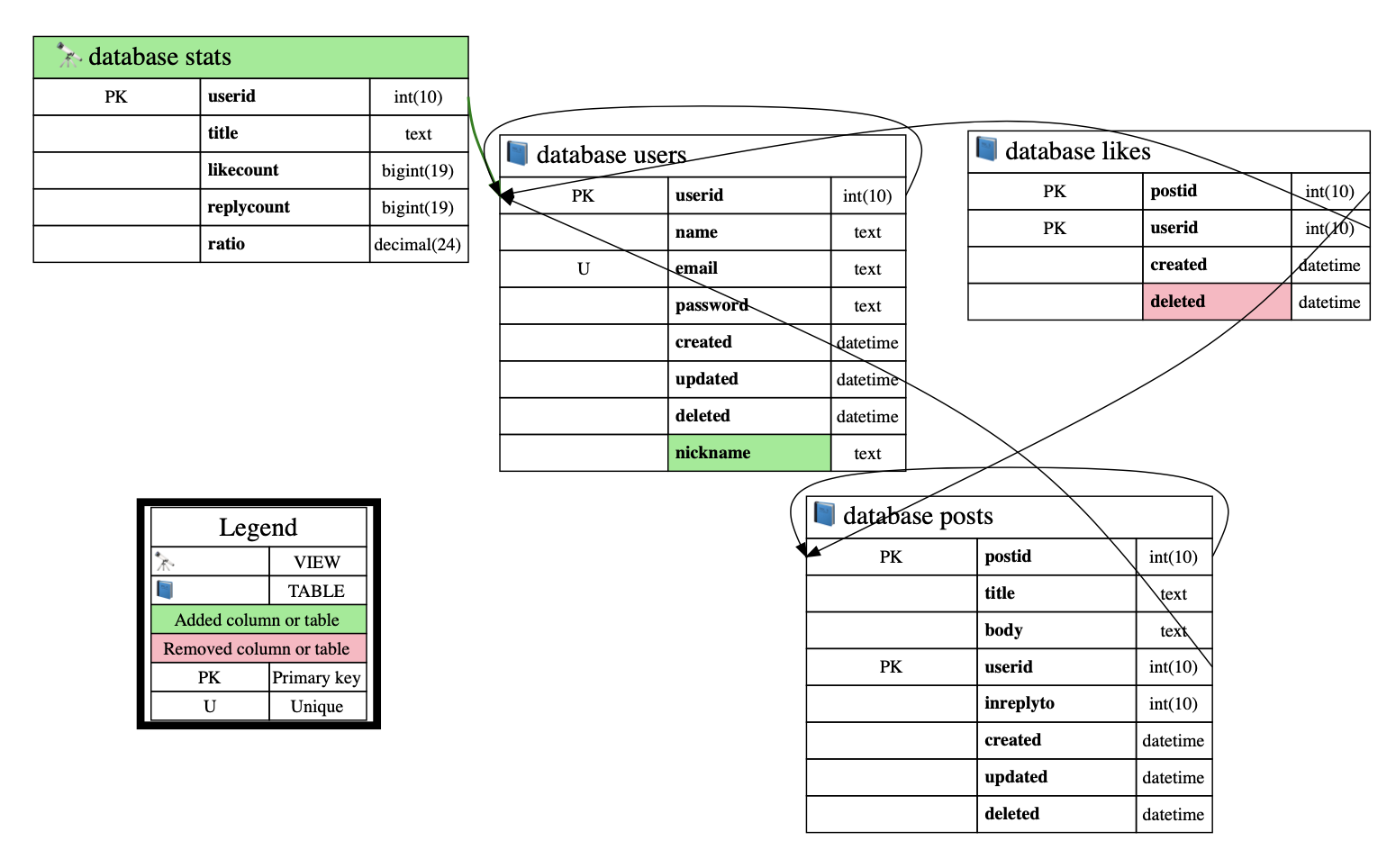

A Database diffing and diagramming tool. Generate diffable snapshots of your schema or generate diffs between versions viewable in a browser. Use it to compare environments before deploys or as part of your process(pull requests, CI, Deployments, etc). The diffs include views and tables with relations plus stored procedures. There are a few ways to run the tool:

• snapshot - save ERD + stored procedures as a single html file
• save snapshot - save schema from a database
• online diff - diff two active databases
• snapshot diff - diff two saved schemas
• online vs snapshot diff - diff an active database vs a snapshot
• sequential diff - save schema from a database, modifify the database and diff the current(new) schema against the saved schema.

EXAMPLE

The output in the example directory includes the html / view page on github output as well as snapshot json and graphviz output.

INSTALL

Install globally on your system with npm sudo npm install -g erdiff or yarn sudo yarn global add erdiff

To use it in a project npm install erdiff or yarn add erdiff

USAGE

Example diffing two postgres databases staging-host and prod-host

$ erdiff -s public -s otherschema -c 'postgres://user@pass:staging-host:5432/database' -p 'postgres://user@pass:prod-host:5432/database' > output.html

Example of diffing the same database at different times, this could be done as part of a CI process

# migrate database to revision A
$ export DB_CURRENT=mysql://user@pass:localhost/database
$ export DB_SCHEMA=first,second,third
$ erdiff -q -f main-branch.schema
# migrate databse to revision B
$ erdiff -p main-branch.schema > output.html

Dot generation from stored json

Graphvis output can be generated for any schema as well as a diff between schemas. Specify a single(current) schema to simply generate a normal Entity Relation Diagram, or specify two schemas to generate a diagram with diff information.

$ cd example
$ ../index.js -c current_schema.json -q -d current_dot.gv
$ ../index.js -c previous_schema.json -q -d previous_dot.gv
$ ../index.js -c current_schema.json -p previous_schema.json -q -d diff_dot.gv

OPTIONS

-c, --current=current (required) mysql connection url or json file to generate ERD from, when diffing this is the new schema

-d, --dot=dot save graphviz dot file

-f, --save=save save schema data for diffing later

-p, --previous=previous mysql connection url or json file to using when diffing, used as the previous schema

-q, --quiet do not output svg to stdout

-s, --schema=schema schema(s) to graph and optionally diff, use multiple times to include more than one schema

--help show CLI help

ENVIRONMENT VARIABLES

• DB_CURRENT environment version of -c option
• DB_PREVIOUS environment version of -p option
• QUIET environment version of -q option
• DB_SCHEMA environment version of -s option, use comma seperated list to include more than one schema
• SAVE_SCHEMA environment version of -f option
