Fiori-tools NPM

fiori-tools

Library of extensions for SAP Fiori Tools ( @sap/ux-ui5-tooling )

UI5 cli makes it possible to develop and test apps on your local machine. Fiori tools is a set of server middleware which delivers even greater experience.

This package brings features on top of functions developed by SAP

List of middlewares

How to install

Install the module

npm install fiori-tools @sap/ux-ui5-tooling

add the following section to you package.json file

"ui5": {
    "dependencies": [
      "@sap/ux-ui5-tooling",
      "fiori-tools"
    ]

This module can be used indepentently from @sap/ux-ui5-tooling also but it's not a target use case.

fiori-tools-home-page: Redirect to a home page

What: a very simple feature - redirection to a default page from the empty path

npm.io

Why: in the template provided by Fiori Tools application generator we can see test/flpSandbox.html and test/flpSandboxMockServer.html files. Besides of that we have also sandbox launchpad available as a part of UI5 library and we can take it directly from the test resources. Fiori Launchpad - Sandbox for application development

In addition, sandbox launchpad delivers really nice feature to maintain application config as a separate json file which creates even a space to generate it via API.

How to use: just declare it like this

server:
  customMiddleware:
    - name: fiori-tools-home-page
      beforeMiddleware: serveIndex
      configuration:
         home_page: "/test-resources/sap/ushell/shells/sandbox/fioriSandbox.html"

it is important to remember that /test-reources is supposed to be published like this:

server:
  customMiddleware:
    - name: fiori-tools-proxy
      beforeMiddleware: compression
      configuration:
        ui5:
          path:
            - /resources
            - /test-resources
        url: https://sapui5.hana.ondemand.com
        version: 1.78.0

fiori-tools-proxy-cdn: bootstrap SAPUI5 from CDN

What: this concept is described in SAPUI5 SDK - Demo Kit. The idea is simple - we use an absolute URL in bootstrap script instead of the relative one. This extension transforms the original page like this

<script id="sap-ushell-bootstrap" src="../../bootstrap/sandbox.js"></script>

<script
  id="sap-ui-bootstrap"
  src="../../../../../resources/sap-ui-core.js"
  data-sap-ui-evt-oninit="main();"
  data-sap-ui-libs="sap.m"
  data-sap-ui-async="true"
  data-sap-ui-theme="sap_fiori_3"
  data-sap-ui-compatVersion="1.16"
  data-sap-ui-xx-bindingSyntax="complex"
></script>

<script src="../../bootstrap/standalone.js"></script>

into properly resolved page like that

<script
  id="sap-ushell-bootstrap"
  src="https://sapui5.hana.ondemand.com/1.78.0/test-resources/sap/ushell/bootstrap/sandbox.js"
></script>

<script
  id="sap-ui-bootstrap"
  src="https://sapui5.hana.ondemand.com/1.78.0/resources/sap-ui-core.js"
  data-sap-ui-evt-oninit="main();"
  data-sap-ui-libs="sap.m"
  data-sap-ui-theme="sap_fiori_3"
  data-sap-ui-compatversion="1.16"
  data-sap-ui-xx-bindingsyntax="complex"
></script>

<script src="https://sapui5.hana.ondemand.com/1.78.0/test-resources/sap/ushell/bootstrap/standalone.js"></script>

Why: basically the main reason for that is performance. In case if you are not UI5 library developer then you probably don't need even to send these requests for /resources and /test-resources to your local machine and then to resend them to the internet. In debug mode Fiori application can easily send around 1K files reading sources 1 by 1 so why you should load your PC if your browser can do this directly. Another reason is caching - by using an absolute path it doesn't matter on which local port your service is running - those files will be always cached within a specific UI5 version.

How to use:

You can notice again that this middleware is supposed to work together with fiori-tools-proxy. In fact it's created to make life of a main proxy middleware much simpler and to send less traffic on it

server:
  customMiddleware:
    - name: fiori-tools-proxy-cdn
      beforeMiddleware: fiori-tools-proxy
      configuration:
        fiori_tools_proxy:
          ui5:
            url: https://sapui5.hana.ondemand.com
            version: 1.78.0
        home_page: "/test-resources/sap/ushell/shells/sandbox/fioriSandbox.html"

you may notice that it uses the same configuration as the original middleware fiori-tools-proxy. Therefore if we want to use all of them we can use yaml merge feature to make file more compact:

customConfiguration: &global
  fiori_tools_proxy: &fiori-tools-proxy
    ui5:
      path:
        - /resources
        - /test-resources
      url: https://sapui5.hana.ondemand.com
      version: 1.78.0
  home_page: "/test-resources/sap/ushell/shells/sandbox/fioriSandbox.html"
server:
  customMiddleware:
    - name: fiori-tools-proxy
      beforeMiddleware: compression
      configuration:
        <<: *fiori-tools-proxy
    - name: fiori-tools-proxy-cdn
      beforeMiddleware: fiori-tools-proxy
      configuration:
        <<: *global
    - name: fiori-tools-home-page
      beforeMiddleware: serveIndex
      configuration:
        <<: *global

fiori-tools-neo-app: support neo-app.json for existing applications

What: this middleware support neo-app.json file for ui5 apps launched with ui5 serve/fiori run. New middleware fiori-tools-proxy has a backend configuration however for some projects there might be too much rules. Also it requires separate backend host definition for each of rules while neo-app.json supports destinations.

How to use:

declare middleware in ui5.yaml

server:
  customMiddleware:
    - name: fiori-tools-neo-app
      afterMiddleware: fiori-tools-proxy

provide neo-app.json in the project root folder

{
  "routes": [
    {
      "path": "/odata/northwind",
      "target": {
        "type": "destination",
        "name": "northwind",
        "entryPath": "/V2/Northwind/Northwind.svc"
      },
      "description": "Odata:dev"
    }
  ]
}

provide neo-dest.json file with configuration like this

{ "northwind": { "target": "https://services.odata.org" } }

start the server and check how it works

 curl localhost:8080/odata/northwind/Regions

appconfig/fioriSandboxConfig.json

All modules of this project are actually built around page /test-resources/sap/ushell/shells/sandbox/fioriSandbox.html. This is just a simple Fiori launchpad page which uses /appconfig/fioriSandboxConfig.json as configuration file

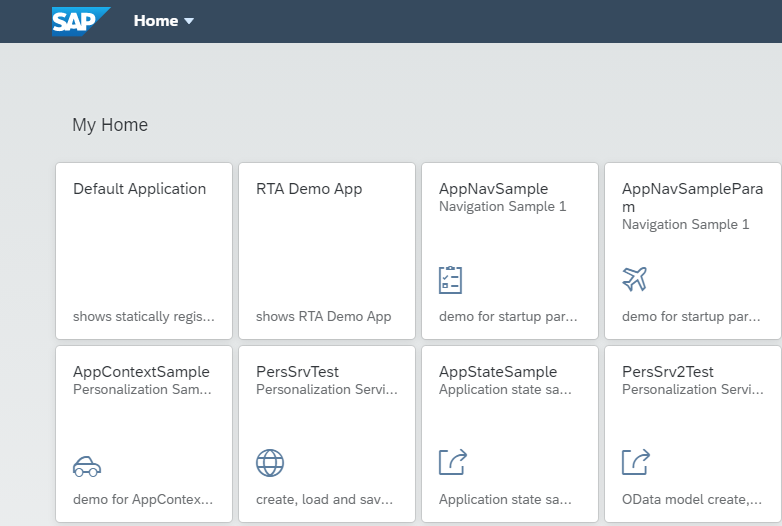

By default we have a page like this:

npm.io

But adding a file like this:

{
  "applications": {
    "GL-lineItems": {
      "title": "G/L items report"
    }
  },
  "services": {
    "LaunchPage": {
      "adapter": {
        "config": {
          "groups": []
        }
      }
    },
    "NavTargetResolution": {
      "adapter": {
        "config": {
          "applications": {
            "GL-lineItems": {
              "additionalInformation": "SAPUI5.Component=fin.gl.glview.display.FIN_GL_LITB_GLVExtension",
              "url": "/"
            }
          }
        }
      }
    }
  }
}

we have a page like this:

npm.io
