FlexLayout

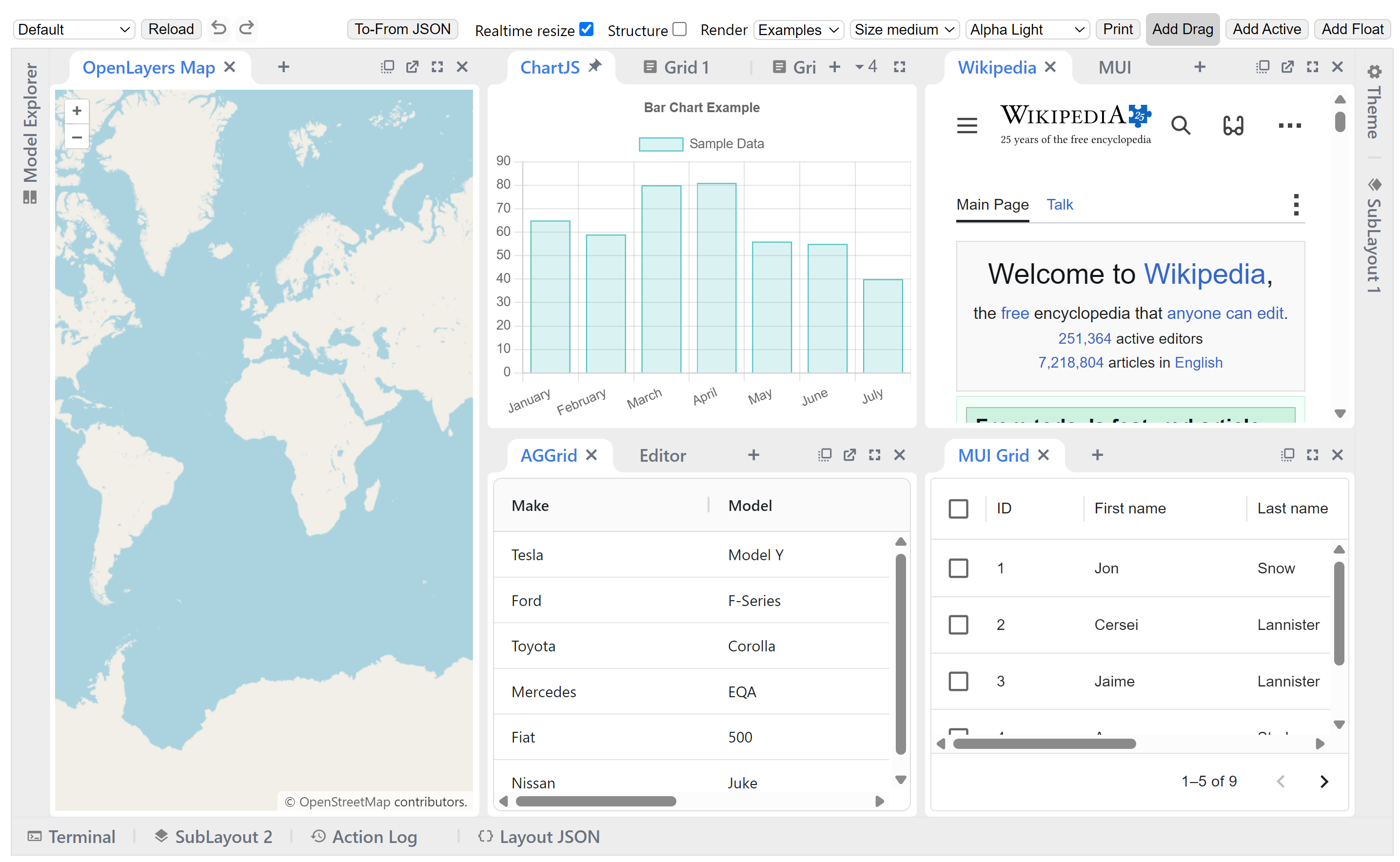

FlexLayout is a layout manager that arranges React components in multiple tab sets, tabs can be resized and moved.

Run the Demo

Try it now using JSFiddle

API Doc

Screenshot of Caplin Liberator Explorer using FlexLayout

FlexLayout's only dependency is React.

Features:

• splitters
• tabs
• tab dragging and ordering
• tabset dragging (move all the tabs in a tabset in one operation)
• dock to tabset or edge of frame
• maximize tabset (double click tabset header or use icon)
• tab overflow (show menu when tabs overflow, scroll tabs using mouse wheel)
• border tabsets
• popout tabs into new browser windows
• submodels, allow layouts inside layouts
• tab renaming (double click tab text to rename)
• theming - light, underline, gray and dark
• touch events - works on mobile devices (iPad, Android)
• add tabs using drag, indirect drag, add to active tabset, add to tabset by id
• preferred pixel size tabsets (try to keep their size when window resizes)
• headed tabsets
• tab and tabset attributes: enableHeader, enableTabStrip, enableDock, enableDrop...
• customizable tabs and tabset header rendering
• component state is preserved when tabs are moved
• typescript type declarations included

Installation

FlexLayout is in the npm repository. install using:

npm install flexlayout-react

Import FlexLayout in your modules:

import {Layout, Model} from 'flexlayout-react';

Include the light, underline, gray or dark theme by either:

Adding an additional import:

import 'flexlayout-react/style/light.css';

or by adding the css to your html:

<link rel="stylesheet" href="node_modules/flexlayout-react/style/light.css" />

Usage

The <Layout> component renders the tabsets and splitters, it takes the following props:

Required props:

Additional optional props

The model is tree of Node objects that define the structure of the layout.

The factory is a function that takes a Node object and returns a React component that should be hosted by a tab in the layout.

The model can be created using the Model.fromJson(jsonObject) static method, and can be saved using the model.toJson() method.

Example Configuration:

var json = {
    global: {},
    borders: [],
    layout: {
        type: "row",
        weight: 100,
        children: [
            {
                type: "tabset",
                weight: 50,
                children: [
                    {
                        type: "tab",
                        name: "One",
                        component: "button",
                    }
                ]
            },
            {
                type: "tabset",
                weight: 50,
                children: [
                    {
                        type: "tab",
                        name: "Two",
                        component: "button",
                    }
                ]
            }
        ]
    }
};

Example Code

const model = Model.fromJson(json);

function App() {

  const factory = (node) => {
    var component = node.getComponent();

    if (component === "button") {
      return <button>{node.getName()}</button>;
    }
  }

  return (
    <Layout
      model={model}
      factory={factory} />
  );
}

The above code would render two tabsets horizontally each containing a single tab that hosts a button component. The tabs could be moved and resized by dragging and dropping. Additional grids could be added to the layout by sending actions to the model.

Try it now using JSFiddle

A simple Typescript example can be found here:

https://github.com/nealus/FlexLayout_cra_example

The model is built up using 4 types of 'node':

• row - rows contains a list of tabsets and child rows, the top level 'row' will render horizontally (unless the global attribute rootOrientationVertical is set) , child 'rows' will render in the opposite orientation to their parent.

• tabset - tabsets contain a list of tabs and the index of the selected tab

• tab - tabs specify the name of the component that they should host (that will be loaded via the factory) and the text of the actual tab.

• border - borders contain a list of tabs and the index of the selected tab, they can only be used in the borders top level element.

The main layout is defined with rows within rows that contain tabsets that themselves contain tabs.

The model json contains 3 top level elements:

• global - where global options are defined
• layout - where the main row/tabset/tabs layout hierarchy is defined
• borders - (optional) where up to 4 borders are defined ("top", "bottom", "left", "right").

Weights on rows and tabsets specify the relative weight of these nodes within the parent row, the actual values do not matter just their relative values (ie two tabsets of weights 30,70 would render the same if they had weights of 3,7).

NOTE: the easiest way to create your initial layout JSON is to use the demo app, modify one of the existing layouts by dragging/dropping and adding nodes then press the 'Show Layout JSON in console' button to print the JSON to the browser developer console.

To control where nodes can be dropped you can add a callback function to the model:

model.setOnAllowDrop(this.allowDrop);

example:

    allowDrop(dragNode, dropInfo) {
        let dropNode = dropInfo.node;

        // prevent non-border tabs dropping into borders
        if (dropNode.getType() == "border" && (dragNode.getParent() == null || dragNode.getParent().getType() != "border"))
            return false;

        // prevent border tabs dropping into main layout
        if (dropNode.getType() != "border" && (dragNode.getParent() != null && dragNode.getParent().getType() == "border"))
            return false;

        return true;
    }

By changing global or node attributes you can change the layout appearance and functionality, for example:

Setting tabSetEnableTabStrip:false in the global options would change the layout into a multi-splitter (without tabs or drag and drop).

 global: {tabSetEnableTabStrip:false},

Floating Tabs (Popouts)

Tabs can be rendered into external browser windows (for use in multi-monitor setups) by configuring them with the enableFloat attribute. When this attribute is present an additional icon is shown in the tab header bar allowing the tab to be popped out into an external window.

For popouts to work there needs to be an additional html page 'popout.html' hosted at the same location as the main page (copy the one from examples/demo). The popout.html is the host page for the popped out tab, the styles from the main page will be copied into it at runtime.

Because popouts are rendering into a different document to the main layout any code in the popped out tab that uses the global document or window objects will not work correctly (for example custom popup menus), they need to instead use the document/window of the popout. To get the document/window of the popout use the following method on one of the elements rendered in the popout (for example a ref or target in an event handler):

    const currentDocument = this.selfRef.current.ownerDocument;
    const currentWindow = currentDocument.defaultView!;

In the above code selfRef is a React ref to the toplevel element in the tab being rendered.

Note: some libraries support popout windows by allowing you to specify the document to use, for example see the getDocument() callback in agGrid at https://www.ag-grid.com/javascript-grid-callbacks/

Optional Props

Global Config attributes

Attributes allowed in the 'global' element

Row Attributes

Attributes allowed in nodes of type 'row'.

Tab Attributes

Attributes allowed in nodes of type 'tab'.

Inherited defaults will take their value from the associated global attributes (see above).

Tab nodes have a getExtraData() method that initially returns an empty object, this is the place to add extra data to a tab node that will not be saved.

TabSet Attributes

Attributes allowed in nodes of type 'tabset'.

Inherited defaults will take their value from the associated global attributes (see above).

Note: tabsets can be dynamically created as tabs are moved and deleted when all their tabs are removed (unless enableDeleteWhenEmpty is false).

Border Attributes

Attributes allowed in nodes of type 'border'.

Inherited defaults will take their value from the associated global attributes (see above).

Model Actions

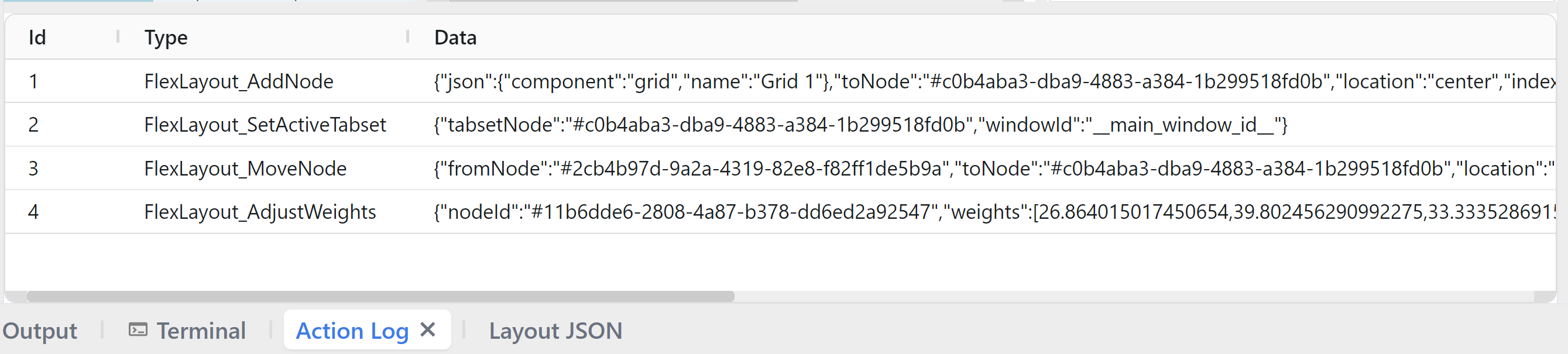

All changes to the model are applied through actions. You can intercept actions resulting from GUI changes before they are applied by implementing the onAction callback property of the Layout. You can also apply actions directly using the Model.doAction() method. This method takes a single argument, created by one of the following action generators (typically accessed as FlexLayout.Actions.<actionName>):

Examples

model.doAction(FlexLayout.Actions.updateModelAttributes({
    splitterSize:40,
    tabSetHeaderHeight:40,
    tabSetTabStripHeight:40
}));

The above example would increase the size of the splitters, tabset headers and tabs, this could be used to make adjusting the layout easier on a small device.

model.doAction(FlexLayout.Actions.addNode(
    {type:"tab", component:"grid", name:"a grid", id:"5"},
    "1", FlexLayout.DockLocation.CENTER, 0));

This example adds a new grid component to the center of tabset with id "1" and at the 0'th tab position (use value -1 to add to the end of the tabs). Note: you can get the id of a node (e.g., the node returned by the addNode action) using the method node.getId(). If an id wasn't assigned when the node was created, then one will be created for you of the form #<uuid> (e.g. #0c459064-8dee-444e-8636-eb9ab910fb27).

Layout Component Methods to Create New Tabs

Methods on the Layout Component for adding tabs, the tabs are specified by their layout json.

Example:

this.layoutRef.current.addTabToTabSet("NAVIGATION", {type:"tab", component:"grid", name:"a grid"});

This would add a new grid component to the tabset with id "NAVIGATION" (where this.layoutRef is a ref to the Layout element, see https://reactjs.org/docs/refs-and-the-dom.html ).

Tab Node Events

You can handle events on nodes by adding a listener, this would typically be done in the components constructor() method.

Example:

    constructor(props) {
        super(props);
        let config = this.props.node.getConfig();

        // save state in flexlayout node tree
        this.props.node.setEventListener("save", (p) => {
             config.subject = this.subject;
        };
    }

Running the Examples and Building the Project

First install dependencies:

yarn install

Compile the project and run the examples:

yarn start

Open your browser at http://localhost:8080/examples/ to show the examples directory, click on the examples to run them.

The 'yarn start' command will watch for changes to flexlayout and example source, so you can make changes to the code and then refresh the browser to see the result.

To run the tests in the Cypress interactive runner use:

yarn cypress

To build the npm distribution run 'yarn build', this will create the artifacts in the dist dir.
