geo-search-helper v0.2.4

geo-search-helper

Helper functions for geographical search, displaying, filtering and sorting.

With this you'll be able to sort search results on shortest to longest distance from your position or some other chosen position. And show i.e. the 10 closest search results or all the search results within a given distance from your position or some other chosen position. Will be possible to do sorting on numbers in version 3 of search-index.

Getting started

UMD script tag

<script src="geo-search-helper-umd.js"></script>
<!-- gsh.mapBoundsPosKm, gsh.mapBoundsPoints, gsh.getDistanceFromLatLonInKm available -->

Through JsDelivr

<script src="https://cdn.jsdelivr.net/npm/geo-search-helper@0.2.1/dist/geo-search-helper.umd.min.js"></script>
<!-- gsh.mapBoundsPosKm, gsh.mapBoundsPoints, gsh.getDistanceFromLatLonInKm available -->

ESM script tag

<script type="module">
   import { mapBoundsPosKm, mapBoundsPoints, getDistanceFromLatLonInKm } from 'geo-search-helper.esm.mjs'
</script>

Through JsDelivr

<script type="module">
   import { mapBoundsPosKm, mapBoundsPoints, getDistanceFromLatLonInKm } from 'https://cdn.jsdelivr.net/npm/geo-search-helper/dist/geo-search-helper.esm.min.mjs'
</script>

CJS

const { getDistanceFromLatLonInKm, mapBoundsPoints, mapBoundsPosKm } = require('geo-search-helper')

Ways of using the library

First you get a search result, calculate distance from point of interest and sort it on smallest to highest distance.

Then there is two ways of using the library. Either your use case is to show search results within a given distance, or show n search results.

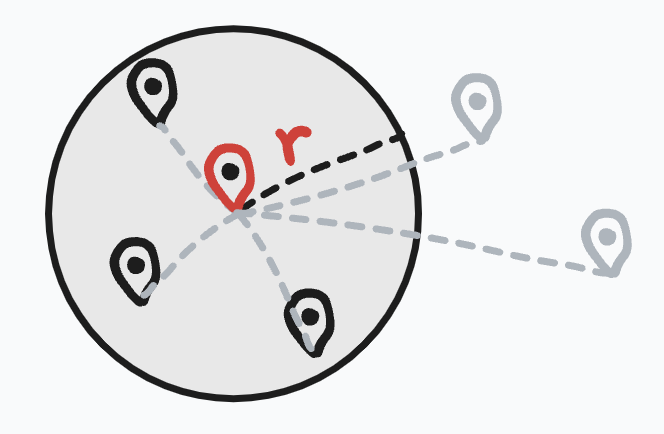

For search results within a given distance, you cut of the results biggere than that given distance and find map bounds with mapBoundsPosKm() to be able to show the search results on a map.

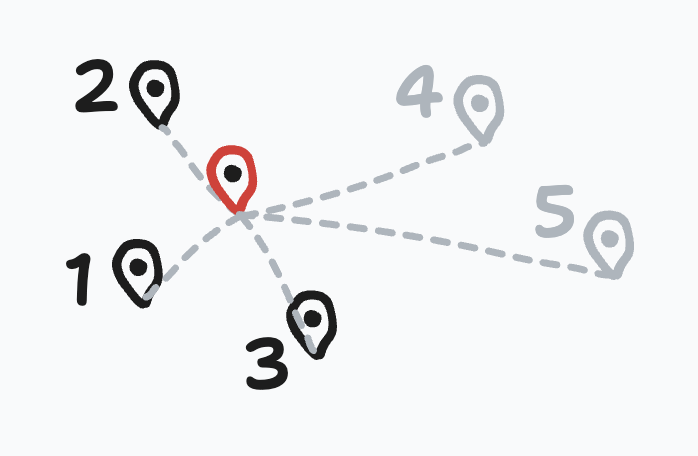

For showing the first n search results, you use mapBoundsPoints() to be able to show the search results on a map.

API

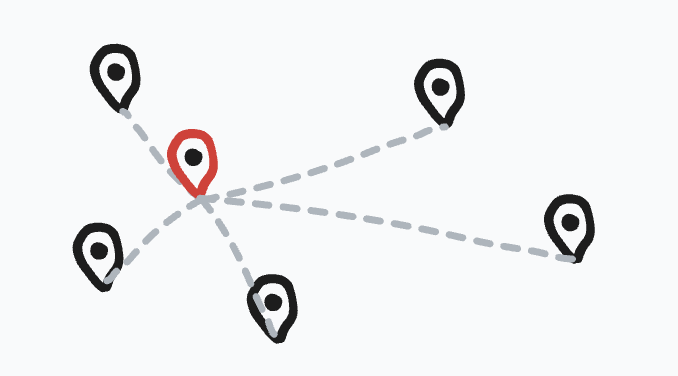

getDistanceFromLatLonInKm({fromPointObj}, {toPointObj})

Returns shortest distance over the earth’s surface – using the ‘Haversine’ formula. Result in kilometers. To i.e. sort a search result from a point on the map.

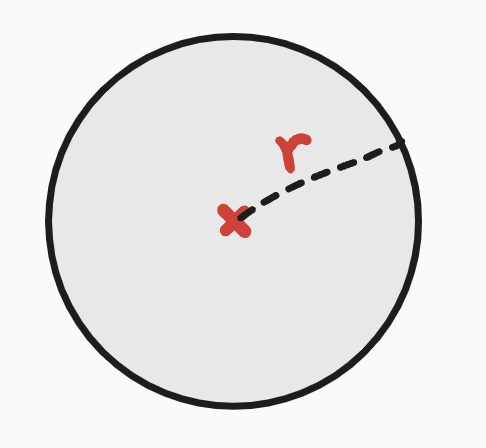

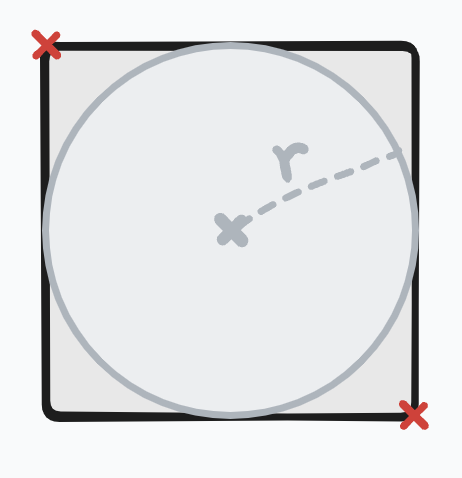

mapBoundsPosKm({fromPointObj}, radius)

Returns object with coordinates of map boundaries based on given position and radius from that position.

Input

Output

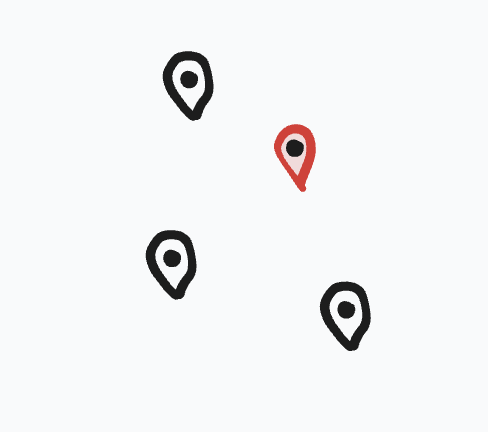

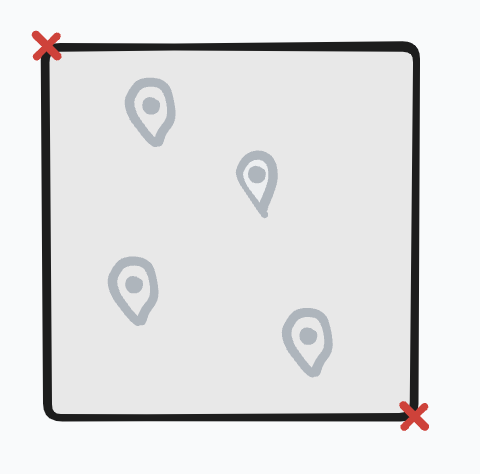

mapBoundsPoints([poinstArray], ['keyLatValue'], ['keyLonValue'])

Returns object with coordinates of map boundaries based on area covered by an array of geographical points. Needs two or more points to work.

For latitude and longitude in nested objects like:

const data = [
  {
    id: '14272199162',
    geo: {
      latitude: 59.907427,
      longitude: 10.785616
    },
    url: 'https://live.staticflickr.com/5513/14272199162_e7547e4394_b.jpg',
    height: 1024,
    width: 1024,
    urlphotopage: 'https://flickr.com/photos/breial/14272199162'
  }
]

You can access the latitude by calling ['geo', 'latitude'] fro latitude and ['geo', 'longitude'] for longitude.

Input

Output

What's implemented

Browser focus with ESM and UMD, three functions:

• Get distance from one point on a map to another point (either currentPosition or something else). Points described with lat/lon
• Get map boundaries (lat/lon for SW and NE) based on a location + a radius in km from that point (either through getCurrentPosition or something else).
• Get map boundaries (lat/lon for SW and NE) based on a lot of locations in a map, sorting them to find the most northern, eastern, southern and western point. This way you can have a map boundary for displaying i.e. 10 search results.

getCurrentPosition

The fromPointObj can be your current position or something else, like one of the search results.

Example

// Position options
const getPositionOpt = {
   enableHighAccuracy: true,
   timeout: 5000,
   maximumAge: 0
}

// Position promise
function getPosition() {
   return new Promise((res, rej) => {
      navigator.geolocation.getCurrentPosition(res, rej, getPositionOpt)
   })
}

// Tying all the position stuff together
function getPositionCallback() {
   getPosition()
   // format position object
   .then((pos) => {
      const crd = pos.coords;
      const position = { lat: crd.latitude, lon: crd.longitude, acc: crd.accuracy }
      return position
   })
   // Do your stuff here
   .then((position) => {
      populateHTML(position)
      console.log(position)
   })
   // Handle errors
   .catch((err) => {
      console.log(err)
      const error = { errortype: err.code, errormessage: err.message }
      populateHTML(error)
      return error
   })
}

function showMap(position) {
   const map = L.map('map',
   {
      center: [position.lat, position.lon],
      zoom: 10
   }
   );
   L.tileLayer('http://{s}.tile.osm.org/{z}/{x}/{y}.png').addTo(map);
}

// Dummy HTML populate
function populateHTML(msg) {
   const node = document.createElement('span').innerText = JSON.stringify(msg, 2, ' ')
   document.getElementById('pos').replaceChildren(node)
}

// Fire up the position magic
getPositionCallback()

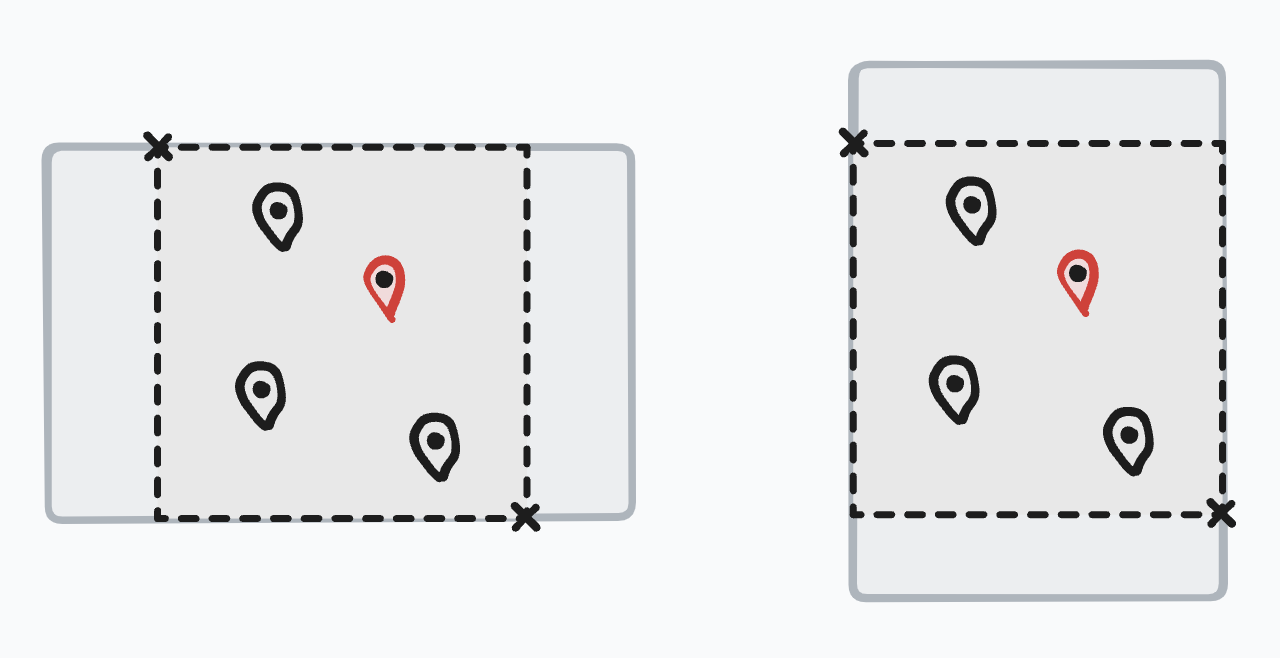

Issue when map shown is not square

When map shown is not square, the square mapview will be within the boundaries of the horisontal or vertical map. Not a big problem, but okay to know about.
