homebridge-hampton-bay v0.1.2

homebridge-hampton-bay Plugin

I wrote this plugin as a wrapper around mdhiggins ESP8266-HTTP-IR-Blaster to control my Hampton Bay Ceiling fan. This particular fan uses a 303Mhz RF Remote control. To use this plugin, you need to build this ESP8266 based IR Blaster device https://github.com/mdhiggins/ESP8266-HTTP-IR-Blaster, except you need to substitute the LED with a 303Mhz RF Transmitter module.

To source the 303Mhz transmitter module, I sacrificed a Hampton Bay remote, and removed the 303Mhz SAW Resonator from the transmitter module. I then on a 315Mhz Transmitter module, removed the 315Mhz SAW Resonator and replaced it with the 303Mhz SAW Resonator. Creating my own 303Mhz Transmitter module.

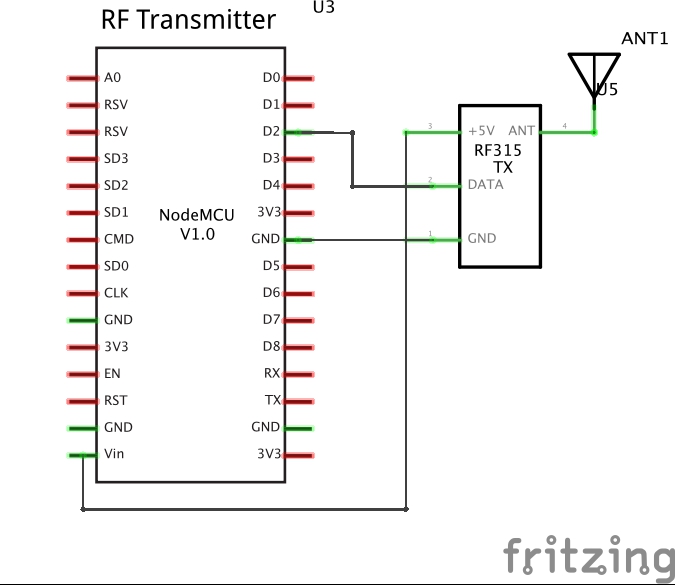

Circuit Diagram

RF Transmitter

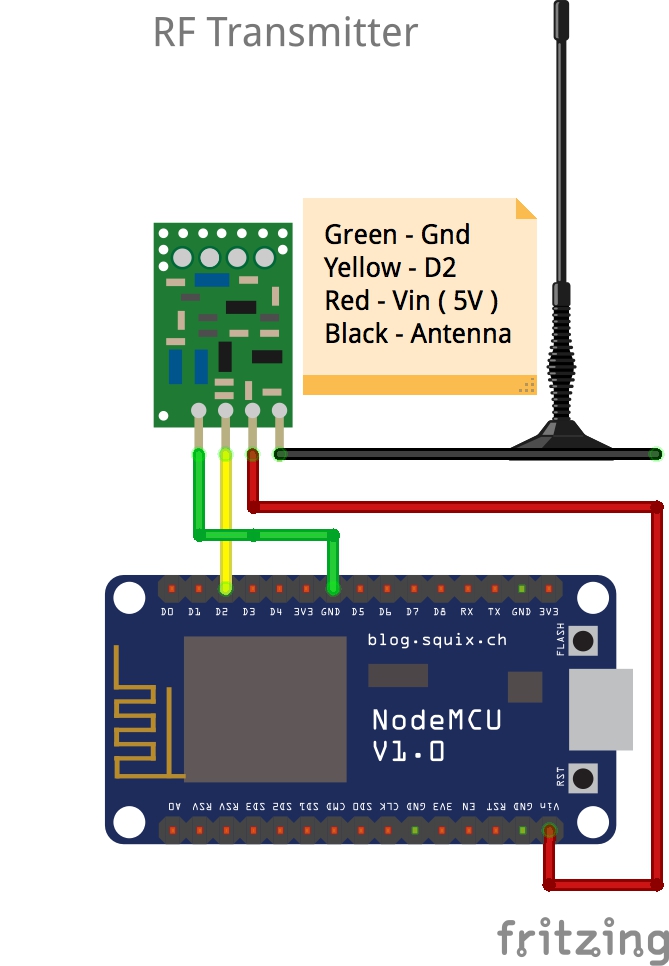

Breadboard view

Installation

1. sudo npm install -g homebridge-hampton-bay

configuration

Example config.json:

{
 "platform": "HBay",
 "devices": [{
   "lightName": "Ceiling Two",
   "fanName": "Fan Two",
   "irBlaster": "ESP_8695EC.local",
   "remote_code": "0000",
   "out": 3
   },
   {
   "lightName": "Ceiling One",
   "fanName": "Fan One",
   "irBlaster": "ESP_8695EC.local",
   "remote_code": "1000",
   "out": 3
   }]
 }

Required settings

• platform - This must be "HBay"
• name - Name of the device ( or fanname / lightname )
• irBlaster - Name or ip address of your IRBlaster Device
• remote_code - This is the 4 Bit unique code for your fan controlled by the dip switches. 0 is switch UP and 1 is switch down.

Optional settings

• dimmable - Is the light dimmable, defaults to false
• light - Does the fan support a light, defaults to true
• out - out setting for IR Blaster, defaults to 1
• fanName - Name for fan device
• lightName - Name for light device

Finding remote code for your remote / fan

This is the dip switches on your control module.

Credits

• https://github.com/mdhiggins - Creating the ESP8266 based IR Blaster, sharing your plans and source.
• nfarina - For creating the dummy plugin which I used as base for this plugin.
