A JBrowse 2 plugin that adds a GraphGenomeView for pangenome graphs (GFA / rGFA), plus a right-click launcher to open the local subgraph around a region from a linear genome view.

Screenshots

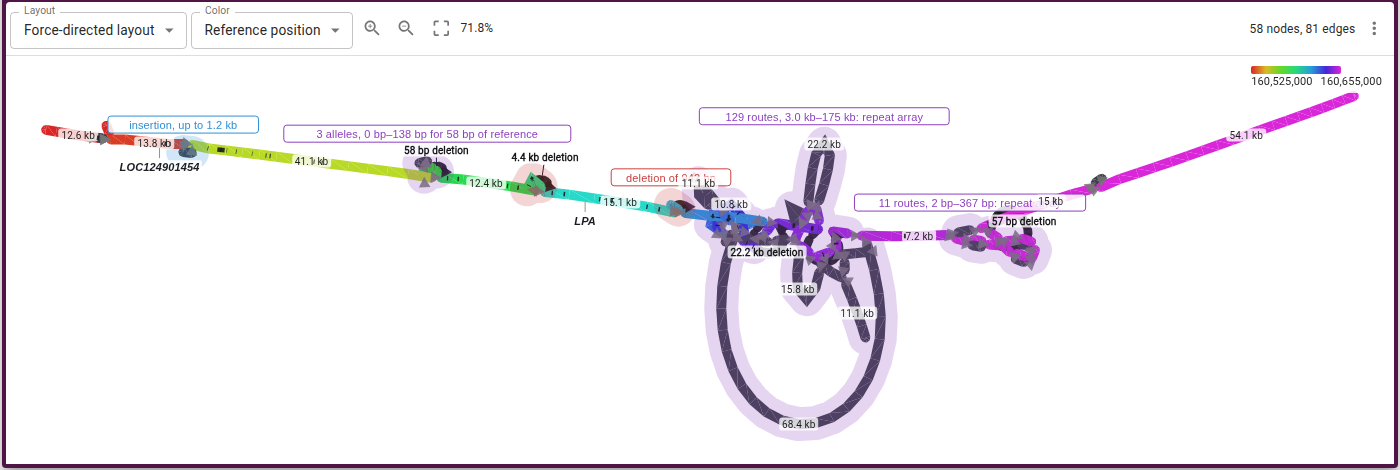

The LPA KIV-2 window of the HPRC release 2 graph in the force-directed layout: the GRCh38 backbone runs left to right, coloured by position the way the rGFA segments track above it is, and the kringle repeat array is the knot of loops in the middle. Each bubble the graph holds is haloed along its own nodes and labelled by what it is; the label opens the bubble on its own.

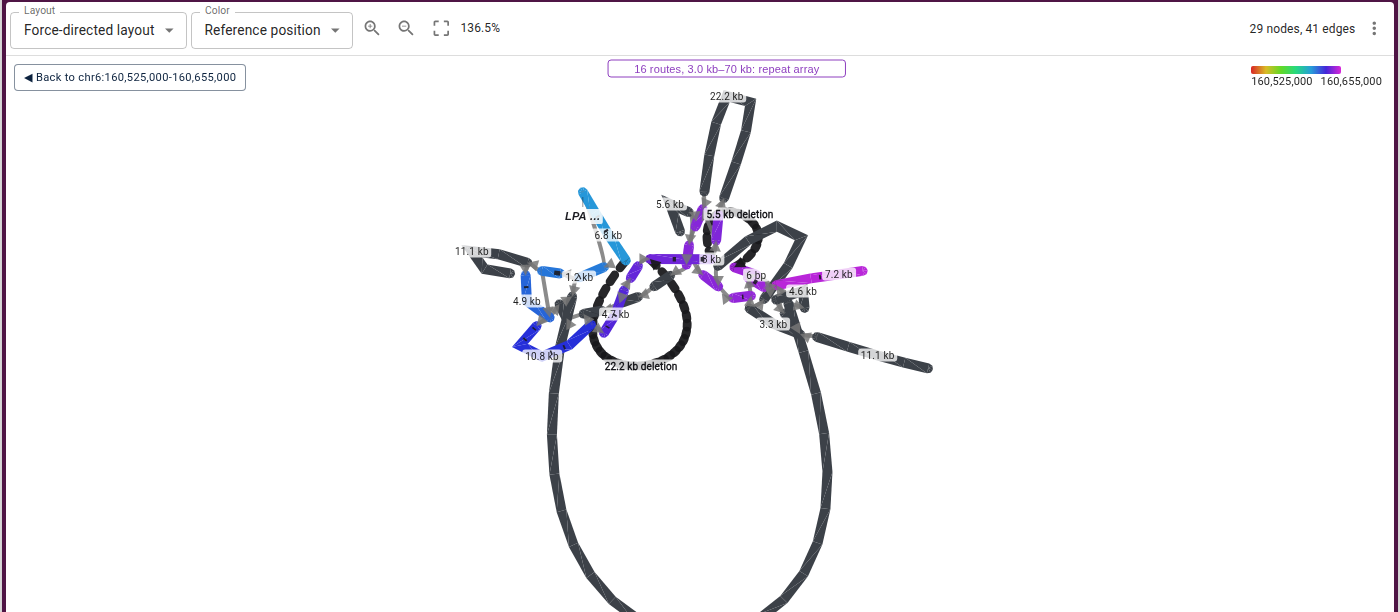

Clicking the array's label opens its 29 segments in the same layout, with a button back to the window. A popped graph derives its own bubbles, so a superbubble opens level by level:

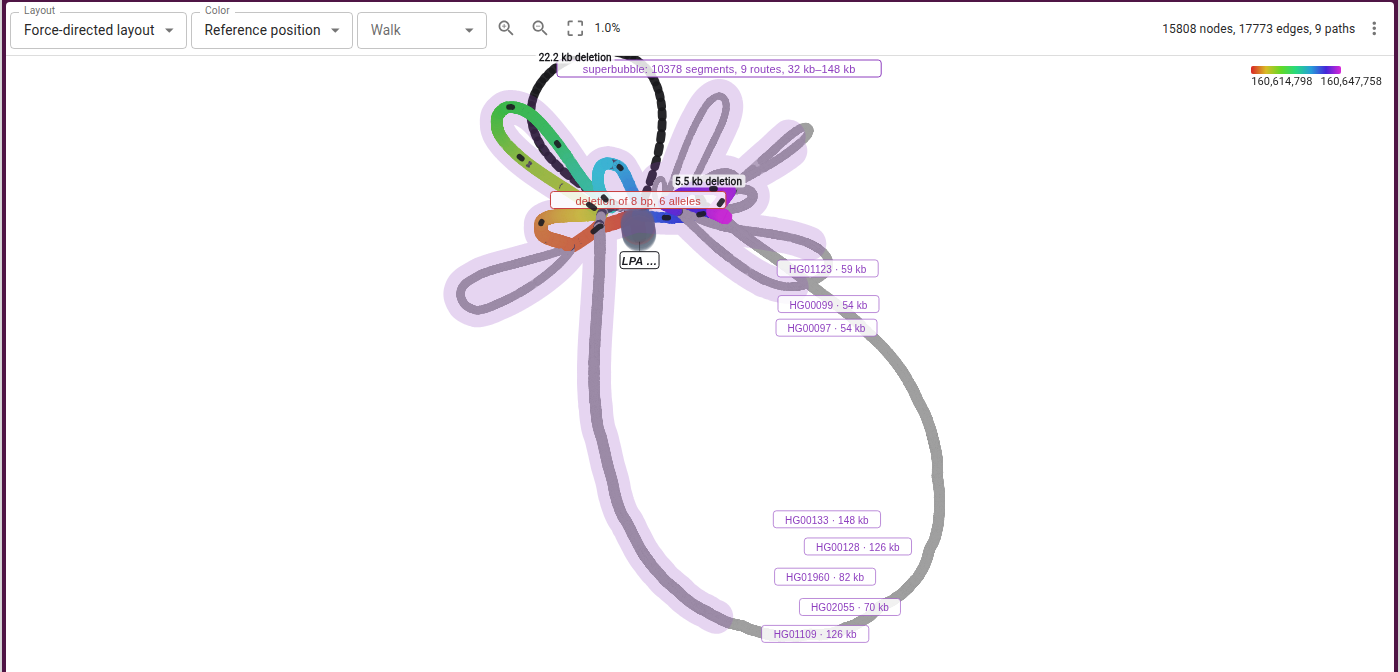

Over a gbz-base database the cut carries the haplotypes' walks. A node draws thicker the more of them carry it, Bandage's depth as width, and every route through a bubble is labelled at the far point of its loop for the haplotypes that take it and how long it is, so the array reads as one copy count per haplotype:

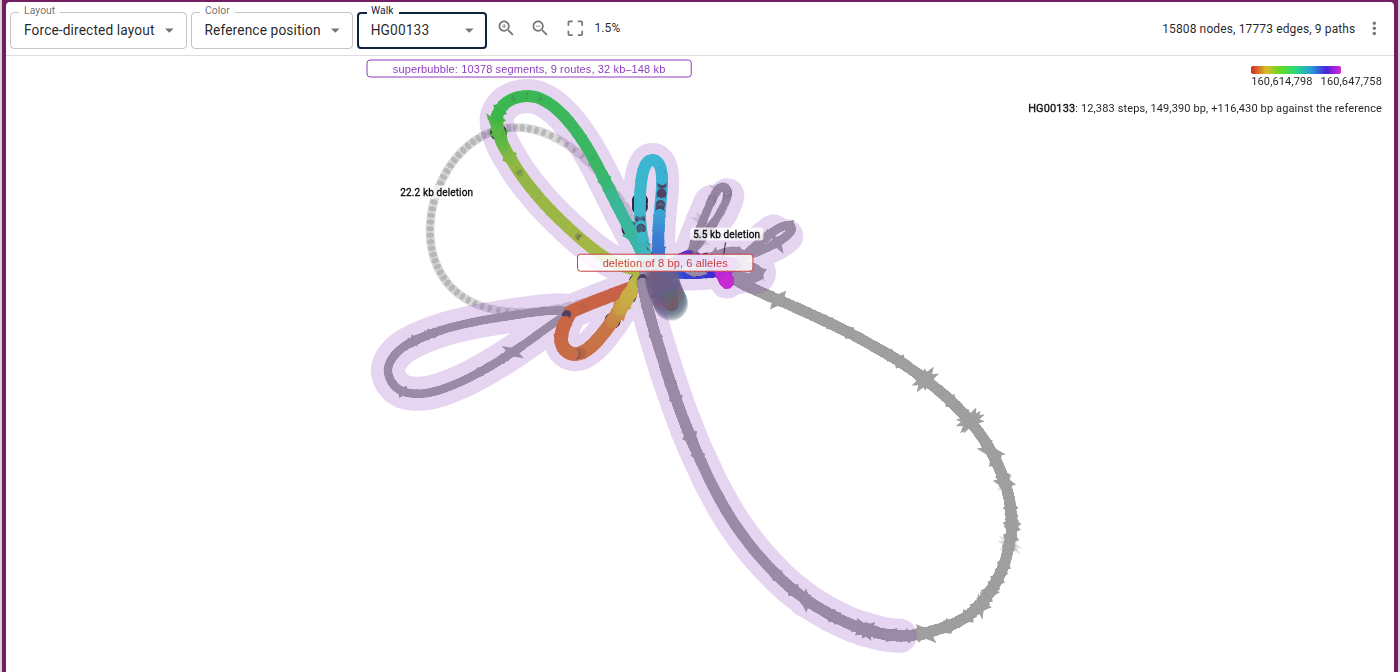

Picking one walk lifts it out of the drawing. HG00133's route through the window keeps its ink and the other haplotypes fade; the readout says it carries 116 kb more than GRCh38 through the array:

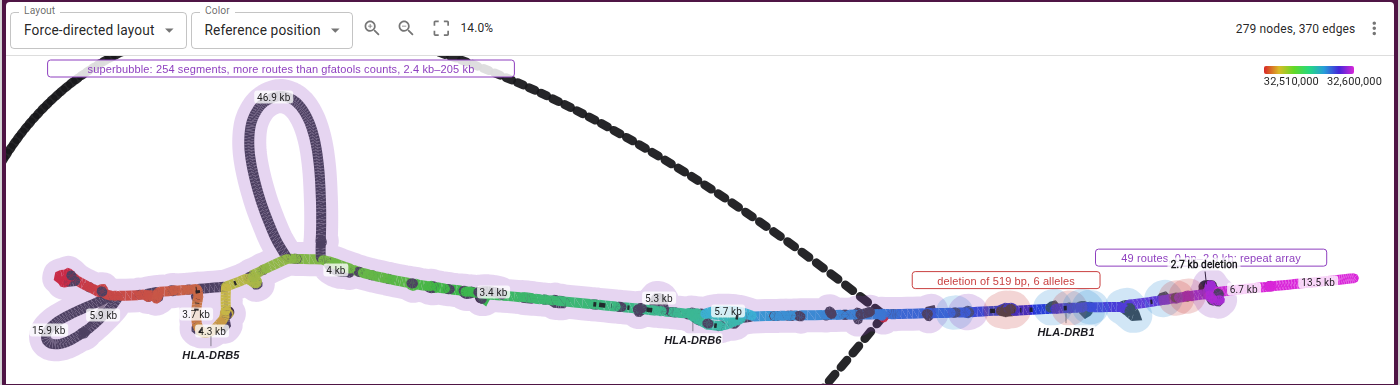

MHC class II, where one 254-segment superbubble covers the DRB haplotype block and a run of small indels follows it. The session's gene track is drawn onto the graph: exons as dark stretches along the backbone nodes that carry them, and each gene's name pinned under the backbone at its midpoint, so the superbubble reads as HLA-DRB5's and the indels as HLA-DRB6's and HLA-DRB1's:

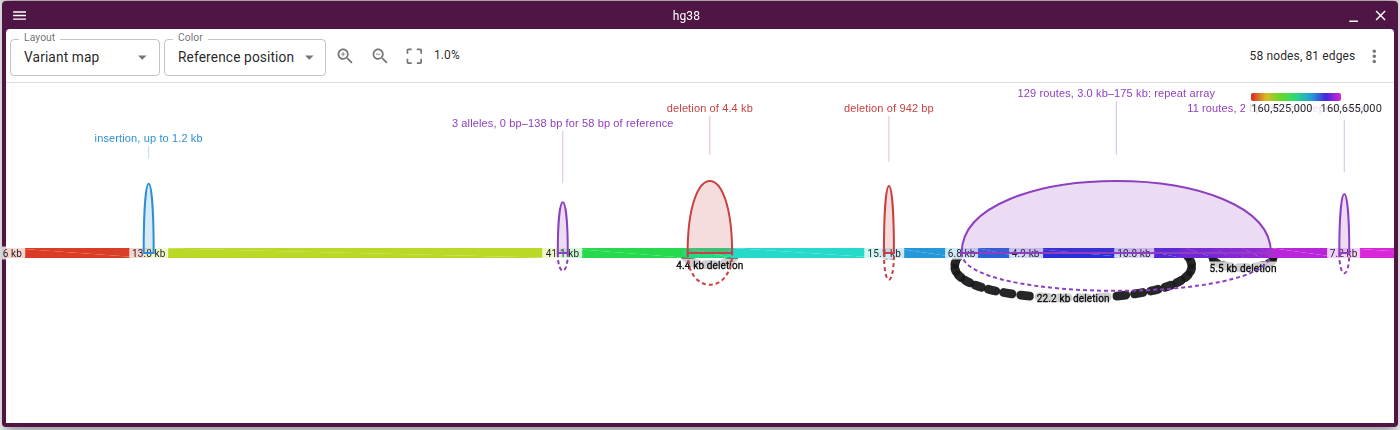

The KIV-2 window as a variant map, the reference as one line with one typed glyph per bubble:

It ships six layouts:

• Force-directed: the graph's shape, computed by the OGDF FMMM engine from Bandage, seeded along the reference and turned to read left to right. The engine lays out unbranching runs rather than nodes, so a base-level cut of 15,000 nodes draws in a few seconds. The Walk picker lifts one haplotype out: its route keeps its ink, the rest fades, and a readout gives its length against the reference.
• Variant map (rGFA or a reference path): the reference as a line, one typed glyph per bubble, click to open a bubble's graph, and again for a bubble inside it.
• Ordered (rGFA or a reference path): x is reference order rather than bp, so every node gets room and a bubble reads as a lens. Scrolls sideways.
• Anchored (rGFA or a reference path): x is reference bp, one row per stable rank, aligned under a linear view.
• Sample rows: x is reference bp, one row per contributing assembly.
• Walk rows (W or P lines): x is each walk's own bp, one bar per haplotype, sequence the reference also carries in blue and sequence it does not in purple, so a repeat expansion reads as bar length. The Repeat picker tiles the bars by a repeat annotation's unit and marks the allele a genotyper called.

The bubbles come from gfatools bubble output beside the rGFA index (<prefix>.bubbles.bed.gz), which HPRC's hosted graph has and scripts/build_rgfa_tabix.sh in jbrowse-components writes, or, for a graph with no index, a GBZ cut, a pggb file or a popped bubble, from the graph itself off the ordered layout's layering. Every node layout marks them as halos; the variant map draws them as glyphs.

Demonstration loci

Six HPRC release 2 windows, the ones the HPRC tutorials walk through, are the standing test set for layout screenshots. Each cuts to under 300 nodes and shows a different kind of variation:

Locus	Window	What it shows
LPA KIV-2	chr6:160,525,000-160,655,000	the kringle repeat, copy per loop
MHC class II	chr6:32,510,000-32,600,000	DRB haplotypes, dozens of alleles
AMY1	chr1:103,690,000-103,780,000	amylase copy number
C4	chr6:31,980,000-32,050,000	one bubble over the C4 duplication
CFH	chr1:196,640,000-196,900,000	an 84 kb deletion as a bare edge
KIR	chr19:54,750,000-54,840,000	the KIR cluster, densest of the six

docs/layout-experiments.md draws all six in every layout the plugin has and in the ones proposed to replace them, and scripts/layout-lab/ reproduces the figures.

License (GPL-3.0)

This plugin is GPL-3.0-or-later. The force-directed layout is computed by a WebAssembly build of Bandage's FMMM layout from OGDF, and both Bandage and OGDF are GPL-licensed, so this plugin takes the same license rather than linking around it.

JBrowse itself is unaffected and stays Apache-2.0: this is a separate plugin, loaded at runtime only by configs that ask for it. The anchored and sample-row layouts are pure TypeScript and need no external engine.

Developing

Requires pnpm. The plugin builds against the published @jbrowse/* packages at 5.0.0-beta.9 and needs a host of at least that version: it hands its RPC calls an AbortSignal, which an earlier JBrowse 5 beta cannot post to its worker.

pnpm install
pnpm start        # esbuild watch, serves dist/out.js on :9000 with CORS

In another terminal, serve a JBrowse Web that points at config.json (its plugins entry already targets http://localhost:9000/dist/out.js).

Building

pnpm build        # native ESM bundle via esbuild (code-split)
pnpm typecheck    # tsc, separately — esbuild strips types without checking them

This writes the plugin to dist/, and the whole directory must be served together — the entry loads its sibling chunks relative to its own url:

• jbrowse-plugin-graphgenomeviewer.esm.js — the plugin entry
• chunks/bandage-layout-<hash>.js — the Bandage layout engine (~425kb), imported on demand and named by content hash so a redeployed engine is never served from cache
• chunks/*.js — other lazily-loaded code split out of the entry

Load the plugin from any JBrowse config, 5.0.0-beta.9 or later, with an esmUrl:

{
  "plugins": [
    {
      "name": "GraphGenomeView",
      "esmUrl": "https://your-host/jbrowse-plugin-graphgenomeviewer.esm.js"
    }
  ]
}

Note: ESM plugins are loaded via a dynamic import(), which cannot carry a subresource-integrity hash the way a UMD <script integrity> can — there is nowhere to put a digest. For a deployment that needs pinned, tamper-evident bytes, serve the plugin from an immutable, version-pinned url on a host you control. The engine chunk is already immutable by content hash.

The engine is a lazy chunk: it is only fetched the first time someone selects the force-directed layout, so sessions that use the anchored or sample-row layouts never download it. Its url is not configured anywhere — loadBandage is a plain dynamic import(), so the browser resolves the chunk relative to the plugin module's own url (import.meta.url, defined on the main thread and in the RPC worker alike). That is why the whole dist/ has to be served together, and it is also why there is nothing to point elsewhere: to host the engine on another origin, rebuild with the chunk emitted there.

Rebuilding the engine

src/bandage/bandage-layout.js is a committed build artifact, so a normal pnpm build never needs Emscripten. Regenerate it only when the C++ layout sources change:

pnpm build:wasm   # needs emsdk, nothing else

Emscripten is the only thing you have to install. OGDF is vendored at vendor/ogdf (a stock checkout of it does not build for wasm at all — see vendor/README.md), so this works offline from a fresh clone of this repo alone. Roughly four minutes the first time, seconds after that.

It compiles with -sSINGLE_FILE=1, embedding the wasm as base64 so the result is one self-contained ES module that esbuild can copy rather than bundle.

A rebuild has to be checked against the drawing rather than against the file, since the artifact's bytes move for reasons the layout does not — see src/bandage/README.md for scripts/layout-digest.mjs.

Testing

pnpm test         # vitest unit tests
pnpm test:watch
pnpm test:wasm    # runs the committed Bandage engine, no deps needed
pnpm test:e2e     # puppeteer, opt-in — see test/README.md
pnpm host-compat  # boots dist/ on the hosted JBrowse releases and cuts a graph
pnpm lint
pnpm typecheck

pnpm test:e2e drives the force layout through a real JBrowse in a headless browser, behind RUN_E2E=1 because it needs a jbrowse-web build to serve; test/README.md explains how to run it.

pnpm host-compat is the check a publish has to pass, and pnpm version runs it. It serves the built dist/ to a real shipped config on each hosted release and cuts a subgraph there, because the failures it catches pass tsc, eslint and the unit tests: an RPC argument a released core cannot post to its worker, or a re-export the host no longer serves, shows only when the bundle runs on the host.
