jscow-node-editor v0.1.0

==========================================================

Unfortunatelly the "jsCow" framework is not longer in development from my side.

Please use the last stable version 2.0.4 of jsCow to use the node editor stable.

For questions you can still write an issue or email.

I will try to help you but it's not possible for me to fix any bugs.

Feel free to use or fork my project.

==========================================================

jscow-node-editor

jsCow application for a independend process editor.

Intro

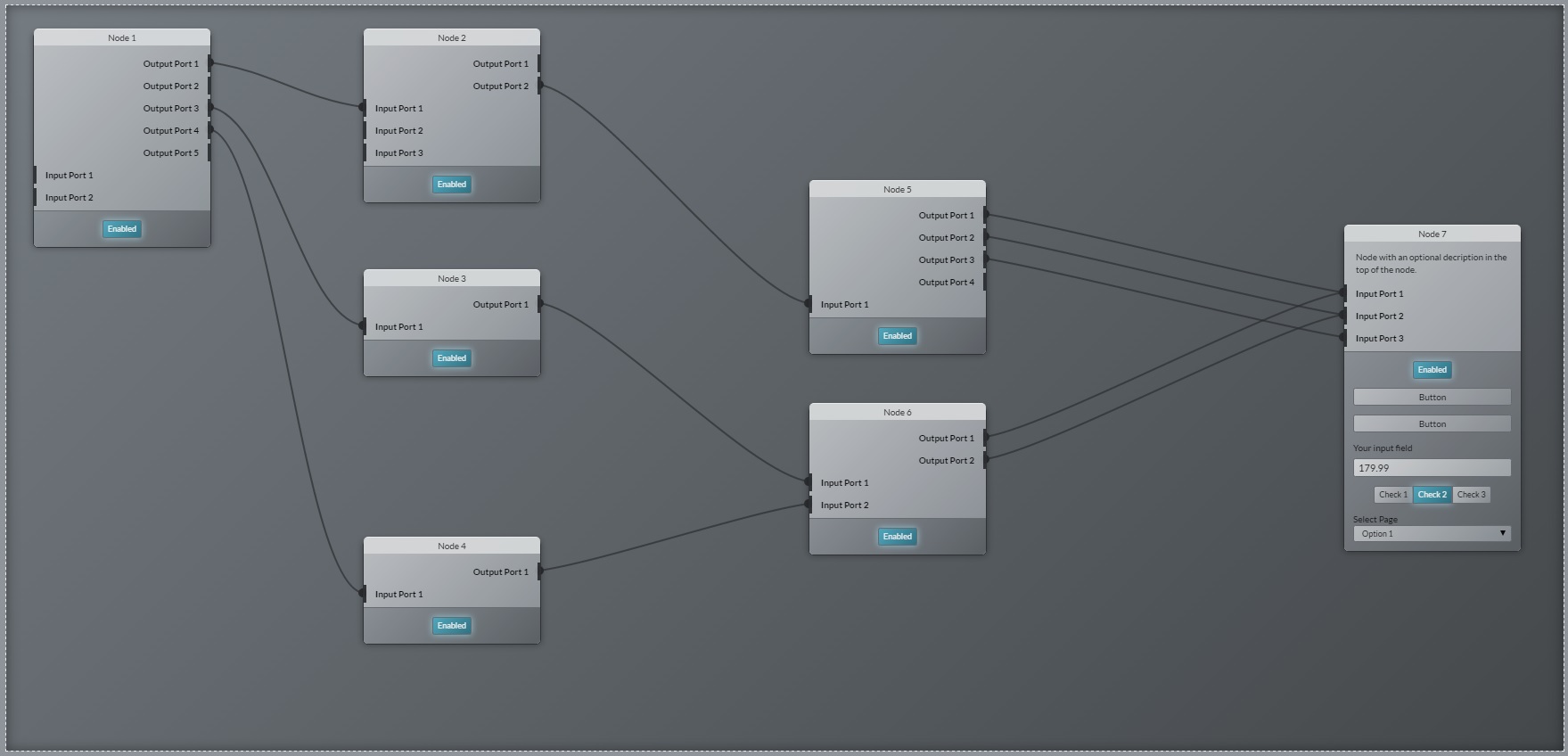

This project provides a jscow application for a independend process editor. Independend means the editor is not dependend to any server side languages. The runtime environment of the editor is just the browser. The complete editor is an interface to edit or manipulate processes with help of nodes.

Table of Contents

• Technical Backgrounds
• Create an editor instance
• Describe a node
• Define a node port with only a title
• Using a dropdown as a configuration field
• Using a button as a configuration field
• Using a checkbox as a configuration field
• Using a textfield as a configuration field
• Add one or more nodes per javascript
• Add a set of connections
• Add a group of node definitions that you can add within the editor

Technical Backgrounds

A complete process will be describe through a json object. By changes on a process the editor will update the process configuration within the editor and triggers anthe event editor.options.changed to out of the editor. The editor do not know the context where is is used for.

Used frameworks:

• Technical base is only HTML / CSS and Javascript
• LESS CSS to generate all CSS classes for the complete UI
• jsPlumb framework is used for rendering the connector lines based on SVG
• jsCow component framework is used for developing all javascript components which are neccessary for the editor.

Install

If you implement your own wishes you have to install all npm packages and call the grunt task to generate the dist/ directory.

$ npm install
$ grunt

To use only the editor in your project please look at the demo application into the dist/ directory.

Watch

You can the grunt-contrib-watch plugin to call all grunt tasks automatically by change a js file or less file within the src/ directory. To refresh your page automatically after calling the watch task you have to install the browser plugin LiveReload.

To using the watcher run the follow command in your nodejs command client:

grunt watch

Create an editor instance

For using an editor you need to create an instance of the node editor. You can use the following code snippet to create a new instance in your app.js.

$(function() {
	jsCow.get(jsCow.res.components.nodeeditor, {
		id: 'myEditorInstanceId',
		options: NodeEditorOptionsExample,
		model: {
			options: {
				autosave: true
			}
		}
	}).on('editor.options.changed', function(e) {
		console.log(e.sender.id()+" >>> changed >>>", e.data);
	}).target('#myEditor').run();
});

Describe a node

To use a node in your jscow-node-editor you needs the following json.

{
	"id": "node1",
	"title": "Node Title",
	"class": "customized-node",
	"pos": {
		"left": 300,
		"top": 50
	},
	"config": [],
	"inputs": [],
	"outputs": []
}

Define a node port with only a title

Use this json snippet within node configurations for config, inputs or outputs. If you need you can set a specific id and value for these node port. The properties id and value are optional values for a simple port with only a title.

{
	"title": "Port Title",
	"id": "in1",
	"value": 1
}

Using a dropdown as a configuration field

Use this json snippet within node configurations for config, inputs or outputs.

{
	"type": "jsCow.res.components.nodedropdown",
	"title": "Select Option",
	"value": [
		{ "title": "Option 1", "value": 1},
		{ "title": "Option 2", "value": 2, "selected": true},
		{ "title": "Option 3", "value": 3},
		{ "title": "Option 4", "value": 4}
	]
}

Using a button as a configuration field

Use this json snippet within node configurations for config, inputs or outputs.

{
	"type": "jsCow.res.components.nodebutton",
	"title": "Button",
	"events": {
		"click": function(e) {
			console.log("button clicked...");
			// ...
			this.trigger("node.config.changed");
		}
	}
}

Using a checkbox as a configuration field

Use this json snippet within node configurations for config, inputs or outputs.

{
	"type": "jsCow.res.components.nodecheckbox",
	"title": "Your field label",
	"value": [
		{ "title": "Checkbox 1", "value": 1},
		{ "title": "Checkbox 2", "value": 2},
		{ "title": "Checkbox 3", "value": 3, "selected": true}
	]
}

Using a textfield as a configuration field

Use this json snippet within node configurations for config, inputs or outputs.

{
	"type": "jsCow.res.components.nodeinput",
	"title": "Value",
	"value": "19.95"
}

Add one or more nodes per javascript

To add one or more nodes at runtime you can use the editor method: addNode(<object|array>) After creating the new node the editor will update the configuration and triggers the event node.config.changed. The event data will be the current editor config.

editor.addNode([
	{
		"id": "myNode",
		"title": "Node Title",
		"description": "Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua.",
		"class": "custom-style-class",
		"pos": {
			"left": 50,
			"top": 50
		},
		"inputs": [
			{
				"id": "in1",
				"title": "Input Port 1",
				"value": 1
			}
		],
		"outputs": [
			{
				"id": "out1",
				"title": "Output Port 1",
				"value": 1
			}
		]
	}
]);

Add a set of connections

It is possible to set node connections in a seperate step. Additional you can define a color for any connections that you like to set. For a connection color you can use the color property.

editor.addConnection([
	{
		"from": {
			"node": "node1",
			"out": "out1"
		},
		"to": {
			"node": "node2",
			"in": "in1"
		}
	},
	{
		"color": "#A52A2A",
		"from": {
			"node": "node2",
			"out": "out1"
		},
		"to": {
			"node": "node3",
			"in": "in2"
		}
	}
]);

Add a group of node definitions that you can add within the editor.

To have a list of available nodes to add within the editor you can add a group of node definitions. Here you can use the following method: addNodesRepository(<object>); To add available nodes in your editor instance just make a double click in the editor area. A menu with all node repositories will open. Here can choose a available node definitions.

editor.addNodesRepository({
	"group": "general",
	"title": "General Nodes",
	"description": "General repository of node types.",
	"types": [
		{
			"title": "Node 1",
			"inputs": [
				{
					"id": "in1",
					"title": "Input Port 1"
				}
			],
			"outputs": [
				{
					"id": "out1",
					"title": "Output Port 1"
				}
			]
		},
		{
			"title": "Node 2",
			"inputs": [
				{
					"id": "in1",
					"title": "Input Port 1"
				},
				{
					"id": "in2",
					"title": "Input Port 2"
				}
			],
			"outputs": [
				{
					"id": "out1",
					"title": "Output Port 1"
				},
				{
					"id": "out2",
					"title": "Output Port 2"
				}
			]
		}
	]
});
