lee-select v1.1.2

A multi-function mobile phone scrolling selector, support single to multi-select, support multi-level cascade, provide custom callback function, provide update function redraw, relocation function, compatible pc drag and so on.

【查看中文文档】

Features

• A mobile phone select component with native js, do not rely on any library
• Can be passed to an ordinary array or json array
• According to the length of the parameters passed, automatically render the corresponding number of columns, support for individual to multiple options
• Automatic identification is cascading
• After successful selection, provide a custom callback function callback ()
• After each gesture sliding, it also provides a callback function transitionEnd ()
• Provide update () function, pass the other parameters to render again
• Provide relocation function

Preview

Use mobile phone scan code to preview:

Gif preview:

Installation

Method1 tag import：

<link rel="stylesheet" type="text/css" href="css/mobileSelect.css">
<script src="js/mobileSelect.js" type="text/javascript"></script>

Method2 npm install：

npm install mobile-select -D

Import in your js file：

import MobileSelect from 'mobile-select'

Getting Started

①Ordinary array format - Non-cascade

<div id="day"></div><!--Don't forget this trigger in your page-->

<script type="text/javascript">
var mobileSelect1 = new MobileSelect({
    trigger: '#day',
    title: '单项选择',
    wheels: [
                {data:['周日','周一','周二','周三','周四','周五','周六']}
            ],
    position:[2] //Initialize positioning
});
</script>

②Json format - Non-cascade

<div id="area"></div>

<script type="text/javascript">
var mobileSelect2 = new MobileSelect({
    trigger: '#area',
    title: '地区选择',
    wheels: [
                {data:[
                    {id:'1',value:'附近'},
                    {id:'2',value:'上城区'},
                    {id:'3',value:'下城区'},
                    {id:'4',value:'江干区'},
                    {id:'5',value:'拱墅区'},
                    {id:'6',value:'西湖区'}
                ]},
                {data:[
                    {id:'1',value:'1000米'},
                    {id:'2',value:'2000米'},
                    {id:'3',value:'3000米'},
                    {id:'4',value:'5000米'},
                    {id:'5',value:'10000米'}
                ]}
            ],
    callback:function(indexArr, data){
        console.log(data); //Returns the selected json data
    }
});
</script>

Example：

③Json format - Cascade

<div id="area2"></div>

<script type="text/javascript">
  var mobileSelect3 = new MobileSelect({
      trigger: '#area2',
      title: '地区选择-联动',
      wheels: [
                  {data:[
                      {
                          id:'1',
                          value:'附近',
                          childs:[
                              {id:'1',value:'1000米'},
                              {id:'2',value:'2000米'},
                              {id:'3',value:'3000米'},
                              {id:'4',value:'5000米'},
                              {id:'5',value:'10000米'}
                          ]
                      },
                      {id:'2',value:'上城区'},
                      {id:'3',value:'下城区'},
                      {id:'4',value:'江干区'},
                      {id:'5',value:'拱墅区'},
                      {id:'6',value:'西湖区'}
                  ]}
              ],
      position:[0,1],
      callback:function(indexArr, data){
          console.log(data); //Returns the selected json data
      }
  });
  </script>

Example：

④ajax asynchronous fill data

<!-- ************ Non-cascade Format ************ -->

<div id="trigger4"></div>

<script type="text/javascript">
    var mobileSelect4 = new MobileSelect({
        trigger: '#trigger4',
        title: 'ajax fill data - non-cascade',
        wheels: [
                    {data:[
                        {id:'1',value:'choose area'},
                    ]},
                    {data:[
                        {id:'1',value:'choose distance'},
                    ]}
                ],
        callback:function(indexArr, data){
            console.log(data);
        }
    });

    $.ajax({
        type: "POST",
        url: "xxxx",
        data: {},
        dataType: "json",
        success: function(res){
            //Assume that the obtained res.data.area is：
            // [
            //     {id:'1',value:'area1'},
            //     {id:'2',value:'area2'},
            //     {id:'3',value:'area3'},
            //     {id:'4',value:'area4'}
            // ]

            //Assume that the obtained res.data.distance is：
            // [
            //     {id:'1',value:'200 metres'},
            //     {id:'2',value:'300 metres'},
            //     {id:'3',value:'400 metres'}
            // ]

            mobileSelect4.updateWheel(0, res.data.area); //Update the 0th wheel
            mobileSelect4.updateWheel(1, res.data.distance); //Update the 1th wheel
        }
    });
</script>
</script>




<!-- ************ Cascade Format ************ -->

<div id="trigger4"></div>

<script type="text/javascript">
    var mobileSelect4 = new MobileSelect({
        trigger: '#trigger4',
        title: 'ajax fill data - cascade',
        wheels: [
                    {data:[
                        {
                            id:'1',
                            value:'',
                            childs:[
                                {id:'A1',value:''},
                            ]
                        }
                    ]}
                ],
        callback:function(indexArr, data){
            console.log(data);
        }
    });

    $.ajax({
        type: "POST",
        url: "xxxx",
        data: {},
        dataType: "json",
        success: function(res){
            //Assume that the obtained res.data is：
            // [{
            //     id:'1',
            //     value:'after update',
            //     childs:[
            //         {id:'A1',value:'apple'},
            //         {id:'A2',value:'banana'},
            //         {id:'A3',value:'orange'}
            //     ]
            // }]
            mobileSelect4.updateWheels(res.data);
        }
    });
</script>

⑤How to use in vue-cli

npm install mobile-select -D

<template>
    <div>
        <div id="trigger5">vue-cli-demo</div>
    </div>
</template>

<script>
    import MobileSelect from 'mobile-select'

    export default {
        mounted() {
            var mobileSelect5 = new MobileSelect({
                trigger: "#trigger5",
                title: "vue-cli-demo",
                wheels: [
                    {data: ["周日","周一","周二","周三","周四","周五","周六"]}
                ],
                callback:function(indexArr, data){
                    console.log(data);
                }
            });
        }
    }
</script>

⑥Json format - Data field mapping

<div id="trigger6"></div>

<script type="text/javascript">
    // If your data field is named id, title, children
    // does not match the id, value, childs field name of mobileSelect
    // You can use the keyMap property for field name mapping
    var mobileSelect6 = new MobileSelect({
        trigger: '#trigger6',
        title: 'keyMap',
        wheels: [
                    {data:[
                        {
                            id:'1',
                            title:'A',
                            children:[
                                {id:'A1',title:'A-a'},
                                {id:'A2',title:'A-b'},
                                {id:'A3',title:'A-c'}
                            ]
                        },
                        {
                            id:'1',
                            title:'B',
                            children:[
                                {id:'B1',title:'B-a'},
                                {id:'B2',title:'B-b'},
                                {id:'B3',title:'B-c'}
                            ]
                        },
                    ]}
                ],
        keyMap: {
            id:'id',
            value: 'title',
            childs :'children'
        },
        callback:function(indexArr, data){
            console.log(data);
        }
    });
</script>

Options

Tips: The meaning of the parameters returned in the callback function is as follows

• indexArr is the currently selected index array, such as0,0,1
• data is the currently selected json array, such as{id:'1',value:'hello'},{id:'2',value:'world'}

Functions：

Tips: The function parameters need to be passed as follows

• SliderIndex represents the index of the wheel to be modified

• PosIndex represents the location index

Demo of use the function ：

<div id="day"></div>

var mySelect = new MobileSelect({
    trigger: '#day',
    wheels: [
                {data:['周日','周一','周二','周三','周四','周五','周六']},
                {data:['08:00','09:00','10:00','11:00','12:00','13:00','14:00']}
            ],
    position:[1,1] //Initialize the positioning of both wheels are selected in the index 1 option
});

//----------------------------------------------
//After the basic instantiated, use the functions

mySelect.setTitle('啦啦啦(๑•̀ㅁ•́ฅ)');
// Set the title of the component

mySelect.updateWheel(0,['sunday','Monday','Tuesday','Wednesday','Thursday','Friday','Saturday']);
// Update the 0th wheel of the data,the data from the Chinese week to the English week

mySelect.locatePosition(1,0);
// Reposition the position of the first wheel and change the 0th data of the first wheel to the current selection.
// (The first wheel is the right wheel, the left side of the wheel is the first 0)

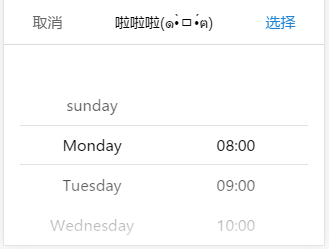

Base example → Function after operation

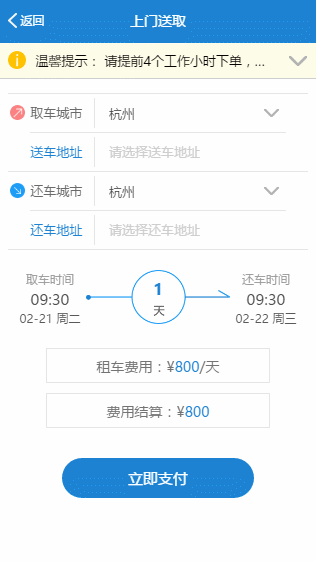

Project demo：

Use the transitionEnd (), callback (), updateWheel (), locatePosition () functions to do the following:

• choose the date of the day, not more than today has been too.
• Select the time to take the car, the car must not exceed the time to take the car (including the date and time).

Logs

2017-04-20update

As the input tag in the iphone, the cursor will flashing.
As well as the input tag open in the iphone6P / iphone7P chrome will appear offset phenomenon.
So do not use the input tag, instead by the ordinary div trigger.
The value selected will be written in the div trigger‘s innerHTML.
It is recommended to use the callback (indexArr, data) function to get the selected value.

2017-07-27bug fixed

Repair the issues raised by li362692680:
Cascade selection can not initially locate the secondary selection box.
At the same time repair the init function of the entry array parameter length is less than the number of wheels can not move the problem.

2017-07-30bug fixed + update

Repair the issues raised by leohgbs:
1. The update does not take into account the problem that the data is json.
2. After the update, the cached data is not updated, resulting in a callback data source error.

Change the variable name: jsonData → cascadeJsonData
Change method name: updateWheels() → reRenderWheels()
The updateWheel() method does not change.
Add new API: updateWheels(data) is used to update the entire data source in cascading data format.

2017-08-15update

Repair in cascade state, single click failed.     Delete the comment after the brace in the js file(In the php environment there will be js code failure situation).
Fix ios potential bug.
Add API: show()
Add API: getValue()
Add option style options(Modify the connector / button text / button color / background color and so on)：
connector
ensureBtnText
ensureBtnColor
cancelBtnText
cancelBtnColor
titleColor
titleBgColor
bgColor
textColor
Supports color formats such as #ff0000 rgba(0,255,255,0.5) orange.

2017-09-07更新

Add keyMap function
update README

License

MIT LICENSE

Copyright (c) 2017-present, LIHONG OU(onlyhom)
