m3dv v0.0.11

m3dv

3D model viewer

This package is UI agnostic which means that you need to build it yourself. Viewer provides various properties and events to build own reactive viewer interface

Install

use npm i m3dv to install this package

Usage

Viewer creation

You can simply create Viewer object

const canvas = document.getElementById("canvas") as HTMLCanvasElement;
const viewer = new Viewer(canvas);

Model loading

To load model file use LoadModelFile() method of Viewer object

viewer.LoadModelFile("fileNameWithExtension.gltf", "UrlToFile");

CAD models

In order to load CAD models you can specify wasm path to occt-import-js

const occtImportJsWasmPath = new URL("pathToWasm/occt-import-js.wasm", import.meta.url).href;
const viewer = new Viewer(canvas, { occtImportJsWasmPath: occtImportJsWasmPath });

see example folder to see basic usage of viewer

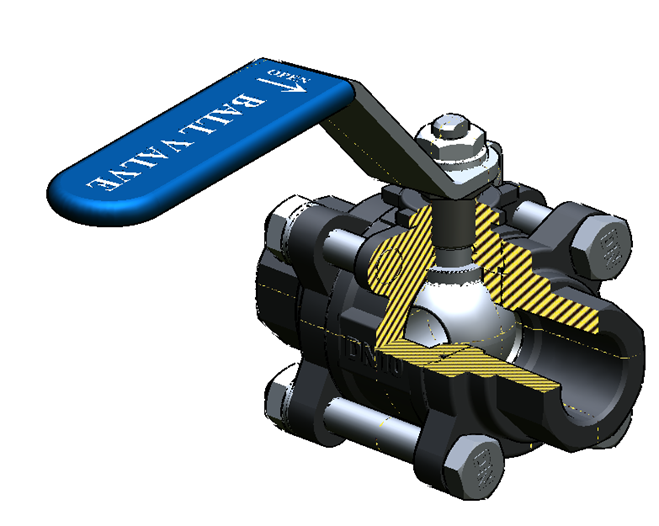

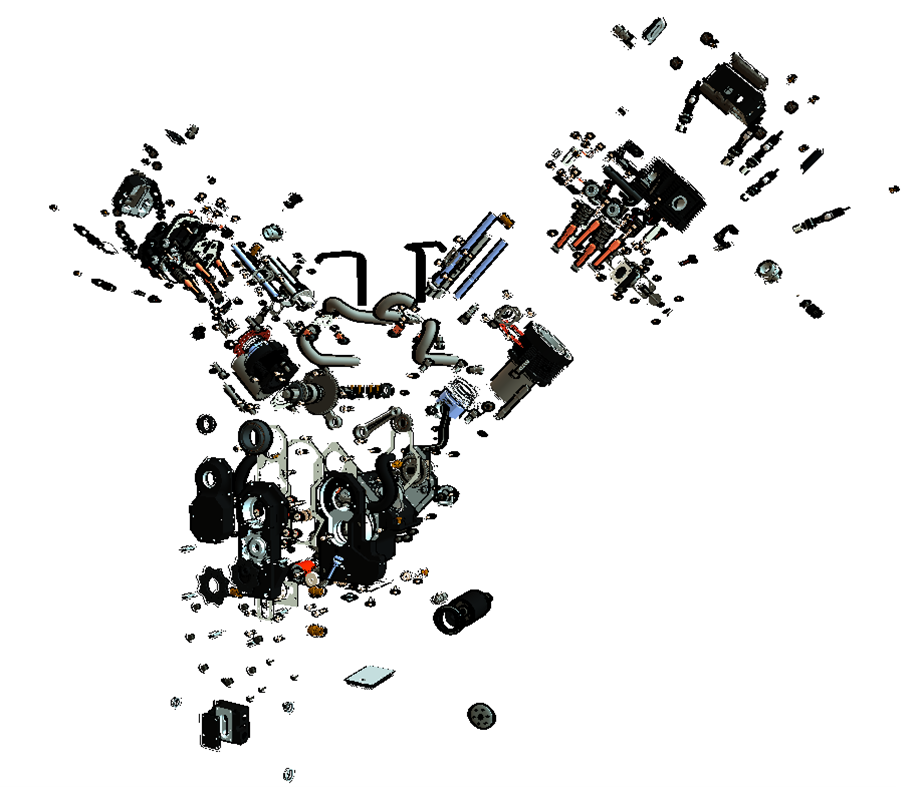

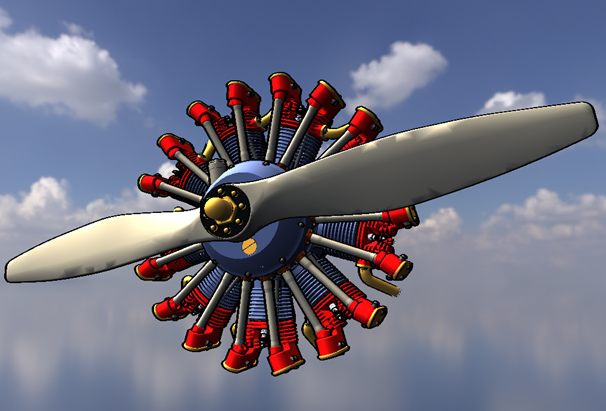

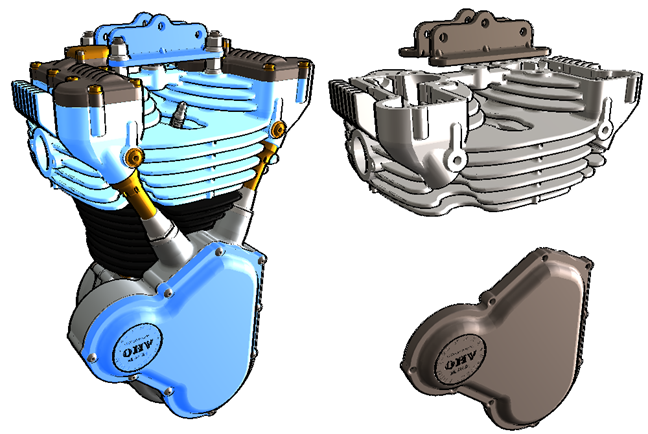

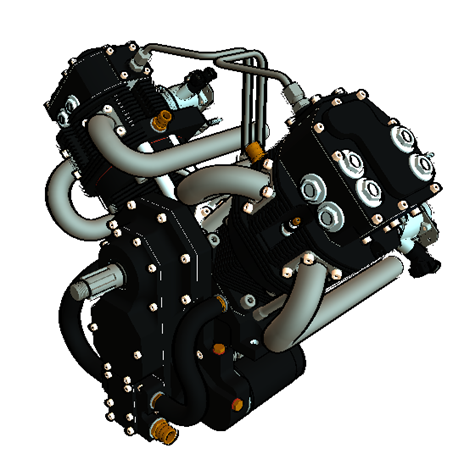

Showcase
