markmaid v0.1.9

markmaid

CLI tool to parse markdown files and renders Mermaid snippets as images.

Requires Node 4.0 or greater.

How it works

1. Create a readme file with mermaid code snippet (for example, see the readme source for this project).
2. Run markmaid [filename] | xargs git add
3. Commit and push
4. View the rendered result in your Github docs

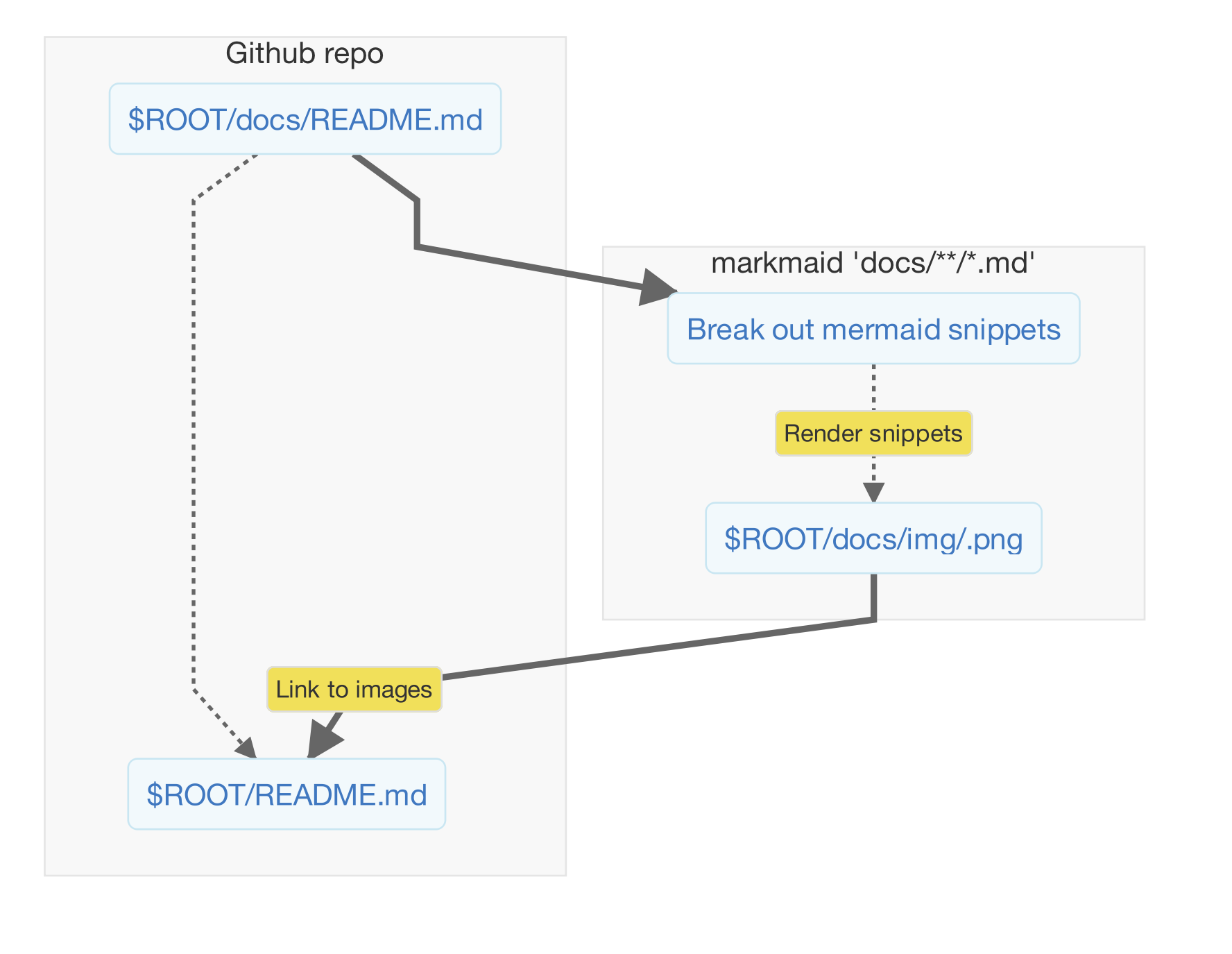

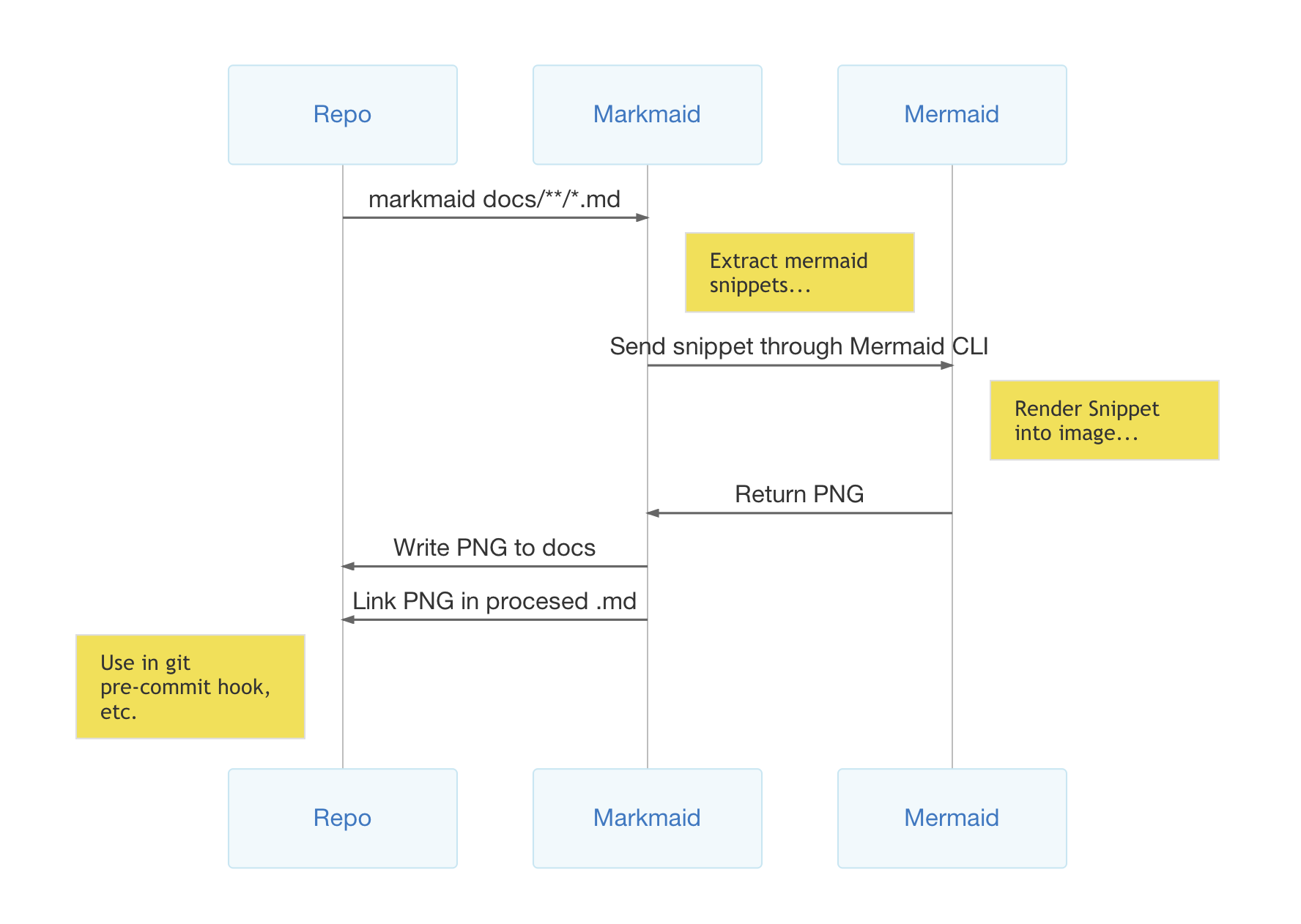

As flow chart	As sequence diagram

It even works in tables!

Installation

Install the markmaid command line tool with npm:

npm install -g markmaid
