Matterbridge NPM

Matterbridge

Matterbridge is a matter.js plugin manager.

It allows you to have all your Matter devices up and running in a couple of minutes without having to deal with the pairing process of each single device.

The developer just focuses on the device development extending the provided classes.

Just pair Matterbridge once, and it will load all your registered plugins.

This project aims to allow the porting of homebridge plugins to matterbridge plugins without recoding everything.

It creates a device to pair in any ecosystem like Apple Home, Google Home, Amazon Alexa, or any other ecosystem supporting Matter like Home Assistant.

You don't need a hub or a dedicated new machine.

No complex setup just copy paste the installation scripts.

Matterbridge is light weight and run also on slow Linux machine with 512MB of memory.

It runs perfectly on Windows too.

The project is build on top of https://github.com/project-chip/matter.js.

A special thank to Apollon77 for his incredible work.

Installation

Follow these steps to install Matterbridge:

on Windows:

npm install -g matterbridge

on Linux (you need the necessary permissions):

sudo npm install -g matterbridge

Test the installation with:

matterbridge -bridge

Now it is possible to open the frontend at the link provided (default: http://localhost:8283)

Usage

mode bridge

matterbridge -bridge

Matterbridge only exposes itself, and you have to pair it scanning the QR code shown in the frontend or in the console.

mode childbridge

matterbridge -childbridge

Matterbridge exposes each registered plugins, and you have to pair each one by scanning the QR code shown in the frontend or in the console.

Use matterbridge -help to see the command line syntax

matterbridge -help

Frontend

Matterbridge has a frontend available on http://localhost:8283

You can change the default port by adding the frontend parameter when you launch it.

Here's how to specify a different port number:

matterbridge -bridge -frontend [port number]

matterbridge -childbridge -frontend [port number]

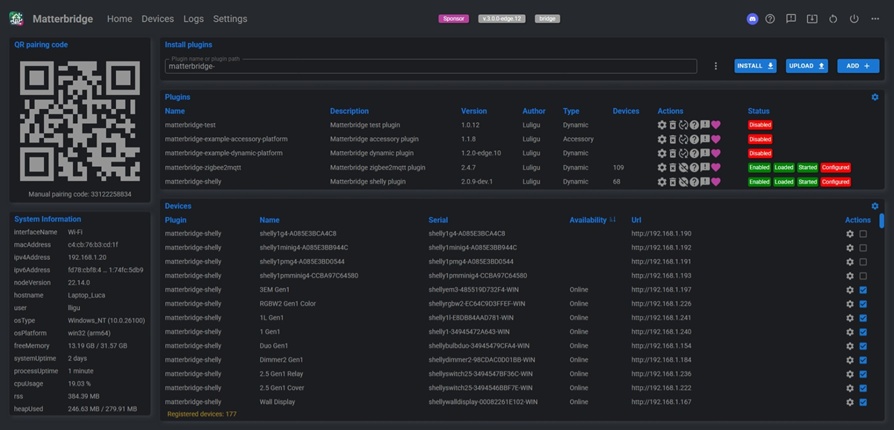

Home page: See the screenshot here

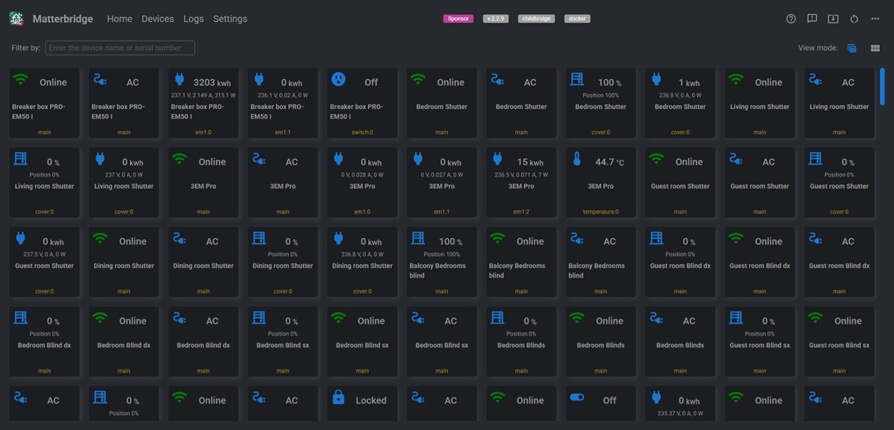

Devices page: See the screenshot here

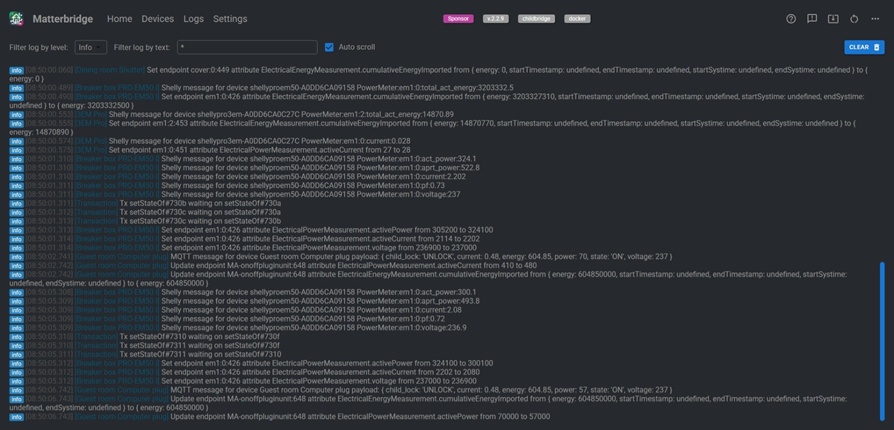

Logs page: See the screenshot here

Plugins

Accessory platform example

This an example of an accessory platform plugin.

It exposes a virtual cover device that continuously moves position and shows how to use the command handlers (you can control the device).

An Accessory platform plugin only exposes one device.

See the plugin homepage here

Dynamic platform example

This an example of a dynamic platform plugin.

It exposes a switch with onOff, a light with onOff-levelControl-colorControl, an outlet with onOff and a WindoweCovering device.

All these virtual devices continuously change state and position. The plugin also shows how to use all the command handlers (you can control all the devices).

A Dynamic platform plugin exposes as many devices as you need (the limit for the Home app is 150 accessories for bridge).

Matterbridge can run as many plugins as you want.

See the plugin homepage here

Example plugins to show the usage of history in matter

Door plugin with history

Motion plugin with history

Energy plugin with history

Weather plugin with history

Room plugin with history

The history works in both bridge and childbridge mode.

The Eve app only shows the history when the plugins run like an AccessoryPlatform in childbridge mode (this means the plugin is paired directly).

Production-level plugins

zigbee2mqtt

Matterbridge zigbee2mqtt is a matterbridge production-level plugin that expose all zigbee2mqtt devices and groups to Matter.

No hub or dedicated hardware needed.

somy-tahoma

Matterbridge Somfy Tahoma is a matterbridge production-level plugin that expose all Somfy Tahoma devices to Matter.

How to install and register a production-level plugin (from npm)

To install i.e. https://github.com/Luligu/matterbridge-zigbee2mqtt

On windows:

cd $HOME\Matterbridge
npm install -g matterbridge-zigbee2mqtt
matterbridge -add matterbridge-zigbee2mqtt

On linux:

cd ~/Matterbridge
sudo npm install -g matterbridge-zigbee2mqtt
matterbridge -add matterbridge-zigbee2mqtt

How to install and register a plugin for development (from github)

To install i.e. https://github.com/Luligu/matterbridge-example-accessory-platform

On windows:

cd $HOME\Matterbridge

On linux:

cd ~/Matterbridge

then clone the plugin

git clone https://github.com/Luligu/matterbridge-example-accessory-platform
cd matterbridge-example-accessory-platform
npm install
npm run build

then add the plugin to Matterbridge

matterbridge -add .\

How to add a plugin to Matterbridge

matterbridge -add [plugin path or plugin name]

How to remove a plugin from Matterbridge

matterbridge -remove [plugin path or plugin name]

How to disable a registered plugin

matterbridge -disable [plugin path or plugin name]

How to enable a registered plugin

matterbridge -enable [plugin path or plugin name]

How to remove the commissioning information for Matterbridge so you can pair it again (bridge mode). Shutdown Matterbridge before!

matterbridge -reset

How to remove the commissioning information for a registered plugin so you can pair it again (childbridge mode). Shutdown Matterbridge before!

matterbridge -reset [plugin path or plugin name]

How to factory reset Matterbridge. Shutdown Matterbridge before!

matterbridge -factoryreset

This will reset the internal starages. All commissioning informations will be lost. All plugins will be unregistered.

How to create your plugin

The easiest way is to clone:

https://github.com/Luligu/matterbridge-example-accessory-platform if you want to create an Accessory Platform Plugin.

https://github.com/Luligu/matterbridge-example-dynamic-platform if you want to create a Dynamic Platform Plugin.

Then change the name (keep matterbridge- at the beginning of the name), version, description and author in the package.json.

Add your plugin logic in platform.ts.

MatterbridgeDynamicPlatform and MatterbridgeAccessoryPlatform api

public name: string

The plugin name.

public type: string

The plugin platform type.

public config: object

The plugin config (loaded before the platform constructor is called and saved after onShutdown() is called). Here you can store your plugin configuration (see matterbridge-zigbee2mqtt for example)

async onStart(reason?: string)

The method onStart() is where you have to create your MatterbridgeDevice and add all needed clusters and command handlers.

The MatterbridgeDevice class has the create cluster methods already done and all command handlers needed (see plugin examples).

The method is called when Matterbridge load the plugin.

async onConfigure()

The method onConfigure() is where you can configure or initialize your device.

The method is called when the platform is commissioned.

async onShutdown(reason?: string)

The method onShutdown() is where you have to eventually cleanup some resources.

The method is called when Matterbridge is shutting down.

async registerDevice(device: MatterbridgeDevice)

After you created your device, add it to the platform.

async unregisterDevice(device: MatterbridgeDevice)

You can unregister one or more device.

async unregisterAllDevices()

You can unregister all devices you added.

It can be useful to call this method from onShutdown() if you don't want to keep all the devices during development.

MatterbridgeDevice api

Advanced configuration

Run matterbridge as a daemon with systemctl (Linux only)

Create a systemctl configuration file for Matterbridge

sudo nano /etc/systemd/system/matterbridge.service

Add the following to this file, replacing twice (!) USER with your user name (e.g. WorkingDirectory=/home/pi/Matterbridge and User=pi):

[Unit]
Description=matterbridge
After=network-online.target

[Service]
Type=simple
ExecStart=/usr/bin/matterbridge -bridge -service -port 5550
WorkingDirectory=/home/<USER>/Matterbridge
StandardOutput=inherit
StandardError=inherit
Restart=always
RestartSec=10s
TimeoutStopSec=30s
User=<USER>

[Install]
WantedBy=multi-user.target

If you modify it after, then run:

sudo systemctl daemon-reload

Start Matterbridge

sudo systemctl start matterbridge

Stop Matterbridge

sudo systemctl stop matterbridge

Show Matterbridge status

sudo systemctl status matterbridge.service

View the log of Matterbridge in real time (this will show the log with colors)

sudo journalctl -u matterbridge.service -f --output cat

Delete the logs older then 3 days (all of them not only the ones of Matterbridge!)

sudo journalctl --vacuum-time=3d

Enable Matterbridge to start automatically on boot

sudo systemctl enable matterbridge.service

Disable Matterbridge from starting automatically on boot

sudo systemctl disable matterbridge.service

Run matterbridge with docker (Linux only)

The Matterbridge Docker image, which includes a manifest list for the linux/amd64 and linux/arm64 architectures, is published on Docker Hub.

First create the Matterbridge directories

This will create the required directories if they don't exist

cd ~
mkdir -p ./Matterbridge
mkdir -p ./.matterbridge
sudo chown -R $USER:$USER ./Matterbridge ./.matterbridge

Run the Docker container and start it

The container has full access to the host network (needed for mdns).

docker run --name matterbridge \
  -v ${HOME}/Matterbridge:/root/Matterbridge \
  -v ${HOME}/.matterbridge:/root/.matterbridge \
  --network host --restart always -d luligu/matterbridge:latest

Run with docker compose

The docker-compose.yml file is available in the root of the package

services:
  matterbridge:
    container_name: matterbridge
    image: luligu/matterbridge:latest # Matterbridge image with the latest tag
    network_mode: host # Ensures the Matter mdns works
    restart: always # Ensures the container always restarts automatically
    volumes:
      - "${HOME}/Matterbridge:/root/Matterbridge" # Mounts the Matterbridge plugin directory
      - "${HOME}/.matterbridge:/root/.matterbridge" # Mounts the Matterbridge storage directory

copy it in the home directory or edit the existing one to add the matterbridge service.

then run it

docker compose up -d

Stop with docker compose

docker compose down

Inspect the container

docker container inspect matterbridge

Start the Docker container

docker start matterbridge

Stop the Docker container

docker stop matterbridge

Restart the Docker container

docker restart matterbridge

Shows the logs

docker logs matterbridge

Shows the logs real time (tail)

docker logs --tail 1000 -f matterbridge

Contribution Guidelines

Thank you for your interest in contributing to my project!

I warmly welcome contributions to this project! Whether it's reporting bugs, proposing new features, updating documentation, or writing code, your help is greatly appreciated.

Getting Started

Fork this repository to your own GitHub account and clone it to your local device.
Make the necessary changes and test them out
Commit your changes and push to your forked repository

Submitting Changes

Create a new pull request from my repository and I'll be glad to check it out
Be sure to follow the existing code style
Add unit tests for any new or changed functionality if possible
In your pull request, do describe what your changes do and how they work

Code of Conduct

We believe in a welcoming and respectful community for all. Please make sure to follow our Code of Conduct in all your interactions with the project.
