Mermaider

Simply build Mermaid diagram SVGs based on Mardown files.

Install

npm install -g mermaider

Usage

Define Diagrams

First, create markdown files that contain the diagram definitions, using mermaid syntax. \ The diargram definitions must be in a mermaid code fence.

Example: content of example-diagram.md

```mermaid
flowchart LR
  A --> B
  A --> C
  B --> D
  C --> D
```

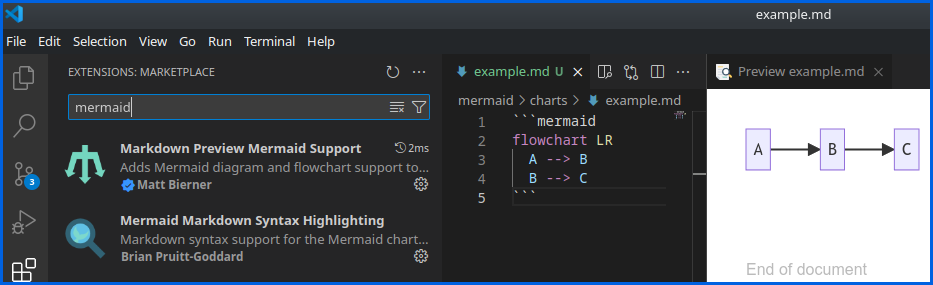

Benifit of using markdown files: You can use plugins to highlight definitions and get diagram previews. \ Here is an example, using Visual Studio Code: \

Build Diagrams

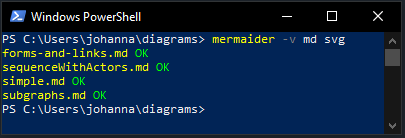

Then simply run:

mermaider [options] <input> <output>

Example:

mermaider --all ./md-files ./svg-files

Arguments

• input: The input directory where the MD files are.
• output: The output directory where the diagrams will be saved.

Options

• -a, --all: Re-build all diagrams. This will also build files that already exist (overwrite).
• -d, --delete: Delete SVG files with no matching MD file.
• -i, --img: Fix svg files to be included as img tag.
• -u, --update: Like -a, but only where the md file is newer than the existing svg file.
• -v, --verbose: Log files while beeing processed.
• -h, --help: display help for command

ChangeLog

0.3.0

• Features
  • deletion: with parameter -d svg files will be deleted, if there is no matching md file
• Fixes
  • md file: leading and trailing contents before/after mermaid code fence caused mermaid syntax errors

0.2.0

• Features
  • img compatibility: now you can pass -i or --img option to make svg files able to be included as img tag.
  • improved overwriting: --update only overwrites existing svg if md is newer.
• Fixes
  • fixed typo: files already exists --> files already exist

0.1.0

Initial Version

License

MIT
