mihy-ui-framework v0.1.42

MIHY

MIHY is boilerplate for creating screen by writing object configuration

Requirements

• Node js
• NPM

Installation & Development

$ npm clone https://github.com/muralim4242/mihy-ui-framework-boilerplate.git
$ cd mihy-ui-framework-boilerplate
$ npm i
$ npm start

Note : We have added default configuration for login,register, dashboard and advanced dashboard, it will use for you to create new configuration for screen.

Usage

1. Go to src/ui-config/screens/specs/ in root of the project.
2. Create a folder for your set of screens. eg:auth.
3. Create a file for screen. eg:login.js
4. Write your configuration.

example code

import {
  getCommonCardWithHeader,
  getLabel
} from "mihy-ui-framework/ui-config/screens/specs/utils";

const screenConfig = {
  uiFramework: "material-ui",
  name: "mihyLoginScreen",
  components: {
    mihyLoginGrid: {
      uiFramework: "custom-atoms",
      componentPath: "Container",
      children: {
        mihyEmptyRow: {
          uiFramework: "custom-atoms",
          componentPath: "Item",
          props: {
            sm: 4
          }
        },
        mihyLoginItem: {
          uiFramework: "custom-atoms",
          componentPath: "Item",
          props: {
            sm: 4,
            xs: 12
          },
          children: {
            mihyLoginCard: getCommonCardWithHeader(
              {
                mihyloginDiv: {
                  uiFramework: "custom-atoms",
                  componentPath: "Div",
                  props: {
                    className: "text-center"
                  },
                  children: {
                    mihyLoginUsername: {
                      uiFramework: "custom-molecules",
                      componentPath: "TextfieldWithIcon",
                      props: {
                        label: "Email",
                        margin: "normal",
                        fullWidth: true,
                        autoFocus: true,
                        required: true,
                        iconObj: {
                          position: "end",
                          iconName: "email"
                        }
                      },
                      required: true,
                      jsonPath: "body.mihy.username",
                      pattern: "^([a-zA-Z0-9@.])+$"
                    },
                    mihyLoginPassword: {
                      uiFramework: "custom-molecules",
                      componentPath: "TextfieldWithIcon",
                      props: {
                        label: "Password",
                        type: "password",
                        margin: "normal",
                        fullWidth: true,
                        required: true,
                        iconObj: { position: "end", iconName: "lock" }
                      },
                      jsonPath: "body.mihy.password",
                      required: true,
                      pattern: "^([a-zA-Z0-9!])+$"
                    },
                    mihyBreakOne: {
                      uiFramework: "custom-atoms",
                      componentPath: "Break"
                    },
                    mihyBreakTwo: {
                      uiFramework: "custom-atoms",
                      componentPath: "Break"
                    },
                    mihyLoginButton: {
                      componentPath: "Button",
                      props: {
                        color: "primary",
                        fullWidth: true
                      },
                      children: {
                        mihyLoginButtonText: getLabel({label:"Let's go"})
                      }
                    }
                  }
                }
              },
              {
                mihyLoginHeader: {
                  componentPath: "Typography",
                  children: {
                    mihyLoginHeaderText: getLabel({label:"Login"})
                  },
                  props: {
                    align: "center",
                    variant: "title",
                    style: {
                      color: "white"
                    }
                  }
                }
              }
            )
          }
        }
      }
    }
  }
};

export default screenConfig;

5. Save a file,enter a url in browser like bellow,

page with menu

http://localhost:<port-name>/landing/mihy-ui-framework/<folder-name>/<file-name>
eg:- http://localhost:3000/landing/mihy-ui-framework/auth/login

page without menu

http://localhost:<port-name>/mihy-ui-framework/<folder-name>/<file-name>
eg:- http://localhost:3000/mihy-ui-framework/auth/login

Note: Many components we directly reffered material-ui framework, thanks to material-ui for giving such a beautifull components.

example for using material ui components

React way for rendering Material-ui component

import React from 'react';
import Button from '@material-ui/core/Button';

<Button variant="contained" color="primary">
        Primary
</Button>

MIHY way for rendering same component in configuration

......
primaryButton:{
  componentPath:"Button",
  props:{
    variant:"contained",
    color:"primary"
  }
}
......

Inbuilt screens

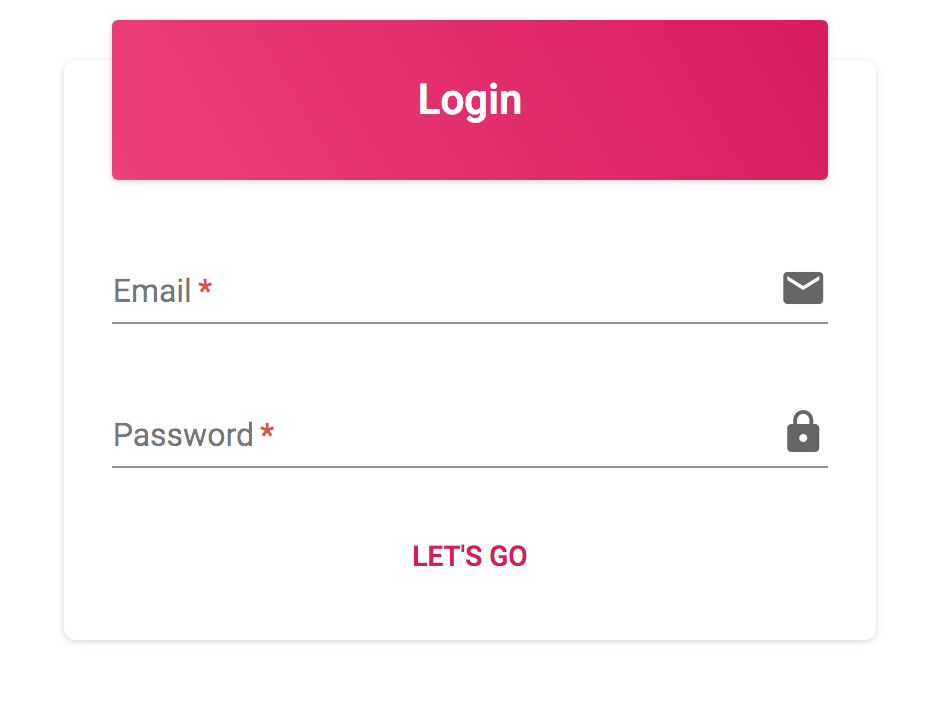

login

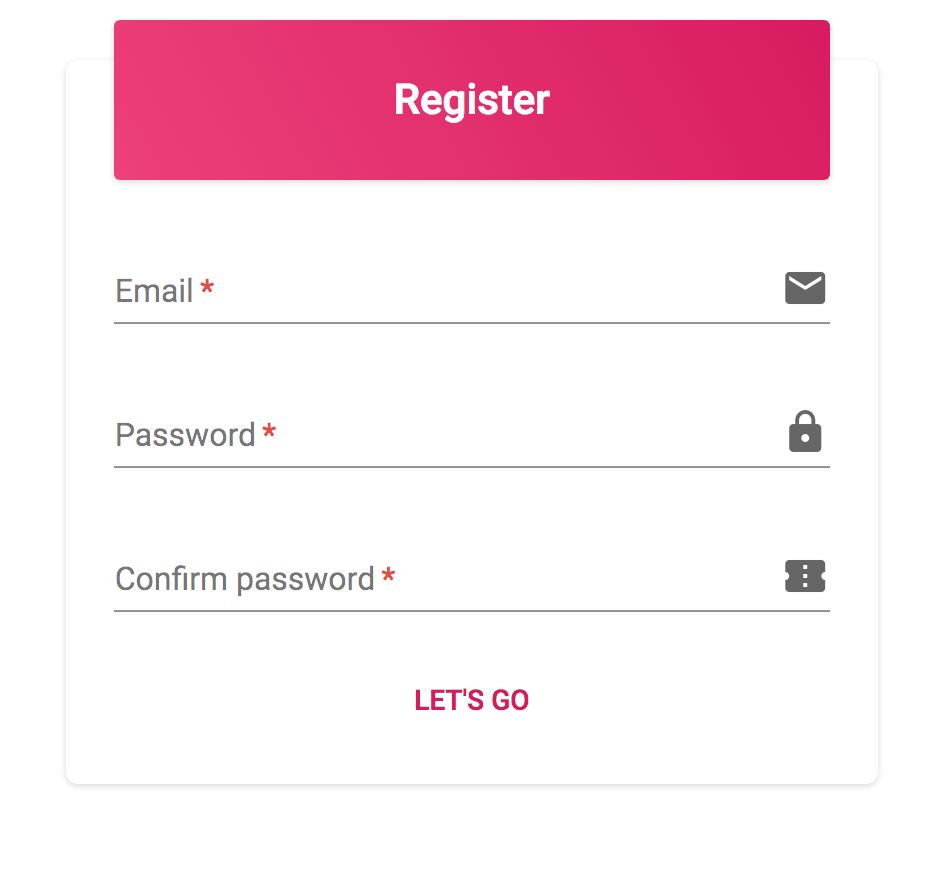

Register

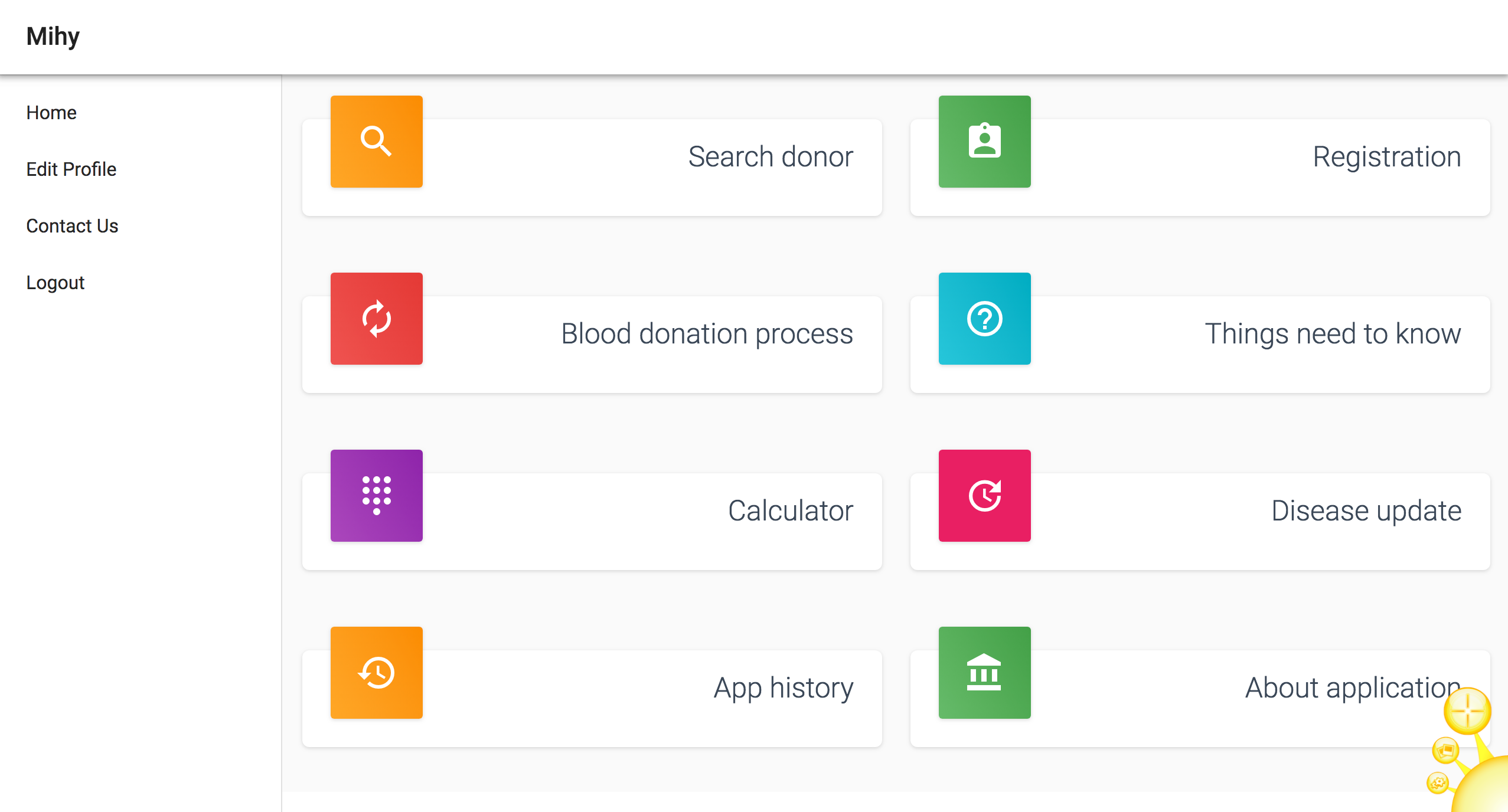

Dashboard

Nested app dashboard

Contributing

Pull requests are welcome. For major changes, please open an issue first to discuss what you would like to change.

Please make sure to update tests as appropriate.

Special thanks

1. Sonia
2. Vishwas
3. Abhishek
4. Ranjeet
5. Tharu
6. My ui team members

License

MIT
