Ngx-thumbnail-video NPM

Angular Video Thumbnail Player

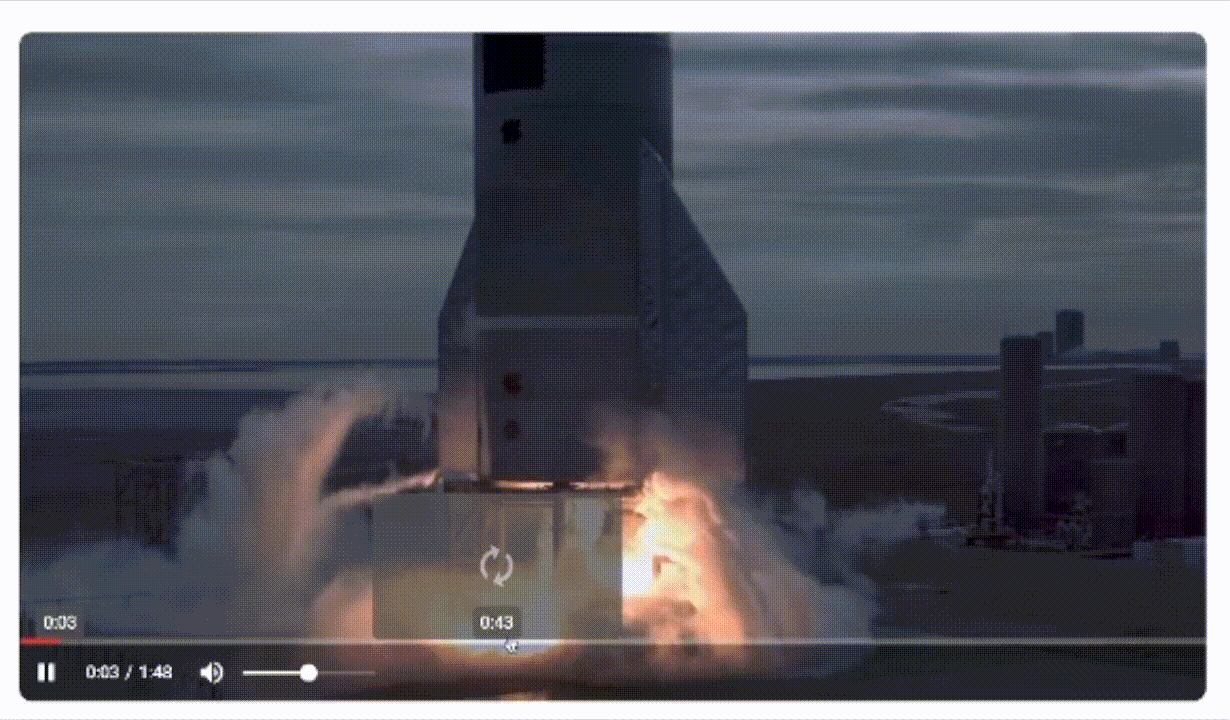

A simple solution implemented in Angular to display a thumbnail preiview image on video's progress bar hovered. The component can load thumbnail image from either frontend or backend.

Installation

Install the npm package.

  npm i ngx-thumbnail-video

Import module:

  import { NgxThumbnailVideoModule } from 'ngx-thumbnail-video';

  @NgModule({
      imports: [NgxThumbnailVideoModule]
  })

Usage 1 - Front End

Pass your video url and options into the component. e.g.

in component.ts

import { Component } from '@angular/core';
import { VideoPlayerConfig } from 'ngx-thumbnail-video';

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.scss'],
})
export class AppComponent {
  options: VideoPlayerConfig = {
    width: '960px',
    height: '540px'
  };
}

HTML:

<ngx-thumbnail-video url="assets/video.mp4" [options]="options"></ngx-thumbnail-video>

Usage 2 - Back End

You can choose to load the thumbnail image from a backend to improve the performance of the component. In this case, you will need to add a few configurations.

Step 1. Set the 'frontendPreload' to false in options.

  options: VideoPlayerConfig = {
    width: '960px',
    height: '540px',
    frontendPreload: false
  };

Step 2 Listen to the progressBarHover event from the component to know the currenlty hovered time(in seconds).

<ngx-thumbnail-video url="assets/video.mp4" [options]="options" (progressBarHover)="eventListener($event)" [thumb]="thumb"></ngx-thumbnail-video>

Step 3. Pass in a stringified object with sec and url properties, sec should be the same as the property emited from progressBarHover, and url can be loaded from backend server.

thumb = JSON.stringify({sec, url});

Options

name	type	default	description
width	string	'960px'	Video width.
height	string	'540px'	Video height.
autoplay	boolean	false	Autoplay video on load.
frontendPreload	boolean	true	Generate thumbnail image at front end.
mute	boolean	true	Mute video at beginning.
borderRadius	string	'0'	Video border radius.
interval	number	1	Interval to load a thumbnail image, must be an integer, unit is second.
thumbnailRatio	number	5	Thumbnail image shrink ratio compared to video.
