Pdf-reorganizer NPM

pdf-reorganizer

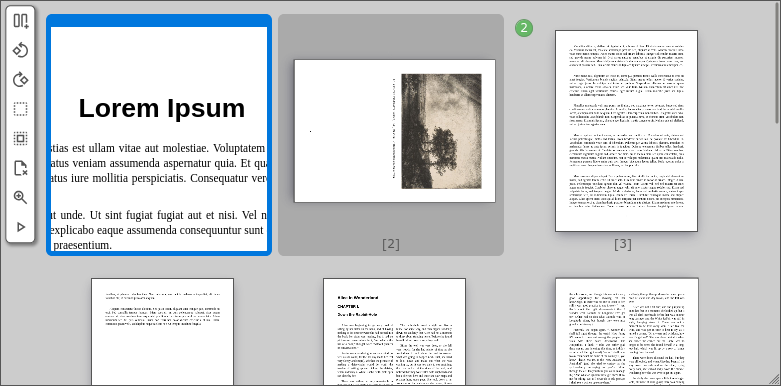

pdf-reorganizer is a web component to help rearrange and split PDFs. It does not modify PDF documents itself, but creates a processing instruction that can be implemented independent of PDF processing APIs or programming languages. pdf-reorganizer is heavily inspired by PDF-Arranger and is based on PDF.js.

Reorganization supports:

Splits
Removals
Movements
Rotations

Integration

Install the package:

npm i pdf-reorganizer

Import the package in your code:

<html>
  <head>
    <script type="module">
      import 'pdf-reorganizer';
    </script>
  </head>
  <body>
    <pdf-reorganizer url="example.pdf"></pdf-reorganizer>
  </body>
</html>

Usage

Key Bindings

In Reorganizer Viewport:

Key	Modifier	Command
right		Move cursor to next page
left		Move cursor to previous page
top		Move cursor to page above in viewport
down		Move cursor to page below in viewport
right	Ctrl	Rotate page on cursor position 90deg clockwise
left	Ctrl	Rotate page on cursor position 90deg counter clockwise
right	Ctrl+Shift	Rotate selected pages 90deg clockwise
left	Ctrl+Shift	Rotate selected pages 90deg counter clockwise
right	Alt	Choose preceding target to move selected pages (requires confirmation)
left	Alt	Choose following target to move selected pages (requires confirmation)
Delete		Remove page on cursor position (If no cursor exists, remove all selected)
Delete	Shift	Remove all selected pages
Space		Add page on cursor to the selection or remove from it
s	Ctrl	Add split before page on cursor (If no cursor exists, add split before selected pages)
s/S	Ctrl+Shift	Add split before selected pages
+	Ctrl	Open magnified view on cursor
a	Ctrl	Select all pages
d	Ctrl	Unselect all pages
i/I	Ctrl+Shift	Inverse select all pages
c	Ctrl	Add comment to the page on cursor or edit
Enter		Confirm moving selected pages

In magnified view:

Key	Modifier	Command
right		Move viewport right
left		Move viewport left
top		Move viewport up
down		Move viewport down
right	Ctrl	Move viewport to the right
left	Ctrl	Move viewport to the left
top	Ctrl	Move viewport to up
down	Ctrl	Move viewport to bottom
Escape		Leave magnifier view

Processing instructions

After reorganizing all pages into new documents, the processed custom event is dispatched. This event can be listened on and contains a docs list and a src list in its detail object.

{
  "src" : [
    "mysimple.pdf"
  ],
  "docs" : [
    [1, 2],
    [3, { "p":5, "r":90 }],
    [{
      "p":6,
      "c":"This is a comment"
    }]
  ]
}

The docs array contains a list of documents resulting from the reorganization of the source documents (listed in src). Each document is represented by a list of page numbers.

If pages were modified or annotated, they are represented as a map with the following keys supported:

p: Mandatory. The page number.

r: Optional. The page was rotated (clockwise by 90, 180 or 270 degrees).

c: Optional. A comment on the page.

s: Optional. The index to the source document in the src list. Defaults to 0.

Customization

Configuration

The following parameters can be defined as part of the pdf-reorganizer element.

Attribute	Description
`url`	The url of the PDF document. Can alos be represented as a Int array. Mandatory.
`filename`	The file name for source attribution. Uses the URL base name if not given.
`zoomfactor`	The scale for the magnifier view. Defaults to 6.
`scrollstep`	The number of pixels to scroll by arrow keys in magnifier view. Defaults to 14.

Styling

The following CSS variables can be overwritten and are resepected by the web component. It's best to overwrite them in a pdf-reorganizer selector rule.

pdf-reorganizer {

  /* Main color for fonts and borders */
  --pdfro-main-color: #555;

  /* Colors for selected pages */
  --pdfro-selected-color: #fff;
  --pdfro-selected-bg-color: #07d;

  /* Colors for the split marker */
  --pdfro-split-marker-border-color: #696;
  --pdfro-split-marker-bg-color: #6b6;
  --pdfro-split-marker-counter-color: #fff;

  /* Color of the load spinner */
  --pdfro-loader-color: blue;

  /* Color of removed pages */
  --pdfro-removed-bg-color: #777;

  /* Color of highlighted pages for mouseover */
  --pdfro-hover-bg-color: #aaa;

  /* Color of dragged pages and drag-markers */
  --pdfro-dragged-color: #7bf;

  /* Colors for navigation menu */
  --pdfro-nav-bg-color: #fff;
  --pdfro-nav-color: var(--pdfro-main-color);
}

Planned Features

Copy instead of moving
Add files per drag and drop (if embedded in a service)
Add select mode on long press (mousedown and touchstart)

Known issues

When height and width of a page are switches after rotation, the magnified view has an empty offset at the bottom of a page.
hdpi doesn't properly work across browsers.

License

This software bundles Material Symbols from Google, published under the Apache License 2.0.
