Pico Web Components

Experimental web components. A demonstration of the technology rather than a library for building applications. But that may change :-)

Low-level. Granularity of native elements for fully flexible layouts and combinations with the native elements.
Tiny. Avoid dependencies on heavy frameworks when writing small web components.
Integrated. Usable interchangeably with the native HTML elements by providing the same interface.
Accessible. Support assistive technologies like screen readers by the form-associated interface.
Styled. When used alone, they don't need additional styles to compose a good layout.
Protected. Shadow DOM makes the inner styles resistant against external stylesheets.

Styles aren't cleaned up yet. It's just a copy of a part of Pico CSS. Refactoring to improve and share code among the components will be done after more concepts are evaluated.

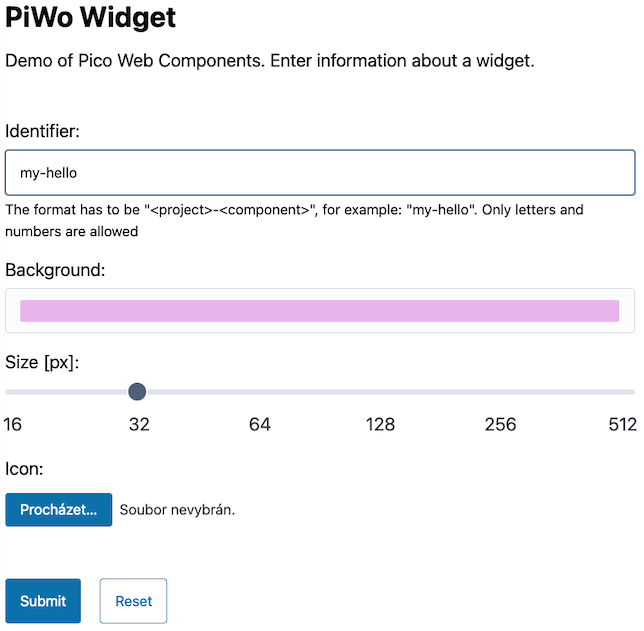

See also live examples: this page with examples rendered, Search, Login, Widget and Person. Pages initialising forms from a schema: Search, Login, Widget and Person. A picture of the Widget form:

Motivation

Prototype lightweight low-level web components, which can be used interchangeably with the native HTML elements.
Check feasibility of such implementation with the current state of the web component support.
Avoid unnecessary complexity of wrapping native elements with the same role in the shadow DOM and then synchronising their states, when it's possible to implement the form-associated interface on the host element.

Usage

You can install the package locally to get access to the distributed files:

npm i -D piwecko

And load the web components on a testing page:

<script src="node_modules/piwecko/dist/index.min.mjs" type="module"></script>

At this time, this package is more for experimenting with and debugging. You can download it, build it and debug the included pages:

git clone https://github.com/prantlf/piwo.git
cd piwo
bun i --frozen-lockfile
bun run start
open http://localhost:8080/examples/login.html

Example

<header>
  <piwo-h level="1">Login</piwo-h>
  <piwo-p>Provide your credentials to authenticate to the web application.</piwo-p>
</header>

<main>
  <form id="login">
    <piwo-label for="name">Name:</piwo-label>
    <piwo-input name="name" type="text" placeholder="Enter your login name"
                id="name" aria-describedby="name-msg"
                required describeerror focuserror></piwo-input>
    <piwo-small id="name-msg">Ask the admin about your user name.</piwo-small>

    <piwo-label>
      Password:
      <piwo-input name="password" type="password"
                  placeholder="Enter your password"></piwo-input>
    </piwo-label>

    <piwo-label>
      <piwo-checkbox name="remember-me"></piwo-checkbox>
      Rememeber me
    </piwo-label>

    <piwo-spacer></piwo-spacer>

    <piwo-label>
      Comment:
      <piwo-textarea name="comment" placeholder="Add a comment, if you want"></piwo-textarea>
    </piwo-label>

    <piwo-spacer></piwo-spacer>

    <piwo-button>Submit</piwo-button>
    <piwo-button type="reset" outline>Reset</piwo-button>
  </form>
</main>

Components

Button

Button for general usage and for submitting forms.

Lightweight - only a slot for inner content. The host element itself has the role button.
Form-associated element. Can be used like input[type=submit] for submitting forms.
Implements many attributes of the native element.
Supports the events click fired also by keys Enterand Space.
Resets the form if it is type=reset.
Exposes the state disabled in CSS.

<piwo-button>Primary</piwo-button>
<piwo-button kind="secondary">Secondary</piwo-button>
<piwo-button kind="contrast">Contrast</piwo-button>

<br>

<piwo-button outline>Primary outline</piwo-button>
<piwo-button kind="secondary" outline>Secondary outline</piwo-button>
<piwo-button kind="contrast" outline>Contrast outline</piwo-button>

Label

Label for form fields.

Lightweight - only a slot for inner content. The host element has no role.
Can be used just like the native label - by wrapping the field in its body, by pointing to a field by the for attribute, or by having the field point to it by the aria-labelledby attribute.
Attributes and element content can be modified any time later.
Clicks are forwarded to the target field.

<piwo-label for="first-name">First Name:</piwo-label>
<piwo-input name="first-name" id="first-name" type="text"></piwo-input>

FieldSet

Set of form fields.

Lightweight - only a slot for inner content. The host element has the role group.
Can be used just like the native fieldset - by wrapping a pico-legend and fields in its body, or by pointing to a pico-legend by the aria-labelledby attribute.
Attributes and element content can be modified any time later.

<piwo-fieldset>
  <piwo-legend>Personal information</piwo-legend>
</piwo-fieldset>

Legend

Legend for a set of form fields.

Lightweight - only a slot for inner content. The host element has no role.
Can be used just like the native legend - by placing it to a pico-fieldset, or by pointing a piwo-fieldset to it by the aria-labelledby attribute.

See FieldSet for an example.

Checkbox

Checkbox form field.

Lightweight - only an SVG image in the inner content. The host element itself has the role checkbox.
Form-associated element. Can be used like input[type=checkbox].
Implements many attributes of the native element.
Supports events click, beforeinput, input and change including preventDefault.
Fills the value on or nothing to FormData.
Remembers the current state for back and forth navigation in the browser.
Can reset the value on form reset.
Exposes states checked, indeterminate, disabled, readonly and required in CSS.
Validates input including custom errors.
Emphasises valid or invalid state if aria-invalid is set explicitly.
Allows either showing the browser popup, or a HTML message for invalid fields, if describeerror is set and the last ID in aria-describedby points to an element with content. If the element is hidden, it'll be temporarily shown.

<piwo-checkbox id="unchecked"></piwo-checkbox>
<piwo-label for="unchecked">Unchecked</piwo-label>

<piwo-checkbox id="checked" checked></piwo-checkbox>
<piwo-label for="checked">Checked</piwo-label>

<piwo-checkbox id="unchecked-invalid" required aria-invalid="true"></piwo-checkbox>
<piwo-label for="unchecked-invalid">Invalid</piwo-label>

<piwo-checkbox id="checked-valid" checked aria-invalid="false"></piwo-checkbox>
<piwo-label for="checked-valid">Valid</piwo-label>

<br><br>

<piwo-label>
  <piwo-checkbox indeterminate></piwo-checkbox>
  Indeterminate
</piwo-label>

Switch

Switch form field.

Lightweight - no inner content. The host element itself has the role switch.
Form-associated element. Can be used like input[type=checkbox].
Implements many attributes of the native element.
Supports events click, beforeinput, input and change including preventDefault.
Fills the value on or nothing to FormData.
Remembers the current state for back and forth navigation in the browser.
Can reset the value on form reset.
Exposes states checked, disabled, readonly and required in CSS.
Validates input including custom errors.
Emphasises valid or invalid state if aria-invalid is set explicitly.
Allows either showing the browser popup, or a HTML message for invalid fields, if describeerror is set and the last ID in aria-describedby points to an element with content. If the element is hidden, it'll be temporarily shown.

<piwo-switch id="off"></piwo-switch>
<piwo-label for="off">Off</piwo-label>

<piwo-switch id="on" checked></piwo-switch>
<piwo-label for="on">On</piwo-label>

<piwo-switch id="invalid-off" required aria-invalid="true"></piwo-switch>
<piwo-label for="invalid-off">Invalid</piwo-label>

<piwo-switch id="valid-on" checked aria-invalid="false"></piwo-switch>
<piwo-label for="valid-on">Valid</piwo-label>

Radio

Radio form field.

Lightweight - an empty element with a stylesheet. The host element itself has the role radio.
Form-associated element. Can be used like input[type=radio].
Implements many attributes of the native element.
Supports events click, beforeinput, input and change including preventDefault.
Fills the value of the checked element to FormData.
Remembers the current state for back and forth navigation in the browser.
Can reset the value on form reset.
Exposes states checked, disabled, readonly and required in CSS.
Validates input including custom errors.
Emphasises valid or invalid state if aria-invalid is set explicitly.
Allows either showing the browser popup, or a HTML message for invalid fields, if describeerror is set and the last ID in aria-describedby points to an element with content. If the element is hidden, it'll be temporarily shown.

<piwo-label>
  <piwo-radio name="marital-status" value="single" checked></piwo-radio>
  Single
</piwo-label>
<piwo-label>
  <piwo-radio name="marital-status" value="married"></piwo-radio>
  Married
</piwo-label>

<br>

<piwo-label>
  <piwo-radio name="marital-status-invalid" value="single" required aria-invalid="true"></piwo-radio>
  Single
</piwo-label>
<piwo-label>
  <piwo-radio name="marital-status-invalid" value="married" required></piwo-radio>
  Married
</piwo-label>

<br>

<piwo-label>
  <piwo-radio name="marital-status-valid" value="single" required></piwo-radio>
  Single
</piwo-label>
<piwo-label>
  <piwo-radio name="marital-status-valid" value="married" checked required aria-invalid="false"></piwo-radio>
  Married
</piwo-label>

Select

Select form field.

Uses a native select element for the selecting functionality. Hides it from accessible technologies. (This may yet change.) The host element itself has the role listbox.
Form-associated element. Can be used like select with option and optgroup children.
Implements many attributes of the native element.
Supports events click, beforeinput, input and change including preventDefault.
Fills the value to FormData.
Exposes states disabled, readonly and required in CSS.
Validates input including custom errors.
Emphasises valid or invalid state if aria-invalid is set explicitly.
Allows either showing the browser popup, or a HTML message for invalid fields, if describeerror is set and the last ID in aria-describedby points to an element with content. If the element is hidden, it'll be temporarily shown.

<piwo-select name="fruit">
  <option value="apples" selected>Apples</option>
  <option value="oranges">Oranges</option>
</piwo-select>

<piwo-select name="unselected-fruit" required aria-invalid="true">
  <option value="" disabled selected hidden>Select a fruit</option>
  <option value="apples">Apples</option>
  <option value="oranges">Oranges</option>
</piwo-select>

<piwo-select name="selected-fruit" required aria-invalid="false">
  <option value="" disabled hidden>Select a fruit</option>
  <option value="apples">Apples</option>
  <option value="oranges" selected>Oranges</option>
</piwo-select>

<piwo-select name="fruit" multiple>
  <option>Africa</option>
  <option>Antarktica</option>
  <option selected>Asia</option>
  <option>Australia and Oceania</option>
  <option selected>Europe</option>
  <option>North America</option>
  <option>South America</option>
</piwo-select>

Input

Input form field.

Uses a native input element for the editing functionality. Hides it from accessible technologies. (This may yet change.) The host element itself has the role textbox.
Form-associated element. Can be used like input[type=text] and other types using a textbox for editing.
Implements many attributes of the native element.
Can be supplied with type-ahead values or range tick-marks in datalist put into a data sklot.
Supports types color, date, datetime-local, email, file, month, number, password, range, search, tel, text, time, url and week.
Supports events click, beforeinput, input and change including preventDefault.
Fills the value to FormData.
Remembers the current value for back and forth navigation in the browser.
Can reset the value on form reset.
Exposes states disabled, empty, readonly and required in CSS.
Validates input including custom errors.
Emphasises valid or invalid state if aria-invalid is set explicitly.
Allows either showing the browser popup, or a HTML message for invalid fields, if describeerror is set and the last ID in aria-describedby points to an element with content. If the element is hidden, it'll be temporarily shown.

<piwo-input name="last-name" type="text" aria-label="Last name"
            placeholder="Enter your last name"></piwo-input>
<piwo-input name="missing-last-name" type="text" aria-label="Last name"
            placeholder="Enter your last name" aria-invalid="true"
            required></piwo-input>
<piwo-input name="entered-last-name" type="text" aria-label="Last name"
            placeholder="Enter your last name" aria-invalid="false"
            required value="Doe"></piwo-input>

<br><br>

<piwo-input name="email" type="email" aria-label="E-mail address"
            placeholder="Enter an e-mail address"></piwo-input>

<piwo-input name="url" type="url" aria-label="Url"
            placeholder="Enter a URL"></piwo-input>

<piwo-input name="phone" type="tel" aria-label="Phone number"
            placeholder="Enter a phone number"></piwo-input>

<piwo-input name="date" type="date" aria-label="Date"></piwo-input>

<piwo-input name="date-time" type="datetime-local" aria-label="Date and time"></piwo-input>

<piwo-input name="time" type="time" aria-label="Time"></piwo-input>

<piwo-input name="month" type="month" aria-label="Month"></piwo-input>

<piwo-input name="week" type="week" aria-label="Week"></piwo-input>

<piwo-input name="secret" type="password" aria-label="Secret"
            placeholder="Enter your secret"></piwo-input>

<piwo-input name="color" type="color" aria-label="Your favourite colour"></piwo-input>

<piwo-input name="range" type="range" aria-label="Range" min="0" max="3" step="1"></piwo-input>

<piwo-input name="grade" type="range" aria-label="Grade" min="1" max="3" step="1" ticks>
  <datalist slot="data">
    <option value="1">Minimum</option>
    <option value="2">Normal</option>
    <option value="3">Maximum</option>
  </datalist>
</piwo-input>

TextArea

TextArea form field.

Lightweight - only a slot for the edited text. The host element itself has the role textbox.
Form-associated element. Can be used like textarea.
Implements many attributes of the native element.
Supports events beforeinput, input and change including preventDefault.
Fills the value to FormData.
Remembers the current value for back and forth navigation in the browser.
Can reset the value on form reset.
Exposes states disabled, empty, readonly and required in CSS.
Validates input including custom errors.
Emphasises valid or invalid state if aria-invalid is set explicitly.
Allows either showing the browser popup, or a HTML message for invalid fields, if describeerror is set and the last ID in aria-describedby points to an element with content. If the element is hidden, it'll be temporarily shown.

<piwo-textarea name="review" aria-label="Review" placeholder="Write a review"></piwo-textarea>
<piwo-textarea name="missing-review" aria-label="Review" placeholder="Write a review"
               aria-invalid="true" required></piwo-textarea>
<piwo-textarea name="entered-review" aria-label="Review" placeholder="Write a review"
               aria-invalid="false" required>I like it.</piwo-textarea>

Small

Small text, which serves as an information or error message for form fields.

Lightweight - only a slot for inner content. The host element has no role.
Multi-purpose. Information message can be temporarily replaced by the error message.
Can be used just like the native elements - by having the field point to it by the aria-describedby attribute.

<piwo-small>© 2024 Ferdinand Prantl</piwo-small>

<br><br>

<piwo-input name="user-name" type="text" placeholder="Enter your user name"
            aria-label="User name" aria-describedby="user-name-msg"></piwo-input>
<piwo-small id="user-name-msg">Ask the admin about your user name.</piwo-small>

<piwo-input name="login-name" type="text" placeholder="Enter your login name"
            aria-label="Login name" aria-describedby="login-name-msg"
            aria-invalid="true" required describeerror></piwo-input>
<piwo-small id="login-name-msg">Ask the admin about your login name.</piwo-small>

Heading

Heading element of the level 1 - 6 aligned with h1 - h6.

Lightweight - only a slot for inner content. The host element has the heading role with the corresponding level.

<piwo-h level="1">Title</piwo-h>

Paragraph

Paragraph element.

Lightweight - only a slot for inner content. The host element has the paragraph role.

<piwo-p>Provide your credentials to authenticate to the web application.</piwo-p>

Link

A hyperlink.

Lightweight - only a slot for inner content. The host element itself has the role link.

<piwo-link href="/">Primary</piwo-link>
<piwo-link href="/" kind="secondary">Secondary</piwo-link>
<piwo-link href="/" kind="contrast">Contrast</piwo-link>

Container

Presentation element ensuring fixed responsive width.

Lightweight - only a slot for inner content. The host element has no role.

<piwo-container>
  <main>
    ...
  </main>
</piwo-container>

Horizontal Rule

Vertical line separator.

Lightweight - no content. The host element has the separator role.

<piwo-hr></piwo-hr>

Spacer

Inserts empty vertical space.

Lightweight - no content. The host element has no role.

<piwo-spacer></piwo-spacer>

Findings

Most of the problems found when implementing the custom elements were solved by adding custom code. Only Submitter and Validity Anchor have ugly workarounds. Wrapping elements with children like select or datalist is problematic, involving element clones.

Wrapping

Wrapping of native elements should be avoided, because they require a specific element structure (for example, select - option relation), or references by the ID attribute (for example, input - datalist). Creating shadow DOM in a host element breaks the parent - child element relation and disallows referencing elements on the page by ID. A workaround is cloning or moving the elements from the main page to the shadow DOM. Luckily it's doable for data-only elements like option and optgroup.

Tab Index

Focusability of an element cannot be declared yet. The attribute tabindex has to be set to zero as a workaround. It makes the attribute visible on the element in DOM. Otherwise no problem.

Label

The role of a label cannot be delegated yet, but the click-functionality and the property labels can be implemented by custom code. No problem.

Placeholder

Although the placeholder can be specified by ariaPlaceholder from ElementInternals, it will be used only by the assistive technologies. For sighted users, The placeholder has to be displayed by the implementation of the custom element. It's possible by pure CSS. So, no problem.

Change Event

When using a contenteditable custom element as the host, the change event should be dispatched on blur. Unlike with teh native elements, the event will be dispatched after the blur event, because there's no beforeblur event to hook in. Not a big deal.

Preventing Default Behaviour

To be able to support event.defaultPrevented, input and change events on mouse and keyboard interactions are triggered asynchronously by setTimeout. (The mouse and keyboard handlers registered by the custom element are triggered at first.) Native elements process the interaction (probably) synchronously. Probably not a big deal.

Submitter

When calling requestSubmit(submitter) on a form, submitter has to be an input element. It cannot be just a form-associated custom element. A possible workaround is to create a temporary input element and optionally assign it a nameattribute, when the submit is triggered by custom button. It's a problem, because event.explicitOriginalTarget won't be set to the actual button, but to the temporary element. A custom interface can be provided, like setting form.submitter to the input element and form.submitter.button to the actual button, but it's different from the native interface.

On the other hand, the submitter doesn't have to be read dynamically using the event or the form. Forms usually have well-known submit buttons. And forms with more submit buttons assign a unique value to the name attribute to be able to recognise the button in FormData on the client or on the server side.

Validity Anchor

When calling setValidity from ElementInternals with an anchor, this anchor has to be an input element. It cannot be just a form-associated custom element. A clumsy workaround is to create a hidden input element and make it visible when the custom element becomes invalid. If it's zero-sized, it won't be visible, but it'll be focusable, when hitting the Tab key in the invalid element. It's a problem, waiting for a better workaround.

On the other hand, real-world forms use error placeholders referred to by aria-describedby anyway. I added automatic showing and hiding of the error placeholder (describeerror) and focusing of the first invalid field in the form (focuserror) beyond the native element functionality for convenience and also to provide a good workaround for the not working anchor.

Checkbox

Better than the native element, the custom element can support the readonly attribute and the indeterminate attribute in the markup. Great!

Form from Schema

There're methods provided to generate HTML markup for a form from JSON Schema and Alpaca extension and for extracting an object with field values from FormData compliant with the schema.

import { appendFormContent, getFormValues, registerCustomValidation } from 'piwecko'

const data = {}
const schema = {
  properties: {
    name: { type: 'string', title: 'Name', required: true },
    password: { type: 'string', title: 'Password', required: true }
  }
}
const options = {
  fields: {
    name: { placeholder: 'Enter your login name' },
    password: {
      type: 'password',
      placeholder: 'Enter your password',
      helper: 'The password has to be at least 8 characters long, ' +
              'include at least 1 lower-case letter, ' +
              '1 upper-case letter and 1 number.'
    }
  }
}
const form = {
  buttons: {
    submit: { title: 'Submit' },
    reset: { title: 'Reset', type: 'reset' }
  }
}
appendFormContent(formElement, { data, schema, options, form })

registerCustomValidation(formElement, 'password', ({ value }) => {
  if (value.length < 8) return 'The password has to be at least 8 characters long.'
  if (!/[a-z]/.test(value)) return 'The password has to include at least 1 lower-case letter.'
  if (!/[A-Z]/.test(value)) return 'The password has to include at least 1 upper-case letter.'
  if (!/[0-9]/.test(value)) return 'The password has to include at least 1 number.'
})

formElement.addEventListener('submit', event => {
  event.preventDefault()
  const values = getFormValues(event.target, schema)
  console.log(`Form values:`, values)
})
