r-floater

Props

prop	type	default	description
items	Array Of Objects	Required	List Of Floated HTMLs
relations	Object	Optional	List Of Items Relations
zoom	Number(int)	1	Zoom Value Of Scene
screen	Array (2 int Number)	0,0	Coordinates Of Screen Focus
snap	Array (3 member)	0,0,''	Set Snap Grid horizontal dimension , vertical dimension , color
selectedStyle	Css Object	Optional	Set selected item style
onPan	function (get changed screen prop)	Optional	Callback for panning screen
onZoom	function (get changed zoom prop)	Optional	Callback for zooming scene
onChange	function (get changed items array,get coords of all items object)	Optional	send changes of items coords to parent for info
getMousePosition	function (get mouse coords on scene as array)	Optional	send mouse coords to parent for info
connectType	Number (1 or 2 or 3)	1	set relation lines type
simpleConnect	Boolean	true	set relation lines(apart or not)
lineWidth	Number(int +)	1	set relation lines width
lineDash	Array(2 int number +)(ex:3, 2)	Optional	set relation lines dash style
lineColor	String(color)	'#6f8ea7'	set relation lines color
fontColor	String(color)	'#6f8ea7'	set relations font color
fontSize	Number	10	set relations text font size
textTop	Number	-5	set relations text vertical offset
textLeft	Number	0	set relations text horizontal offset
arrowSize	Array (2 number from 0 to up) (ex:20, 10)	10,12	set relations arrow size

items prop

each item (object)

property	type	default	description
left	Number	0	left coordinate of item
top	Number	0	top coordinate of item
id	String	Required	id of item (unique)
template	HTML	Required	content of item
show	Boolean	true	set item visible or hidden
move	Boolean	true	Set item movable or not

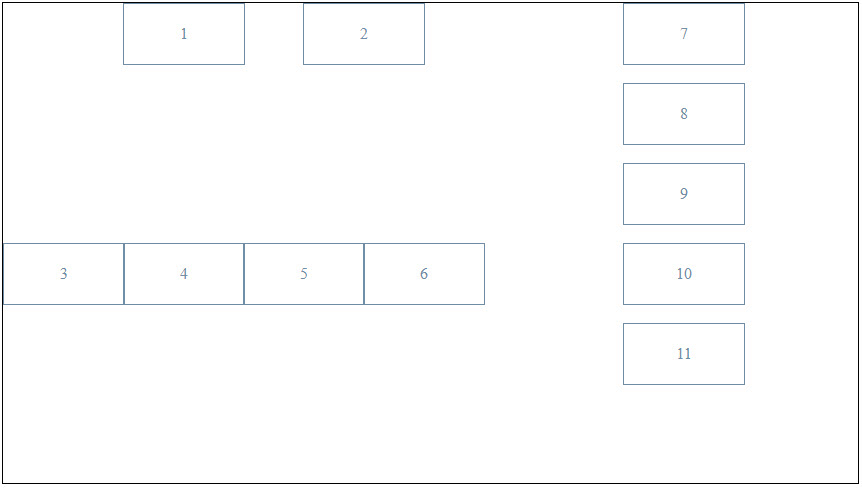

Example

<RFloater
  items={[
    {template:<Panel number={1}>,id:'panel1',left:120,top:40},
    {template:<Panel number={2}>,id: 'panel2',left:260,top:0},
    {template:<Panel number={3}>,id: 'panel3',left:0,top:240},
    {template:<Panel number={4}>,id: 'panel4',left:120,top:240},
    {template:<Panel number={5}>,id: 'panel5',left:240,top:240},
    {template:<Panel number={6}>,id: 'panel6',left:360,top:240},
    {template:<Panel number={7}>,id: 'panel7',left:620,top:0},
    {template:<Panel number={8}>,id: 'panel8',left:620,top:80},
    {template:<Panel number={9}>,id: 'panel9',left:620,top:160},
    {template:<Panel number={10}>,id: 'panel10',left:620,top:240},
    {template:<Panel number={11}>,id: 'panel11',left:620,top:320},
  ]}
/>

Panel Component

class Panel extends Component{
  render(){
    var {text,number} = this.props;
    return(
      <div
        className="box"
        style={{
          width:'120px',
          height:'60px',
          display:'flex',
          background:'#fff',
          border:'1px solid #6f8ea7',
          color:'#6f8ea7',
          alignItems:'center',
          justifyContent:'center',
          userSelect: 'none'
        }}
      >{number}</div>
    )
  }
}

relations props

Example

<RFloater
  ...
  relations={{
    'panel1':[
      {to:'panel2',text:'5.2%'},
      {to:'panel3',text:'13%'},
      {to:'panel4',text:'33.3%'},
      {to:'panel5',text:'33.3%'},
      {to:'panel6',text:'33.3%'},
    ],
    'panel2':[
      {to:'panel7',text:'5.2%'},
      {to:'panel8',text:'13%'},
      {to:'panel9',text:'33.3%'},
      {to:'panel10',text:'33.3%'},
      {to:'panel11',text:'33.3%'},
    ]
  }}
  ...
/>
