raspberrypi-rotary-encoder v1.13.0

js-raspberrypi-rotary-encoder

Reliable monitoring of rotary encoders from a raspberry pi

This module allows you to monitor the rotation and the switch state of a rotary encoder from a raspberry pi. It's use shell to communicate with python awesome gaugette library.

This package has dependencies using wiringpi pins numerotation:

Installation

Then install this module that way:

    npm install raspberrypi-rotary-encoder

Usage

See more examples into the 'examples' folder

    const Rotary = require('raspberrypi-rotary-encoder');

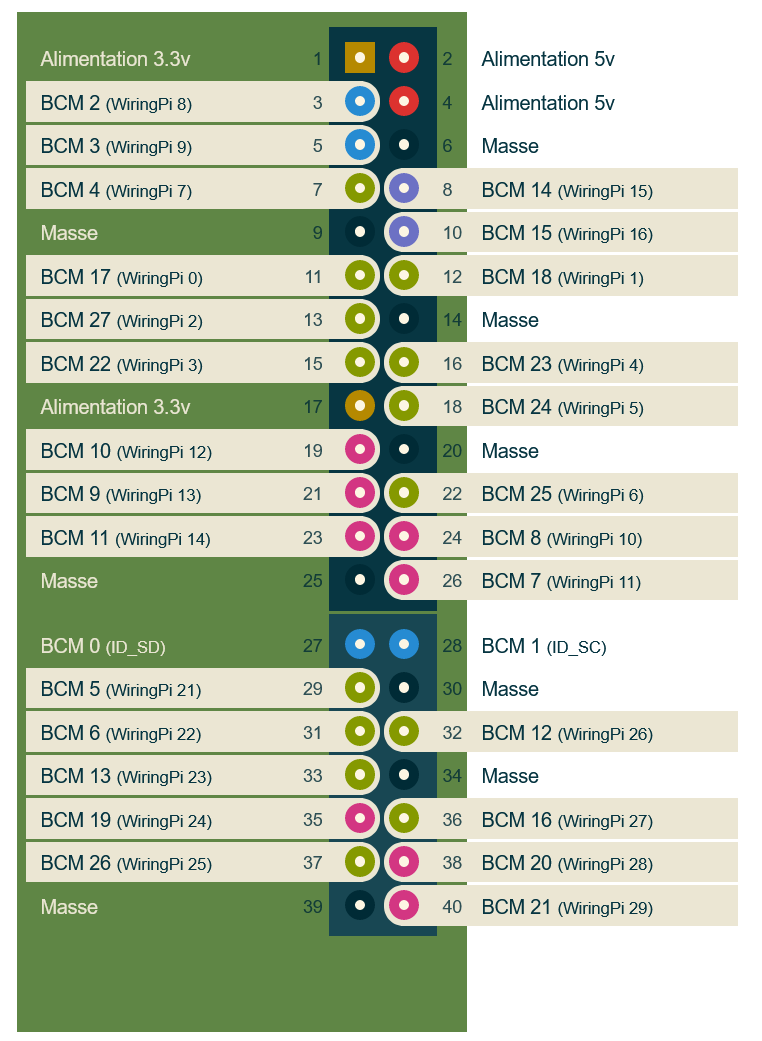

    // WARNING ! This is WIRINGPI pin numerotation !! please see https://fr.pinout.xyz/pinout/wiringpi#*
    const pinClk = 0;
    const pinDt = 1;
    const pinSwitch = 2;  // Optional switch

    const rotary = new Rotary(pinClk, pinDt, pinSwitch);

    rotary.on("rotate", (delta) => {
      console.log("Rotation :"+delta);
    });
    rotary.on("pressed", () => {
      console.log("Rotary switch pressed");
    });
    rotary.on("released", () => {
      console.log("Rotary switch released");
    });

API

• constructor(pinClk, pinDt, pinSwitch).
  • The clock pin number USING WIRINGPI NUMEROTATION !
  • The data pin number USING WIRINGPI NUMEROTATION !

  • If your rotary encoder has a integrated switch you can specify it here, unless it will be ignored

  Tips: Revert the order of the two first parameters to inverse the rotary values (clock-wise/ anti clock-wise)

Events

• rotate. Fired when you rotate your rotary encoder.
  • delta : int. The number of steps your rotary has just rotate.
• pressed. Fired when you press the switch of your rotary encoder.
• released. Fired when you release the switch of your rotary encoder.

Github sources
