react-hwe-editor

React based implementation of HELM Web Editor.

HELM

HELM (hierarchical editing language for macromolecules) is both a notation, and a set of tools and applications that implement the notation. It allows (among other things) the compact representation of complex biomolecules, includes the ability to use non-natural monomers, enables you to create conjugates of different types of polymers or small molecules and describe ambiguity.

Our wiki is the best place to start if you have a general interest in HELM. You can get easy access to compiled versions of the tools, links to the documentation including slide sets, videos and information about the community and project.

Developers will find all the open source code under this PistoiaHELM organisation.

We have an active group which meets regularly and works on extending the tools and supporting HELM. We love it when new people want to get involved, so please do get in touch.

Email us at info@openHELM.org

HELM WebEditor

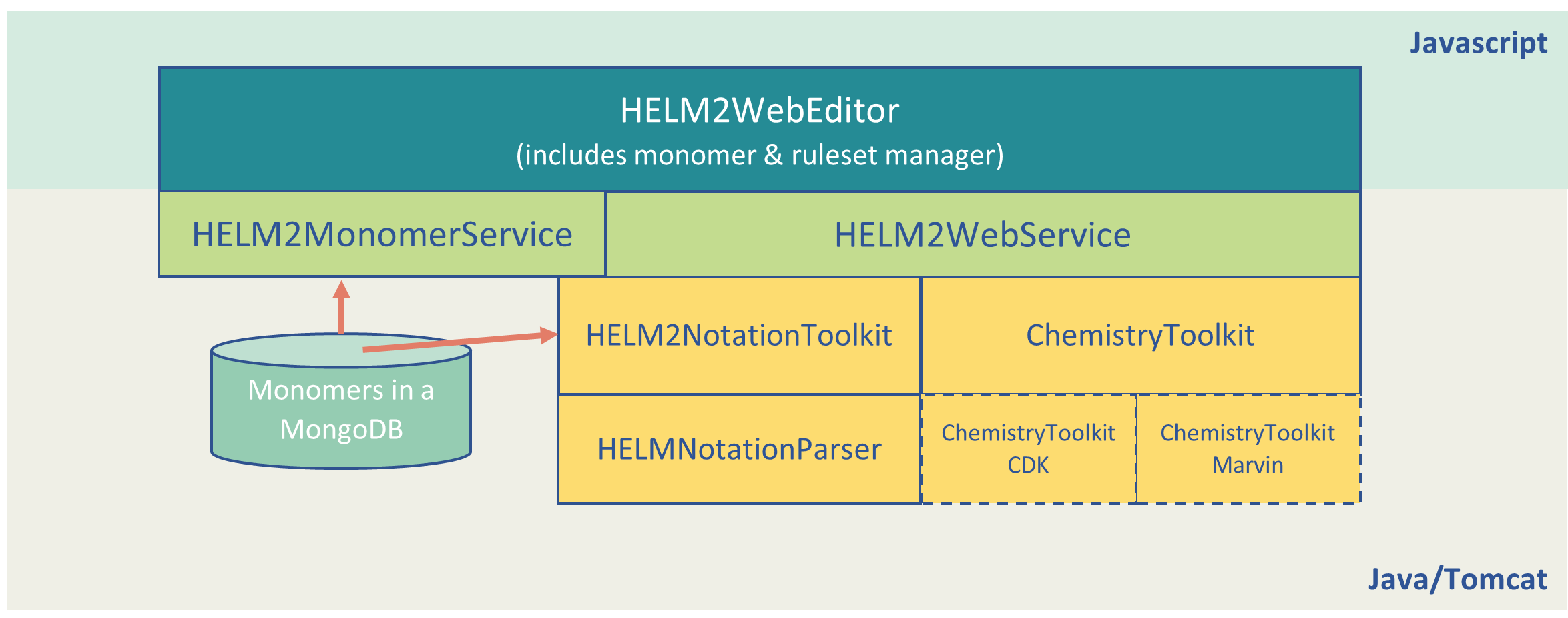

The HELM Web Editor react (HWE) is a react based implementation of HELM. The webeditor depends on a set of services which have been split into modules for easier maintenance. The diagram below shows the relationship between the components.

npm.io

Install

npm i
npm i --save styled-components
npm i --save reactjs-popup
npm i --save @pistoiahelm/react-hwe-editor --registry=https://npm.pkg.github.com

Link to NPM Package

react-hwe-editor

useHWE

The useHWE react hook has several parameters to note (examples in the Usage section below):

initHelm: input helm notation to be rendered/analyzed by HWE
customConfig: custom configuration settings for HWE

The following is a link to a much more in-depth description of the inputs and outputs for the useHWE hook:

Guide to useHWE hook

proxying

If you want to use the default urls for monomer dbs in your node development environment, include a proxy to http://webeditor.openhelm.org in your own project's package.json:

"proxy": "http://webeditor.openhelm.org"

If deploying to an nginx server, consider the following conf file setup to help guide your own implementation:

worker_processes  1;
worker_rlimit_nofile 8192;

events {
  worker_connections  1024;
}

http {
  server {
    listen 80;
    server_name localhost;
    root /usr/local/etc/nginx/build;
    index index.html;

    location /HELM2MonomerService/rest/ {
      proxy_pass http://webeditor.openhelm.org;
      proxy_http_version 1.1;
      proxy_set_header Upgrade $http_upgrade;
      proxy_set_header Connection 'upgrade';
      proxy_set_header Host $host;
      proxy_cache_bypass $http_upgrade;
    }
  }
}

Usage

Example 1: Basic Editor App

/**
 * Basic example react App using Editor react component
 */
import React from 'react';
import { useHWE } from 'react-hwe-editor';

const App = () => {
    const { Editor, editorProps } = useHWE('helm');

    return(
        <div className='App'>
            <h1>Welcome to my HELM Web Editor App!</h1>
            <Editor {...editorProps}/>
        </div>
    );
}

export default App;

Example 2: Basic Viewer App

/**
 * Basic example react App using Viewer react component
 */
import React from 'react';
import { useHWE } from 'react-hwe-editor';

const App = () => {
    const { Viewer, viewerProps } = useHWE('helm');

    return(
        <div className='App'>
            <h1>Welcome to my HELM Web Editor Viewer App!</h1>
            <Viewer {...viewerProps}/>
        </div>
    );
}

export default App;

Example 3: Custom Data Handling

/**
 * More complex usage case handling viewer data
 */
import React, { useState } from 'react';
import { useHWE } from 'react-hwe-editor';

const App = () => {
    const { Viewer, viewerProps } = useHWE('helm');
    const [myMW, setMyMW] = useState('');

    // details about all viewerProps
    viewerProps.displayMolecularProperties = false;
    viewerProps.viewerCallback = (data) => {
        setMyMW(data.molecularProps.mw);
    }

    return(
        <div className='App'>
            <h1>Welcome to my HELM Web Editor Viewer App!</h1>
            <h4>Current Molecular Weight: {myMW} </h4>
            <Viewer {...viewerProps}/>
        </div>
    );
}

Example 4: Multiple Viewers

/**
 * More complex usage case handling multiple viewers and callbacks
 */
import React, {useState} from 'react';
import { useHWE } from 'react-hwe-editor';

const App = () => {
    const { Viewer, viewerProps } = useHWE('helm');

    const [myHELM, setMyHELM] = useState();
    const [myHELM2, setMyHELM2] = useState();
    const [myMW, setMyMW] = useState();

    const myCallback = (data)=> {
        setMyHELM(data.helm)
    }

    const myCallback2 = (data)=> {
        setMyHELM2(data.helm)
    }

    const myCallback3 = (data) => {
        setMyMW(data.molecularProps.mw)
    }

    viewerProps.viewerCallback = myCallback;
    const viewerProps2 = {...viewerProps, ...{viewerCallback: myCallback2, initHELM: 'helmhelm'}}
    const viewerProps3 = {...viewerProps, ...{viewerCallback: myCallback3, initHELM: 'asdf'}}

    return(
        <div className='App'>
            <h1>Welcome to my HELM Web Editor Viewer App!</h1>
            <h4>Current HELM for viewer 1: {myHELM} </h4>
            <h4>Current HELM for viewer 2: {myHELM2} </h4>
            <h4>Current molecular weight for viewer 3: {myMW} </h4>
            <Viewer {...viewerProps} />
            <Viewer {...viewerProps2} />
            <Viewer {...viewerProps3} />
        </div>
    );
}
export default App;

Example 5: Sequence Input

/**
 * More complex usage case handling continuous user input with Viewer
 */
import React, {useState} from 'react';
import { useHWE } from 'react-hwe-editor';

const App = () => { // make control group
    const [myHELM, setmyHELM] = useState('asdf');
    const { Viewer, viewerProps } = useHWE(myHELM);

    const handleChange = (e) => {
        let input = e.target.value;
        setmyHELM(input);
    }

    return(
        <div className='App'>
            <h1>Welcome to my HELM Web Editor Viewer App!</h1>
            <h4>HWE input for Viewer 1: <input onChange={ handleChange }/></h4>
            <Viewer {...viewerProps}/>
        </div>
    );
}

export default App;

Reference the guide to the useHWE hook to see more examples and an in-depth description of the inputs and outputs for the useHWE hook:
