react-lineage-dag v2.1.0-beta.23
Blood Map

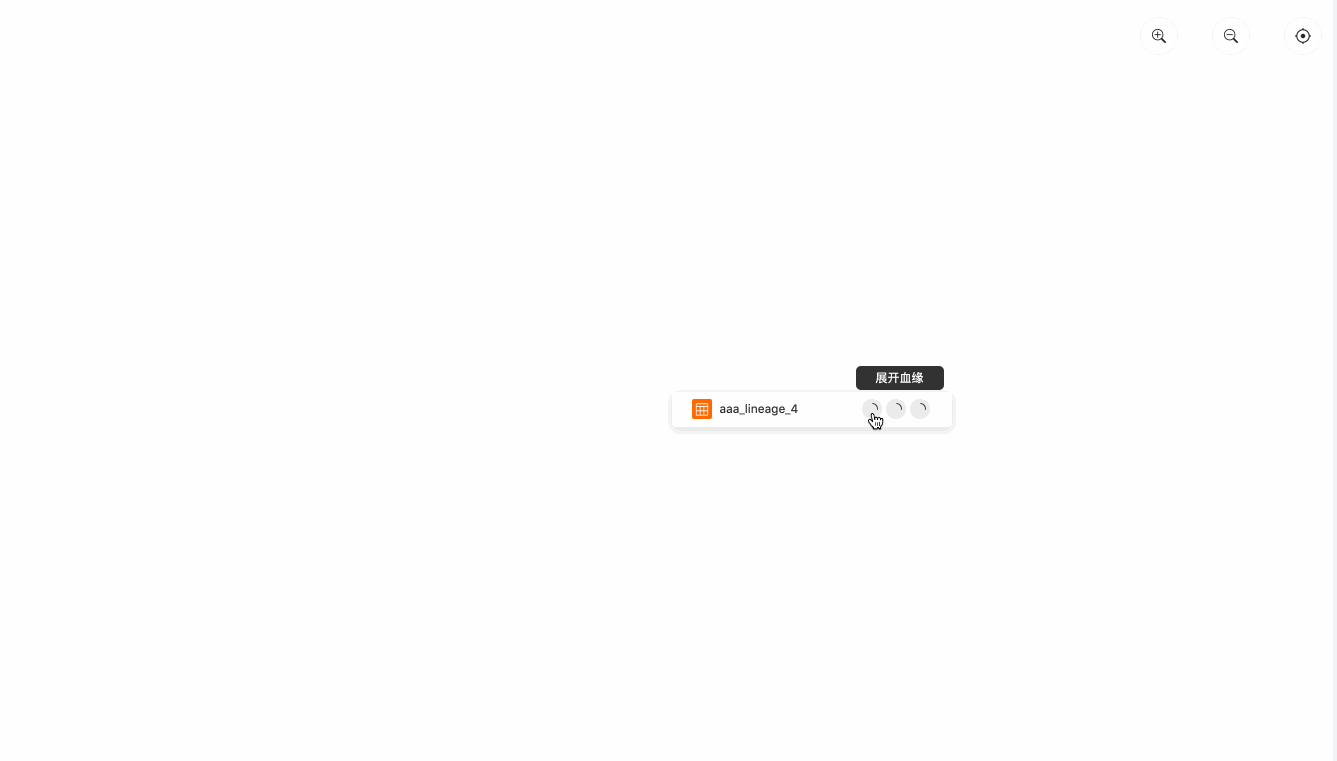

A diagram used to represent relationships between tables and between table and other related entities
English | 简体中文
✨ Features
- relational diagram out of the box
- support custom operations and custom node events
- elegant, natural interaction design
Usage
$ npm install react-lineage-dag@2.x
import LineageDag from 'react-lineage-dag';
// need to import styles
import 'react-lineage-dag/dist/index.css';
const data = {
tables: [
{
id: '1',
name: 'table-1',
fields: [
{
name: 'id',
title: 'id'
},
{
name: 'age',
title: 'age'
}
]
},
{
id: '2',
name: 'table-2',
fields: [
{
name: 'id',
title: 'id'
},
{
name: 'age',
title: 'age'
}
]
},
{
id: '3',
name: 'table-3',
fields: [
{
name: 'id',
title: 'id'
},
{
name: 'age',
title: 'age'
}
]
}
],
relations: [
{
srcTableId: '1',
tgtTableId: '2',
srcTableColName: 'id',
tgtTableColName: 'age'
},
{
srcTableId: '1',
tgtTableId: '3',
srcTableColName: 'id',
tgtTableColName: 'age'
}
]
}
const App = () => {
return (
<LineageDag {...data} />
)
}
Props
Property | Type | Default | Description |
---|---|---|---|
width | number | 100% | Canvas width |
height | number | 100% | Canvas height |
tables | ITable[] | [] | Nodes data, the detailed description is below the table |
relations | IRelation[] | [] | Relations data, the detailed description is below the table |
column | column[] | [] | Property configuration of the column (similar to the concept of column in antd table), the detailed description is below the table |
centerId | string | undefined | Center point, when the center point changes, the canvas will focus on the point |
operator | operator[] | [] | Render configuration of operation buttons on each node, the detailed description is below the table |
className | string | undefined | Class name of canvas |
actionMenu | action[] | [] | Operation button in the upper right corner (zoom in, zoom out, center), the detailed description is below the table |
config | config | {} | Configuration of the canvas, the detailed description is below the table |
onLoaded | Function | noop | Triggered when the butterfly is loaded |
interface ITable {
id: string; // table ID
name: string; // table name
isCollapse: boolean; // whether to collapse all the columns
fields: [] // data stored in columns
}
interface IRelation {
id?: string; // relation ID, not required, but recommended
srcTableId: string; // source table ID
tgtTableId: string; // target table ID
srcTableColName: string; // field name of source table
tgtTableColName: string; // field name of target table
}
interface operator {
id: string; // unique identification of the button
name: string; // chinese name of the button
icon: JSX.Element // rendering of the operator
onClick: (node: any): void // click event
}
interface column {
key: string, // unique identification of the column
width?: number, // column width
primaryKey: boolean, // whether the value corresponding to the key of this column is a key-value pair, corresponding to the primary key concept of the column in antd
render?(text: any, record: any, index: number): void // rendering method of the column
}
interface config {
delayDraw: number; // Delayed rendering, this component must ensure that the canvas container rendering (including animation execution) is completed before rendering, otherwise the coordinates will be offset, such as: antd's modal animation
titleRender?: () => void; // title render of custom node
showActionIcon?: boolean, // whether to display the operation icons: zoom in, zoom out, focus
enableHoverChain: boolean, // whether to enable highlight the chain when hovering
enableHoverAnimate: boolean, // whether to enable highlight the chain with animate when hovering
minimap?: { // whether to enable thumbnail
enable: boolean,
config: {
nodeColor: any
}
}
}
Dev
# after clone this project
$ npm install
$ cd example
$ npm install
$ npm start
